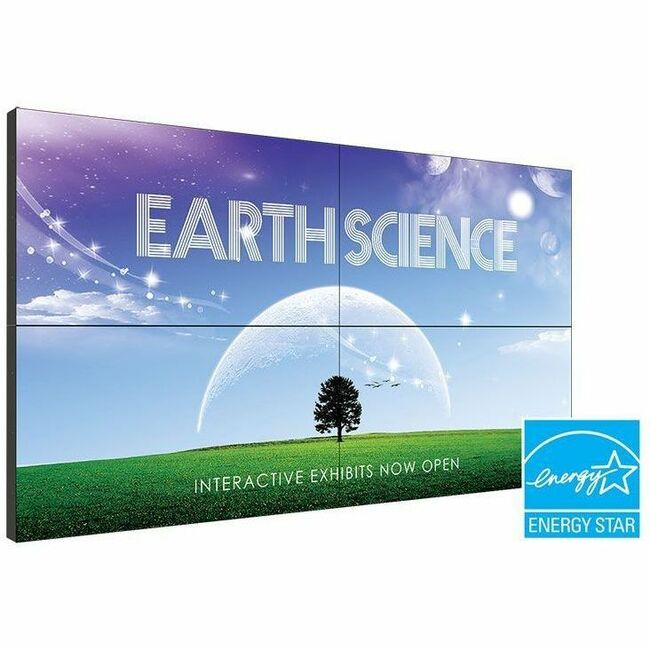

Planar VM55LX-M LCD Video Wall
On back-order, will ship once in-stock
- All Locations: (0+)
| Manufacturer | Leyard |
| Manufacturer Part Number | 998-1151-00 |
| Brand Name | Planar |
| Product Model | VM55LX-M |
| Product Name | VM55LX-M LCD Video Wall |
| Marketing Information | The Planar® VM55LX-M is a 55" tiled LCD video wall display with a 0.88mm tiled bezel width and 500-nit brightness for 24x7 digital signage applications. Featuring IPS panel technology, the Planar VM55LXM has wide viewing angles and local dimming for greater contrast. 4K@60Hz video and RS-232 and IR control loop through simplifies tiling for video walls up to 10x10. With support for landscape or portrait mounting and an integrated OPS slot, the Planar VM55LX-M delivers integration flexibility. To facilitate installation, optional trim pieces and mounts are also available. The Planar VM55LX-M is designed to meet a wide range of applications including retail, hospitality, lobbies, or museums. The Planar VM55LX-M is an ENERGY STAR® certified video wall display. |
| Product Type | Digital Signage Display |
| Video Wall Compatible | Yes |
| Bezel Width | 17.32 mil (0.44 mm) |
| Panel Technology | In-plane Switching (IPS) Technology |
| Operation Hours | 24 Hours/7 Days |
| Number of Screens | 1 |
| Video Wall Configuration | 10x10 |
| Viewable Screen Size | 55" (1397 mm) |
| Screen Size Class | 55" (1397 mm) |
| Display Screen Type | LCD |
| Display Resolution | 1920 x 1080 |
| Response Time | 8 ms |
| Pixel Pitch | 24.80 mil (0.63 mm) |
| Aspect Ratio | 16:9 |
| Backlight Technology | Direct LED |
| Orientation | Landscape/Portrait |
| Scan Format | 1080p |
| Dynamic Contrast Ratio | 20,000:1 |
| Native Contrast Ratio | 1,100:1 |
| Color Depth | 10-bit |
| Brightness | 500 cd/m² |
| Color Gamut | 72% NTSC |
| Ethernet | Yes |
| USB | Yes |
| HDMI | Yes |
| DisplayPort | Yes |
| Serial | Yes |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.0 Ports | 1 |
| Number of HDMI Inputs | 2 |
| Number of DisplayPorts | 1 |
| DisplayPort Output | Yes |
| Number of HDMI 2.0 Ports | 2 |
| Number of DisplayPort 1.2 Ports | 1 |
| Input Voltage |
|
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Minimum Operating Humidity | 20% |
| Maximum Operating Humidity | 85% |
| VESA Mount Standard | 400 x 400 |
| Height | 26.80" (680.72 mm) |
| Width | 47.70" (1211.58 mm) |
| Depth | 3.70" (93.98 mm) |
| Weight (Approximate) | 51 lb (23133.21 g) |
| Housing Material | Metal |
| Package Contents |
|
| Application/Usage |
|
| Energy Star | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Condition | No |
| UPC | 810689006534 |
| Limited Warranty | 3 Year |
