NEC Display 55" Ultra-Narrow Bezel 4 display video wall

Part No. UN552-TMX4P

This Product is currently not in offering

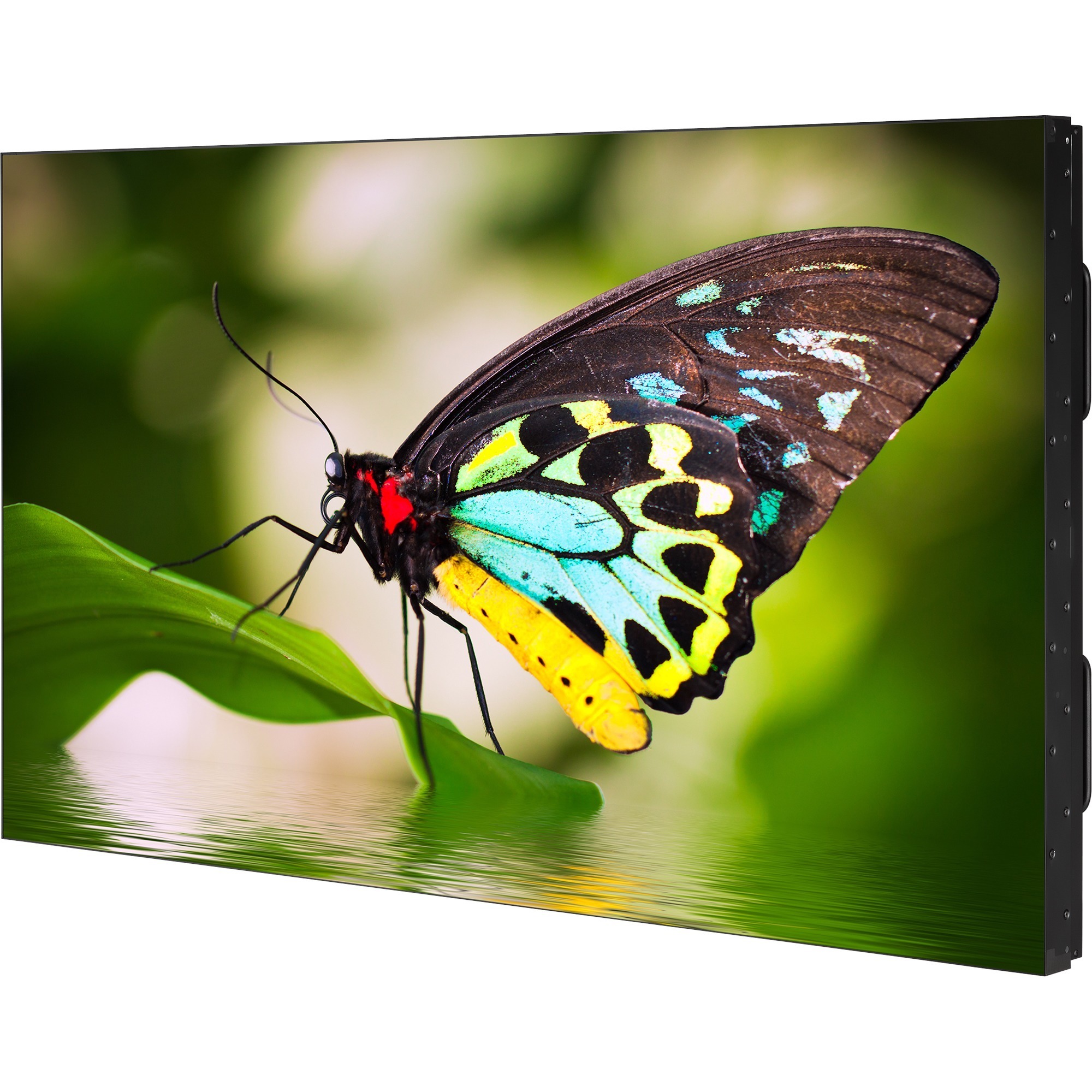

NEC Display 55" Ultra-Narrow Bezel 4 display video wall

Part No. UN552-TMX4P

This Product is currently not in offering

Manufacturer Brochure

Specifications

General Information

Manufacturer	Sharp
Manufacturer Part Number	UN552-TMX4P
Brand Name	NEC Display
Product Model	UN552-TMX4P
Product Name	55" Ultra-Narrow Bezel 4 display video wall
Marketing Information	NEC's complete 55" 2x2 LCD TileMatrix™ Digital Video Wall Solution delivers an all-in-one, easy-to-configure and cost-effective solution that is ideal for dynamic digital signage, information display and command & control applications. Exclusive TileMatrix, TileComp™ and FrameComp technologies, combined with the new glass-to-edge design of the NEC UN551S and the full adjustment capabilities of the Peerless DS-VW775 mounting system, provide for a near seamless video wall without the need for additional third-party equipment. NEC provides everything besides the source to complete your video wall solution! Bundled solution with everything required for a 2x2 video wall makes configuration and installation easy Pull-out mount allows for full-service capabilities and 6-axis adjustment for perfect alignment S-IPS panel technology allows for excellent off-angle viewing and less color shift compared to other technologies Auto ID feature reduces install time in the single press of a button Expanded daisy chain options with UHD passthrough via DisplayPort enables UHD resolution across the entire wall Display wall calibration kit, Overframe Bezel Kit and IR/Human sensor complete the solution Overnight onsite exchange warranty ensures minimum downtime for maximum impact Input Switching Speed minimizes downtime between source transitions Human Sensor Accessory ensures digital signage is directed at a targeted audience Near field communication capabilities for setup and service Video daisy chain limitations apply when High-bandwidth Digital Content Protection (HDCP) is utilized
Product Type	Digital Signage Display

Technical Information

Video Wall Compatible	Yes
Bezel Width (Top)	90 mil (2.29 mm)
Bezel Width (Bottom)	50 mil (1.27 mm)
Bezel Width (Left)	90 mil (2.29 mm)
Bezel Width (Right)	50 mil (1.27 mm)

Display & Graphics

Number of Screens	4
Video Wall Configuration	2x2
Viewable Screen Size	55" (1397 mm)
Screen Size Class	55" (1397 mm)
Display Screen Type	LCD
High Dynamic Range (HDR)	Yes
Display Resolution	1920 x 1080
Backlight Technology	Direct LED

Video

Scan Format	1080p
Brightness	700 cd/m²

Network & Communication

Ethernet	Yes

Interfaces/Ports

USB	Yes
DVI	Yes
HDMI	Yes
DisplayPort	Yes
Serial	Yes
Number of HDMI Inputs	2
Number of DisplayPorts	2

Power Description

Input Voltage	120 V AC 230 V AC

Physical Characteristics

VESA Mount Standard	400 x 400
Mount Type	Wall Mountable
Height	27" (685.80 mm)
Width	47.80" (1214.12 mm)
Depth	4.10" (104.14 mm)
Weight (Approximate)	61.90 lb (28077.37 g)

Miscellaneous

Package Contents	55" Ultra-Narrow Bezel 4 display video wall 3.0m Power Cord 2.0m DisplayPort Cable 2.0m HDMI Cable LAN Cable SD Card Cover Clamp for Power Cable Setup Manual Contents Sheet

Warranty

Limited Warranty	3 Year
