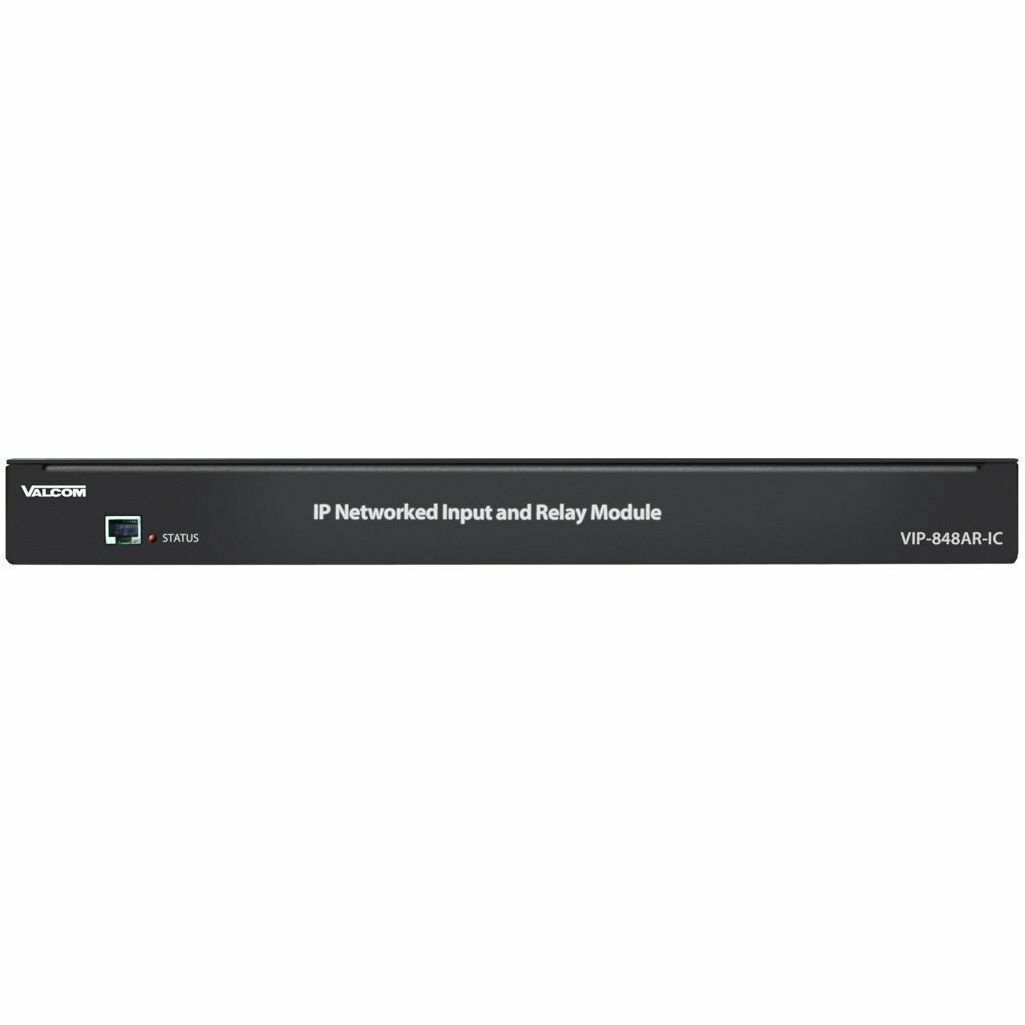

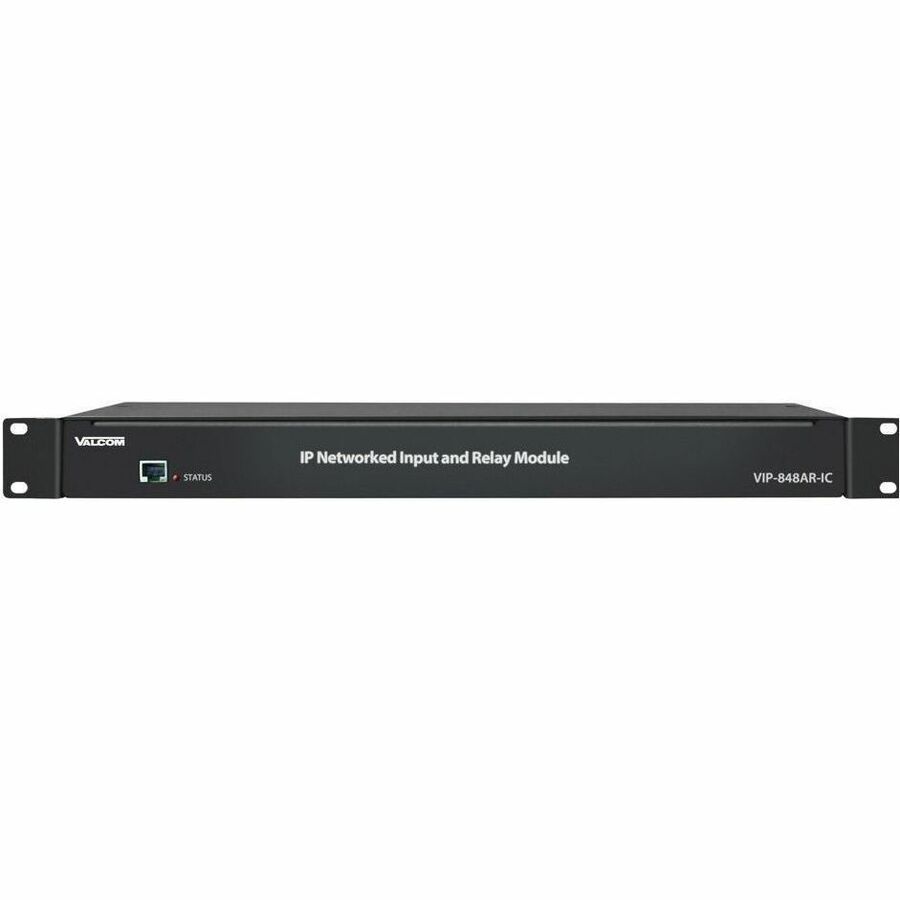

Valcom IP Network Input/Output Module, InformaCast, VIP-848AR-IC
1.75" (44.45 mm) Height x 16.50" (419.10 mm) Width x 9.50" (241.30 mm) Depth - Black - Powder Coated Steel
$1020.99
On back-order, will ship once in-stock
- All Locations: (0+)
General Information
| Manufacturer | Valcom, Inc |
| Manufacturer Part Number | VIP-848AR-IC |
| Brand Name | Valcom |
| Product Model | VIP-848AR-IC |
| Product Name | IP Network Input/Output Module, InformaCast, VIP-848AR-IC |
| Marketing Information | Valcom's InformaCast® IP Input/Output Module allows operation of eight (8) contact closures which are software programmable as either Form A or Form B. Eight (8) contact closure activated inputs provide for various programmable relay functions. The Input/ Output Module allows initiation of Application Server events over an IP based LAN/WAN Multiple devices can easily be connected and controlled via schedules or during emergencies including, but not limited to the following:
|
| Product Type | Home Automation Interface Module |
Technical Information
| Connector Type | RJ-45 |
| Features |
|
Power Description
| Input Current | 325 mA |
| Input Voltage | 24 V DC |
| Power Source | DC/PoE |
Physical Characteristics
| Color Family | Black |
| Product Color | Black |
| Product Material | Powder Coated Steel |
| Material Details | HOUSING AND FINISH: Steel with black powder coated finish |
| Form Factor | Rack-mountable |
| Height | 1.75" (44.45 mm) |
| Width | 16.50" (419.10 mm) |
| Depth | 9.50" (241.30 mm) |
| Weight (Approximate) | 7.80 lb (3538.02 g) |
| Rack Height | 1U |
Environmental Conditions
| Humidity (Non-condensing) | 0% to 85% |
Miscellaneous
| Application/Usage |
|
| Condition | No |
Warranty
| Limited Warranty | 1 Year |
| Additional Warranty Information | From one year from the date of shipment |
