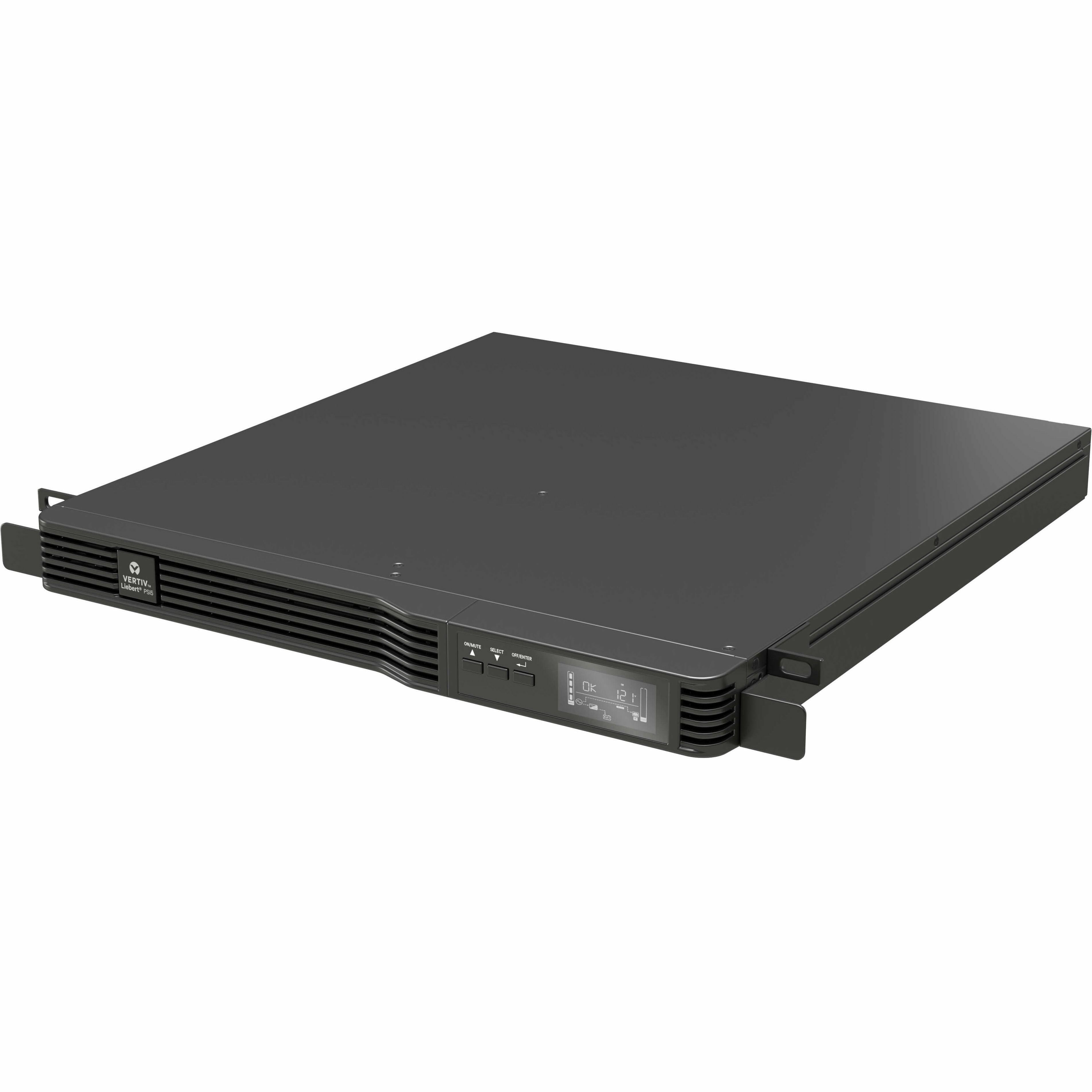

Vertiv Liebert PSI5 UPS - 1000VA 900W 120V 1U Line Interactive AVR Rack Mount UPS, 0.9 Power Factor (PSI5-1000RM1201U)
Compact 1U Rack, Pure Sine Wave Output on Battery, 2 Programmable Outlets, With Option for Remote Monitoring and 39-month Total Coverage
$1196.99
On back-order, will ship once in-stock
- All Locations: (0+)
General Information
| Manufacturer | Vertiv |
| Manufacturer Part Number | PSI5-1000RM1201U |
| Brand Name | Vertiv Liebert |
| Product Series | PSI5 |
| Product Model | PSI5-1000RM1201U |
| Product Name | PSI5-1000RM1201U UPS |

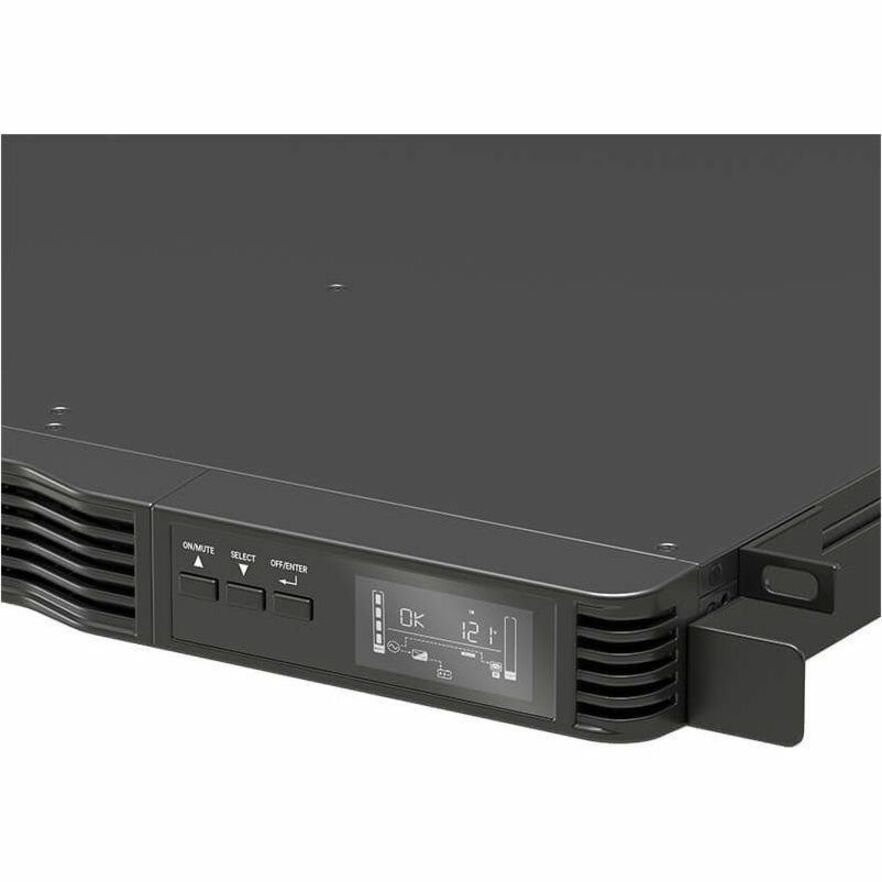

| Marketing Information | The Vertiv Liebert PSI5-1000RM1201U is a 1000VA/900W, 120V line-interactive UPS built for edge and distributed IT environments. This 1U rackmount chassis is 20.1 inches deep with a 0.9 output power factor (PF) and under 6ms transfer time. An LCD display enables quick status checks, and a programmable outlet segment allows management of unresponsive devices or prioritizes critical loads. Add an optional network management card for remote monitoring, management, and firmware updates. |
| Product Type | Line-interactive UPS |
Technical Information
| AVR | Yes |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 5 x NEMA 5-15R |
| Transfer Time | 4 ms |
| Phase | Single Phase |
| Application/Usage |
|
Power Description
| Load Capacity (VA) | 1 kVA |
| Load Capacity (Watt) | 900 W |
| Input Voltage | 120 V AC |
| Input Voltage Range | 75 V AC - 146 V AC |
| Output Voltage |
|
| Input Frequency | 65 Hz |
| Output Frequency | 60 Hz |
| Waveform Type | Pure Sine Wave |
| Output Power Factor | 0.9 |
Interfaces/Ports
| Serial Port | No |
| Network (RJ-45) | No |
| EPO Port | Yes |
| USB (HID Compliant) Port | Yes |
Battery Information
| DC System Voltage | 6 V DC |
| Number of Batteries | 4 |
| Battery Characteristics | Valve-regulated, Non-spillable |
| Battery Chemistry | Lead Acid |
| Battery Size | 6V |
| Battery Capacity | 9000 mAh |
| Backup/Run Time (Full Load) | 5 Minute |
| Backup/Run Time (Half Load) | 13 Minute |
| Typical Battery Recharge Time | 6 Hour |
| Hot Swappable | Yes |
Environmental Conditions
| Maximum Operating Temperature | 104°F (40°C) |
| Storage Temperature | 5°F (-15°C) - 122°F (50°C) |
| Maximum Operating Elevation | 9842.52 ft (3000000 mm) |
| Operating Humidity | 20% - 90% |
| Storage Relative Humidity | 20% - 90% |
Physical Characteristics
| Height | 1.70" (43.18 mm) |
| Width | 17.20" (436.88 mm) |
| Depth | 20.10" (510.54 mm) |
| Rack Height | 1U |
| Form Factor | Rack-mountable |
| Weight (Approximate) | 36.40 lb (16510.76 g) |
Miscellaneous
| Package Contents |
|
| Software Included | Power Insight 2.2 |
| Energy Star | No |
| Country of Origin | China |
| TAA Compliant | No |
| Environmentally Friendly | Yes |
| Environmental Compliance |
|
| Condition | No |
| UPC | 0812105028700 |
Warranty
| Limited Warranty | 3 Year |
