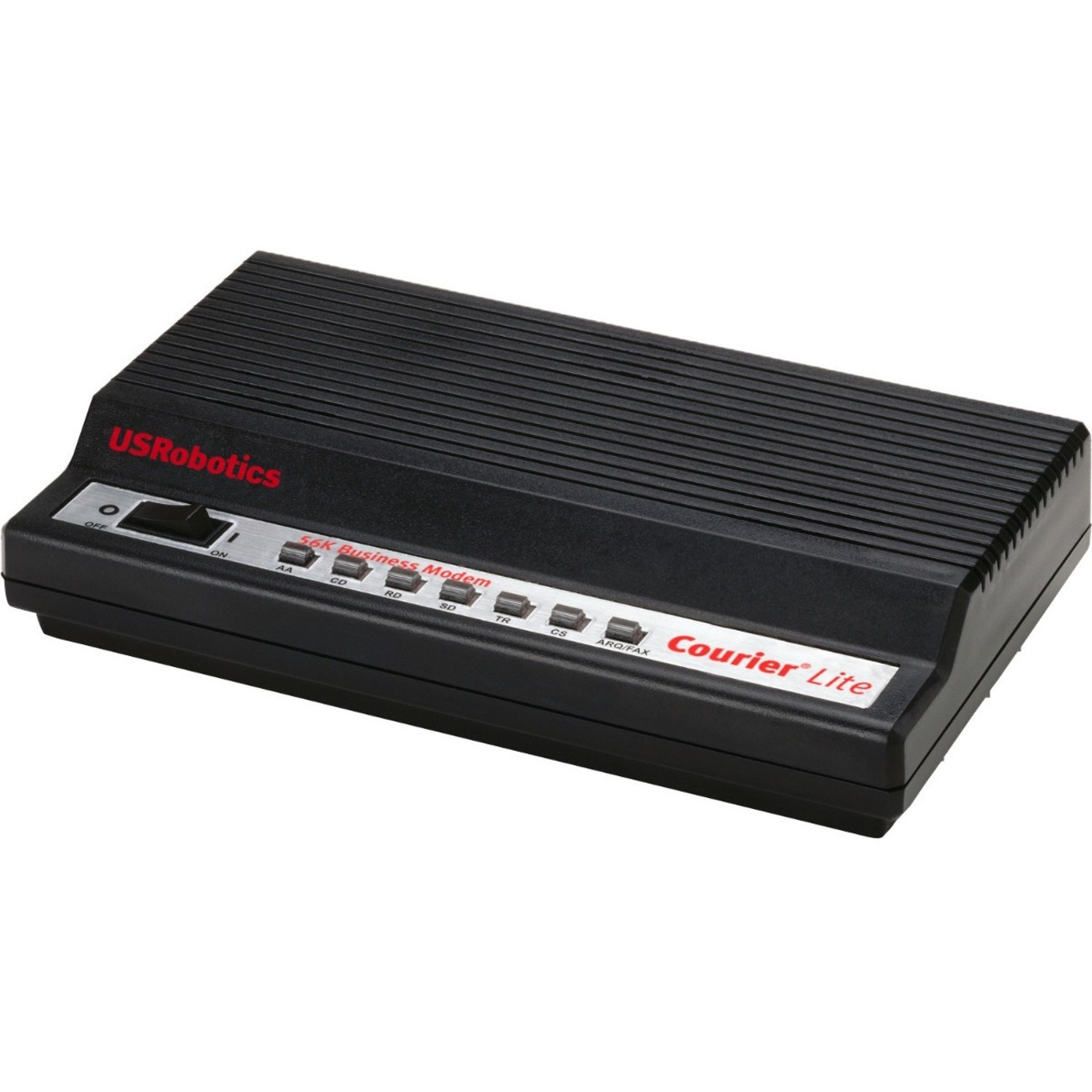

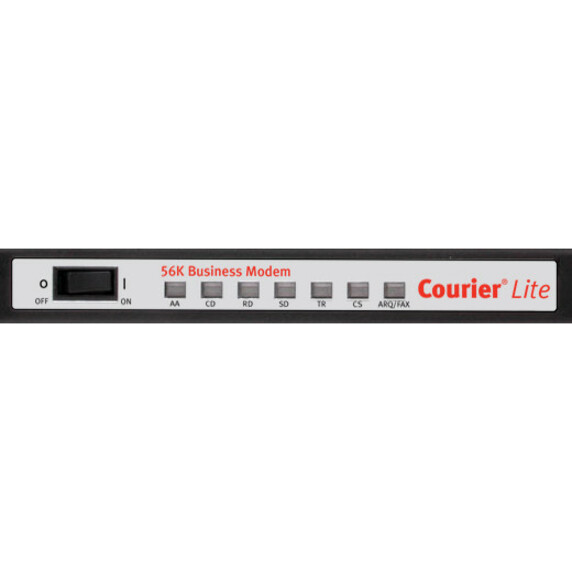

USRobotics Courier Lite 56k Dial Up Business Modem

Part No. USR5686G-PRO

by U.S. Robotics

This Product is currently not in offering

USRobotics Courier Lite 56k Dial Up Business Modem

Part No. USR5686G-PRO

by U.S. Robotics

This Product is currently not in offering

General Information
ManufacturerU.S. Robotics
Manufacturer Part NumberUSR5686G-PRO
Brand NameUSRobotics
Product LineCourier
Product Model5686G-PRO
Product NameCourier Lite 56k Dial Up Business Modem
Marketing Information

MISSION CRITICAL DIAL-UP CONNECTIVITY FOR BUSINESS

The USR® Courier® Lite 56K* Business Modem with V.Everything® technology provides secure, reliable analog connections. Many modems claim reliability, but even fewer offer the multitude of advanced business features like Courier's Carrier Loss Redial, Dialback Security, and Remote Access capabilities. Point of Sale, M2M (Machine to Machine), IoT (Internet of Things) applications as well as Out of Band Management and Remote Management deployments utilize remote access to configure or troubleshoot. With over 1 million units sold world-wide, the Courier family of modems real-world performance is unmatched. When failure is not an option, you need the world-class capabilities that only come from the top of the USR product line.

Product TypeData/Fax Modem
Technical Information
Fax Technology
  • ITU V.17
  • ITU-T V.29
  • ITU-T V.27ter
  • ITU-T V.21
  • EIA 578 Class 1
  • EIA 592 Class 2.0
  • ITU-T Group III
Modulation
  • ITU-T V.92
  • ITU-T V.90
  • ITU-T V.34
  • ITU-T V.32bis
  • ITU-T V.32
  • ITU-T V.23
  • ITU-T V.22bis
  • ITU-T V.22
  • ITU-T V.21
  • ITU-T V.44
  • ITU-T V.42bis
  • ITU-T V.80
  • ITU-T V.42
  • ITU-T V.34plus
Interfaces/Ports
Host InterfaceSerial
Number of Phone Line (RJ-11) Ports2
Media & Performance
Fax Transmission Data Rate14.4 kbit/s
Modem Transmission Data Rate56 kbit/s
Physical Characteristics
Height1.30" (33.02 mm)
Width6.50" (165.10 mm)
Depth3.75" (95.25 mm)
Weight (Approximate)244.9 g
Miscellaneous
Package Contents
  • Courier Lite 56k Dial Up Business Modem

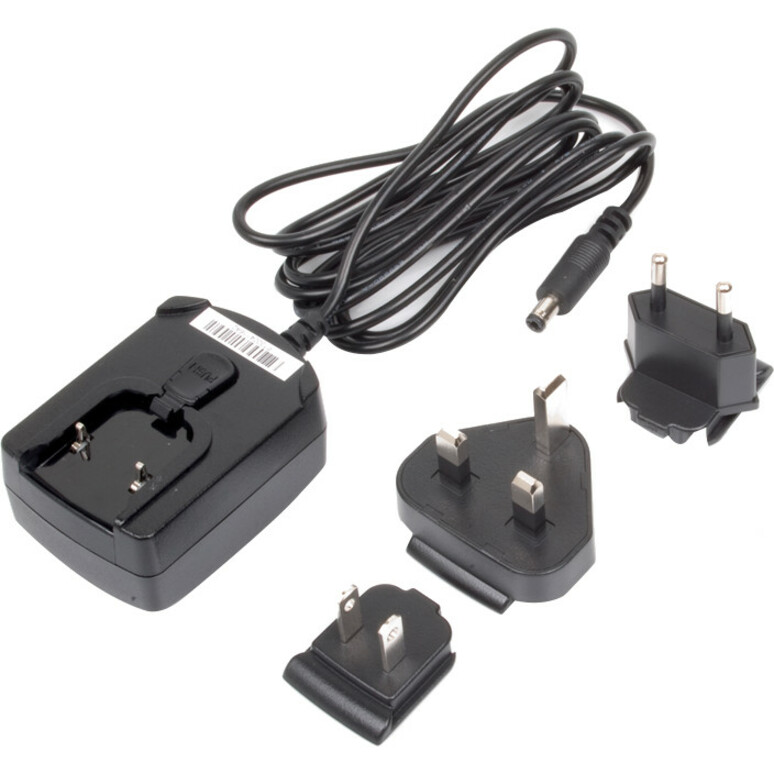

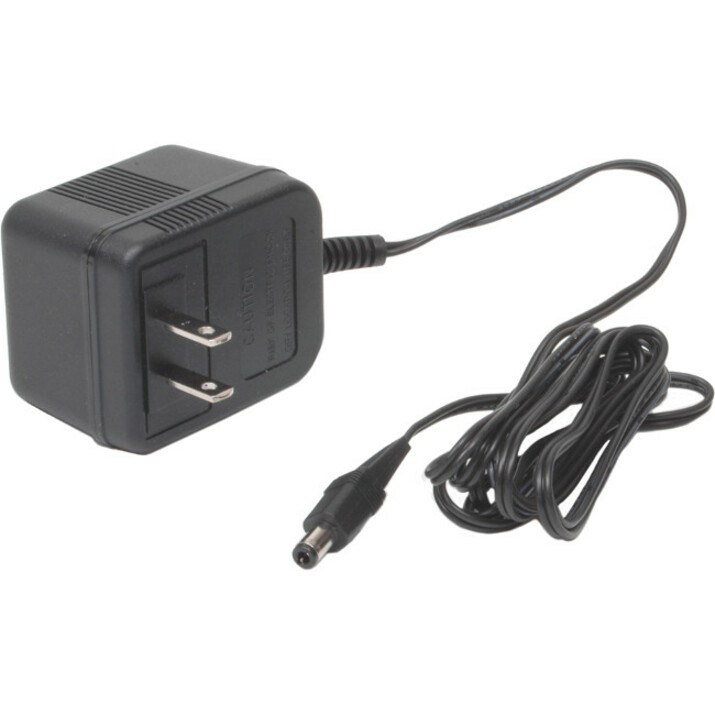

  • Power Supply Unit
  • RJ-11 Phone Cord (7 ft/2.13 m)
  • DB9 to DB25 RS-232 Serial Cable (3 ft/0.91 m)
Environmentally FriendlyYes
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
Country of OriginChina
Warranty
Limited Warranty2 Year
