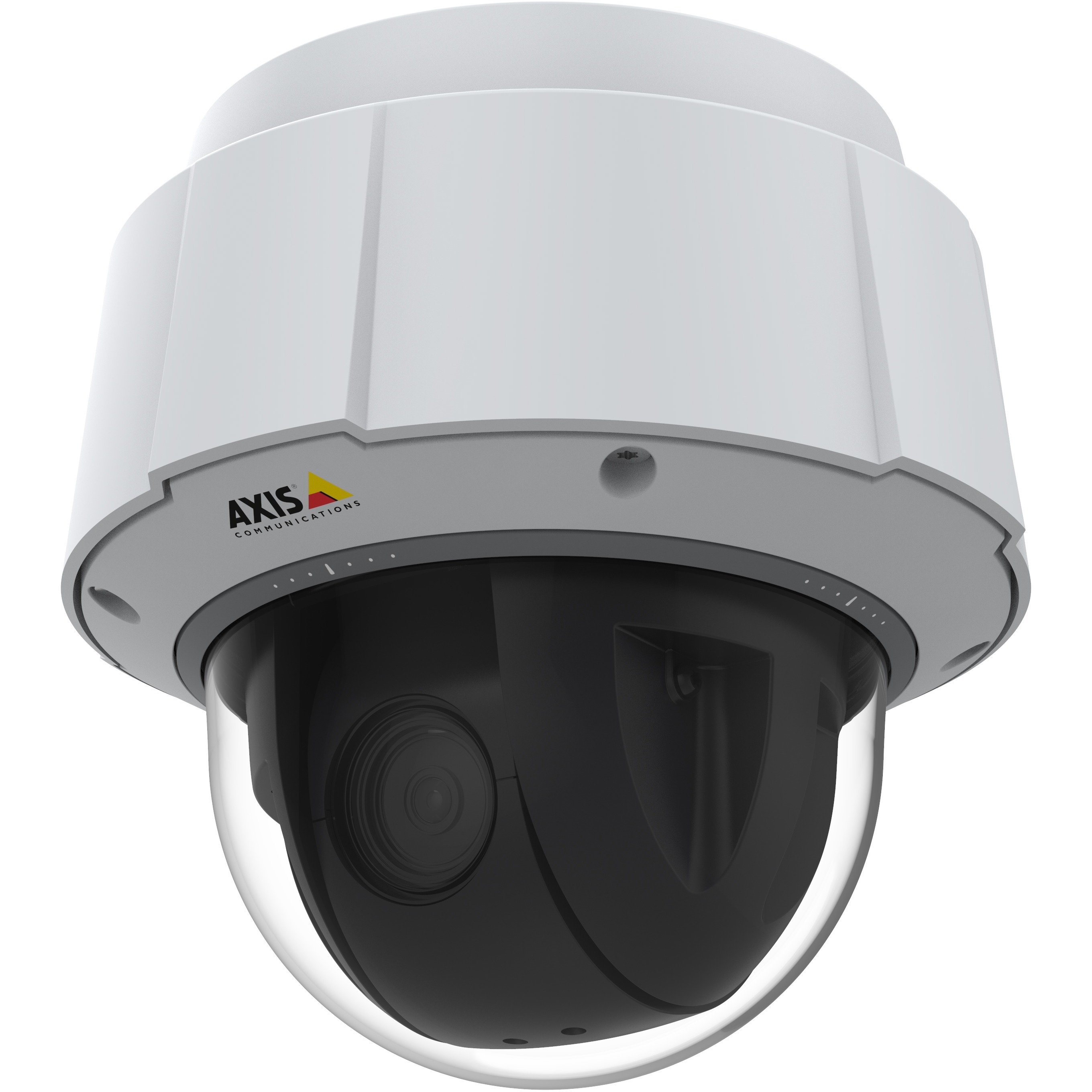

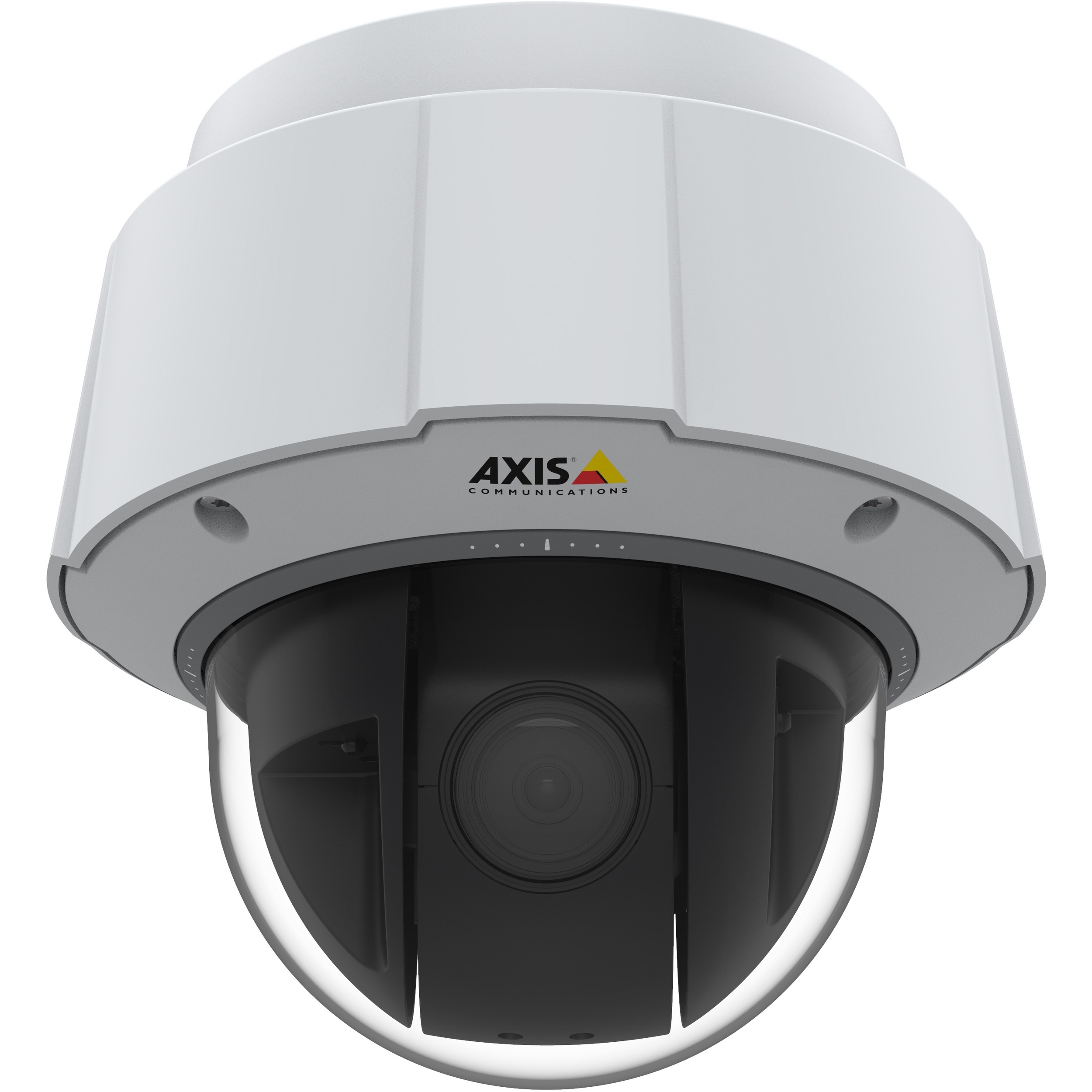

AXIS Q6075-E 2 Megapixel Outdoor Full HD Network Camera - Color - Dome - White

Part No. 01752-004

by Axis Communications

AXIS Q6075-E 2 Megapixel Outdoor Full HD Network Camera - Color - Dome - White

MJPEG, H.264/MPEG-4 AVC, H.265/MPEG-H HEVC, H.264 BP, H.264, H.264 HP, H.264 (MP) - 1920 x 1080 - 4.3 mm (0.17")- 170 mm (6.69") Varifocal Lens - 40x Optical - 60 fps - CMOS - Ceiling Mount, Pendant Mount, Recessed Mount, Wall Mount, Pole Mount, Parapet Mount, Corner Mount - IP66, IP67

Part No. 01752-004

by Axis Communications

$5120.99
General Information
ManufacturerAxis Communications
Manufacturer Part Number01752-004
Brand NameAXIS
Product SeriesQ60
Product ModelQ6075-E
Product NameQ6075-E PTZ Network Camera
Marketing Information
  • HDTV 1080p with 40x optical zoom
  • Axis Lightfinder 2.0
  • Autotracking 2 and orientation aid
  • Built-in analytics
  • TPM, FIPS 140-2 level 2 certified
This robust, high-performance PTZ camera offers superior light-sensitivity for clear, sharp overviews and excellent details in demanding light conditions. It's ideal for mission-critical surveillance in wide, outdoor areas such as cities, industrial and critical infrastructure applications. Featuring the new generation Axis chip, it includes enhanced security features such as signed firmware and secure boot.

Superior details in demanding light conditions

AXIS Q6075-E delivers superior video quality in HDTV 1080p and 40x optical zoom for excellent details. It features Axis Lightfinder 2.0 which captures low-light images with more saturated colors and sharper images of moving objects. And, Zipstream with support for H.264 and H.265 preserves all the important forensic detail you need, while significantly lowering bandwidth and storage requirements.

Whenever, wherever it's needed

This high-performance outdoor PTZ camera with IP66/67, NEMA 4X, and IK10-ratings is protected from dust, rain, snow and impacts. Arctic temperature control ensures startup from a deeply frozen state and operation in temperatures ranging from -40 °C to 50 °C (-40 °F to 122 °F). Autotracking 2 with click and track functionality and an orientation aid allows for active object tracking and quick orientation. AXIS Q6075-E comes with AXIS Guard Suite analytics for detecting motion, intrusion and loitering. Furthermore, where privacy must be kept, privacy masking with mosaic lets you pixelate whole areas such as a neighboring property.

Keeping you secure

This high-performance camera is packed with advanced security functionality to prevent unauthorized access and safeguard your system. Signed firmware ensures that only authorized firmware is installed and guarantees that it hasn't been compromised. And if needed, secure boot guarantees that the camera is completely free of malware after a factory default. For added piece of mind, it includes a Trusted Platform Module (TPM) that is FIPS 140-2 level 2 certified. This module ensures secure storage of all cryptographic keys and certificates even in the event of a security breach.

Product TypeNetwork Camera
Technical Information
Recording FormatsFull HD
HD RecordingYes
Display & Graphics
Image Sensor TypeCMOS
Color SupportedColor
Field of ViewHorizontal field of view: 65.1°-2.00°, Vertical field of view: 39.1°-1.18°
Effective Camera Resolution2 Megapixel
Video
Video Formats
  • MJPEG
  • H.264/MPEG-4 AVC
  • H.265/MPEG-H HEVC
  • H.264 BP
  • H.264
  • H.264 HP
  • H.264 (MP)
Maximum Video Resolution1920 x 1080
Maximum Frame Rate60 fps
Lens
Lens TypeVarifocal
Minimum Focal Length4.3 mm (0.17")
Maximum Focal Length170 mm (6.69")
Lens IncludedYes
Optical Zoom40x
Exposure
Shortest Shutter Speed1/11000 Second
Longest Shutter Speed1/3 Second
Network & Communication
Connectivity TechnologyWired
Remote ManagementYes
Storage
Storage TypeMemory Card
Interfaces/Ports
Network (RJ-45)Yes
Power Description
Power Source TypePoE
Physical Characteristics
Mount Type
  • Ceiling Mount
  • Pendant Mount
  • Recessed Mount
  • Wall Mount
  • Pole Mount
  • Parapet Mount
  • Corner Mount
Form FactorDome
Color FamilyWhite
Product ColorWhite
Height10.59" (269 mm)
Width9.13" (232 mm)
Diameter9.13" (232 mm)
Weight (Approximate)8.27 lb (3750 g)
Environmental Conditions
Minimum Operating Temperature-4°F (-20°C)
Maximum Operating Temperature122°F (50°C)
Maximum Operating Humidity100%
Miscellaneous
Features
  • SD Card Local Storage
  • Password Protection
  • PTZ
  • Back Light Compensation (BLC)
  • Defog
  • HTTPS Encryption
  • Auto Tracking
  • Enter/Exit Detector
  • Day/Night
Indoor/OutdoorOutdoor
Package Contents
  • Q6075-E PTZ Network Camera
  • Axis High PoE 60 W SFP Midspan 1-Port
  • RJ45 Push-Pull Connector (IP66)
  • Sunshield Installation Guide
  • Windows Decoder 1-User License
Ingress Protection Rating
  • IP66
  • IP67
TAA CompliantYes
NDAA CompliantYes
ConditionNo
UPC7331021067325
Warranty
Limited Warranty3 Year
