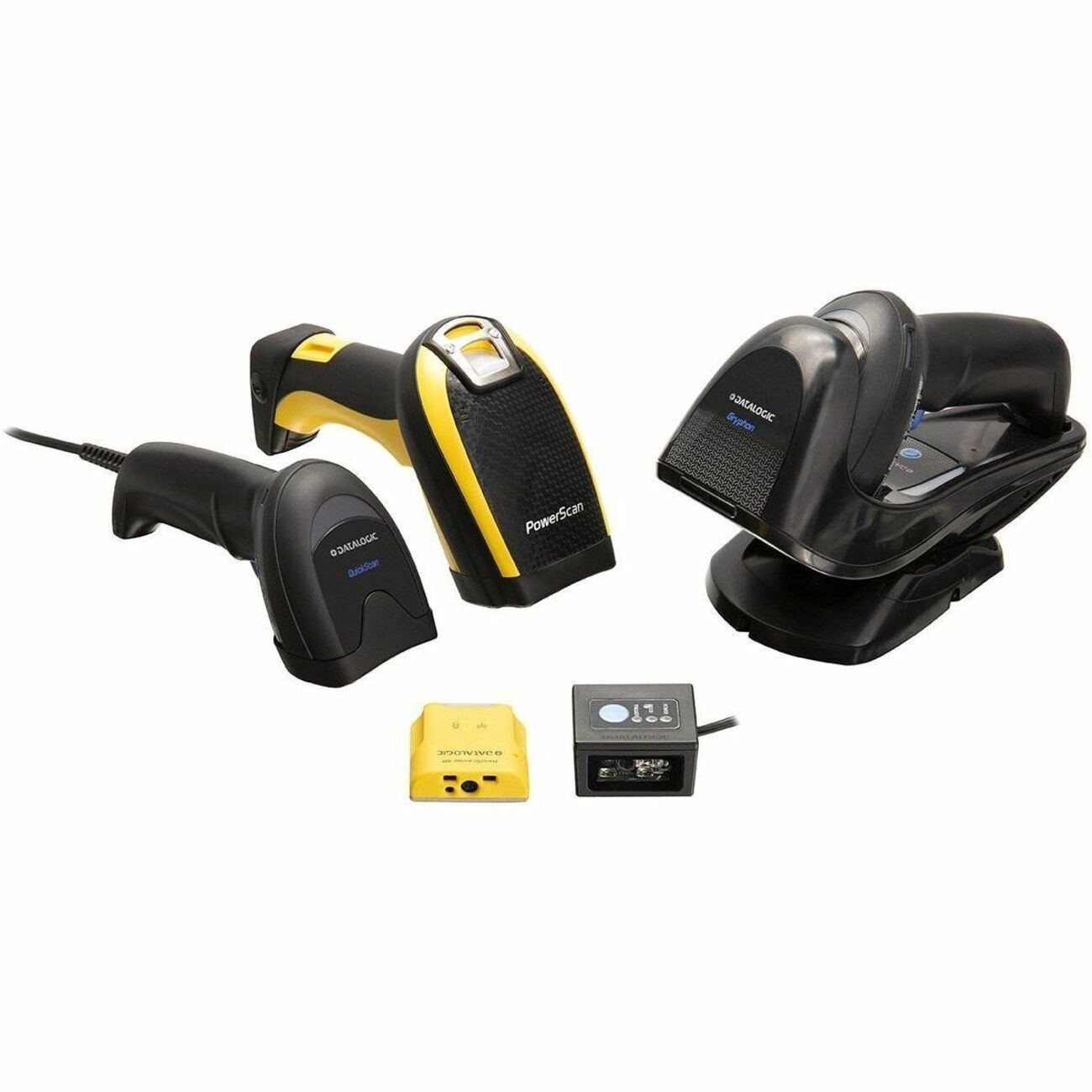

Datalogic PowerScan 9500 PM9501 Barcode Scanner Kit
On back-order, will ship once in-stock
- All Locations: (0+)
| Manufacturer | Datalogic S.p.A |
| Manufacturer Part Number | PM9501-DPM910RB |
| Brand Name | Datalogic |
| Product Line | PowerScan |
| Product Series | 9500 |
| Product Model | PM9501 |
| Product Name | PowerScan 9500 PM9501 Barcode Scanner Kit |
| Marketing Information | AIM, TRIGGER, DECODE: IT'S THAT SIMPLE! An intuitive and effortless scanning experience is the target of the PowerScan™ 9500 series. They combine omnidirectional reading capabilities with outstanding optical characteristics. The result is a scanner that is able to read any kind of bar code, regardless of the orientation, from contact to over 1.0 m / 3.3 ft, depending on the bar code resolution. In addition, Datalogic's latest decoding software guarantees snappy reading in any type of environment. MOBILITY ENHANCES PRODUCTIVITY The Datalogic STAR Cordless System™ for narrow-band radio communications was developed specifically to maximize efficiency and reliability for handheld scanner data collection applications. The PowerScan PM9500 models are equipped with a new generation of the STAR-System that further improves the already outstanding features of versatility, ease of use and radio range. The PM9500 series offers two display options: 4 configurable keys and a full 16-key keyboard. This increases interaction between the host and the user allowing a two-way exchange of information for more reliable and effective communications. The BC9180 base/charger also includes in one model two different Ethernet connections: Standard Ethernet and Industrial Ethernet protocols such as Ethernet IP and Modbus. DEVELOPED WITH THE USER IN MIND Handle shape, well-balanced weight and an intuitive aiming system allows high first-pass reading rates while reducing unnatural wrist movements for improved ergonomics and user comfort. The PowerScan 9500 area imagers use a soft-pulsed white illumination light that is very gentle on the eyes and less troublesome to the operator during scan-intensive applications. |
| Product Type | Barcode Scanner Kit |
| Connectivity Technology | Wireless |
| Scanning Capability |
|
| Barcode Symbology Supported |
|
| Light Source | Laser |
| Image Sensor Type | Imager |
| Depth of Field | Minimum distance determined by symbol length and scan angle; Printing resolution, contrast, and ambient light dependent. |
| Scan Pattern |
|
| Scanner Range | Standard Range |
| Features | Beep |
| Display Screen | Yes |
| Cable Type Included | USB |
| Stand Included | Yes |
| Reading Angle (Skew) | 40° |
| Reading Angle (Pitch) | 40° |
| Reading Angle (Roll) | 360° |
| Image Formats |
|
| Maximum Ambient Light | 100000 lux |
| Drop Specification | Cradle: Withstands 50 drops from 1.2 m / 3.9 ft onto a concrete surface PM9500: Withstands 50 drops from 2.0 m / 6.6 ft onto a concrete surface |
| Minimum Print Contrast | 15% |
| Illumination Type | LED |
| Illumination Color | White |
| Air Electrostatic Discharge (+/-) | 20kV |
| Radio Frequency | Yes |
| Host Interface |
|
| Input Current | 150 mA |
| Battery Included | Yes |
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Battery Capacity | 3350 mAh |
| Maximum Battery Recharge Time | 4.50 Hour |
| Operating Temperature | -4°F (-20°C) to 122°F (50°C) |
| Storage Temperature | -40°F (-40°C) to 158°F (70°C) |
| Humidity (Non-condensing) | 95% |
| Form Factor | Handheld |
| Rugged | Yes |
| Color Family | Dual Color |
| Product Color |
|
| Ingress Protection (IP) Rating | IP65 |
| Application/Usage |
|
| COO | VI |
| Condition | No |
