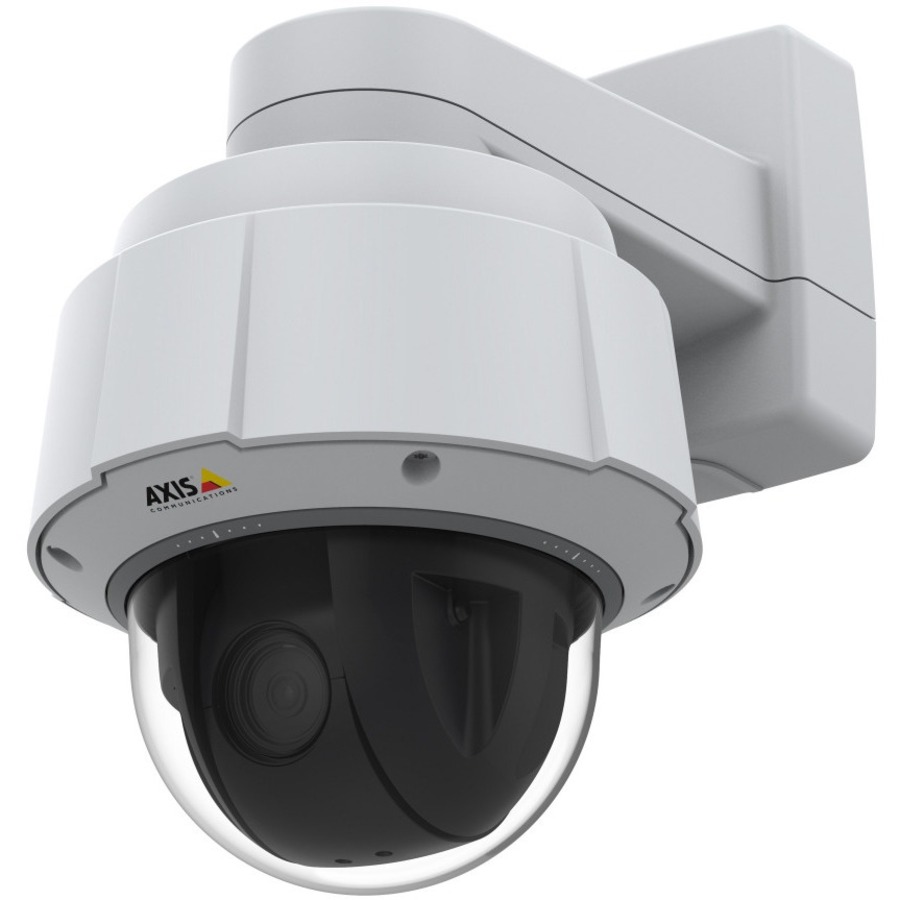

AXIS Q6074-E Outdoor HD Network Camera - Color, Monochrome - Dome - Black, White

Part No. 01974-004

by Axis Communications

AXIS Q6074-E Outdoor HD Network Camera - Color, Monochrome - Dome - Black, White

H.264/MPEG-4 AVC, H.265/MPEG-H HEVC, MJPEG - 1280 x 720 - 4.3 mm (0.17")- 127.5 mm (5.02") Varifocal Lens - 30x Optical - 60 fps - CMOS - Pendant Mount, Recessed Mount, Wall Mount, Pole Mount, Parapet Mount, Ceiling Mount, Corner Mount, Bracket Mount - IK10 - IP66, IP67

Part No. 01974-004

by Axis Communications

$4330.99
General Information
ManufacturerAxis Communications
Manufacturer Part Number01974-004
Brand NameAXIS
Product SeriesQ60
Product ModelQ6074-E
Product NameQ6074-E PTZ Network Camera
Marketing Information
  • HDTV 720p with 30x optical zoom
  • Axis Lightfinder 2.0
  • Autotracking 2 and orientation aid
  • Built-in analytics
  • TPM, FIPS 140-2 level 2 certified

This robust, high-performance PTZ camera offers superior light-sensitivity for clear, sharp overviews and excellent details in demanding light conditions. It's ideal for mission-critical surveillance in wide, outdoor areas such as cities, industrial and critical infrastructure applications. Featuring the new generation Axis chip, it includes enhanced security features such as signed firmware and secure boot.

Superior details in demanding light conditions

AXIS Q6074-E offers HDTV 720p resolution that delivers superior video quality and 30x optical zoom for excellent details. It features Axis Lightfinder 2.0 which captures low-light images with more saturated colors and sharper images of moving objects. And, Zipstream with support for H.264 and H.265 preserves all the important forensic detail you need, while significantly lowering bandwidth and storage requirements.

Keeping you secure

This high-performance camera is packed with advanced security functionality to prevent unauthorized access and safeguard your system. Signed firmware and secure boot guarantees that the firmware hasn't been compromised and ensures only authorized firmware is installed. And if needed, secure boot guarantees the camera is completely free of malware after a factory default. For added piece of mind, it includes a Trusted Platform Module (TPM) that is FIPS 140-2 level 2 certified. This module ensures secure storage of all cryptographic keys and certificates even in the event of a security breach.

Product TypeNetwork Camera
Technical Information
Recording FormatsHD
HD RecordingYes
Display & Graphics
Image Sensor TypeCMOS
Color Supported
  • Color
  • Monochrome
Field of ViewHorizontal field of view: 63.8°-2.6° (720p) Vertical field of view: 38.0°-1.47° (720p)
Video
Video Formats
  • H.264/MPEG-4 AVC
  • H.265/MPEG-H HEVC
  • MJPEG
Maximum Video Resolution1280 x 720
Maximum Frame Rate60 fps
Lens
Lens TypeVarifocal
Minimum Focal Length4.3 mm (0.17")
Maximum Focal Length127.5 mm (5.02")
Lens IncludedYes
Minimum Aperturef/4.2
Maximum Aperturef/1.6
Optical Zoom30x
Exposure
Shortest Shutter Speed1/11000 Second
Longest Shutter Speed1/3 Second
Network & Communication
Connectivity TechnologyWired
Remote ManagementYes
Storage
Storage TypeMemory Card
Interfaces/Ports
Network (RJ-45)Yes
Power Description
Input Voltage
  • 100 V AC
  • 240 V AC
Power Source Type
  • AC
  • PoE
Physical Characteristics
Mount Type
  • Pendant Mount
  • Recessed Mount
  • Wall Mount
  • Pole Mount
  • Parapet Mount
  • Ceiling Mount
  • Corner Mount
  • Bracket Mount
Form FactorDome
Color FamilyDual Color
Product Color
  • Black
  • White
Height10.59" (269 mm)
Diameter9.13" (232 mm)
Weight (Approximate)8.27 lb (3750 g)
Environmental Conditions
Minimum Operating Temperature-4°F (-20°C)
Maximum Operating Temperature122°F (50°C)
Maximum Operating Humidity100%
Miscellaneous
Features
  • SD Card Local Storage
  • Day/Night
  • Password Protection
  • Motion Detection
  • HTTPS Encryption
  • Defog
  • Privacy Masking
  • PTZ
  • Back Light Compensation (BLC)
Indoor/OutdoorOutdoor
Package Contents
  • Q6074-E PTZ Network Camera
  • Axis High PoE 60 W SFP Midspan 1-Port
  • RJ45 Push-Pull
  • Connector (IP66)
  • Sunshield
  • Installation Guide
  • Windows Decoder 1-User License
Impact Protection RatingIK10
Ingress Protection Rating
  • IP66
  • IP67
Country of OriginUnited States
ConditionNo
UPC7331021070028
Warranty
Limited Warranty3 Year
