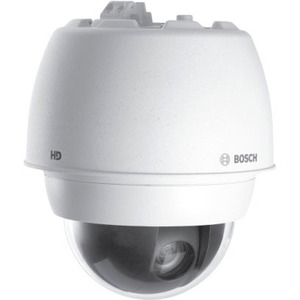

Bosch AutoDome IP Starlight NDP-7512-Z30 2.3 Megapixel Outdoor Full HD Network Camera - Color, Monochrome - 1 - Dome - White

Part No. NDP-7512-Z30

by The Bosch Group

This Product is currently not in offering

Bosch AutoDome IP Starlight NDP-7512-Z30 2.3 Megapixel Outdoor Full HD Network Camera - Color, Monochrome - 1 - Dome - White

Part No. NDP-7512-Z30

by The Bosch Group

This Product is currently not in offering

General Information
ManufacturerThe Bosch Group
Manufacturer Part NumberNDP7512Z30
Brand NameBosch
Product LineAutoDome IP Starlight
Product Series7000i
Product ModelNDP-7512-Z30
Product NameNDP-7512-Z30 PTZ 2MP HDR 30x clear IP66 pendant
Marketing InformationThe AUTODOME IP starlight 7000i camera incorporates the latest in Video Analytics, starlight technology, and video streaming. With starlight imaging technology for excellent low-light sensitivity and the most robust Intelligent Video Analytics on the market, the camera delivers unmatched picture quality. Even under the most challenging light conditions, the 30x PTZ dome camera delivers high-definition (HD) 1080p video. Easy to install, the camera is available in either a field-proven, outdoor pendant housing or an indoor, in-ceiling housing.

Functions

Exceptional low-light performance
The latest sensor technology combined with the sophisticated noise suppression results in an exceptional sensitivity in color. The low-light performance is so good that the camera continues to provide excellent color performance even with a minimum of ambient light.

High dynamic range
The dynamic range of the camera is outstanding and is obvious in real-world performance comparisons. In extended dynamic range mode, the camera uses an electronic shutter to capture four images with different exposure time and reproduce a high-contrast frame. The result is that you can view details in both the bright areas (highlights) and the dark areas (shadows) of a scene at the same time. You can easily distinguish objects and features (for example, faces) with bright backlight.

H.265 high-efficiency video encoding
The camera is designed on the most efficient and powerful H.264 and H.265/HEVC encoding platform. The camera is capable of delivering high-quality and high-resolution video with very low network load. With a doubling of encoding efficiency, H.265 is the new compression standard of choice for IP video surveillance systems.

Snap to zoom
Drawing a box in the image will trigger the camera to zoom to the correct position.

Intelligent Video Analytics on the edge
With built-in video content analysis (VCA), the camera reinforces the Intelligence-at-the-Edge concept where edge devices become increasingly intelligent.
The camera comes with the state-of-the-art VCA method by Bosch, Intelligent Video Analytics, that reliably detects, and analyzes moving objects while suppressing unwanted alarms from spurious sources in the image.
With this method, the camera is able to detect idle and removed objects as well as loitering, multiple line crossing, and trajectories. This method also supports BEV (Bird's Eye View) People counting.

Video Analytics while camera is moving
Outside of pre-positions and even while the PTZ camera is moving, whether on guard tours or manually, the Intelligent Video Analytics application can detect and start alarms when objects are in alarm fields. These alarm fields are defined once across all PTZ camera views. The camera can automatically trigger an alarm if any part of a field within the camera's view becomes active while on a guard tour sweeping across the monitored areas.

Intelligent Tracking
The camera utilizes the built-in Intelligent Video Analytics to follow an individual or an object continuously.
When Intelligent Video Analytics detects objects while the camera is in a stationary position, the camera activates the Intelligent Tracking feature. This feature controls the pan/tilt/zoom actions of the camera to track the objects and keep them in view in the scene. The new Intelligent Tracking is based on robust flow detection algorithms which can reliably track moving objects even under challenging scenes.

Packaged Quantity1
Product TypeNetwork Camera
Technical Information
HD RecordingYes
Recording FormatsFull HD
Night VisionYes
Display & Graphics
Image Sensor TypeCMOS
Image Sensor Size1/2.8"
Color Supported
  • Color
  • Monochrome
Field of View2.3° to 64.7°
Effective Camera Resolution2.3 Megapixel
Video
Video Formats
  • H.265
  • H.264
  • MJPEG
Maximum Video Resolution1920 x 1080
Maximum Frame Rate60 fps
Lens
Lens TypeZoom
Minimum Focal Length4.3 mm
Maximum Focal Length129 mm
Lens IncludedYes
Minimum Aperturef/4.7
Maximum Aperturef/1.6
Optical Zoom30x
Exposure
Shortest Shutter Speed1/30000 Second
Longest Shutter Speed1/1 Second
Network & Communication
Connectivity TechnologyWired
Remote ManagementYes
Ethernet TechnologyEthernet
Protocols
  • IPv4
  • IPv6
  • UDP
  • TCP
  • HTTP
  • HTTPS
  • RTP/RTCP
  • ICMP
  • ICMPv6
  • RTSP
  • FTP
  • ARP
  • DHCP
  • LLDP
  • CHAP
  • SOAP
  • DNS
  • DNSv6
  • DDNS
  • SNMPv1 (MIB2)
  • SNMPv3 (MIB2)
  • APIPA
  • UPnP (SSDP)
  • UPnP
  • iSCSI
  • SMTP
Storage
Storage TypeMemory Card
Interfaces/Ports
Network (RJ-45)Yes
Power Description
Input Voltage24 V AC
Power Source TypeAC
Physical Characteristics
Color FamilyWhite
Product ColorWhite
Mount Type
  • Pendant Mount
  • Corner Mount
  • Pole Mount
  • Pipe Mount
  • Roof Mount
  • Ceiling Mount
Form FactorDome
DurabilityCorrosion Resistant
Height11.79" (299.40 mm)
Width8.82" (224 mm)
Diameter8.05" (204.49 mm)
Weight (Approximate)3.20 kg
Environmental Conditions
Minimum Operating Temperature14°F (-10°C)
Maximum Operating Temperature104°F (40°C)
Maximum Operating Humidity100%
Miscellaneous
Features
  • SD Card Local Storage
  • Day/Night
  • Privacy Masking
  • Auto Gain Control
  • White Balance
  • Wide Dynamic Range
  • Noise Reduction
  • Defog
Indoor/OutdoorOutdoor
Impact Protection RatingIK10
Ingress Protection RatingIP66
TAA CompliantYes
Environmental Compliance
  • Waste Electrical and Electronic Equipment Directive (WEEE)
  • Restriction of Hazardous Substances (RoHS)
