AXIS M3206-LVE 4 Megapixel Indoor/Outdoor Network Camera - Dome - White

Part No. 01518-001

by Axis Communications

This Product is currently not in offering

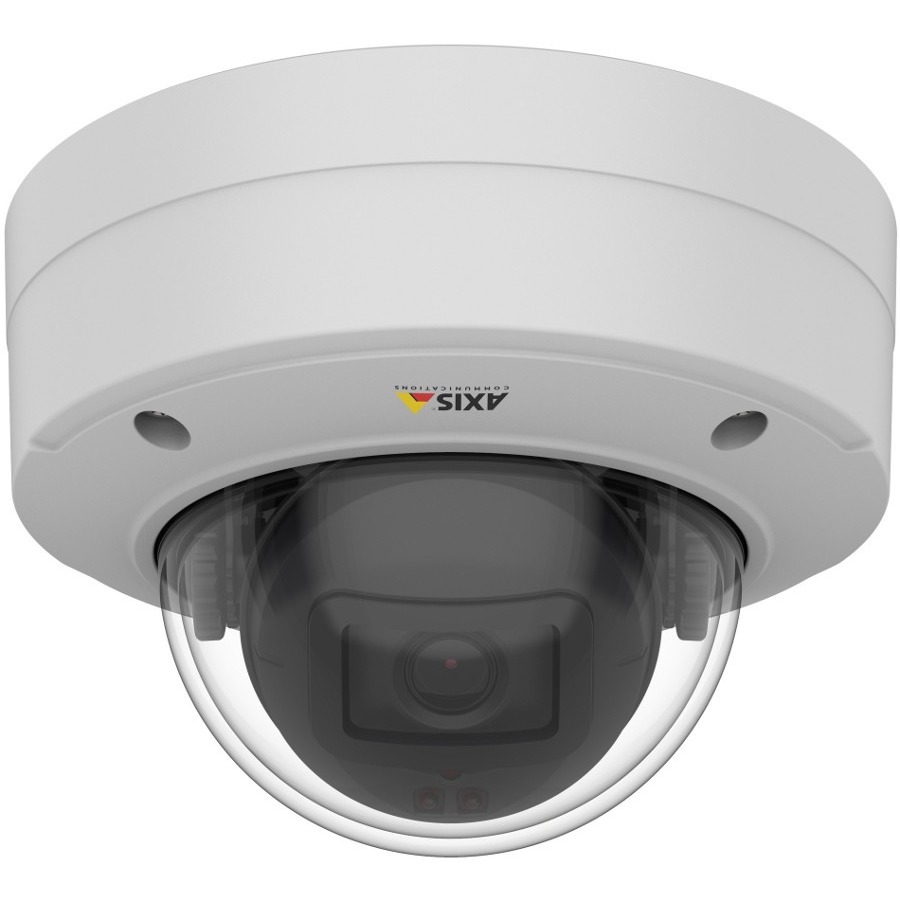

AXIS M3206-LVE 4 Megapixel Indoor/Outdoor Network Camera - Dome - White

Part No. 01518-001

by Axis Communications

This Product is currently not in offering

General Information
ManufacturerAxis Communications
Manufacturer Part Number01518-001
Brand NameAXIS
Product SeriesM32
Product ModelM3206-LVE
Product NameM3206-LVE Network Camera
Marketing Information
  • 4 MP video quality
  • WDR and IR illumination
  • Wide-angle horizontal and vertical FOV
  • HDMI output and I/O connectivity
  • Zipstream and support for H.264/H.265
AXIS M3206-LVE delivers an excellent wide-angle view in 4 MP resolution for both indoor and outdoor surveillance. This robust, cost-efficient fixed dome offers best-in-class video quality and built-in IR illumination for clarity even in complete darkness.

Uncover the darkness

AXIS M3206-LVE Network Camera offers 4 MP and a wide-angle view of 105°. It features WDR to give you clarity when there's both dark and light areas in the scene. Plus, with built-in IR illumination, you'll enjoy clear, reflection-free footage in complete darkness so there's no need to spend money lighting your premises at night.

Ready to connect

AXIS M3206-LVE features edge storage so you can record directly to the camera, providing redundancy in case the network connection is lost. Plus, Zipstream enhanced with H.264 or H.265 significantly lowers bandwidth and storage requirements. It's also possible to connect devices to the I/O ports to trigger alarms or actions, and the connection to the input can be supervised so it sends an alarm if the connection is cut. Furthermore, the HDMI port can be connected to a monitor for public viewing or used as a virtual window for the backdoor or entrance.

Best-in-class quality

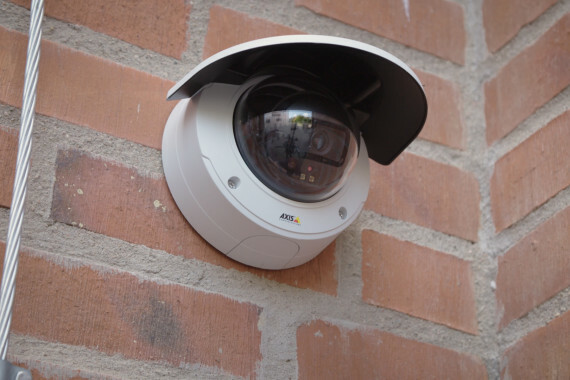

This cost-efficient camera delivers best-in-class video quality and enhanced surveillance capabilities with support for analytics such as AXIS Guard Suite. Additionally, you can add support for audio using AXIS T61 Audio and I/O Interface enabling you to listen in to transactions or incidents, or even communicate warnings to intruders. Vandal-resistant and outdoor ready, the camera comes with a weathershield, and can be mounted on walls, ceilings and junction boxes using the included mounting bracket.

Product TypeNetwork Camera
Technical Information
HD RecordingYes
Display & Graphics
Image Sensor TypeRGB CMOS
Color Supported
  • Color
  • Monochrome
Effective Camera Resolution4 Megapixel
Video
Video Formats
  • H.264/MPEG-4 AVC
  • H.265/MPEG-H HEVC
  • MJPEG
Maximum Video Resolution2304 x 1728
Maximum Frame Rate30 fps
Lens
Lens TypeFixed
Maximum Focal Length2.9 mm
Maximum Aperturef/2
Network & Communication
Connectivity TechnologyWired
Remote ManagementYes
Interfaces/Ports
HDMIYes
Network (RJ-45)Yes
Physical Characteristics
Color FamilyWhite
Product ColorWhite
Mount Type
  • Pendant Mount
  • Corner Mount
  • Wall Mount
  • Ceiling Mount
  • Junction Box Mount
  • Parapet Mount
  • Pole Mount
  • Conduit Mount
  • Recessed Mount
Form FactorDome
Height4.09" (104 mm)
Diameter5.87" (149 mm)
Weight (Approximate)720 g
Miscellaneous
Indoor/OutdoorIndoor/Outdoor
TAA CompliantYes
