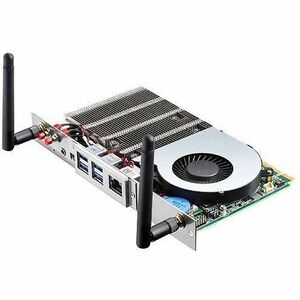

Advantech DS-200 DS-200GB-U5A1E Digital Signage Appliance
Intel i5-8400H - 32 GB DDR4 SDRAM - 2160p - HDMI - USB - Serial - Wireless LAN - Ethernet - Windows 10
$1539.99
On back-order, will ship once in-stock
- All Locations: (0+)
General Information
| Manufacturer | Advantech Co., Ltd |
| Manufacturer Part Number | DS-200GB-U5A1E |
| Brand Name | Advantech |
| Product Series | DS-200 |
| Product Model | DS-200GB-U5A1E |
| Product Name | DS-200 DS-200GB-U5A1E Digital Signage Appliance |
| Marketing Information | The DS-200 design is based on the Intel SDM specification and is powered by 8th Gen. Intel® CoreTM processors. DS-200 delivers 4K UHD output and smooth content streaming via a card edge connector, while maintaining high-energy efficiency (45 watts). DS-200 allows slot-in integration that reduces space requirements and lowers deployment and field maintenance costs. It also features built-in I/O such as HDMI, mini DP++, USB 3.1, and a single LAN (RJ-45). DS-200 enables media playback and display and is ideal for all-in-one signage applications with space constraints. |
| Packaged Quantity | 1 |
| Product Type | Digital Signage Appliance |
Processor & Chipset
| Processor Manufacturer | Intel |
| Processor Model | i5-8400H |
| Chipset Manufacturer | Intel |
| Chipset Model | QM370 |
Memory
| Standard Memory | 32 GB |
| Memory Technology | DDR4 SDRAM |
Display & Graphics
| Graphics Controller Manufacturer | Intel |
| Graphics Controller Model | Graphics 630 |
Video
| Scan Format | 2160p |
Network & Communication
| Ethernet | Yes |
| Wireless LAN | Yes |
Interfaces/Ports
| USB | Yes |
| HDMI | Yes |
| DisplayPort | Yes |
| Serial | Yes |
| Number of DisplayPorts | 1 |
| Number of Network (RJ-45) Ports | 1 |
| Number of HDMI 2.0 Ports | 1 |
| Number of DisplayPort 1.2 Ports | 1 |
Software
| Operating System | Windows 10 |
Power Description
| Input Voltage | 12 V DC |
Environmental Conditions
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 131°F (55°C) |
| Maximum Operating Humidity | 95% |
Physical Characteristics
| Height | 4.57" (116 mm) |
| Width | 7.68" (195 mm) |
| Depth | 0.98" (25 mm) |
| Weight (Approximate) | 2.20 lb (1000 g) |
Miscellaneous
| Package Contents |
|
| Environmental Compliance | China Restriction of Hazardous Substances (China RoHS) |
| Condition | No |
