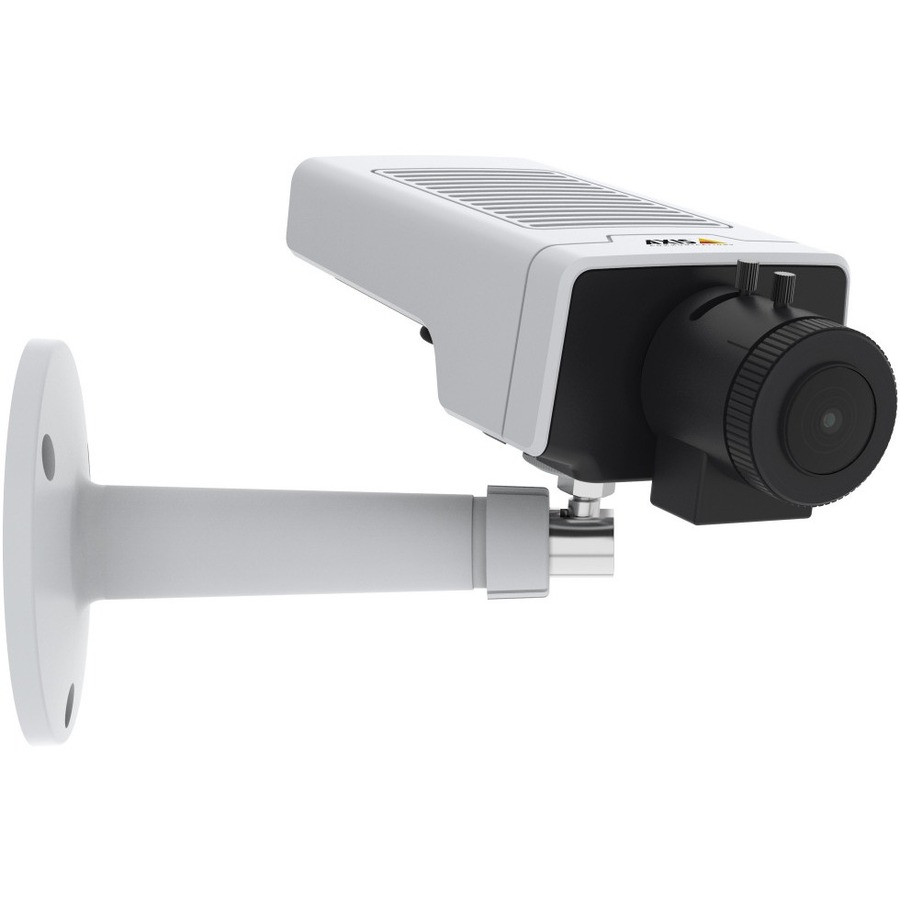

AXIS M1135 2 Megapixel Outdoor Full HD Network Camera - Color - Box - White, Black

Part No. 01768-001

by Axis Communications

This Product is currently not in offering

AXIS M1135 2 Megapixel Outdoor Full HD Network Camera - Color - Box - White, Black

Part No. 01768-001

by Axis Communications

This Product is currently not in offering

General Information
ManufacturerAxis Communications
Manufacturer Part Number01768-001
Brand NameAXIS
Product SeriesM11
Product ModelM1135
Product NameM1135 Network Camera
Marketing Information

AXIS M1135 is an affordable and compact network camera that delivers superb image quality in 2 MP resolution. Designed as a visible deterrent, it helps discourage trespassing, antisocial or criminal behavior. It offers flexible, low-cost installation making it ideal for various industrial or commercial surveillance situations, such as retail stores, indoor markets and delivery areas.

More bang for your buck

This affordable Axis M-line camera includes a built-in microphone and audio recording, letting you hear and register sound in a fixed area. And, with a video streaming indicator, it's easy to check that the video is up and running.

Featuring Axis Zipstream technology with support for both H.264 and H.265 video compression it significantly reduces bandwidth and storage requirements without compromising image quality. Thanks to support for PoE and redundant DC power, you get flexible installation and your data is safeguarded in the event of a power outage. Furthermore, it offers enhanced security functionality to prevent unauthorized access and safeguard your system. Signed firmware and secure boot ensures only authorized firmware is installed and that the firmware hasn't been compromised.

Sharp images even in low light

AXIS M1135 offers 2 MP resolution at up to 30 fps and delivers superb video quality even in low light conditions. It features Axis Lightfinder for images in true colors even in low light and with Axis Forensic WDR you get clarity even when there's both dark and light areas in the scene. Furthermore, it offers a CS-mount with interchangeable lenses, so you can easily change lens and ensure you capture the exact images you need. Use our lens calculator to select a lens that meets your specific requirements.

Designed for deterrence

AXIS M1135 is designed to act as a deterrent to let potential offenders know you're watching. This compact network camera provides a clearly visible, fixed angle of view, making it easy to see exactly where the camera's pointing and allowing you to record both audio and video in a precisely defined area.

Product TypeNetwork Camera
Technical Information
HD RecordingYes
Recording FormatsFull HD
Display & Graphics
Image Sensor TypeRGB CMOS
Color SupportedColor
Field of ViewHorizontal field of view: 90°-33° - Vertical field of view: 49°-19°
Effective Camera Resolution2 Megapixel
Video
Video Formats
  • H.264
  • H.264 (MPEG-4 Part 10/AVC)
  • H.264 (MP)
  • H.264 BP
  • H.264 HP
  • H.265
  • H.265 (MPEG-H Part 2/HEVC)
  • H.265 (MP)
  • Motion JPEG
Maximum Video Resolution1920 x 1080
Maximum Frame Rate30 fps
Lens
Lens TypeVarifocal
Minimum Focal Length3 mm
Maximum Focal Length10.5 mm
Lens IncludedYes
Lens Mount TypeCS-Mount
Optical Zoom3.5x
Exposure
Shortest Shutter Speed1/33500 Second
Longest Shutter Speed2 Second
Network & Communication
Connectivity TechnologyWired
Remote ManagementYes
Storage
Storage TypeMemory Card
Interfaces/Ports
Network (RJ-45)Yes
Power Description
Input Voltage28 V DC
Physical Characteristics
Color FamilyDual Color
Product Color
  • White
  • Black
Mount Type
  • Lighting Track Mount
  • Ceiling Mount
Form FactorBox
Height1.81" (46 mm)
Width2.76" (70 mm)
Depth5.83" (148 mm)
Weight (Approximate)165 g
Environmental Conditions
Minimum Operating Temperature-4°F (-20°C)
Maximum Operating Temperature122°F (50°C)
Maximum Operating Humidity85%
Miscellaneous
Features
  • Wide Dynamic Range
  • Built-in Microphone
  • White Balance
  • Auto Gain Control
  • Privacy Masking
  • PTZ
  • HTTPS Encryption
  • Password Protection
  • Day/Night
  • Motion Detection
  • Active Tampering Alarm
Indoor/OutdoorOutdoor
Package Contents
  • M1135 Network Camera
  • AXIS T91A11 Stand White
  • Installation Guide
  • Windows Decoder User License
Warranty
Limited Warranty5 Year
