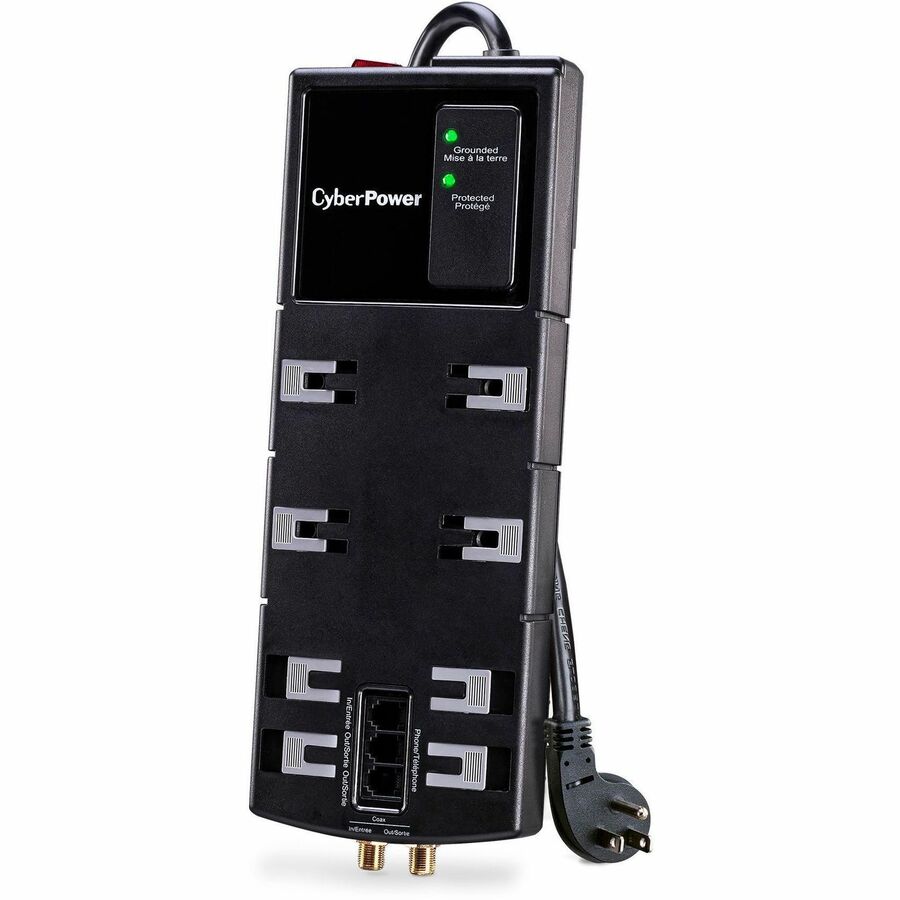

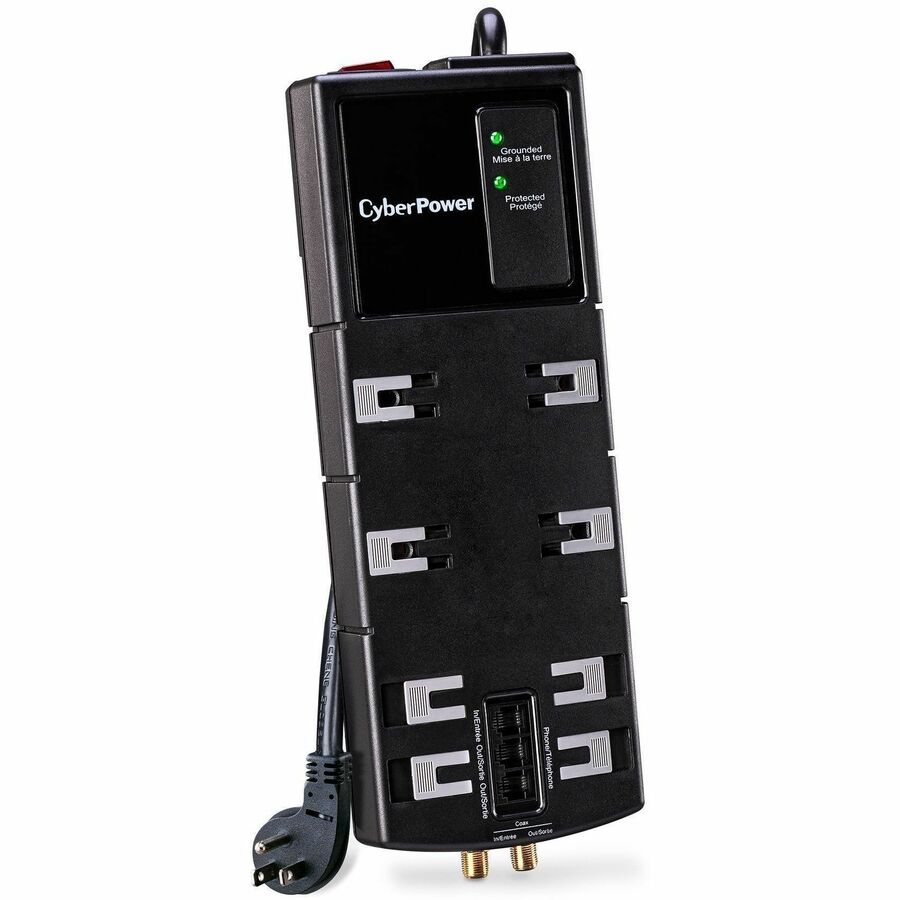

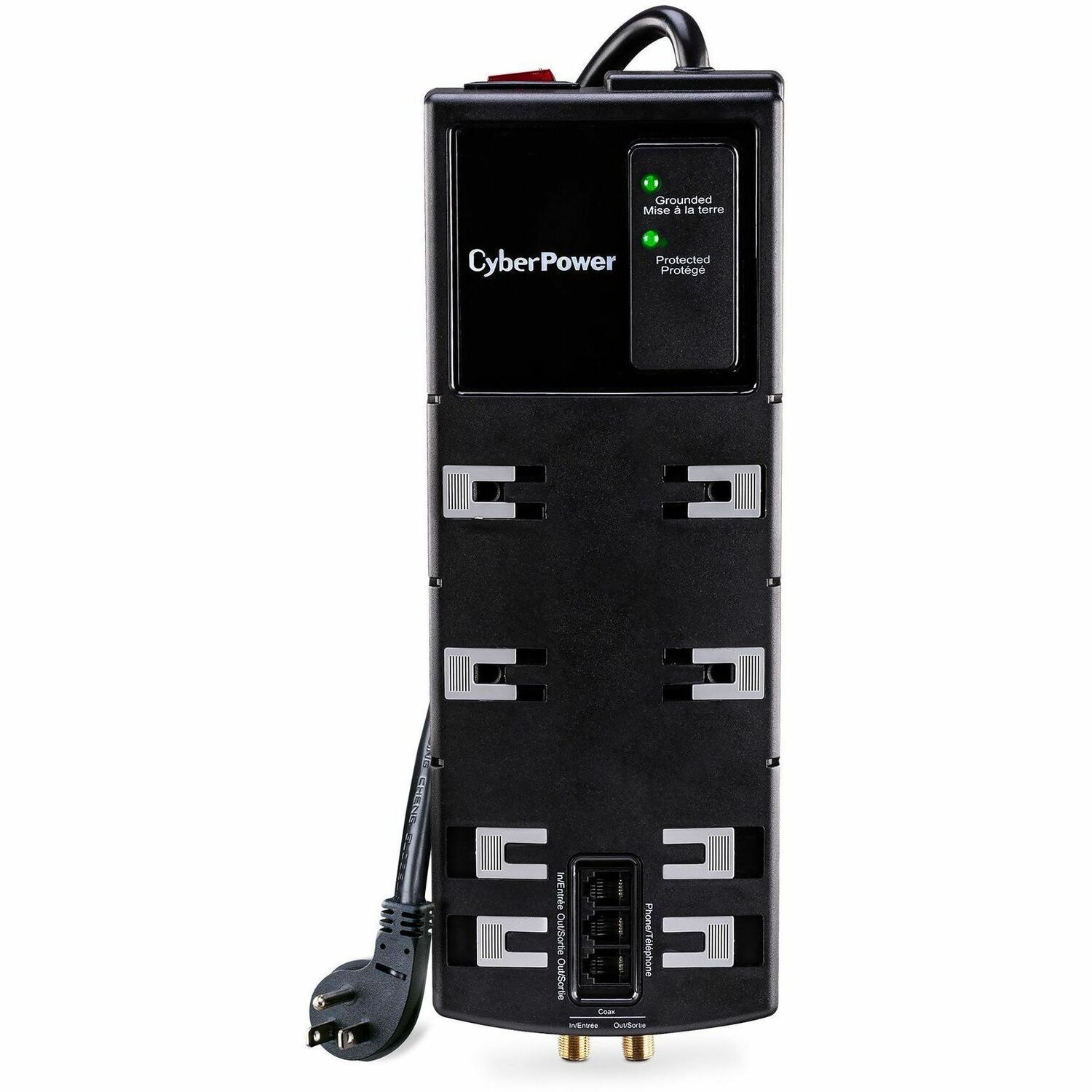

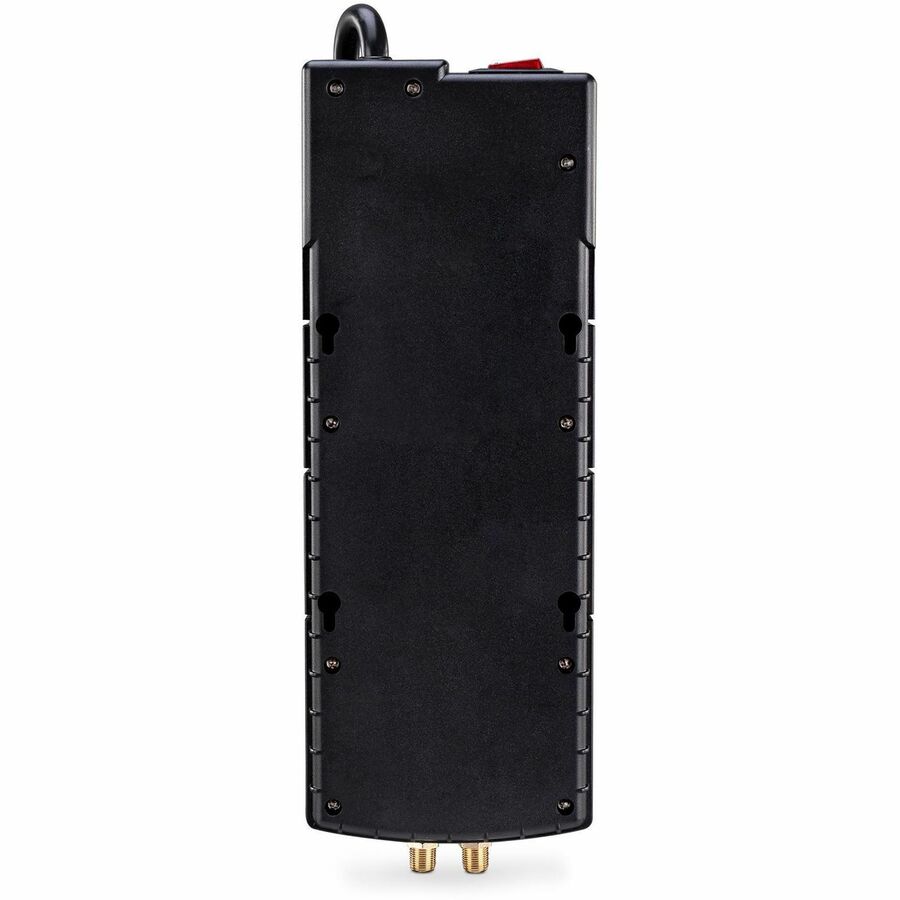

CyberPower HT812TC Home Theater 8 - Outlet Surge Protector with 4350 J Surge Suppression

Clamping Voltage 500V, 12 ft Cord, NEMA 5-15P, Right Angle - 45° Offset, 15 Amp, EMI/RFI Filtration, Black, RG6 Coaxial Protection, Lifetime Warranty

Part No. HT812TC

by CyberPower Systems, Inc

$31.99

Manufacturer Brochure

Specifications

General Information

Manufacturer	CyberPower Systems, Inc
Manufacturer Part Number	HT812TC
Brand Name	CyberPower
Product Series	Home Theater Surge
Product Model	HT812TC
Product Name	HT812TC Home Theater 8 - Outlet Surge Protector with 4350 J Surge Suppression
Marketing Information	The Home Theater Surge Protector HT812TC provides 4350 joules of protection and 8 outlets to safeguard your home theater equipment from damage caused by electrical surges. Data line protection occurs with RJ11 ports for telecommunication devices such as phones, faxes, modems, and DSL lines. Gold-plated RG6 coaxial connectors protect cable/satellite TV receivers & modems. Features of the HT812TC include automatic shutdown, 8 surge-protected outlets (4 widely spaced to accommodate a transformer plug), a power cord (12 ft.), a right-angle plug with 45° off-set, LED status indicators, keyhole mounting slots, impact-resistant casing, metal oxide varistor (MOV) technology, and an EMI/RFI noise filter. This surge suppressor comes with a Limited Lifetime Warranty and a Connected Equipment Guarantee.
Product Condition	New
Product Type	Surge Suppressor/Protector

Technical Information

Plug/Connector Type	NEMA 5-15P
Receptacles	8 x NEMA 5-15R
Dataline Protection	Coaxial RJ-11

Power Description

Input Voltage	120 V AC
Maximum Surge Current	150 kA
Surge Energy Rating	4350 J
Circuit Breaker	Yes

Physical Characteristics

Color Family	Black
Product Color	Black
Product Material	Plastic
Power Cord/Cable Length	12 ft (3.66 m)
Form Factor	Keyhole/Undermount/Wall Mount
Height	1.46" (37.08 mm)
Width	3.94" (100.08 mm)
Depth	11.05" (280.67 mm)
Weight (Approximate)	2 lb (907.18 g)

Miscellaneous

Additional Information	Physical Dimensions - (WxHxD) (cm) : 10.01 x 3.71 x 28.07 (cm) Physical Dimensions - (WxHxD) (in) : 3.94 x 1.46 x 11.05 (in) Physical Dimensions - (WxHxD) (mm) : 100 x 37 x 281 (mm) Weight (kg) : 0.91 Weight (lb) : 2 Shipping Dimensions - (WxHxD) (cm) : 17.15 x 5.38 x 34.93 (cm) Shipping - Dimensions (WxHxD, in) : 6.75 x 2.12 x 13.75 (in) Shipping - Dimensions (WxHxD, mm) : 171.45 x 53.85 x 349.25 (mm) Shipping - Weight (kg) : 1.05 Shipping - Weight (lb) : 2.32 Circuit Breaker : 15 A Cord Length : 12 ft (3.7 m) Input Plug Type : NEMA 5-15P Maximum Input Current : 15A Plug Style : Right Angle - 45° Offset Outlets - Total : 8 Outlets - Widely Spaced : 4 Outlet Type COMPUTED : 8 - NEMA 5-15R USB Charge Port : No Attenuation : 58 dB Clamping Voltage : 500V (H-N, H-G, N-G) Coax Protection RG6 COMPUTED : 1 in EMI/RFI Filtration COMPUTED : 150 KHz Maximum Surge Current : 150000 A Maximum Surge Current H-G : 30000 A Maximum Surge Current H-N : 90000 A Maximum Surge Current N-G : 30000 A Maximum Surge Voltage : 6000 V Phone Protection RJ11 : 1-In / 2-Out Response Time : <1 Nanosecond Surge Suppression (Joules) : 4350 J Attenuation : 58 dB Clamping Voltage : 500V (H-N, H-G, N-G) Coax Protection RG6 COMPUTED : 1 in EMI/RFI Filtration COMPUTED : 150 KHz Maximum Surge Current : 150000 A Maximum Surge Current H-G : 30000 A Maximum Surge Current H-N : 90000 A Maximum Surge Current N-G : 30000 A Maximum Surge Voltage : 6000 V Phone Protection RJ11 : 1-In / 2-Out Response Time : <1 Nanosecond Surge Suppression (Joules) : 4350 J Color : Black Form Factors Supported : Keyhole (Wall Mount or Under-counter Installation) Keyhole Mounting Slots : Yes Material of Construction : Plastic Safety Covers : Yes Environmental : RoHS Compliant Safety : UL1363 CEG Amount : $350000 Connected Equipment Guarantee : Lifetime Product Warranty : Limited Lifetime Warranty
Certifications & Standards	UL1363
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Condition	No
UPC	0649532930975

Warranty

Limited Warranty	Lifetime
Directly Connected Equipment Guarantee	$350000 Lifetime
