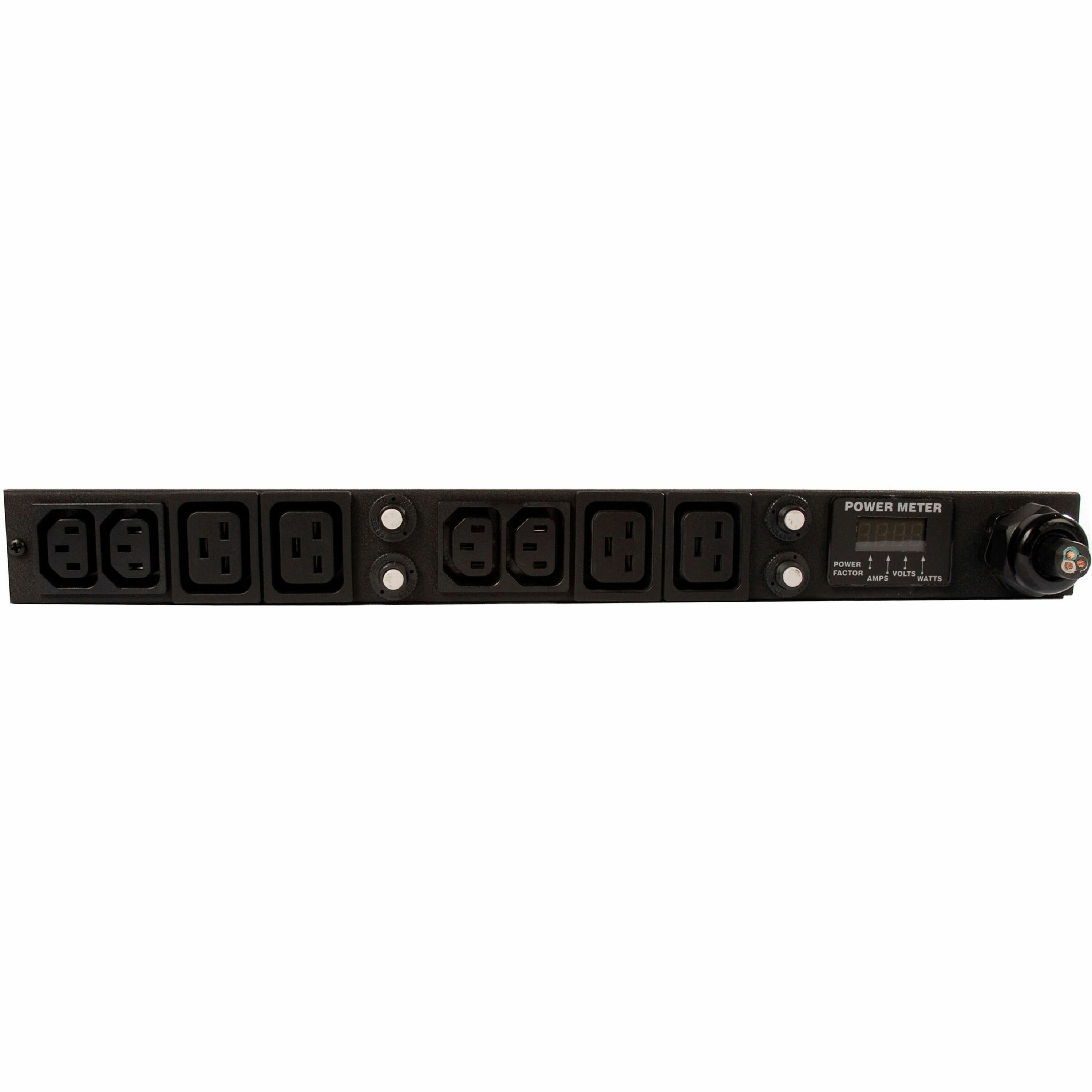

Vertiv Geist rPDU VRELCN080-103I44TL6 8-Outlets PDU

Metered - NEMA L6-30P - 4 x IEC 60320 C13, 4 x IEC 60320 C19 - 230 V AC - Overcurrent Protection, Thermal Protection - 10 ft (3.05 m) Cord Length - Horizontal/Vertical - Rack-mountable, Cabinet-mountable - Horizontal/Vertical

Part No. 11383VH

by Vertiv

$570.99

Specifications

General Information

Manufacturer	Vertiv
Manufacturer Part Number	11383VH
Brand Name	Vertiv Geist
Product Series	rPDU
Product Model	VRELCN080-103I44TL6
Product Name	rPDU VRELCN080-103I44TL6 8-Outlets PDU
Marketing Information	Metered rPDUs deliver reliable power to critical IT equipment within a rack or cabinet. Includes a local LED display to view real-time power data. Benefits Avoid accidental overloads when deploying or moving critical server equipment with instant access to power consumption metrics on the local digital display. The local LED display provides real-time power data for instant feedback when deploying or moving critical IT equipment. Every unit is 100% tested for reliability and functionality. Simple and convenient configuration options for cord lengths and chassis colors. Standard three-year warranty, upgraded to a five-year warranty with product registration.
Product Type	PDU

Technical Information

PDU Type	Metered
Plug/Connector Type	NEMA L6-30P
Plug/Connector Detail	1 x NEMA L6-30P
Receptacle Type	IEC 60320 C13 IEC 60320 C19
Receptacle Detail	4 x IEC 60320 C13 4 x IEC 60320 C19
Protection Type	Overcurrent Protection Thermal Protection
Features	LED Display

Power Description

Input Voltage	230 V AC
Input Voltage Range	200 V AC - 240 V AC
Output Voltage	208 V AC
Power Rating (Watt)	4.90 kW
Input Current	30 A
Input Frequency	60 Hz

Physical Characteristics

Color Family	Black
Product Color	Black Powder Coat
Mounting Orientation	Horizontal/Vertical
Mount Type	Rack-mountable Cabinet-mountable
Form Factor	Horizontal/Vertical
Cord Length	10 ft (3.05 m)
Width	1.72" (43.69 mm)
Depth	1.85" (46.99 mm)
Length	17" (431.80 mm)

Environmental Conditions

Minimum Operating Temperature	50°F (10°C)
Maximum Operating Temperature	113°F (45°C)

Miscellaneous

Package Contents	rPDU VRELCN080-103I44TL6 8-Outlets PDU 19in Panel Mount Brackets
Application/Usage	IT Equipment Server Rack/Cabinet
Country of Origin	United States
TAA Compliant	Yes
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Condition	No

Warranty

Limited Warranty	3 Year
Additional Warranty Information	5-year limited warranty if registered within 120 days of purchase, otherwise warranty defaults to 3 years
