Sharp NEC Display 220" FE-Series FHD LED Kit

Part No. LED-FE025I2-220

by Sharp

$144325.99

Sharp NEC Display 220" FE-Series FHD LED Kit

18.33 ft (5588 mm) LCD - 1920 x 1080 - 16:9 - Full HD - Direct View LED - 1100 cd/m² - 1080p - HDMI - USB - DVI - SerialEthernet

Part No. LED-FE025I2-220

by Sharp

$144325.99
General Information
ManufacturerSharp
Manufacturer Part NumberLEDFE025I2220
Brand NameSharp NEC Display
Product SeriesFE
Product ModelLED-FE025I2-220
Product Name220" FE-Series FHD LED Kit
Marketing Information

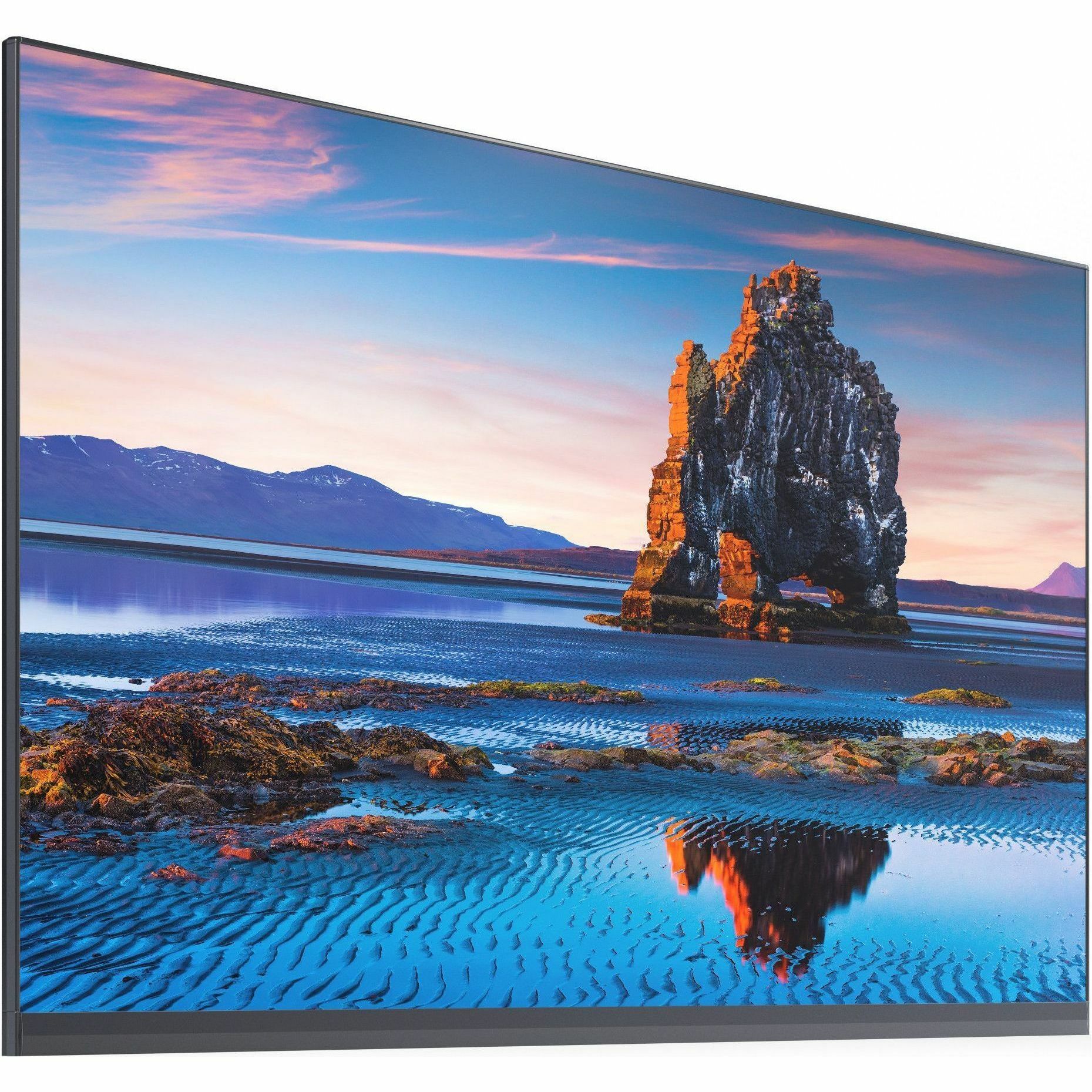

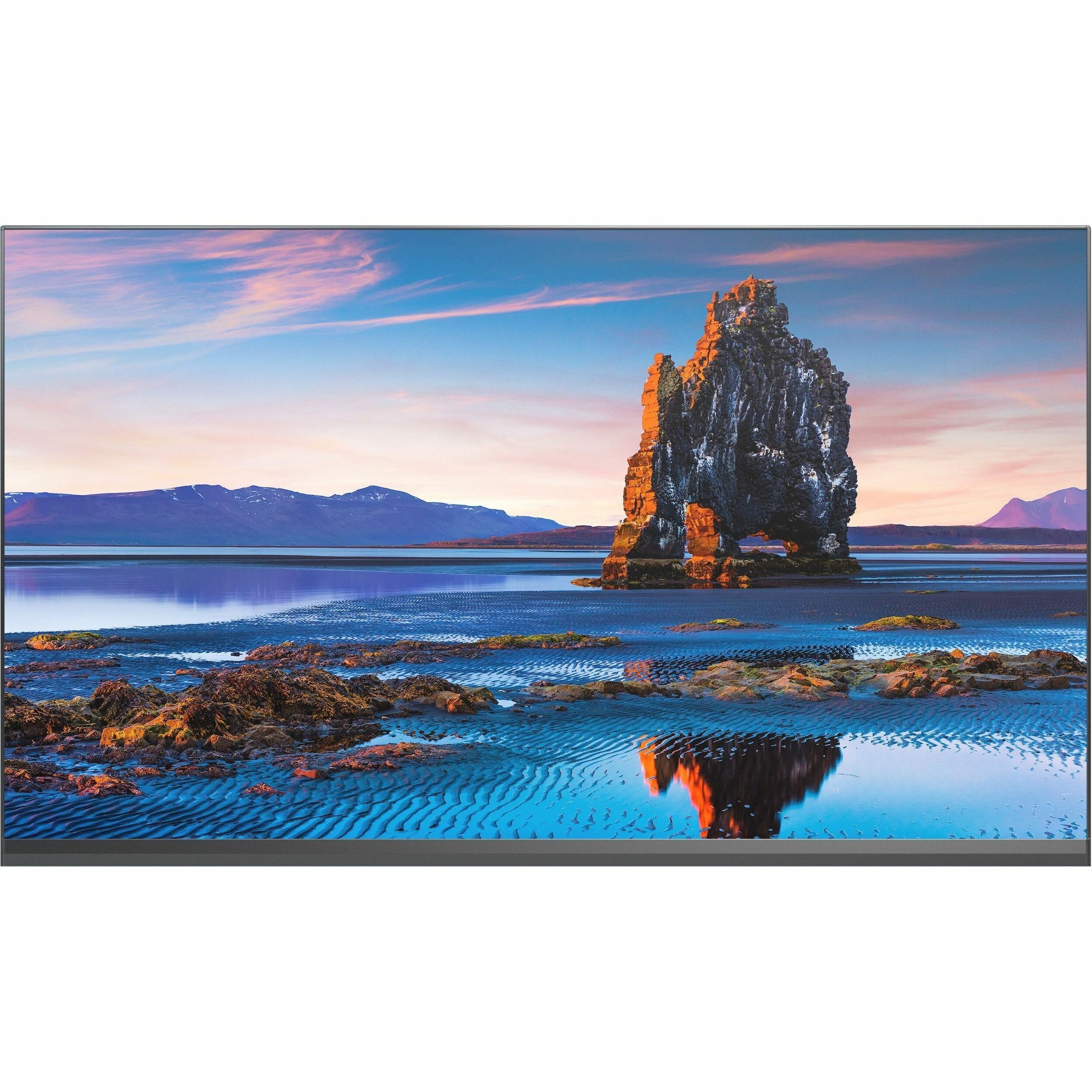

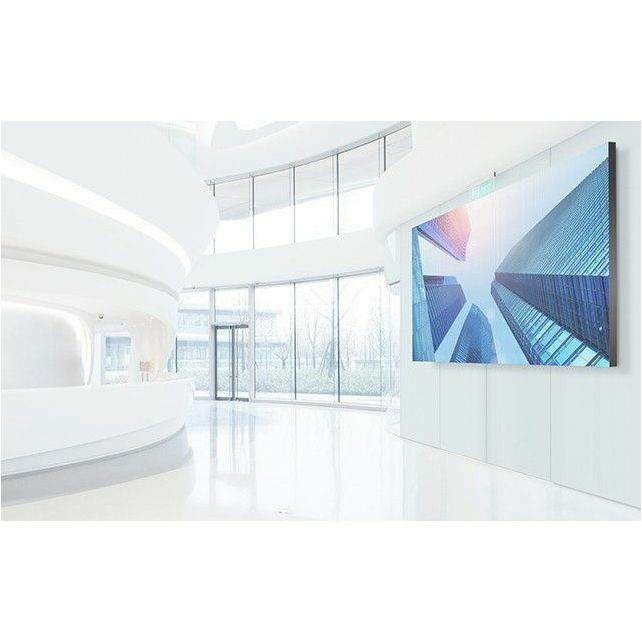

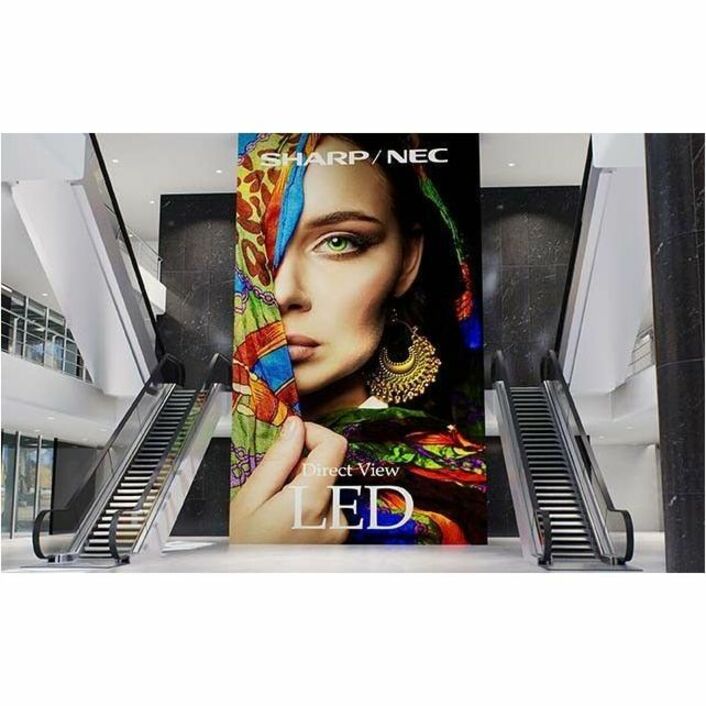

The NEC direct view indoor LED FE Series provides vibrant LED imaging in a cost effective package and are the ideal solutions for today's demanding applications. This 220" UHD kit is built with NEC's 2.53mm LED-FE025i2 module designed to deliver impressive content visualization and is ideal for viewing from 8 to 15 feet away. Boardrooms, auditoriums, retail and airport signage, situational awareness, and museums are just some of the applications where the NEC FE Series is designed to be integrated. The FE Series is engineered with Kinglight LEDs that deliver excellent imaging at a low cost and have no external cables required for installation. The front serviceable design helps to minimize downtime by providing easy access and quick maintenance. NEC offers full planning and design, installation and post installation maintenance support, ensuring you get a custom tailored solution allowing you to focus on what's most important - your business.

  • 220" diagonal screen size
  • FHD (1920x1080) resolution with a refresh rate of up to 3840 Hz

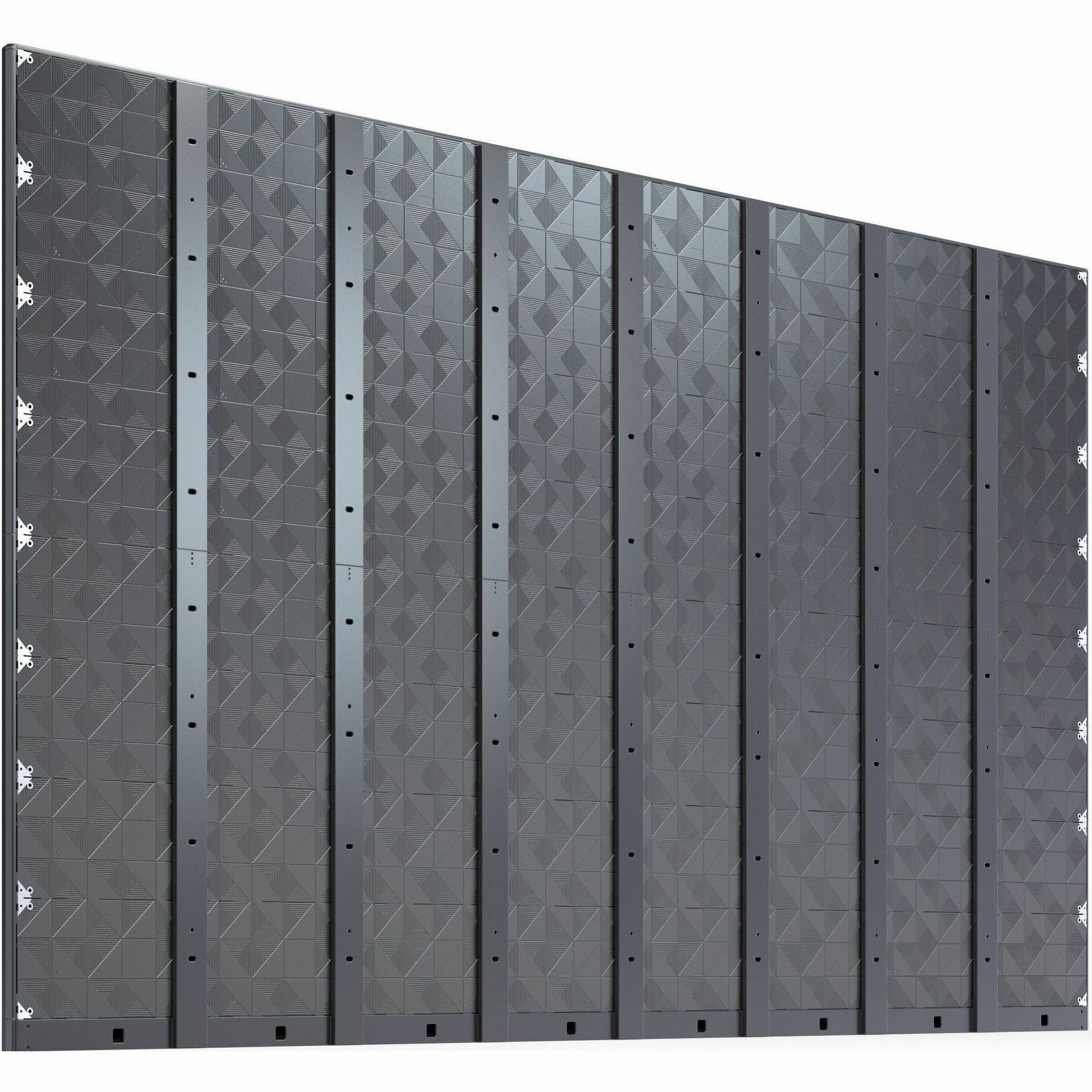

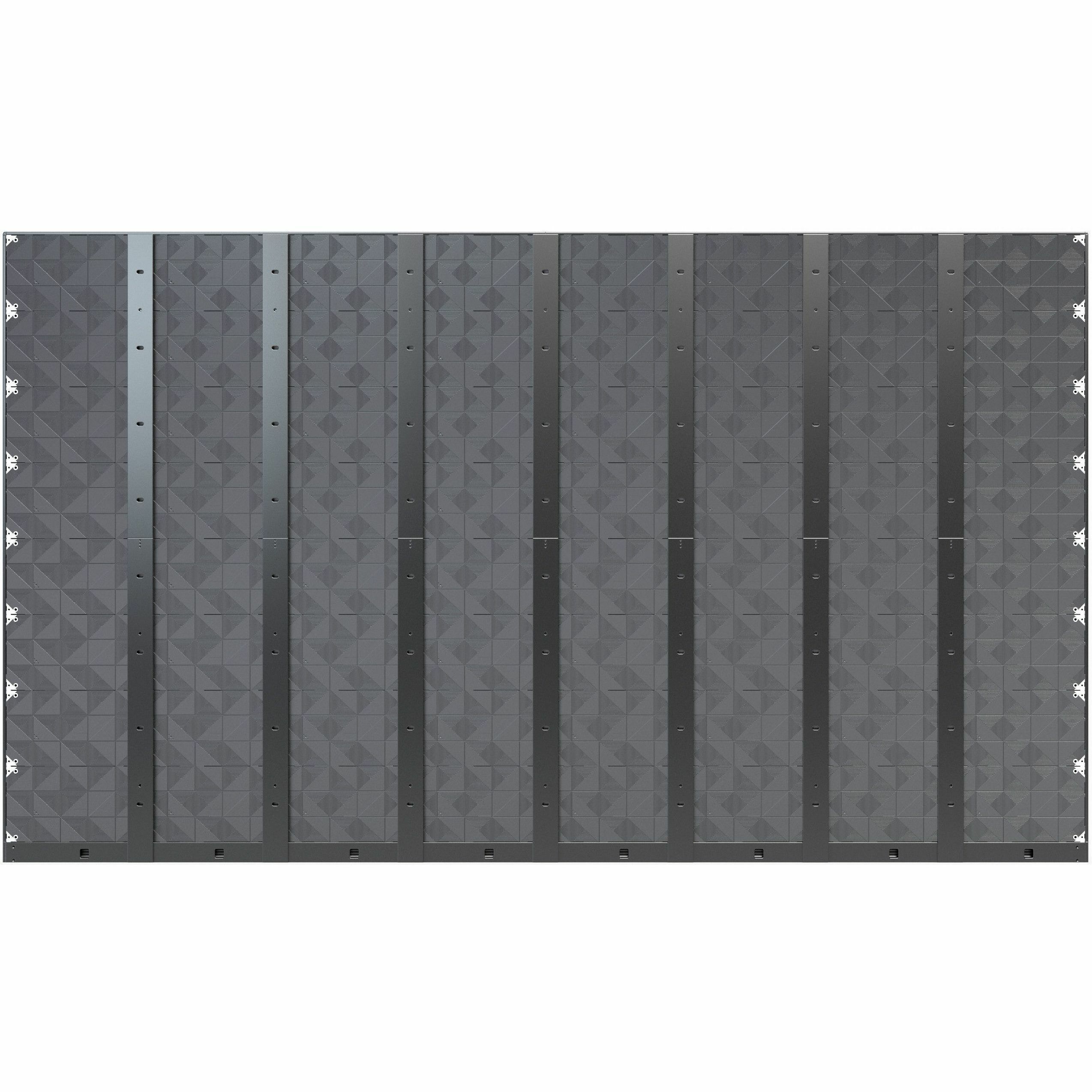

  • Kit includes everything needed for an LED installation including the LED modules, power bar, LED controller, mounting structure, overframe kit as well as spare parts and a pixel card removal tool
  • Front serviceable modules allowing for installation in difficult to access areas
  • Pixel cards are hot-swappable and can be replaced without turning the display off
  • Shallow depth (3.2" installed) and reduced weight allow for greater installation flexibility and also meet ADA requirements
  • Improved LED performance with better contrast, viewing angles, brightness uniformity and color uniformity


Product TypeDigital Signage Display
Technical Information
Ingress Protection (IP) RatingIP20
Display & Graphics
Number of Screens1
Viewable Screen Size18.33 ft (5588 mm)
Display Screen TypeLCD
Display Resolution1920 x 1080
Graphics ModesFull HD
Pixel Pitch98.43 mil (2.50 mm)
Aspect Ratio16:9
Backlight TechnologyDirect View LED
OrientationLandscape
Module Resolution240 x 135
Maximum LED Life11.4 Year
Video
Scan Format1080p
Native Contrast Ratio5,000:1
Color Depth16-bit
Brightness1100 cd/m²
Network & Communication
EthernetYes
Interfaces/Ports
USBYes
DVIYes
HDMIYes
SerialYes
Number of HDMI Inputs1
RS-232C InputYes
Number of Network (RJ-45) Ports1
Number of DVI-D Ports1
Environmental Conditions
Minimum Operating Temperature-4°F (-20°C)
Maximum Operating Temperature104°F (40°C)
Minimum Storage Temperature-4°F (-20°C)
Maximum Storage Temperature113°F (45°C)
Minimum Operating Humidity10%
Maximum Operating Humidity80%
Minimum Storage Humidity10%
Maximum Storage Humidity85%
Physical Characteristics
Mount TypeWall Mountable
Height112.44" (2856 mm)
Width16.10 ft (4907 mm)
Depth3.19" (81 mm)
Weight (Approximate)1245.61 lb (565000 g)
Miscellaneous
Package Contents
  • 220" FE-Series FHD LED Kit
  • LED Controller
  • LED Modules (64 Cabinets, 256 Pixel Cards)
  • Overframe Kit (8x8)
  • Pixel Card Removal Tool
  • Power Bar
  • Spare Parts Kit
  • Wall mount (8x8)
Application/Usage
  • Indoor
  • Boardroom
  • Retail
  • Airport
  • Museum
  • Business
Environmentally FriendlyYes
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
ConditionNo
UPC0805736071986
Warranty
Limited Warranty3 Year
