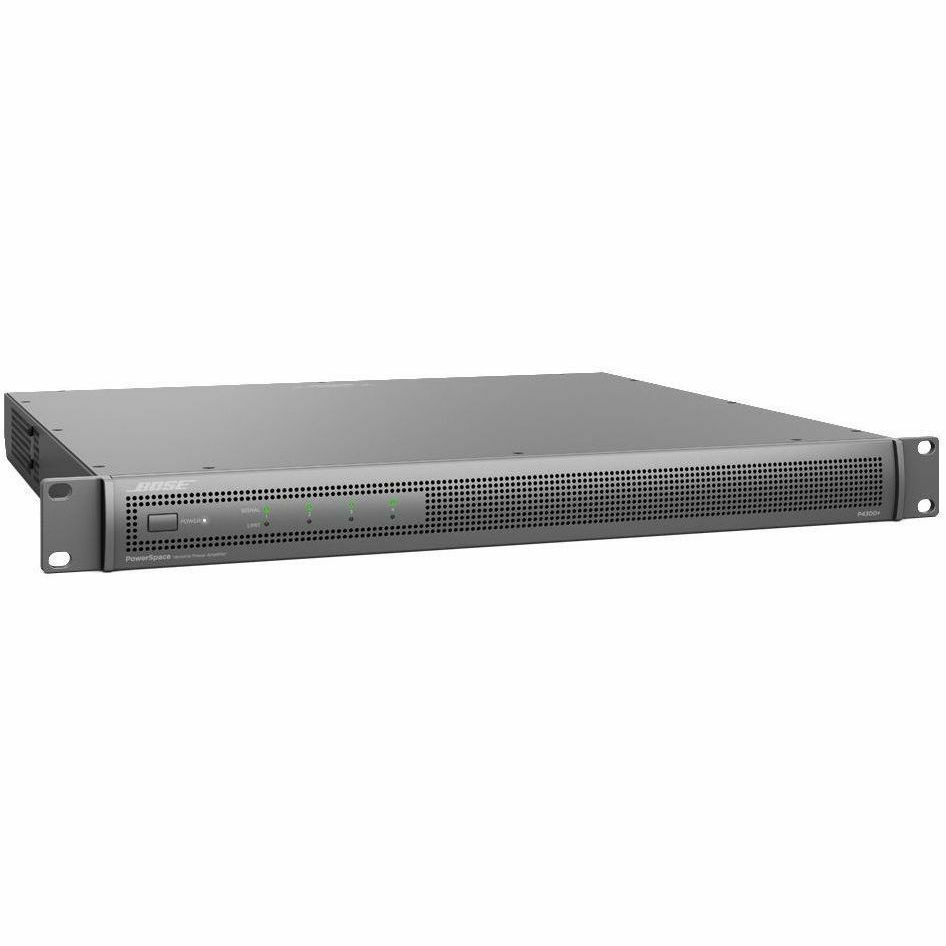

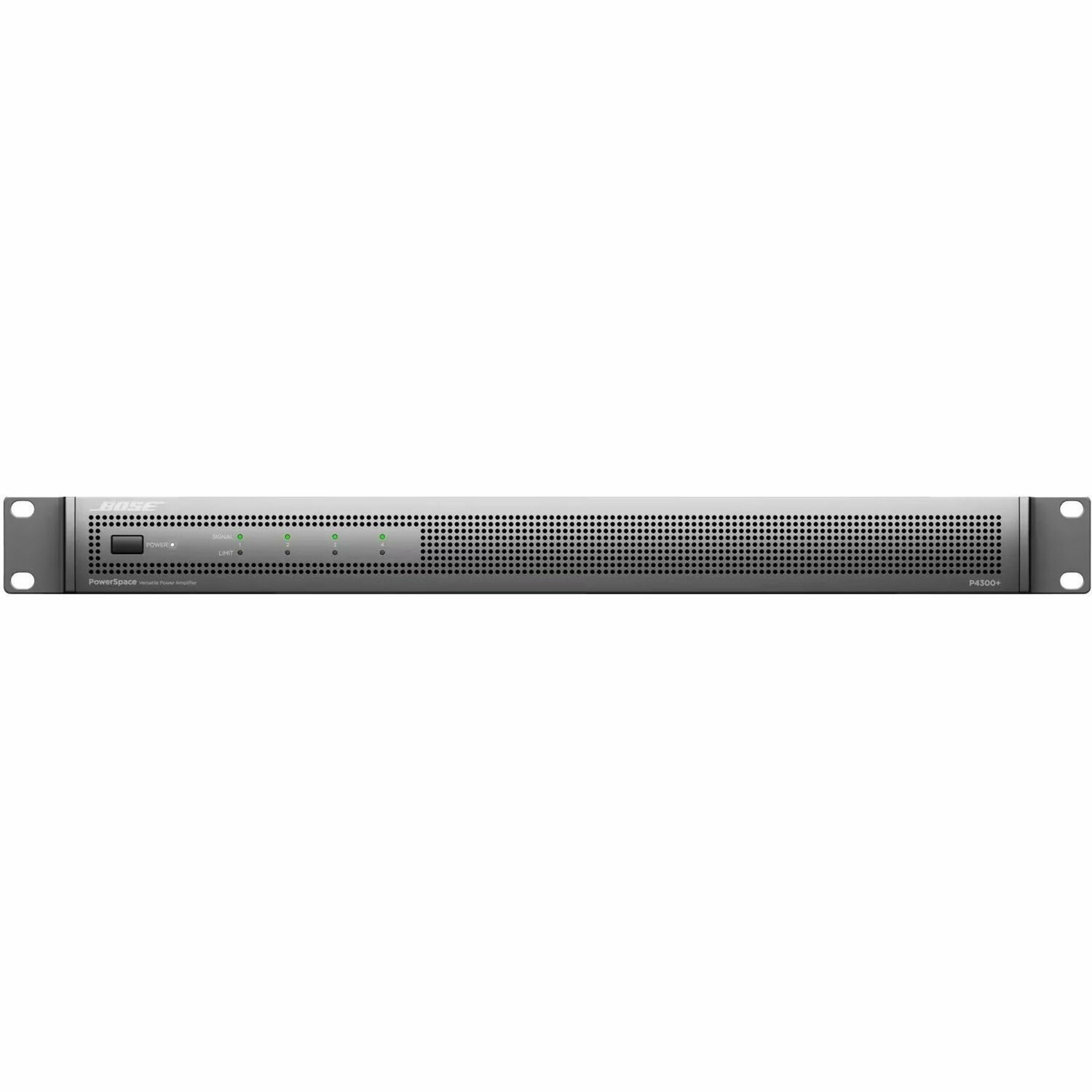

The Bose Professional PowerSpace P4300+ amplifier combines power and DSP into a 1RU, four-channel design for quick-turn installations. Part of a comprehensive platform of loudspeakers, controls, and software that help installers deliver premium commercial sound systems efficiently, Bose Professional PowerSpace+ amplifiers feature a quick-setup workflow. An onboard configuration utility and intuitive browser-based UI present common tasks in a logical manner, so you can configure the system faster, reducing installation time while increasing setup accuracy. Once installed, proprietary algorithms offer predictable performance while optional interfaces - such as ControlCenter analog zone controllers - make operation easy for end users. For premium commercial applications, Bose Professional PowerSpace+ models provide amplification and DSP in one integrated, easy-to-configure package.

FEATURES

Take advantage of full mixing functionality, allowing input sources to be mixed and assigned to each listening area.

300 watts per channeland works seamlessly with Bose Professional loudspeakers and controls to create complete commercial sound systems

Built-in DSP,including SmartBass processing, routing, level control, delays, limiters, Bose Professional loudspeaker EQs, plus input and area EQs

PowerSpace configuration utilityfacilitates setup with an integrated webserver and intuitive browser-based UI, including real-time control with signal and thermal monitoring

Opti-Voice pagingprovides a smooth transition between music and announcements

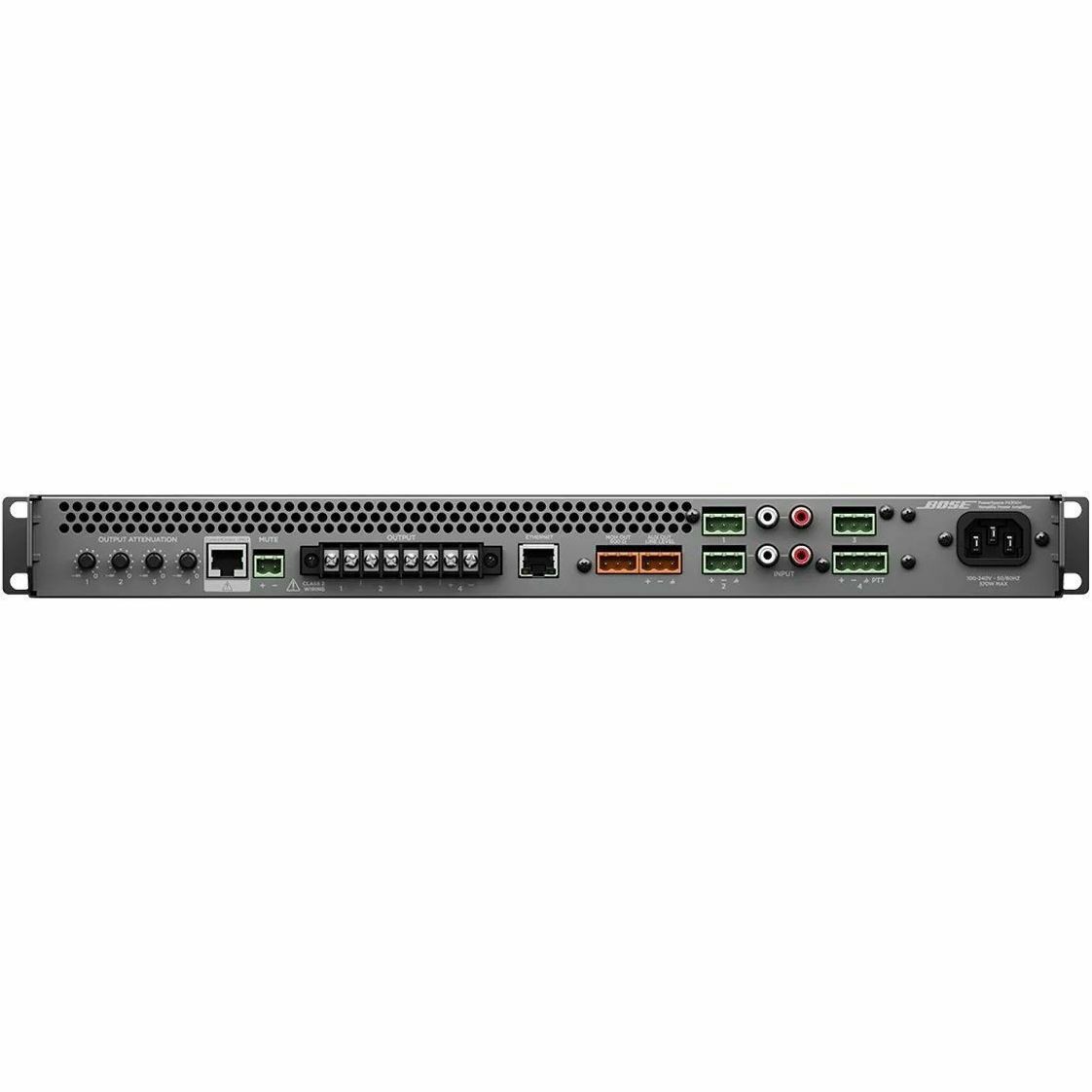

Integrated features to simplify commercial installations:Dedicated input for 600 Ω telephone or mic paging, independent 600 Ω music-on-hold and line-level aux outputs, and a NO/NC mute connection

Load-independent outputsdeliver full channel power to either low-impedance loads (4-8 Ω) or high-impedance (70/100V) loads without bridging

I-Share outputsdeliver 2x power level by combining the current of two channels

Auto-standby modesaves power when audio signal falls below a set threshold, then wakes when audio returns

Intuitive end-user operation -optional ControlCenter CC-1, CC-2, and CC-3 analog zone controllers provide easy volume control and source selection

• 120 V
• 230 V AC

• PowerSpace P4300+ Versatile Power Amplifier
• 1 x 2-pin Euroblock connector
• 1 x 4-pin Euroblock connector
• 2 x I-Share jumpers
• 10 x terminal forks, 14-16 AWG
• 5 x 3-pin Euroblock connectors
• 1 x PowerSpace P4300+
• 1 x installation guide
• 1 x IEC power cord
