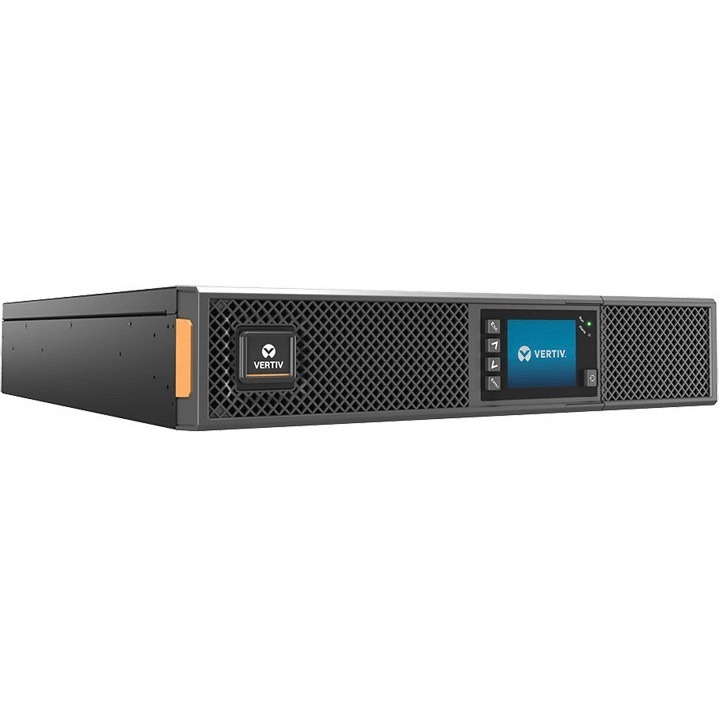

Vertiv Liebert GXT5 UPS - 1500VA/1500W 230V | Online Rack Tower Energy Star
Double Conversion | 2U | Optional RDU120 Card| Color/Graphic LCD| 3-Year Warranty
$2313.99
On back-order, will ship once in-stock
- All Locations: (0+)
General Information
| Manufacturer | Vertiv |
| Manufacturer Part Number | GXT5-1500IRT2UXL |
| Brand Name | Vertiv Liebert |
| Product Series | GXT5 |
| Product Model | GXT5-1500IRT2UXL |
| Product Name | GXT5 UPS - 1500VA/1500W 230V | Online Rack Tower |
| Marketing Information | The Vertiv Liebert GXT5 UPS 1500VA/1500W is a 2U UPS solution for ensuring the health and availability of IT infrastructure. With online, double conversion technology, the UPS protects critical equipment against outages and every type of power disturbance without drawing on battery power, extending battery life and minimizing replacements. This can support a wide range of power environments including 200/208/220/230/240V user configurable AC power and has scalable runtime options with matching external battery cabinets to offer extra time during an outage to support critical equipment and activity. It includes hot-swappable batteries and all hardware for installing it as a tower or in an equipment rack. This single-phase UPS is ENERGY STAR® 2.0 certified and offers leading normal mode power efficiency and Eco-mode for ultimate efficiency levels. It comes with a 5-year warranty (3-year factory warranty plus 2-year extended warranty). This promotion is subject to the Distributor's product availability and is only available while product stocks last. Vertiv reserves the right to provide a 1-month notice to terminate the offer. This offer is not available in conjunction with any other offer/discount. |
| Product Condition | New |
| Product Type | Double Conversion Online UPS |
Technical Information
| Plug/Connector Type | IEC 60320 C20 |
| Receptacle Type | IEC 60320 C13 |
| Receptacle Detail | 8 x IEC 60320 C13 |
| Protection Type |
|
| Cord Length | 10 ft (3.05 m) |
| Transfer Time | 0 ns |
| Phase | Single Phase |
| Application/Usage |
|
Power Description
| Load Capacity (VA) | 1.50 kVA |
| Load Capacity (Watt) | 1.50 kW |
| Input Voltage | 230 V AC |
| Input Voltage Range | 115 V AC - 288 V AC |
| Output Voltage |
|
| Input Frequency | 70 Hz |
| Output Frequency | 60 Hz |
| Waveform Type | Pure Sine Wave |
| Circuit Breaker | Yes |
Controls/Indicators
| Status Indicators | Color LCD |
Interfaces/Ports
| Serial Port | Yes |
| VGA | No |
| Modem (RJ-11) | No |
| Network (RJ-45) | Yes |
| USB (HID Compliant) Port | Yes |
Battery Information
| DC System Voltage | 48 V DC |
| Number of Batteries | 3 |
| Battery Characteristics | Valve-regulated, Non-spillable |
| Battery Chemistry | Lead Acid |
| Battery Size | 12V |
| Battery Capacity | 9000 mAh |
| Backup/Run Time (Full Load) | 5.60 Minute |
| Backup/Run Time (Half Load) | 16.30 Minute |
| Battery Life | 5 Year |
| Typical Battery Recharge Time | 4 Hour |
| Hot Pluggable | Yes |
| Hot Swappable | Yes |
Environmental Conditions
| Maximum Operating Temperature | 104°F (40°C) |
| Storage Temperature | 5°F (-15°C) - 104°F (40°C) |
| Maximum Operating Elevation | 9842.52 ft (3000000 mm) |
| Sound Emission | 46 dB |
Physical Characteristics
| Color Family | Black |
| Product Color | Black |
| Height | 3.35" (85 mm) |
| Width | 16.93" (430 mm) |
| Depth | 18.50" (470 mm) |
| Rack Height | 2U |
| Form Factor | Rack/Tower |
| Weight (Approximate) | 46.30 lb (21000 g) |
Miscellaneous
| Package Contents |
|
| Certifications & Standards |
|
| Software Included | Free Download - Power Insight 2.2 |
| Energy Star | Yes |
| Country of Origin | China |
| TAA Compliant | No |
| Environmentally Friendly | Yes |
| Environmental Compliance |
|
| Condition | No |
| UPC | 0767041026528 |
Warranty
| Limited Warranty | 5 Year |
