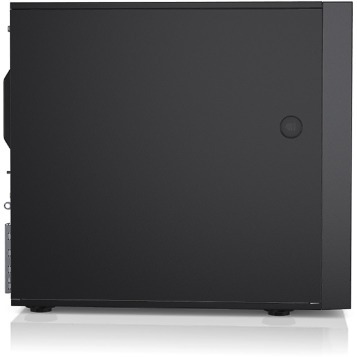

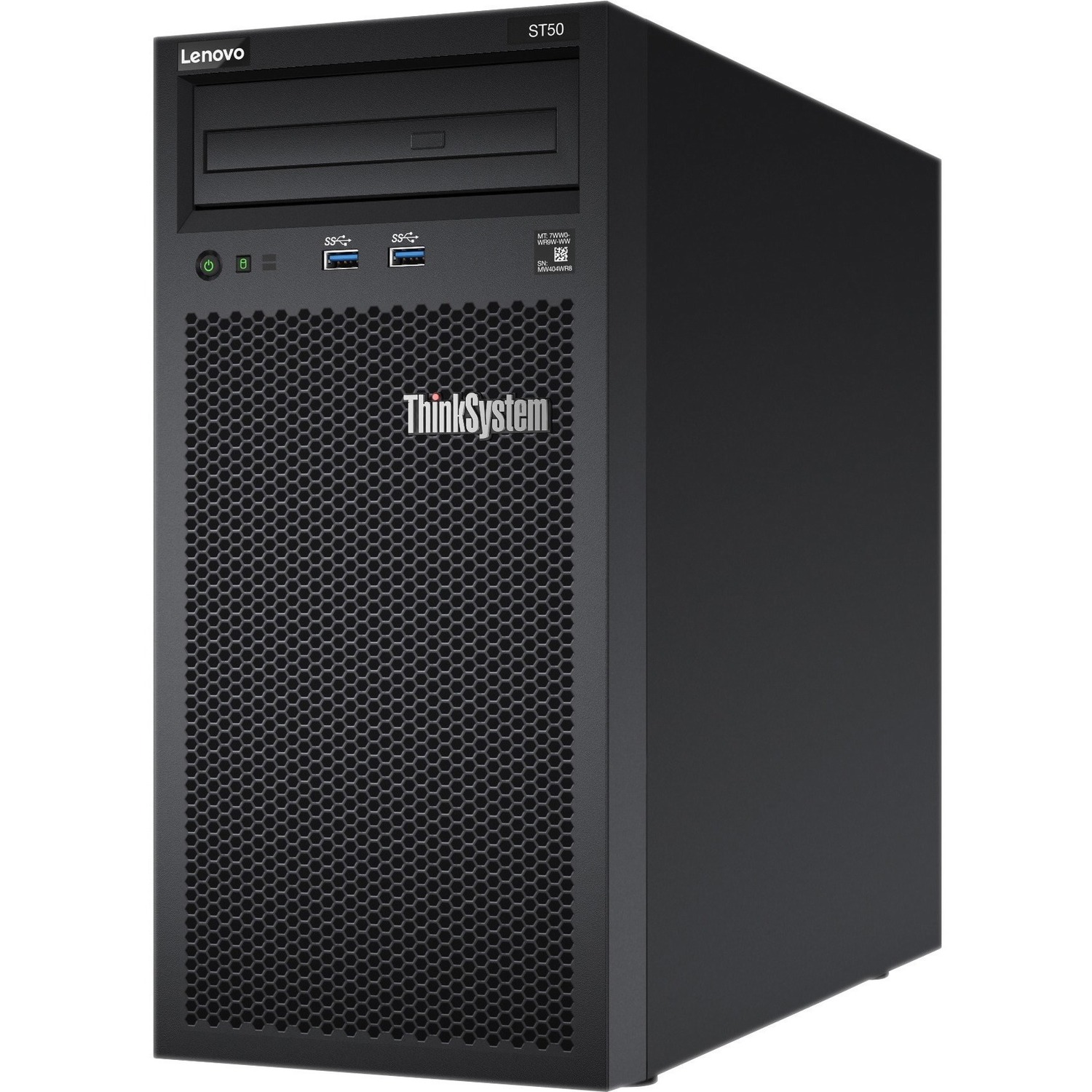

Lenovo ThinkSystem ST50 7Y48A02MNA 4U Tower Server - 1 Xeon E-2224G 3.50 GHz - 8 GB RAM - Serial ATA/600 Controller
This Product is currently not in offering
On back-order, will ship once in-stock
General Information
| Manufacturer | Lenovo Group Limited |
| Manufacturer Part Number | 7Y48A02MNA |
| Brand Name | Lenovo |
| Product Line | ThinkSystem |
| Product Series | ST50 |
| Product Model | 7Y48A02MNA |
| Product Name | ThinkSystem ST50 7Y48A02MNA Server |
| Marketing Information | The Lenovo ThinkSystem ST50 1-socket 4U rack-mountable tower server is an entry level server ideal for small businesses, home offices, retail, educational institutions and branch offices. The server supports one Intel Xeon E-2200 Series processor (formerly codenamed "Coffee Lake-S Refresh") and up to 64 GB of 2666 MHz TruDDR4 ECC memory. |
| Product Type | Server |
Processor
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |
| Processor Type | Xeon |
| Processor Model | E-2224G |
| Processor Core | Quad-core (4 Core) |
| Processor Speed | 3.50 GHz |
| Cache | 8 MB |
Chipset
| Chipset Manufacturer | Intel |
| Chipset Model | C246 |
Memory
| Standard Memory | 8 GB |
| Maximum Memory Supported | 64 GB |
| Memory Technology | TruDDR4 |
| Memory Clock Speed | 2.67 GHz |
| Total Number of Memory Slots | 4 |
| Number of Occupied Memory Slots | 1 |
| Error Checking | ECC |
Storage
| Total Hard Drive Capacity | No |
| Optical Drive Type | DVD-Writer |
Controllers
| Controller Type | Serial ATA/600 |
| RAID Supported | No |
I/O Expansions
| Number of Total Expansion Bays | 4 |
| Number of External 5.25" Bays | 1 |
| Number of 3.5" Bays | 3 |
| Hot Swappable Bays | No |
| Total Number of Expansion Slots | 3 |
| PCI Express x1 (Gen 3.x) Slots | 1 |
| PCI Express x16 (Gen 3.x) Slots | 2 |
| PCI Express Details | Slot 1: PCIe 3.0 x16 full-height half-length (FHHL) Slot 2: PCIe 3.0 x1 full-height half-length (FHHL) Slot 3: PCIe 3.0 x4 (physical connector is x16) full-height half-length (FHHL) |
Display & Graphics
| Graphics Controller Manufacturer | No |
Network & Communication
| Ethernet Technology | Gigabit Ethernet |
Interfaces/Ports
| Total Number of USB Ports | 6 |
| Network (RJ-45) | Yes |
| Remote Management | Yes |
| Remote Management Controller | Intel Active Management Technology (AMT) 12.0 |
Operating System
| Operating System Supported |
|
| Operating System | No |
Power Description
| Input Voltage |
|
| Number of Power Supplies Supported | 1 |
| Number of Power Supplies Installed | 1 |
| Maximum Power Supply Wattage | 250 W |
Miscellaneous
| Package Contents |
|
| Security Features |
|
| Environmentally Friendly | Yes |
| Energy Efficiency Certification | China Energy Conservation Program (CECP) |
Physical Characteristics
| Form Factor | Tower |
| Rack Height | 4U |
| Height | 14.80" (376 mm) |
| Width | 6.89" (175 mm) |
| Depth | 16.69" (424 mm) |
| Weight (Approximate) | 24.69 lb (11200 g) |
Warranty
| Limited Warranty | 3 Year |
