GeoVision GV-QSD5730-Indoor 5 Megapixel Indoor HD Network Camera - Color - Dome

Part No. 125-QSD5730-000

by GeoVision, Inc

GeoVision GV-QSD5730-Indoor 5 Megapixel Indoor HD Network Camera - Color - Dome

MJPEG, H.264, H.265 - 2592 x 1944 - 4.6 mm- 152 mm Varifocal Lens - 33x Optical - 30 fps - CMOS

Part No. 125-QSD5730-000

by GeoVision, Inc

$1364.99
General Information
ManufacturerGeoVision, Inc
Manufacturer Part Number125-QSD5730-000
Brand NameGeoVision
Product SeriesGV-QSD
Product ModelGV-QSD5730-Indoor
Product Name33x 5MP H.265 Low Lux WDR Pro IP Speed Dome
Marketing Information

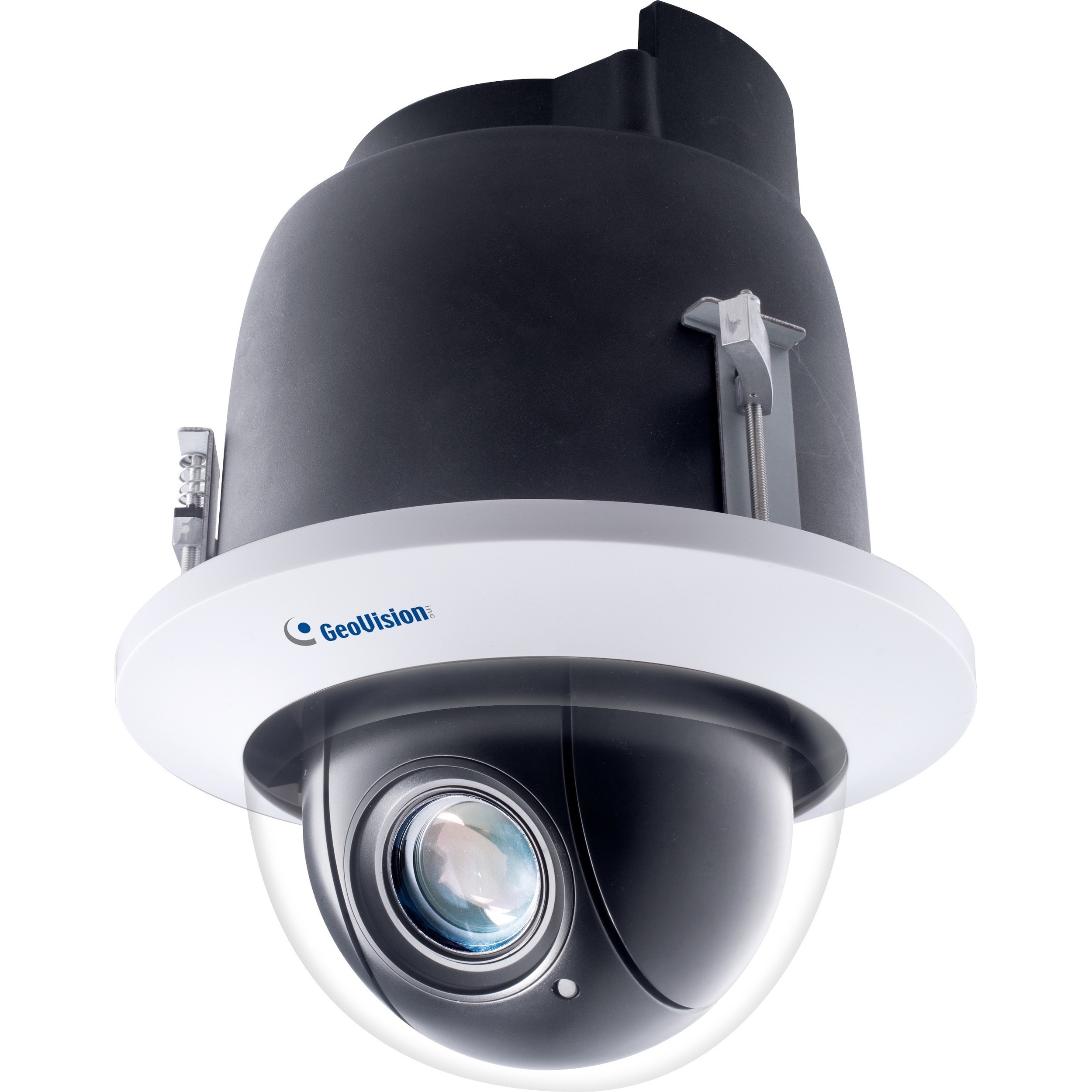

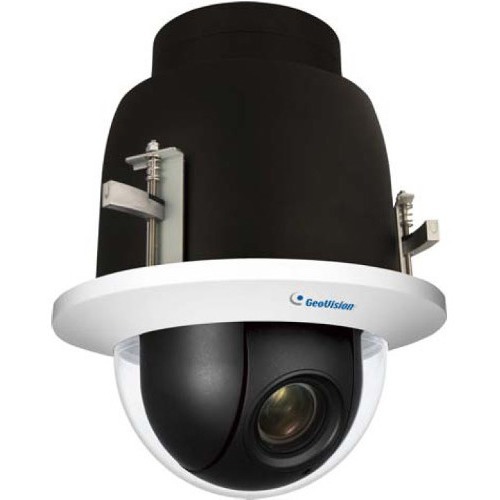

The GV-IP Speed Dome (GV-QSD5730-Indoor) is an indoor network PTZ camera that offers 33x optical zoom and 10x digital zoom, capable of showing smooth live view with great details. This camera can simultaneously deliver four video streams in resolutions up to 2592 x 1944 at 30 fps. The GV-QSD5730-Indoor supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths.

Wide surveillance coverage is made possible with 360° endless panning and -10°~100° tilting capacity. PTZ functions such as Preset, Auto Pan, and Patrol can be programmed and activated by schedule. The GV-QSD5730-Indoor supports pan/tilt speeds ranging from a fast patrol of 400° and 300° per second to a slow ramble of 0.1° per second with 0.1° pan accuracy for fast and accurate tracking ability.

GV-QSD5730-Indoor also features Servo Feedback and Electronic Image Stabilizer (EIS) technology. The Servo Feedback technology ensures the camera view returns to the previous position when encountering external force (e.g. human interference) or environmental vibration. EIS technology can effectively produce stable images by actively sensing directional movement of the images and compensating accordingly; this is particularly useful for cameras installed at places where environmental movement (e.g. strong wind, the passing-by heavy vehicles) is constant, and when high optical zoom is executed.

Product TypeNetwork Camera
Technical Information
Recording FormatsHD
HD RecordingYes
Display & Graphics
Image Sensor TypeCMOS
Color SupportedColor
Field of View55.4°~1.9°
Effective Camera Resolution5 Megapixel
Video
Video Formats
  • MJPEG
  • H.264
  • H.265
Maximum Video Resolution2592 x 1944
Maximum Frame Rate30 fps
Video Signal Format
  • NTSC
  • PAL
Lens
Lens TypeVarifocal
Minimum Focal Length4.6 mm
Maximum Focal Length152 mm
Lens IncludedYes
Maximum Aperturef/1.6
Optical Zoom33x
Exposure
Shortest Shutter Speed1/100000 Second
Longest Shutter Speed1 Second
Network & Communication
Connectivity TechnologyWired
Remote ManagementYes
Storage
Storage TypeMemory Card
Interfaces/Ports
Network (RJ-45)Yes
Power Description
Input Voltage
  • 24 V AC
  • 30 V DC
Physical Characteristics
Form FactorDome
Height10.38" (263.60 mm)
Diameter8.35" (212 mm)
Weight (Approximate)2.90 kg
Environmental Conditions
Minimum Operating Temperature-13°F (-25°C)
Maximum Operating Temperature122°F (50°C)
Maximum Operating Humidity90%
Miscellaneous
Features
  • Wide Dynamic Range
  • PTZ
  • Electronic Image Stabilization
  • Day/Night
  • Removable IR Cut-off Filter
  • SD Card Local Storage
  • Privacy Masking
  • 3D Digital Noise Reduction
  • Automatic White Balance
  • Audio Compression
  • Microphone In
  • Motion Detection
Indoor/OutdoorIndoor
Package Contents
  • 33x 5MP H.265 Low Lux WDR Pro IP Speed Dome
  • Drill Template Paster
  • 3-Pin Power Terminal Block (AC 24V)
  • 14-Pin Alarm/Audio I/O Terminal Block
  • Download Guide
  • Warranty Card
NDAA CompliantYes
Environmentally FriendlyYes
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
COOTW
ConditionNo
Warranty
Limited Warranty24 Month
