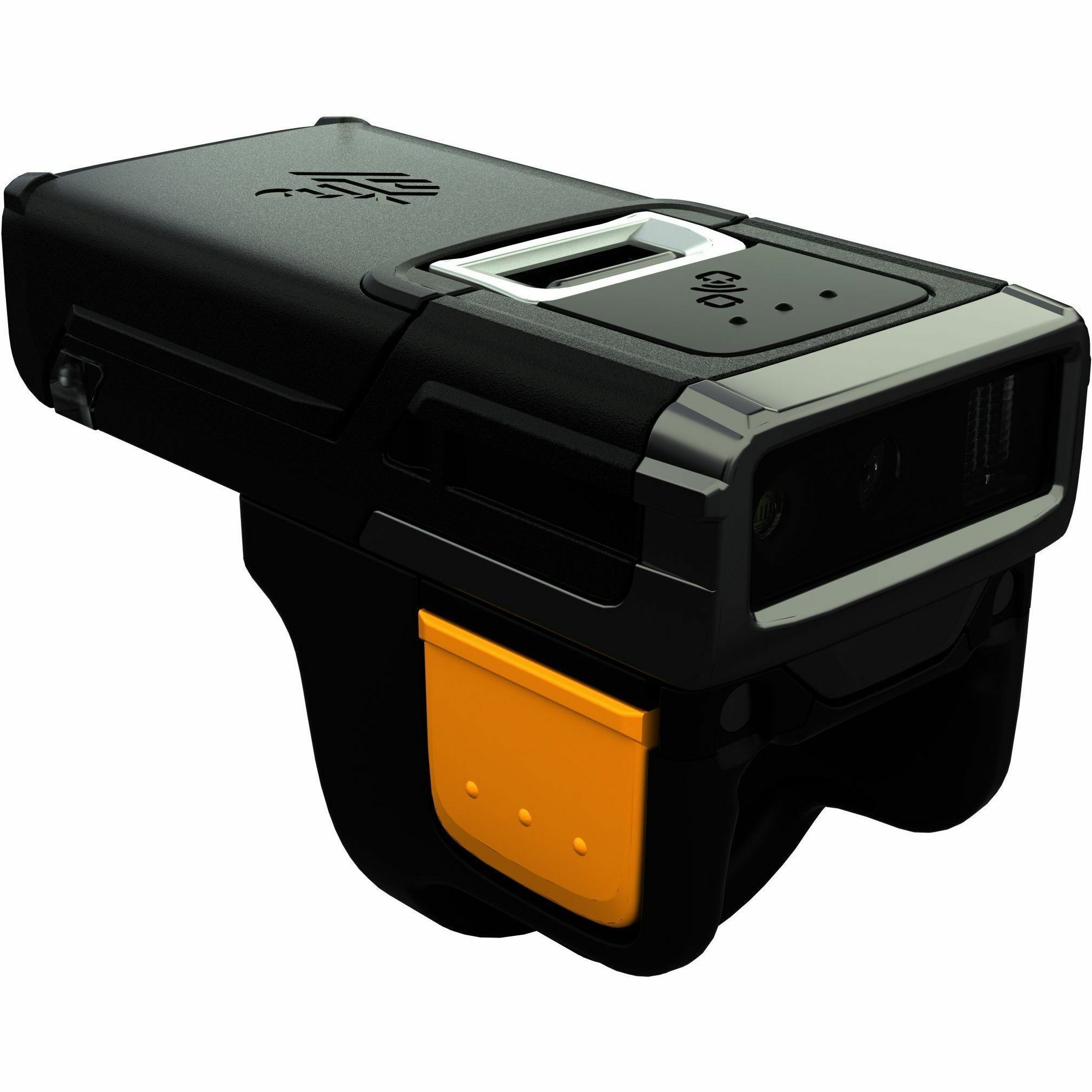

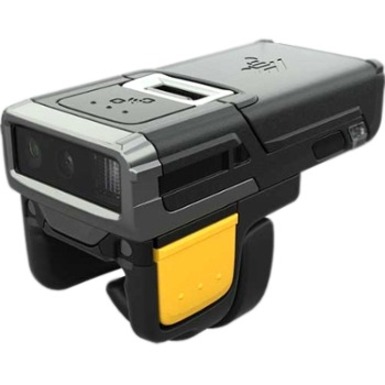

Zebra RS5100 Bluetooth Ring Scanner

Part No. RS51B0-TEDNWR

by Zebra Technologies Corporation

Zebra RS5100 Bluetooth Ring Scanner

Wireless Connectivity - 1D, 2D - Laser - Bluetooth

Part No. RS51B0-TEDNWR

by Zebra Technologies Corporation

$1366.99
General Information
ManufacturerZebra Technologies Corporation
Manufacturer Part NumberRS51B0-TEDNWR
Brand NameZebra
Product ModelRS5100
Product NameRS5100 Bluetooth Ring Scanner
Marketing InformationThe 'go-everywhere' single-finger featherweight and rugged ring scanner

Ring scanners can provide your workforce with the hands-free scanning they need to maximize productivity. But today's workers have high expectations for wearable devices. They expect a modern design with a minimal footprint for maximum comfort, ease-of-use that's so intuitive that virtually no training is required, plus point-and-shoot scanning simplicity on every barcode. Your business requires a flexible design that's just as at home in customer-facing areas as the warehouse, a rugged design to ensure a long lifecycle with a low Total Cost of Ownership (TCO), scanning options that match the needs of your environment, plus backroom accessories that reduce management time and cost. Now, you can have it all with the RS5100. A comfortable, featherlight-yet-rugged industrial design at home anywhere in your facility. Zebra's advanced scan engines for unmatched scanning performance. And features that drive ease-of-use and manageability to a new level.

Superior ergonomics, ease-of-use and application flexibility

Tiny size and extreme comfort

The small, light, low-profile RS5100 is purposefully understated at just over two ounces and two cubic inches - practically weightless for all day comfort.

Flexible hands-free scanning with many wearing styles

With Bluetooth, there's no cable for workers to manage - and handheld host devices can even remain in a holster. Workers can choose their preferred wearing style - on the right or left hand on either a finger or the back of hand, or on a lanyard.

LEDs lead the way to the most efficient path

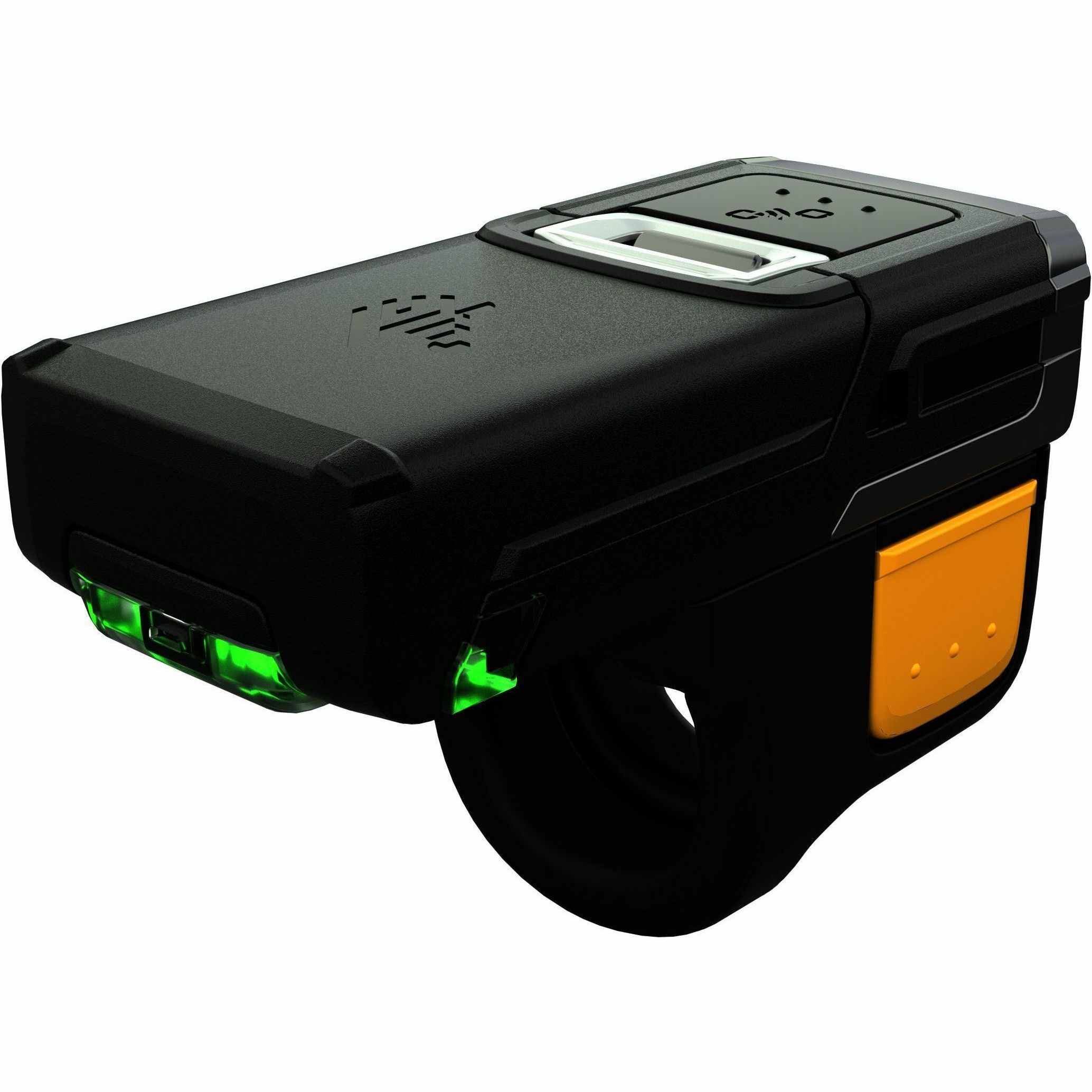

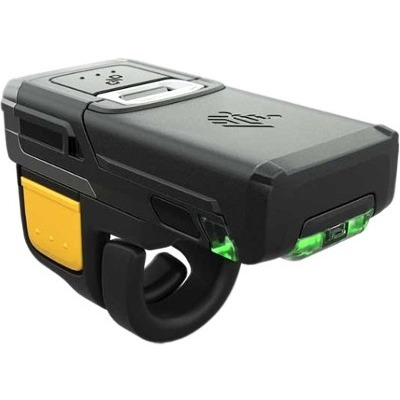

Multiple LEDs on the back of the RS5100 can blink to indicate whether workers should turn left or right, or continue straight ahead.

Prevent the spread of germs with personal trigger assemblies

Since the trigger assembly is the only part of the RS5100 that touches skin, we created a modular two-piece design that separates the trigger assembly from the scanner body, providing the option to give each worker their own trigger.

Unmatched versatility and flexibility

Use on practically any Bluetooth-enabled device

Pair the RS5100 with virtually any Zebra enterprise-class mobile device to unlock the full feature set. With Class 1 Bluetooth support, you can roam up to 300 feet/91.44 m from the host device, ideal when paired to vehicle mount computers or a dongle in a laptop or other device.

Just tap for instant pairing

With NFC, workers can simply tap the RS5100 on NFC-enabled Zebra devices, such as the WT6000 wearable computer and the TC52 handheld mobile computer. No need to scan a pairing barcode or open Bluetooth settings to identify and select the device.

Product TypeBarcode Scanner
Technical Information
Connectivity TechnologyWireless
Scanning Capability
  • 1D
  • 2D
Barcode Symbology Supported1D:
  • Code 39
  • Code 128
  • Code 93
  • Codebar/NW7
  • Code 11
  • MSI
  • UPC/EAN
  • I 2 of 5
  • Korean 3 of 5
  • GSI DataBar
  • Base 32 (Italian Pharma)
2D:
  • PDF417
  • Micro PDF417
  • Composite Codes
  • TLC-39
  • Aztec
  • DataMatrix
  • MaxiCode
  • QR Code
  • Micro QR
  • Chinese Sensible (Han Xin)
  • Postal Codes
OCR:
  • OCR-A
  • OCR-B
Light SourceLaser
Network & Communication
BluetoothYes
Physical Characteristics
Form FactorWearable
Width1.10" (28 mm)
Depth0.83" (21 mm)
Length2.40" (61 mm)
Weight (Approximate)2.47 oz (70 g)
Miscellaneous
Country of OriginChina
Environmentally FriendlyYes
Environmental Compliance
  • Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
  • Restriction of Hazardous Substances (RoHS)
COOCN
ConditionNo
Warranty
Limited Warranty1 Year
batteries (1)

Part No. BTRY-RS51-4MA-01

Zebra PowerPrecision Battery - For Scanner - Battery Rechargeable - Proprietary Battery Size - 480 mAh

BATT STD CAPACITY 480MAH WORLDWI

chargers (1)

Part No. SAC-RS51-40SCHG-01

Zebra Multi-Bay Battery Charger - 40

CHARGER ALLOWS CHARGING OF 40 SPARE

cradles (1)

Part No. CRD-RS51-4SCHG-01

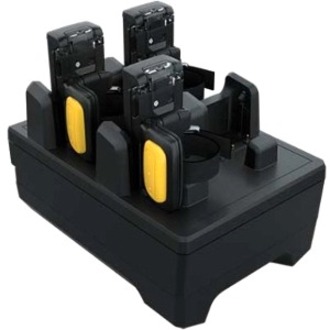

Zebra RS5100 Four Slot Ring Scanner Cradle - Bar Code Scanner - Charging Capability

CHARGER CHARGING OF 4XRS5100

mounting kits (1)

Part No. BRKT-SCRD-SMRK-01

Zebra BRKT-SCRD-SMRK-01 Mounting Bracket for Cradle

BRACKET

power adapters (2)

Part No. PWR-BGA12V50W0WW

Zebra AC Adapter - 50 W - 12 V DC Output - 4.16 A

(NEED CBL-DC-388A1-01)

Part No. PWR-BGA12V108W0WW

Zebra AC Adapter - 12 V DC Output - 9 A

108W

power cords (2)

Part No. CBL-DC-388A1-01

Zebra Standard Power Cord

4.16A US#7V9094

Part No. 23844-00-00R

Zebra US 7.5' AC Line Cord - 7.5 ft (2.29 m) Cord Length - United States

PWRS1400148R/14000241R/NEW PWR SUPL

scanner accessories (1)

Part No. SG-RS51-CMPD-05

Zebra SG-RS51-CMPD-05 Scanner Accessory

FOR SINGLE SIDED TRIGGER 5 PACK
