80 PLUS®GOLD

Seasonic was the forerunner of creating the very first 80 PLUS® Gold certified power supply on the market and since that time it has built a very popular Gold series lineup that covers a full power range of power supplies with impeccable performance and efficiency.

The highly efficient 80 PLUS® Gold certification guarantees greater than 87 %, 90 % and 87 % efficiency at 20 %, 50 % and 100 % operating loads, respectively. The clear advantage of buying a power supply with 80 PLUS® Gold rating is the fact that the less energy gets wasted during power conversion, the lower the operating costs will be for the user.

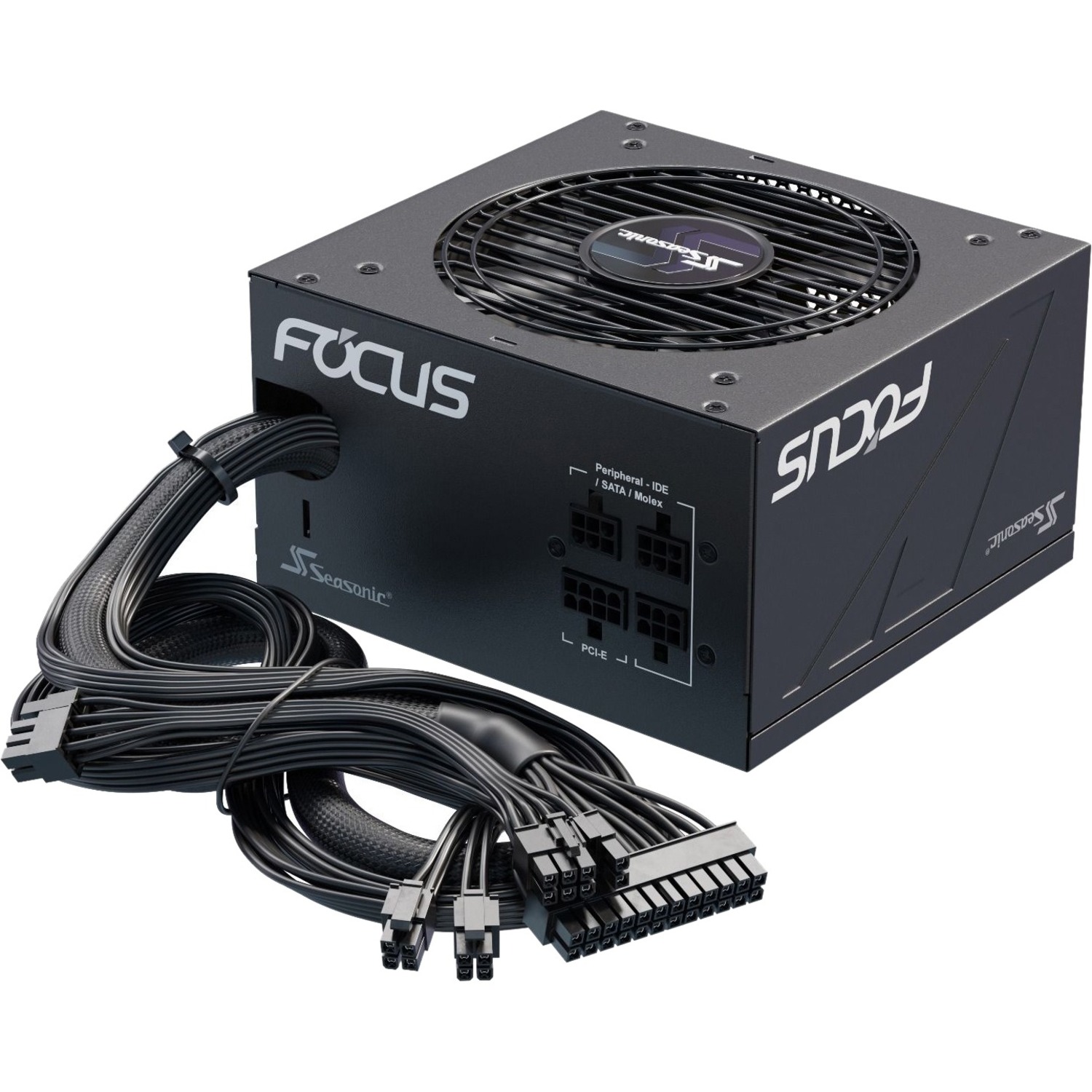

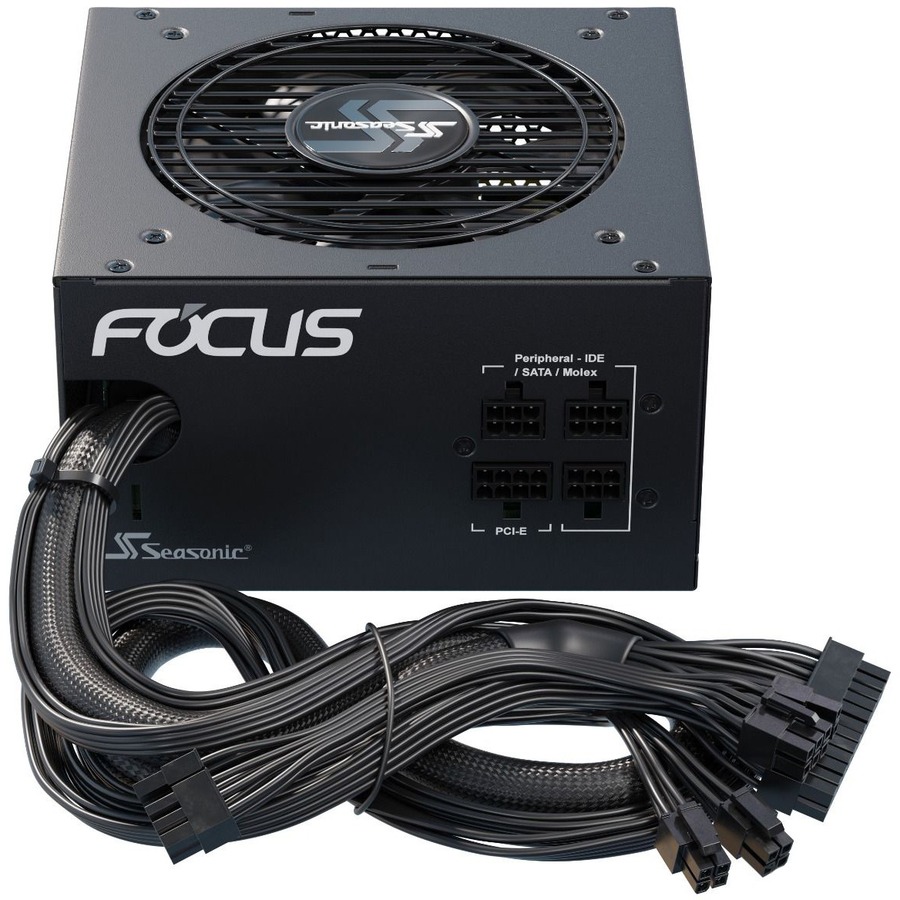

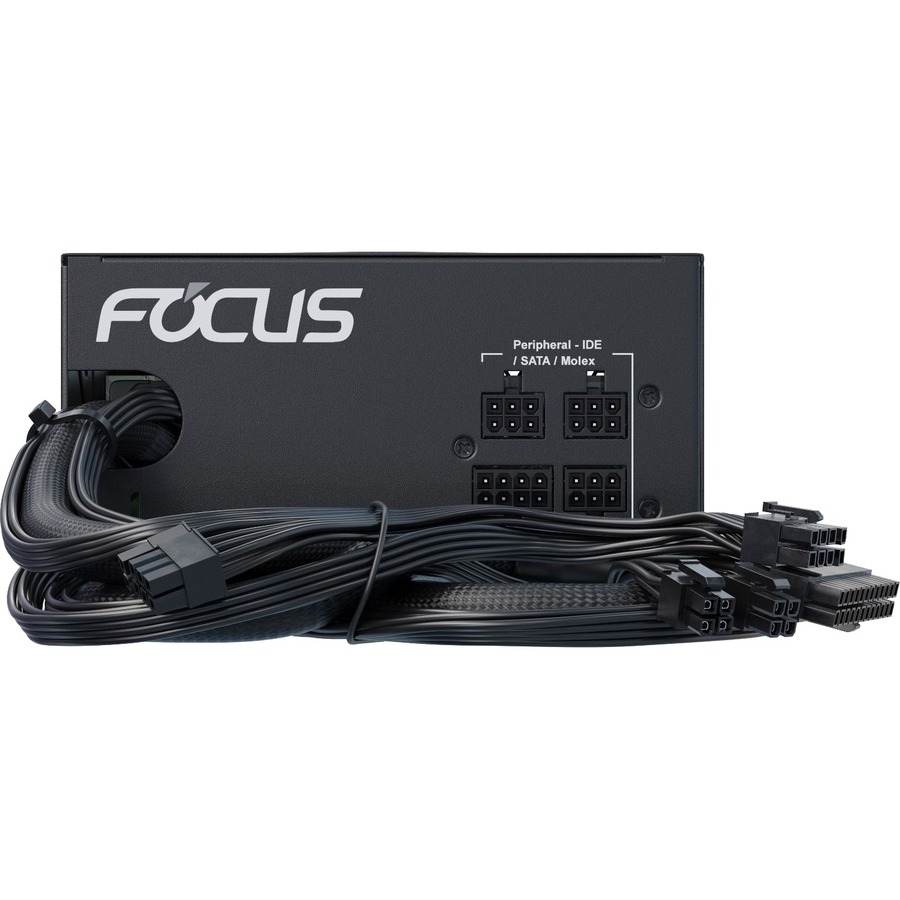

SEMI-MODULAR CABLES

Some cables are permanently attached to the power supply (most of the time the 24-pin and the 8-pin ATX power cables) and the rest of the cables can be used to connect the rest of the available components.

S²FC - SMART AND SILENT FAN CONTROL

The intelligent thermal circuit feature is designed to find the optimal balance between the necessity to cool the components and the need to run the power supply in the most silent manner possible.

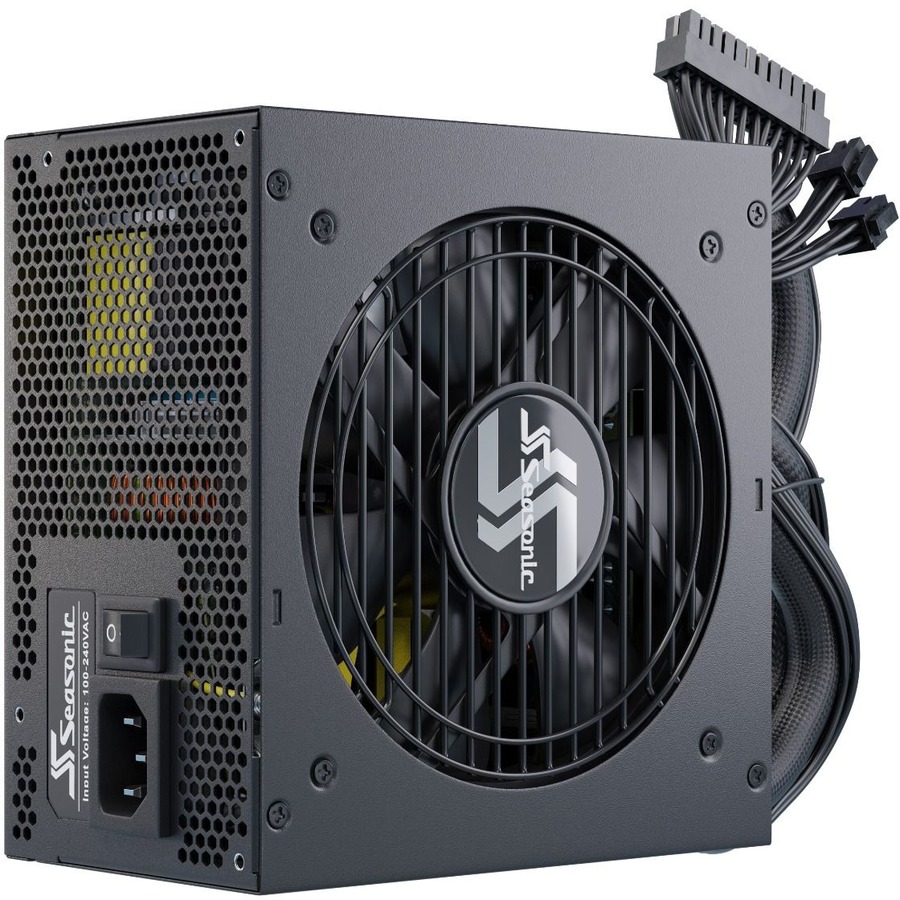

FLUID DYNAMIC FAN BEARING

High performance Fluid Dynamic Bearing (FDB) fans are designed to take advantage of the impact absorbance effects of oil. They are extremely reliable and generate considerably less operating noise and heat than ball bearing fans. The lubrication of the bearing surface reduces friction and vibration and therefore lowers overall power consumption. Due to the effortless, quieter rotations and its robust construction, this reliable fan technology also greatly increases the lifespan of the fan.

HOW IT WORKS

When the fan shaft rotates, high pressure oil drifts along the grooves of the bearing sleeve to generate a thin layer of lubrication between the bearing faces. As the speed increases, so does dynamic oil pressure and the shaft is lifted from the bearing to create smooth, effortless rotations. The herringbone shape of the groves helps to efficiently channel the lubricant and avert leakage.

• 120 V AC
• 230 V AC

• 3.3 V
• 5 V
• 12 V

• 3.3 V @ 20 A
• 5 V @ 20 A
• 12 V @ 62 A
• 12 V @ 300 mA
• 5 V @ 3 A

• 20 A
• 62 A
• 300 mA
• 3 A

• Restriction of Hazardous Substances (RoHS)
• Waste Electrical and Electronic Equipment Directive (WEEE)
• Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
• Taiwan Restriction of Hazardous Substances (Taiwan RoHS)
