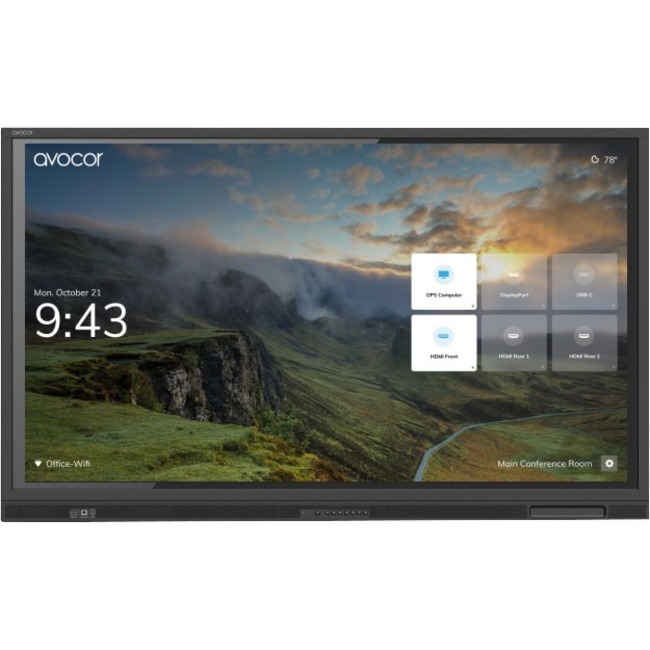

avocor AVE-5530 Collaboration Display

Part No. AVE-5530

by avocor limited

avocor AVE-5530 Collaboration Display

55" (1397 mm) LCD - Touchscreen - 16:9 Aspect Ratio - 3840 x 2160 - Direct LED - 370 cd/m² - 4,000:1 Contrast Ratio - 2160p - USB - HDMI - Windows 10, Windows 8, Mac OS X, Linux

Part No. AVE-5530

by avocor limited

$3568.99
General Information
Manufactureravocor limited
Manufacturer Part NumberAVE-5530
Brand Nameavocor
Product SeriesE30
Product ModelAVE-5530
Product NameAVE-5530 Collaboration Display
Marketing InformationThe E series displays utilize the very latest optimized touch technology and superior glass technology providing a smooth and extremely accurate, low latency writing experience as well as object recognition. The ability to easily switch between using a pen, finger, and palm create for a fluid collaborative environment for users in real-time and introduces Avocor's UiQ touch enabled interface.

Avocor UiQis Avocor's new Smart touch enabled dynamic user interface, with source preview, touch menu that allows for remote control free usage.

Over-the-air (OTA) firmware update capability enables firmware updates to be more efficiently deployed rather than manually upgrading each device individually.

Superior glass technologyprovides a smooth and extremely accurate, low latency writing experience. Object recognition allows users to easily switch between pen, finger, and palm creating a fluid collaborative environment in real-time.

Zero parallax glass surfacewith anti-glare and anti-fingerprint coating
for a crisp image with smooth, pixel-perfect inking.

EnhancedHDMI out supporting 4k video @60Hz and offering a range of connectivity options including front facing guest HDMI, USB touch connections and a USB hub connection for easy access to USB drive data. The 55" also offers a Type-C connectivity option.

Ahigh-quality, front-facing soundbar module is included, ensuring that the display provides 30w conference room audio delivering a crystal-clear audio experience.

Product TypeCollaboration Display
Display & Graphics
Viewable Screen Size55" (1397 mm)
Display Screen TypeLCD
Backlight TechnologyDirect LED
Screen Mode4K UHD
Screen Resolution3840 x 2160
Scan Format2160p
Aspect Ratio16:9
Response Time8 ms
Color Depth30-bit
Contrast Ratio4,000:1
Display OrientationLandscape
Brightness370 cd/m²
Horizontal Viewing Angle178°
Vertical Viewing Angle178°
Touchscreen Information
TouchscreenYes
Multi-touch ScreenYes
Number of Touch Points20
Audio
SpeakersYes
Number of Speakers2
RMS Output Power30 W
Network & Communication
EthernetYes
Ethernet TechnologyEthernet
Interfaces/Ports
HDMIYes
Number of HDMI Inputs3
Number of HDMI Outputs1
Total Number of USB Ports3
Number of USB 3.0 Ports2
USBYes
Number of Network (RJ-45) Ports2
Network (RJ-45)Yes
DisplayPortYes
SerialYes
Software
Operating System Platform
  • Windows
  • Mac OS
  • Linux
Operating System
  • Windows 10
  • Windows 8
  • Mac OS X
  • Linux
Power Description
Input Voltage
  • 120 V AC
  • 230 V AC
Standby Power Consumption500 mW
Physical Characteristics
VESA Mount CompatibleYes
VESA Mount Standard400 x 400
Height31.57" (802 mm)
Width50.63" (1286 mm)
Depth3.09" (78.40 mm)
Weight (Approximate)71.65 lb (32500 g)
Miscellaneous
Package Contents
  • AVE-5530 Collaboration Display
  • 1 x Remote Control
  • Batteries
  • 2 x 3mm Fine-Tip Passive Touch Pen
  • 1 x AC power Cord
  • 1 x USB-A 3.0 cable (3m|118.1 in)
  • 1 x HDMI Cable (3m|118.1 in)
  • 1 x Type-C Cable (1.5m|59 inches)
  • 1 x USB A-B adapter
  • 1 x Quick Start Guide
ConditionNo
UPC858323007332
