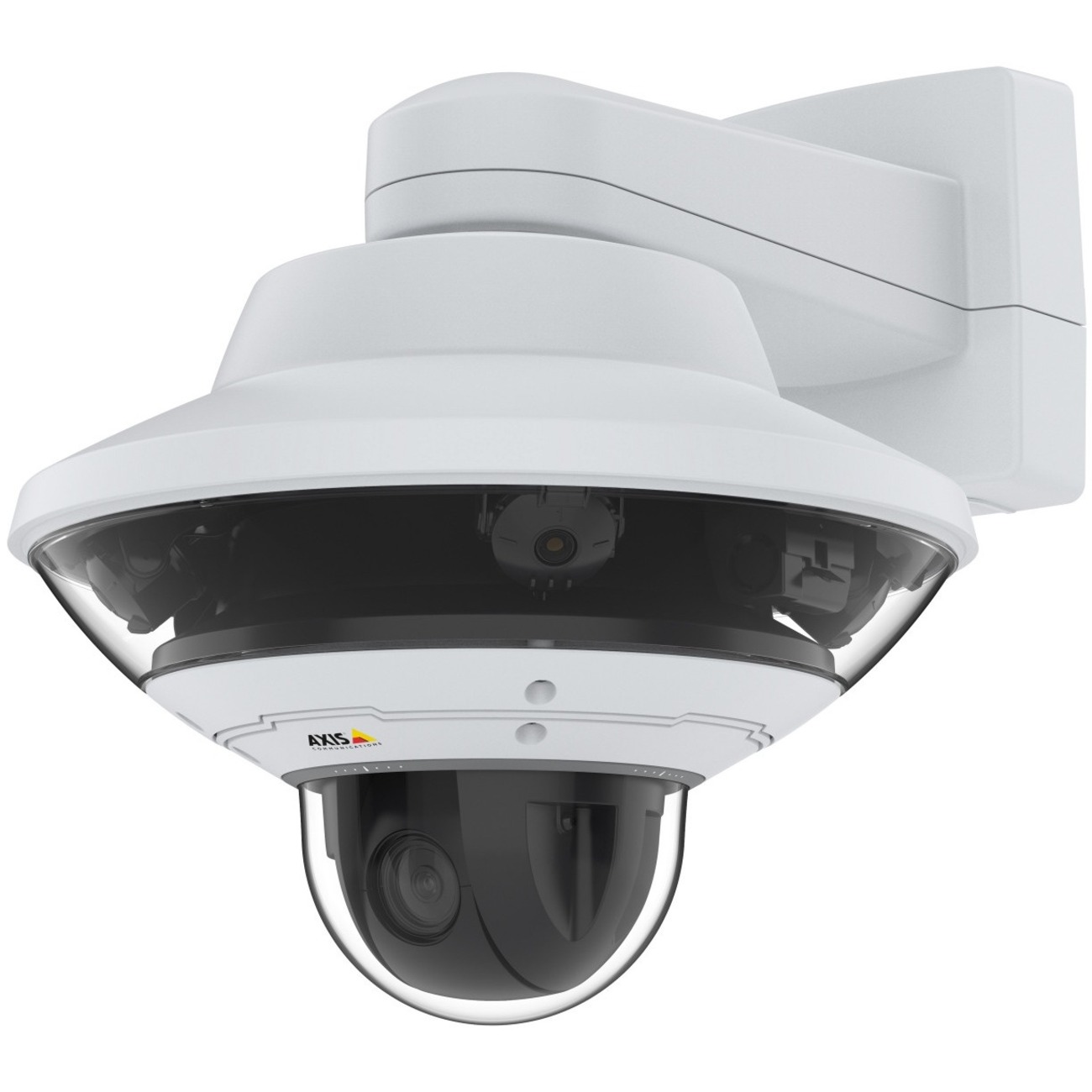

AXIS Q6010-E 60 Hz 5 Megapixel Outdoor Network Camera - Color - Dome - White

Part No. 01981-001

by Axis Communications

AXIS Q6010-E 60 Hz 5 Megapixel Outdoor Network Camera - Color - Dome - White

H.264, H.264 (MPEG-4 Part 10/AVC), H.264 (MP), H.264 HP, H.265, H.265 (MPEG-H Part 2/HEVC), H.265 (MP) - 2592 x 1944 - 2.8 mm (0.11") Fixed Lens - 20 fps - RGB CMOS - Corner Mount, Bracket Mount, Pole Mount, Ceiling Mount, Parapet Mount, Wall Mount, Pendant Mount - IK10 - IP66

Part No. 01981-001

by Axis Communications

$2657.99
General Information
ManufacturerAxis Communications
Manufacturer Part Number01981001
Brand NameAXIS
Product SeriesQ60
Product ModelQ6010-E 60 Hz
Product NameQ6010-E Network Camera
Marketing Information

AXIS Q6010-E Network Camera is a multidirectional camera designed for operation with any AXIS Q60-E PTZ Network Camera. Together they deliver 360° overview for total situational awareness and great details. It's ideal for active city surveillance, for instance at street crossings or squares.

Total situational awareness- 24/7

Do you want to monitor one cohesive video stream with the possibility to zoom in for detailed views in just one click? AXIS Q6010-E is specially designed for operation with any AXIS Q60-E PTZ Network Camera. It offers one-click PTZ control allowing you to move from great overviews to zoomed-in detailed views in just one mouse click. Additionally, this camera offers autopilot for automatic PTZ tracking. When motion is detected in one of the four 5 MP sensors, the connected AXIS Q60-E PTZ Network Camera will automatically track the object within the viewing area.

Great image quality - day and night

AXIS Q6010-E features four 5 MP sensors and delivers a total of 20 MP resolution both day and night. This multidirectional camera also offers exchangeable lenses on each of the four sensors so you can easily change lens to ensure you capture the images you need. And, thanks to corridor format it delivers vertically oriented video streams that maximize coverage of areas such as along alleys and long streets. Furthermore, Axis Zipstream with support for H.264/H.265, significantly lowers bandwidth and storage requirements without compromising image quality.

Cost-efficient installation

Using the same bracket, power supply and network cable as the connected AXIS Q60-E PTZ Net-work Camera, there's no extra equipment required for AXIS Q6010-E. Additionally, with autofocus and positioning calibration you get maximum flexibility and accurate configuration which saves time during setup. Just add the PTZ camera and you're ready to capture great overviews and details from one camera unit.

Product TypeNetwork Camera
Technical Information
HD RecordingYes
Display & Graphics
Image Sensor TypeRGB CMOS
Color SupportedColor
Field of ViewHorizontal field of view: 360° - Vertical field of view: 84
Effective Camera Resolution5 Megapixel
Number of Sensors4
Video
Video Formats
  • H.264
  • H.264 (MPEG-4 Part 10/AVC)
  • H.264 (MP)
  • H.264 HP
  • H.265
  • H.265 (MPEG-H Part 2/HEVC)
  • H.265 (MP)
Maximum Video Resolution2592 x 1944
Maximum Frame Rate20 fps
Lens
Lens TypeFixed
Maximum Focal Length2.8 mm (0.11")
Lens IncludedYes
Maximum Aperturef/2
Exposure
Shortest Shutter Speed1/32500 Second
Longest Shutter Speed1/20 Second
Network & Communication
Connectivity TechnologyWired
Remote ManagementYes
Storage
Storage TypeMemory Card
Interfaces/Ports
Network (RJ-45)Yes
Power Description
Input Voltage
  • 24 V DC
  • 24 V AC
Power Source Type
  • DC
  • AC
  • PoE
Physical Characteristics
Mount Type
  • Corner Mount
  • Bracket Mount
  • Pole Mount
  • Ceiling Mount
  • Parapet Mount
  • Wall Mount
  • Pendant Mount
Form FactorDome
Color FamilyWhite
Product ColorWhite
Height7.91" (201 mm)
Diameter15.55" (395 mm)
Weight (Approximate)9.92 lb (4500 g)
Environmental Conditions
Minimum Operating Temperature-58°F (-50°C)
Maximum Operating Temperature122°F (50°C)
Maximum Operating Humidity100%
Miscellaneous
Features
  • PTZ
  • Day/Night
  • Auto Tracking
  • Removable IR Cut-off Filter
  • White Balance
  • Privacy Masking
  • Wide Dynamic Range
  • Password Protection
  • HTTPS Encryption
  • Motion Detection
  • Active Tampering Alarm
Indoor/OutdoorOutdoor
Package Contents
  • Q6010-E Network Camera
  • Q60-E Adapter
  • Bayonet Screws
  • Installation Guide
  • Windows Decoder 1-user License
Impact Protection RatingIK10
Ingress Protection RatingIP66
TAA CompliantYes
NDAA CompliantYes
ConditionNo
UPC7331021070141
Warranty
Limited Warranty5 Year
