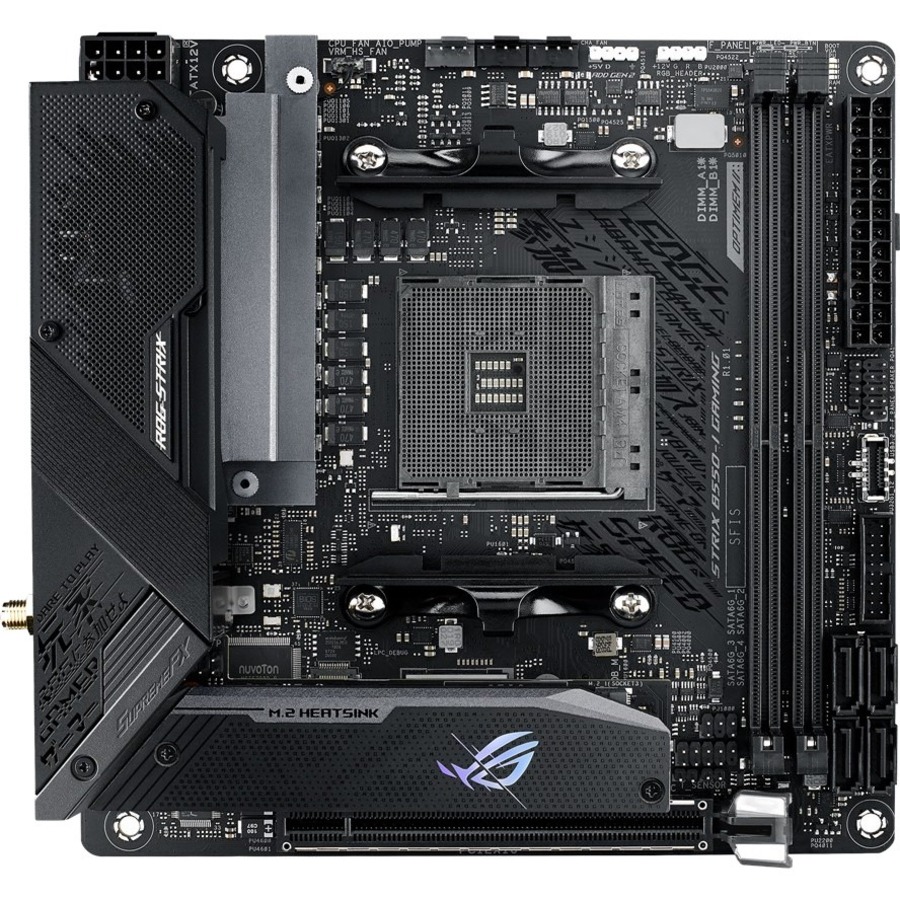

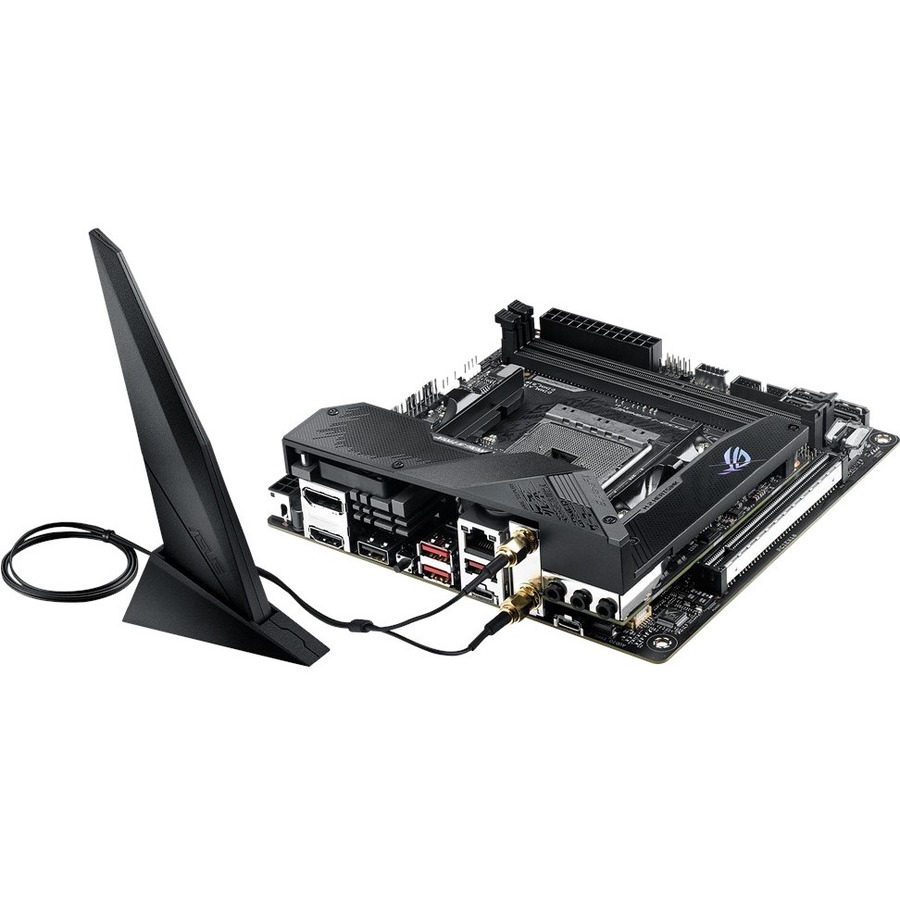

Asus ROG Strix B550-I GAMING Desktop Motherboard - AMD B550 Chipset - Socket AM4 - Mini ITX
This Product is currently not in offering
On back-order, will ship once in-stock
| Manufacturer | ASUS Computer International |
| Manufacturer Part Number | ROG STRIX B550-I GAMING |
| Brand Name | Asus ROG |
| Product Line | Strix |
| Product Model | B550-I GAMING |
| Product Name | Strix B550-I GAMING Desktop Motherboard |
| Marketing Information | ROG STRIX B550-I GAMING ROG Strix B550 Gaming series motherboards offer a feature-set usually found in the higher-end ROG Strix X570 Gaming series, including the latest PCIe® 4.0. With robust power delivery and effective cooling, ROG Strix B550 Gaming is well-equipped to handle 3rd Gen AMD Ryzen™ CPUs. Boasting futuristic aesthetics and intuitive ROG software, ROG Strix B550-I Gaming is ready to become your next compact gaming build. Advance Your Gaming Immersion ROG Strix B550-I Gaming is PCIe® 4.0-ready and provides the latest connectivity options for supersmooth networking and blisteringly fast file transfers. Audio enhancements give you a massive advantage, allowing you to pick up on the subtlest of cues for a completely immersive gaming experience. PCIe 4.0-Ready ROG Strix B550-I Gaming has two M.2 slots, ROG Strix B550-I Gaming features two M.2 slots, one of which supports the latest PCIe 4.0 standard to provide maximum storage flexibility and the fastest data speeds available via the 3rd Gen AMD Ryzen platform. Both M.2 slots support up to the type 2280 socket and NVM Express® RAID for a performance boost. All-round Performance ROG Strix B550-I Gaming provides robust power delivery to fuel Ryzen's cores, comprehensive cooling, and support for faster memory - so it has everything you need to load up your build with high-performance components for playing in the big leagues. |
| Product Type | Desktop Motherboard |
| Chipset Manufacturer | AMD |
| Chipset Model | B550 |
| Total Processor Supported | 1 |
| Processor Socket | Socket AM4 |
| Processor Supported |
|
| Number of Memory Slots | 2 |
| Memory Form Factor |
|
| Maximum Memory Supported | 64 GB |
| Memory Speed Supported |
|
| Memory Technology | DDR4 SDRAM |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels |
|
| Onboard Video | CPU Dependent Video |
| Audio Channels | 7.1 |
| Bluetooth | Yes |
| 2.5Gigabit Ethernet | Yes |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax |
| Total Number of Expansion Slots | 1 |
| Total Number of PCI Express Slots | 1 |
| Number of PCI Express x16 Slots | 1 |
| Total Number of USB Ports | 6 |
| Number of USB 2.0 Ports | 1 |
| Number of USB 3.2 Gen 2 Type-A Ports | 3 |
| HDMI | Yes |
| DisplayPort | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of SATA Interfaces | 4 |
| Number of M.2 Interfaces | 2 |
| Total Number of Onboard USB Ports | 5 |
| Number of Onboard USB 2.0 Ports | 2 |
| Number of Onboard USB 3.2 Ports | 3 |
| Form Factor | Mini ITX |
| Width | 6.70" (170.18 mm) |
| Depth | 6.70" (170.18 mm) |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Country of Origin | China |
| Limited Warranty | 3 Year |
