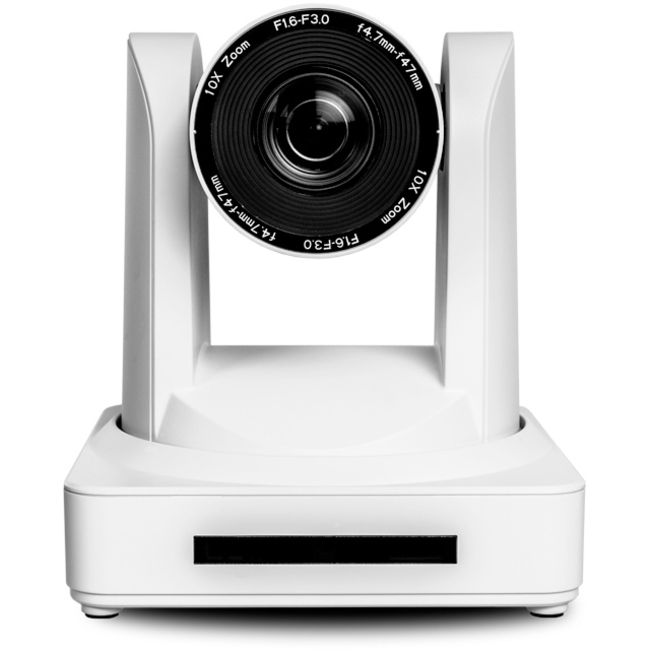

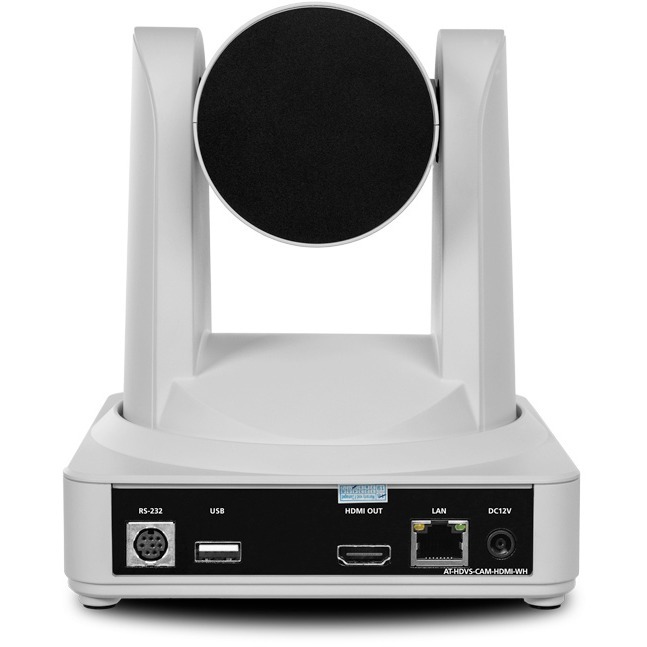

Atlona AT-HDVS-CAM-HDMI Video Conferencing Camera - 2.1 Megapixel - White - USB 2.0 - 1 Pack(s)

Part No. AT-HDVS-CAM-HDMI-WH

by Atlona Technologies

This Product is currently not in offering

Atlona AT-HDVS-CAM-HDMI Video Conferencing Camera - 2.1 Megapixel - White - USB 2.0 - 1 Pack(s)

Part No. AT-HDVS-CAM-HDMI-WH

by Atlona Technologies

This Product is currently not in offering

General Information
ManufacturerAtlona Technologies
Manufacturer Part NumberAT-HDVS-CAM-HDMI-WH
Brand NameAtlona
Product ModelAT-HDVS-CAM-HDMI
Product NamePTZ Camera with HDMI Output and USB
Marketing Information

The Atlona AT-HDVS-CAM-HDMI is an enterprise-grade PTZ camera designed for use in video conferencing and other applications such as lecture capture and distance education. It features an HDMI output, as well as a USB 2.0 interface for video and camera control. Simultaneous video output is available over both interfaces. Through USB, the HDVS-CAM-HDMI seamlessly integrates with the Omega™ Series and HDVS-300 System for a complete, automated conferencing system that includes AV and USB extension. The HDMI output is ideal for use with a video conferencing codec, lecture capture appliance, or PC equipped for video capture. The HDVS-CAM-HDMI delivers high performance, professional-quality imaging with video resolutions up to 1080p @ 60 Hz over HDMI and 1080p @ 30 Hz for USB 2.0, as well as fast and accurate auto-focusing, and a fast yet quiet pan and tilt mechanism. This PTZ camera is ideal for a wide range of small to medium-sized meeting spaces, classrooms, training rooms, and many other environments. The HDVS-CAM-HDMI is available in black or white.

The HDVS-CAM-HDMI is part of a family of PTZ cameras that includes the HDVS-CAM with USB 2.0 interface, as well as the HDVS-CAM-HDBT with HDBaseT output. It includes a handheld IR remote control, plus mounting hardware for convenient on-wall installation. Available as an option is the AT-HDVS-CAM-CMNT for inverted ceiling mounting.

Packaged Quantity1
Product TypeVideo Conferencing Camera
Display & Graphics
Effective Resolution2.1 Megapixel
Maximum Video Resolution1920 x 1080
Image Sensor TypeCMOS
Lens
Focus ModesAuto/Manual
Interfaces/Ports
Host InterfaceUSB 2.0
HDMI OutYes
Physical Characteristics
Product ColorWhite
Height6.59" (167.39 mm)
Width5.90" (149.86 mm)
Depth5.90" (149.86 mm)
Weight (Approximate)1.40 kg
Miscellaneous
Package Contents
  • PTZ Camera with HDMI Output and USB
  • 1 x Wall Mounting Plate
  • 1 x 1/4 20OUNC Screws
  • 1 x IR Remote Control
  • 1 x USB A Cable
  • 1 x VISCA to RS-232 DB-9 Adapter
  • 2 x AAA battery
  • 1 x Installation Guide
  • Lens Cap
  • External Universal Power Supply
CompatibilityOmega Series - HDVS-300 System
Device SupportedComputer
