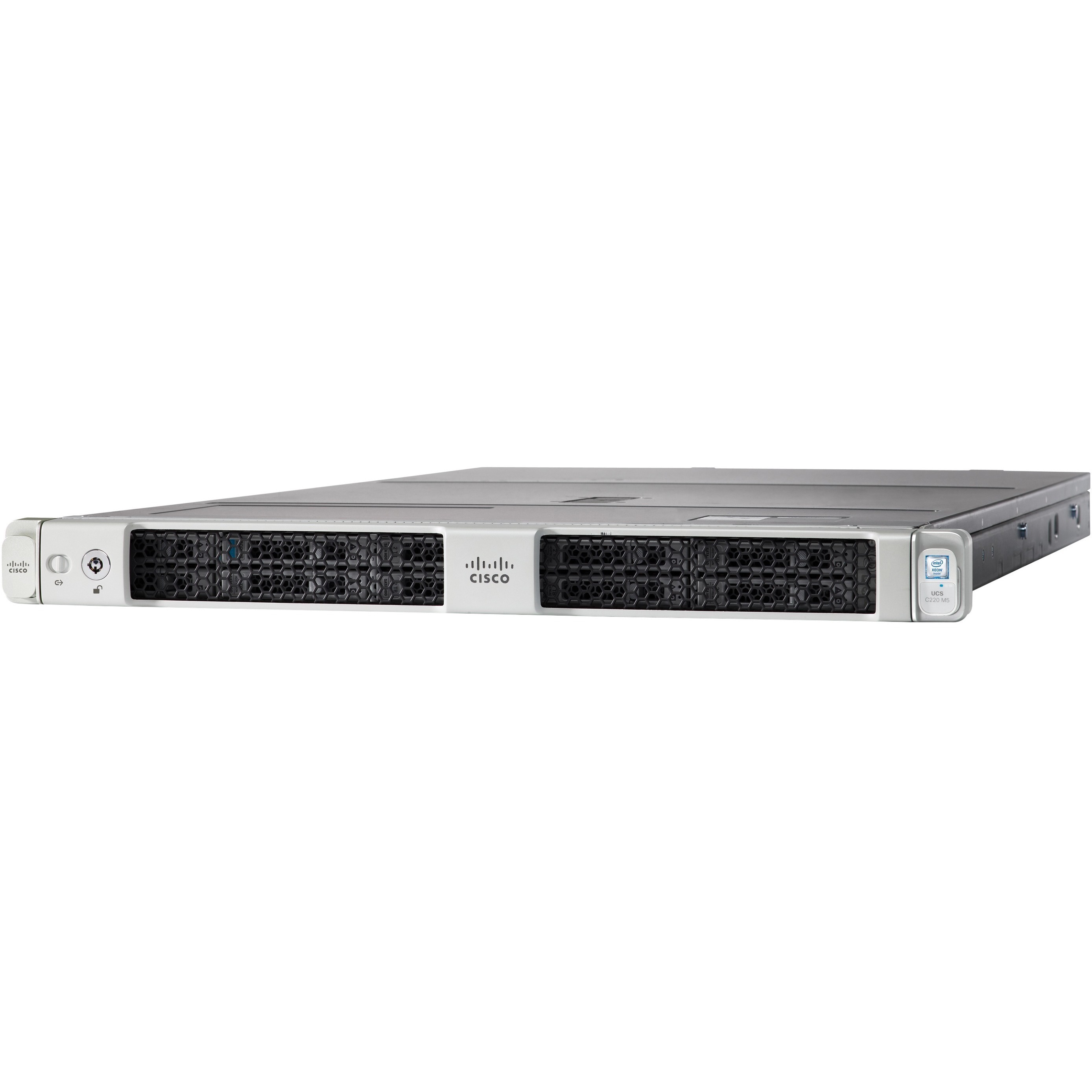

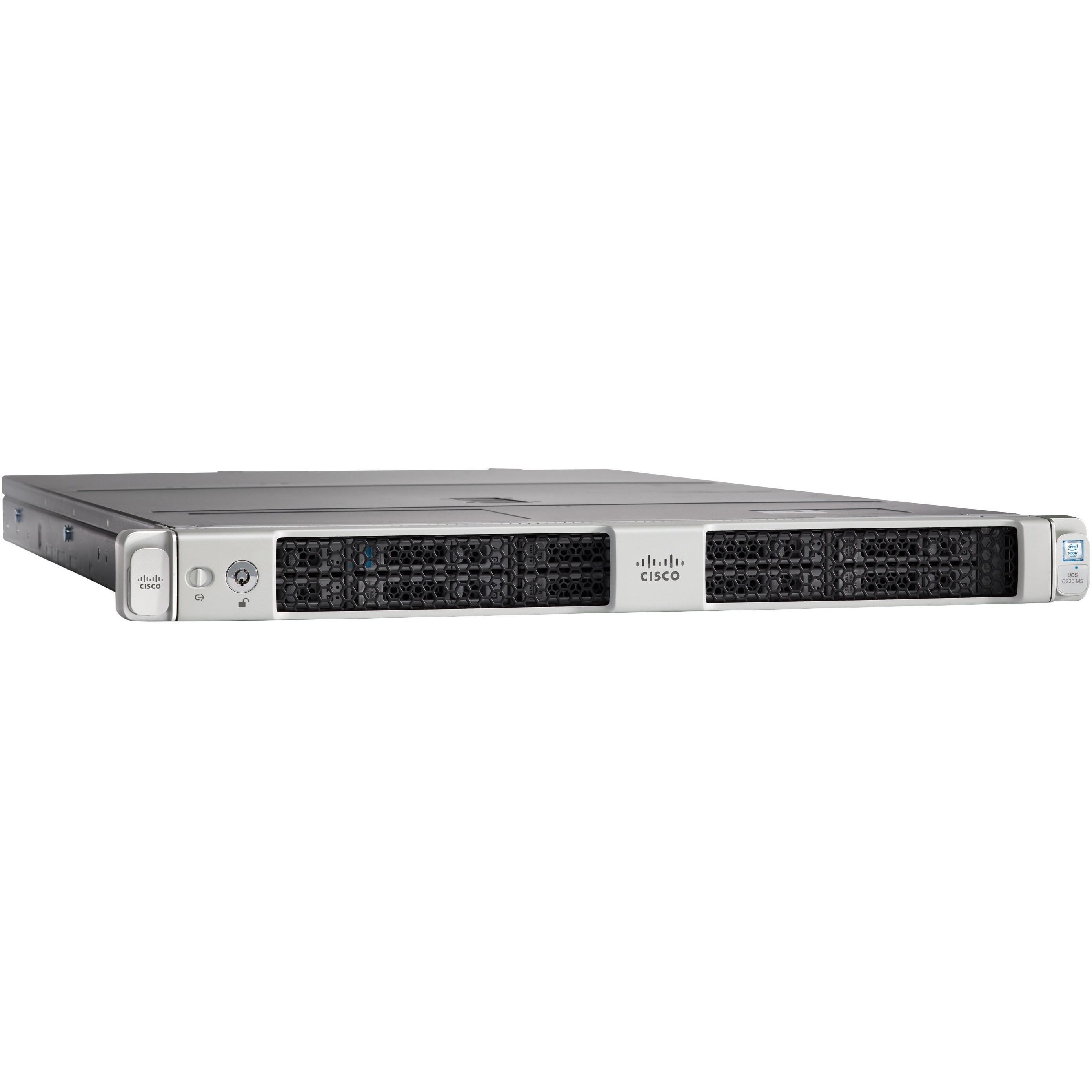

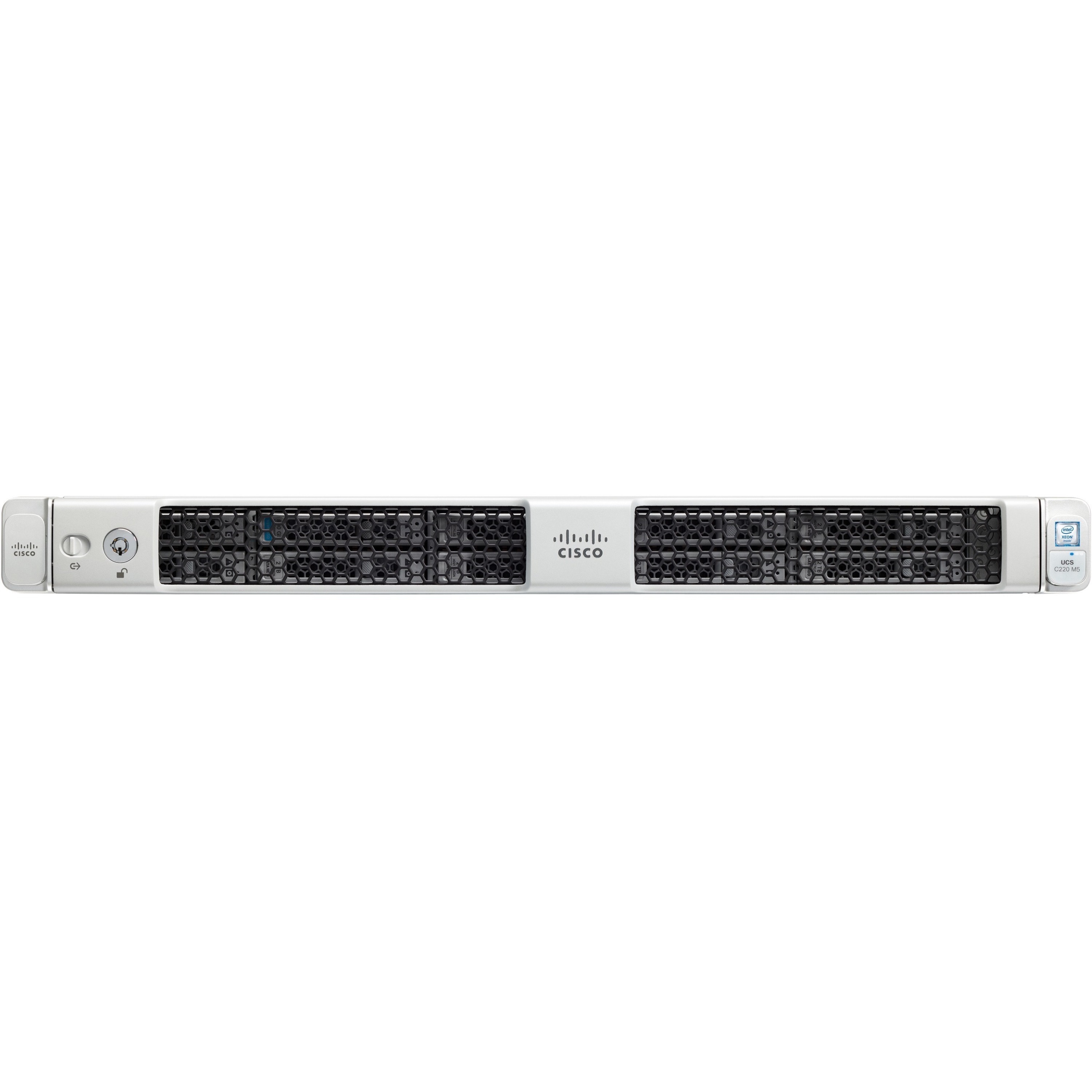

Cisco C220 M5 1U Rack Server - 2 Xeon Silver 4210R 2.40 GHz - 192 GB RAM - 12Gb/s SAS Controller
This Product is currently not in offering
On back-order, will ship once in-stock
General Information
| Manufacturer | Cisco Systems, Inc |
| Manufacturer Part Number | UCS-SP-C220M5C-B |
| Brand Name | Cisco |
| Product Series | C220 M5 |
| Product Name | UCS C220 M5 Server |
| Marketing Information | The UCS C220 M5 SFF server extends the capabilities of Cisco's Unified Computing System portfolio in a 1U form factor with the addition of the Intel® Xeon® Processor Scalable Family, 24 DIMM slots for 2666-MHz or 2933-MHz DIMMs with capacity points up to 128 GB, 2666-MHz PMEMs with capacity points up to 512 GB, two 2 PCI Express (PCIe) 3.0 slots, and up to 10 SAS/SATA hard disk drives (HDDs) or solid state drives (SSDs). The C220 M5 SFF server also includes one dedicated internal slot for a 12G SAS storage controller card. The latest update includes support for 2nd Generation Intel® Xeon® Scalable Processors, 2933-MHz DDR4 memory, and the new 512GB Intel® Persistent Memory Modules (PMEMs). With this combination of features, up to 9 TB of memory is possible (using 12 x 256 GB DDR4 DIMMs and 12 x 512 GB PMEMs). The C220 M5 server includes one dedicated internal modular LAN on motherboard (mLOM) connector for installation of a Cisco Virtual Interface Card (VIC) or third-party network interface card (NIC), without consuming a PCI slot, in addition to 2 x 10Gbase-T Intel x550 embedded (on the motherboard) LOM ports. The Cisco UCS C220 M5 server can be used standalone, or as part of the Cisco Unified Computing System, which unifies computing, networking, management, virtualization, and storage access into a single integrated architecture, enabling end-to-end server visibility, management, and control in both bare metal and virtualized environments. |
| Product Type | Server |
Processor
| Number of Processors Supported | 2 |
| Number of Processors Installed | 2 |
| Processor Type | Xeon Silver |
| Processor Generation | 2nd Gen |
| Processor Model | 4210R |
| Processor Core | Deca-core (10 Core) |
| Processor Speed | 2.40 GHz |
Chipset
| Chipset Manufacturer | Intel |
| Chipset Model | C621 |
Memory
| Standard Memory | 192 GB |
| Maximum Memory Supported | 3 TB |
| Memory Technology | DDR4 SDRAM |
| Total Number of Memory Slots | 24 |
| Number of Occupied Memory Slots | 12 |
Controllers
| Controller Type | 12Gb/s SAS |
| RAID Supported | Yes |
I/O Expansions
| Number of Total Expansion Bays | 10 |
| Number of Internal 2.5" Bays | 10 |
| Hot Swappable Bays | Yes |
Display & Graphics
| Graphics Controller Model | G200e |
| Graphics Memory Capacity | 16 MB |
Network & Communication
| Ethernet Technology | 25 Gigabit Ethernet |
Interfaces/Ports
| Total Number of USB Ports | 2 |
| Number of USB 3.0 Ports | 2 |
| Network (RJ-45) | Yes |
| VGA | Yes |
Power Description
| Number of Power Supplies Supported | 2 |
Miscellaneous
| Country of Origin | United States |
Physical Characteristics
| Form Factor | Rack |
| Rack Height | 1U |
| Height | 1.70" (43.18 mm) |
| Width | 18.98" (482.09 mm) |
| Depth | 30.98" (786.89 mm) |
| Weight (Approximate) | 26.70 lb (12110.92 g) |
