Asus ProArt PA32UCX-PK 32" Class 4K UHD LCD Monitor - 16:9 - Black

Part No. 90LM03HC-B023B0

by ASUS Computer International

This Product is currently not in offering

Asus ProArt PA32UCX-PK 32" Class 4K UHD LCD Monitor - 16:9 - Black

Part No. 90LM03HC-B023B0

by ASUS Computer International

This Product is currently not in offering

General Information
ManufacturerASUS Computer International
Manufacturer Part Number90LM03HC-B023B0
Brand NameAsus
Product LineProArt
Product ModelPA32UCX-PK
Product NameProArt PA32UCX-PK Widescreen LCD Monitor
Marketing Information

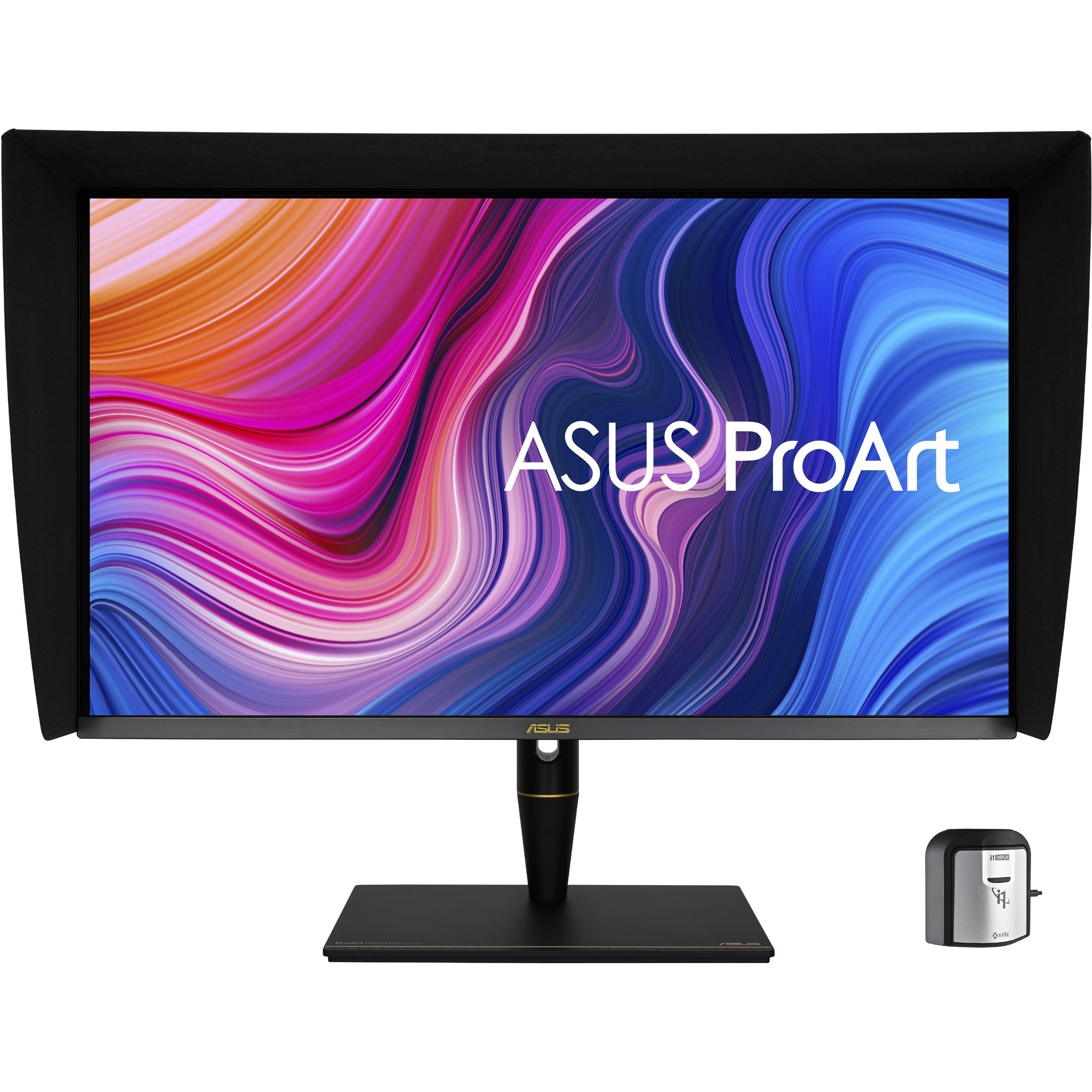

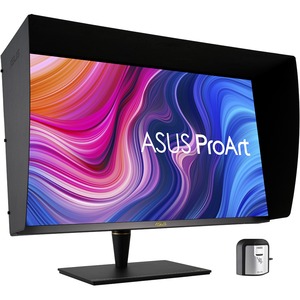

ASUS ProArt Display PA32UCX-PK 32" 4K HDR Mini LED Monitor, 99% DCI-P3 99.5% Adobe RGB, 10-bit, IPS, Thunderbolt 3 USB-C HDMI DP, Calman Ready, Dolby Vision, 1200nits, w/ X-rite Calibrator

  • 32-inch 4K HDR display features 1,152-zone mini-LED backlight
  • Thunderbolt™ 3 USB-C™ x2 (In x1, Out x1), HDMI (v2.0b) x3, DisplayPort 1.2
  • ASUS Off-Axis Contrast Optimization technology
  • True 10 bit color with Quantum-dot technology
  • Support multiple HDR formats (Dolby Vision, HDR-10, HLG) presents lifelike experience
  • World-leading delta-E (∆E) < 1 color difference value for the sRGB and Adobe RGB
  • ASUS Eye Care technology features TÜV Low Blue Light & TÜV Flicker Free certification

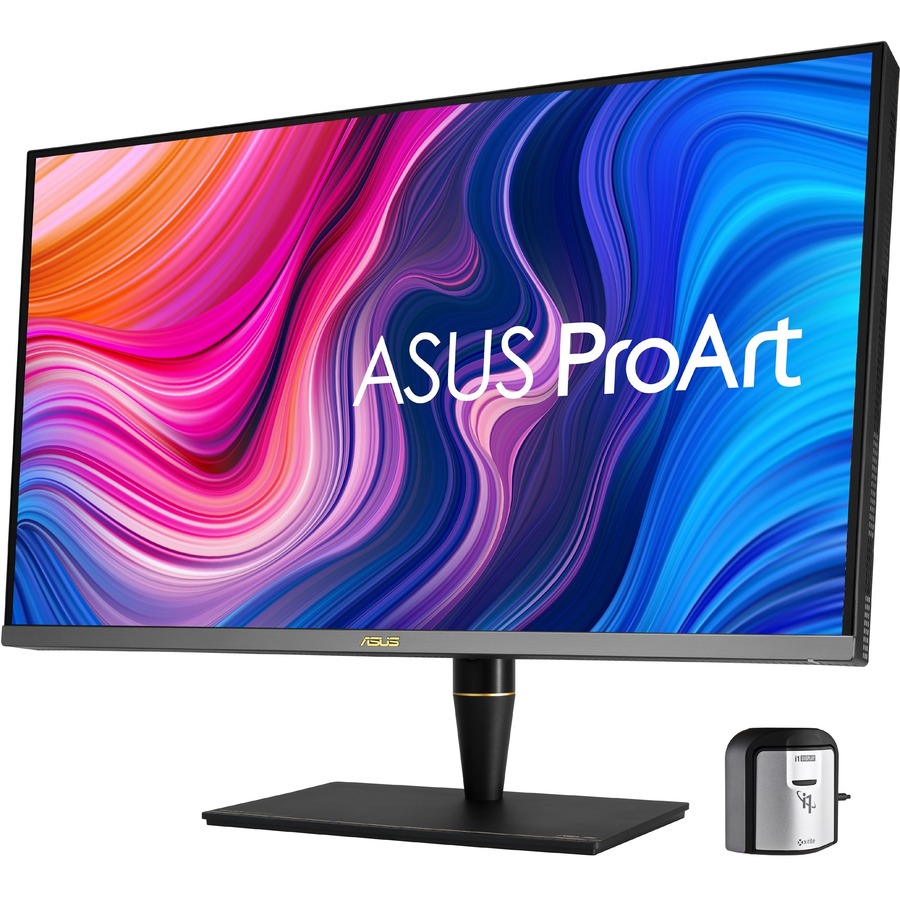

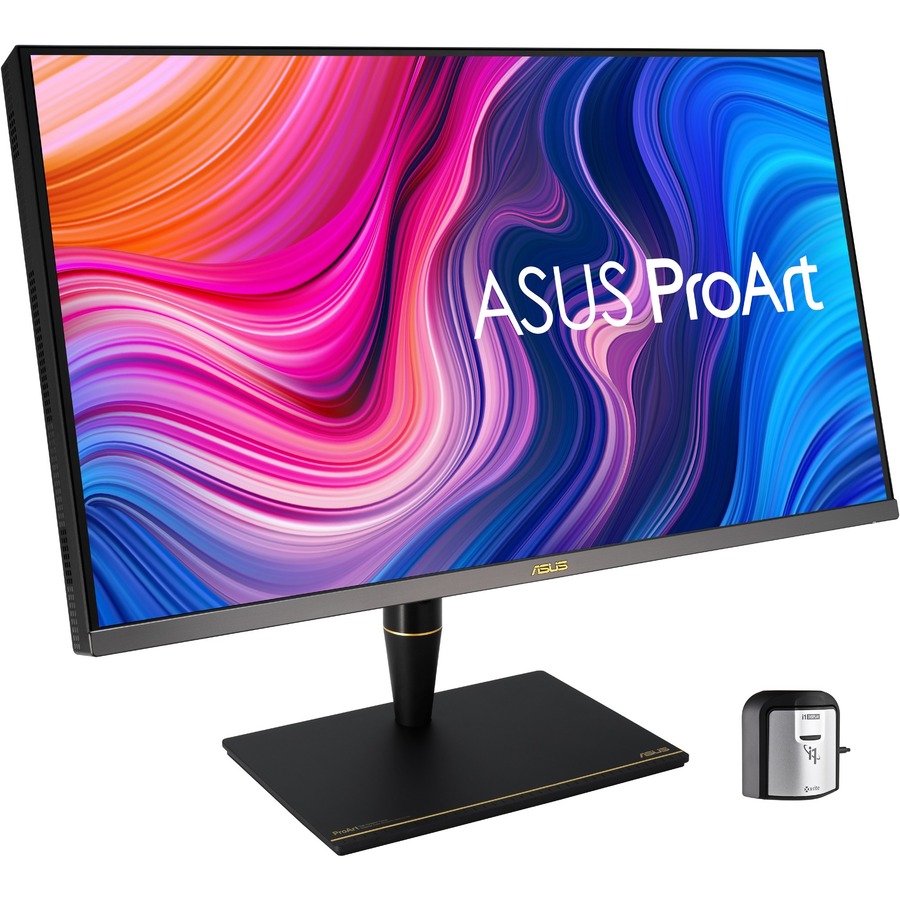

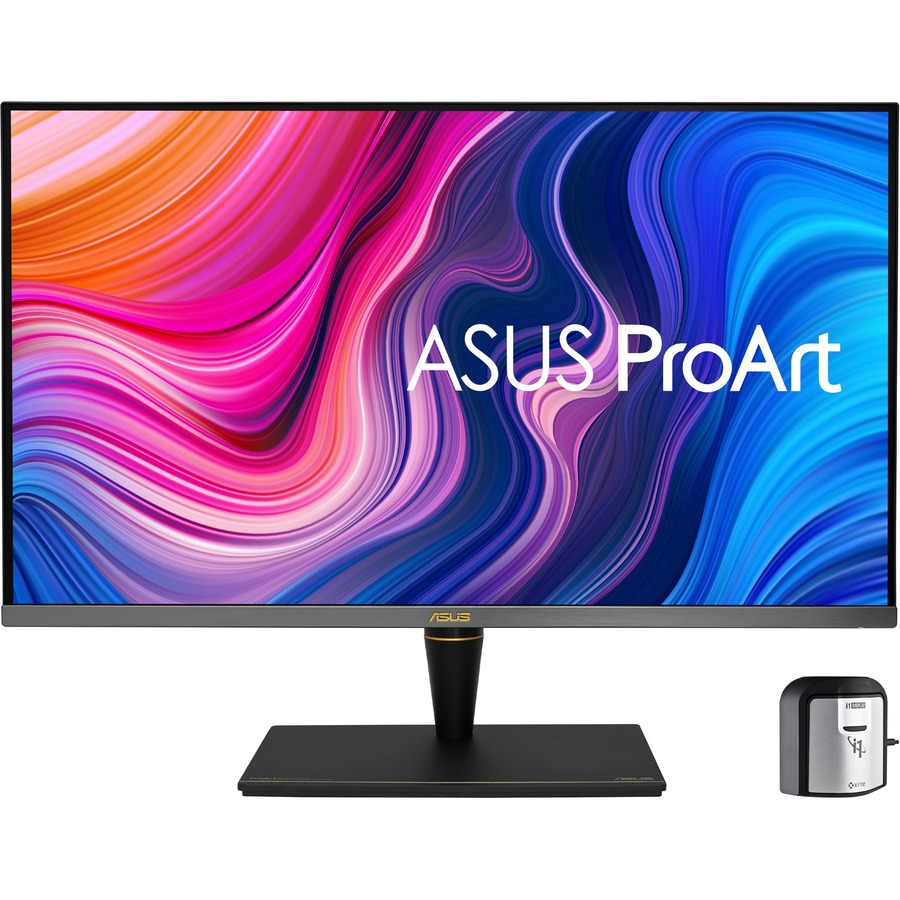

  • X-rite i1 Display Pro calibrator included

ASUS ProArt PA32UCX-PK is a 32-inch 4K HDR monitor designed for discerning content creators, including videographers, cinematographers and colorists. When multiple content creators work together on the same screen, it is necessary that everyone sees the same color and contrast level. With new Off-Axis Contrast Optimization (OCO) technology that reduces halo effects when viewing the screen from a wide angle, ProArt PA32UCX-PK features ensures on-screen content is displayed accurately to all viewers. ProArt PA32UCX-PK features a peak brightness of 1,200 nits and mini-LED backlighting, enabling 1,152 zones of local dimming control and support for multiple HDR formats, including Dolby Vision™, HLG and HDR-10. With true 10-bit color and quantum dot technology, support for the DCI-P3, Rec. 709, Rec. 2020 and Adobe RGB color spaces, together with a rich selection of connectivity, ProArt PA32UCX-PK delivers an exceptional image that takes the viewing experience to the next level.

Connect to Your Workflow

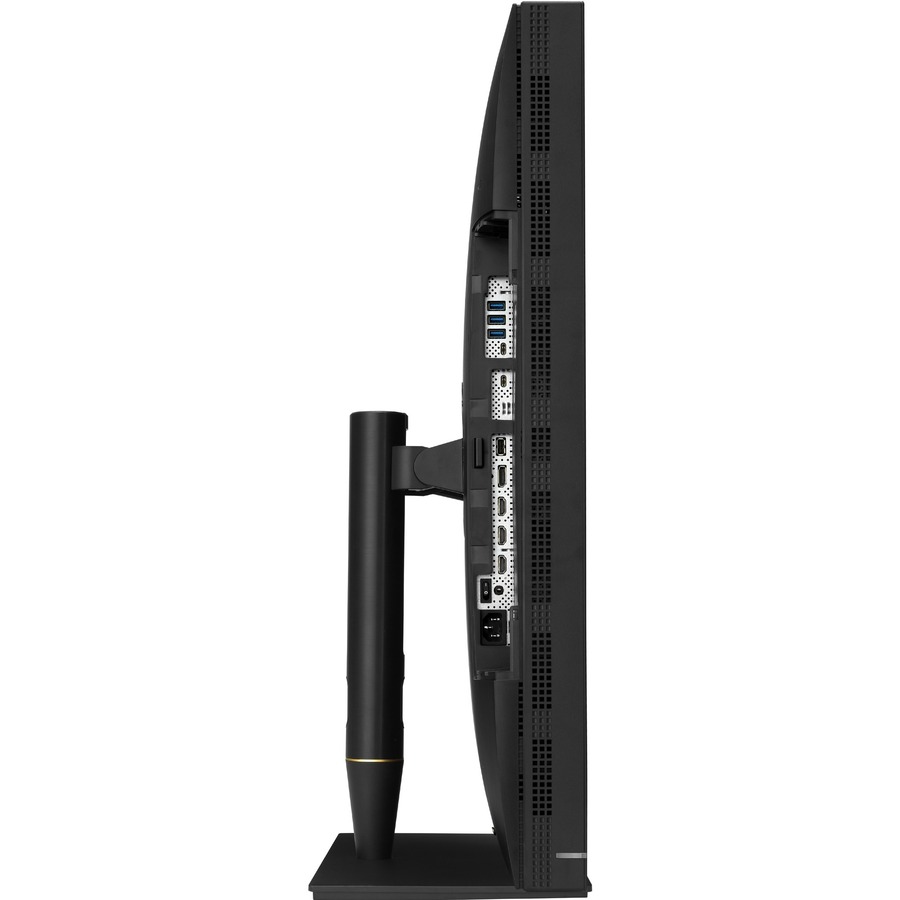

ASUS ProArt PA32UCX-PK comes with HDMI (v2.0), DisplayPort1.2, Thunderbolt™ 3 USB-C and USB hub.

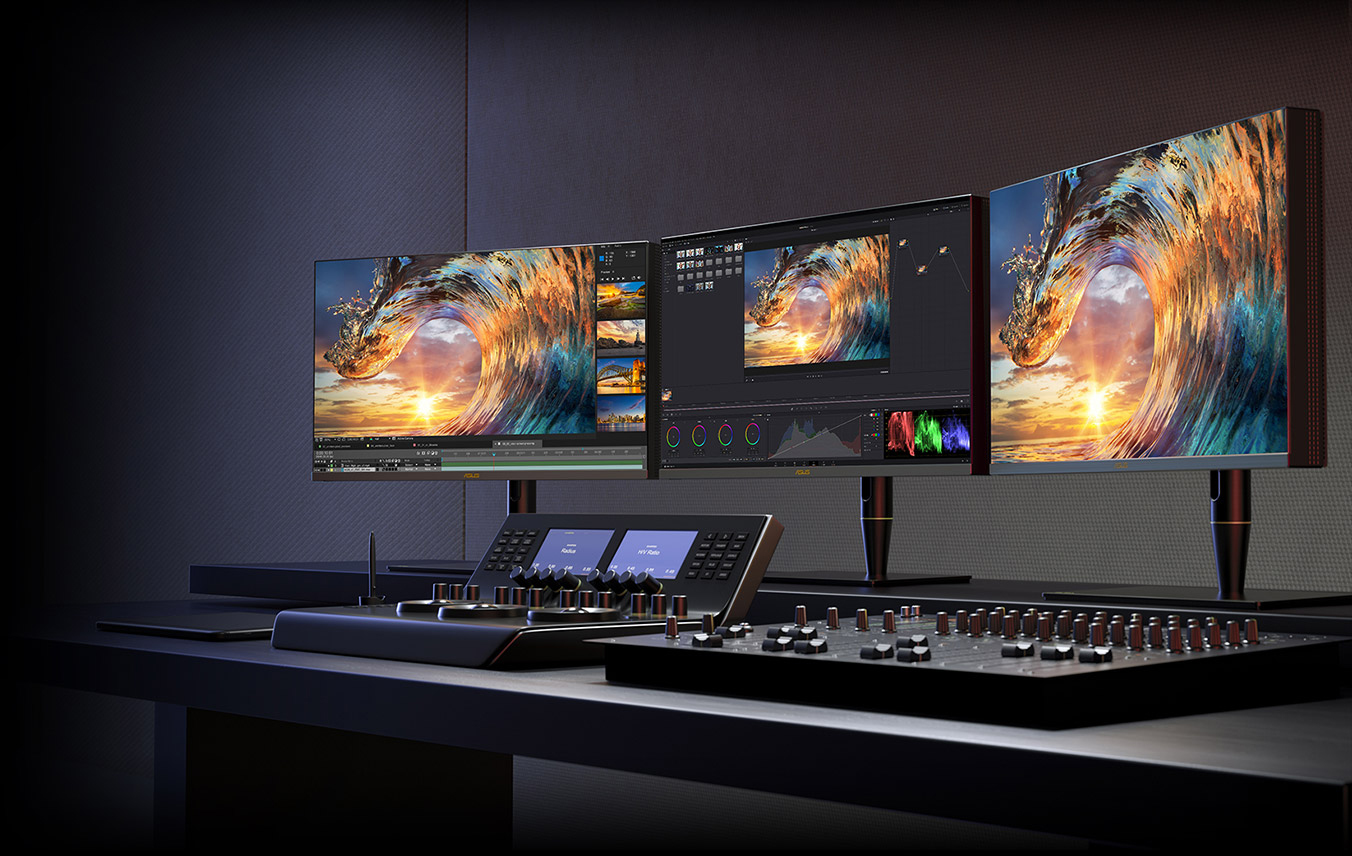

It is built for content creators to easily connect to gadgets including blu-ray player, control panel, peripheral, desktop and display with zero hassle.

Ergonomic Design

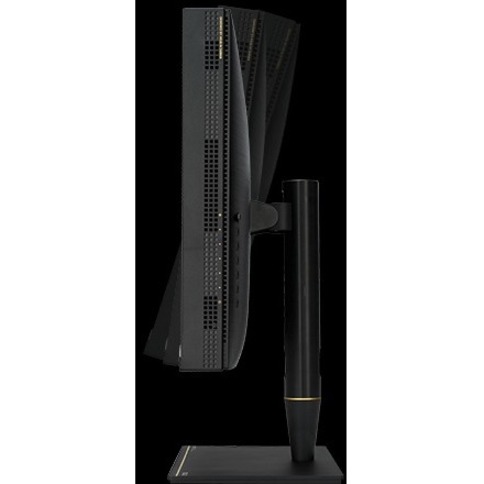

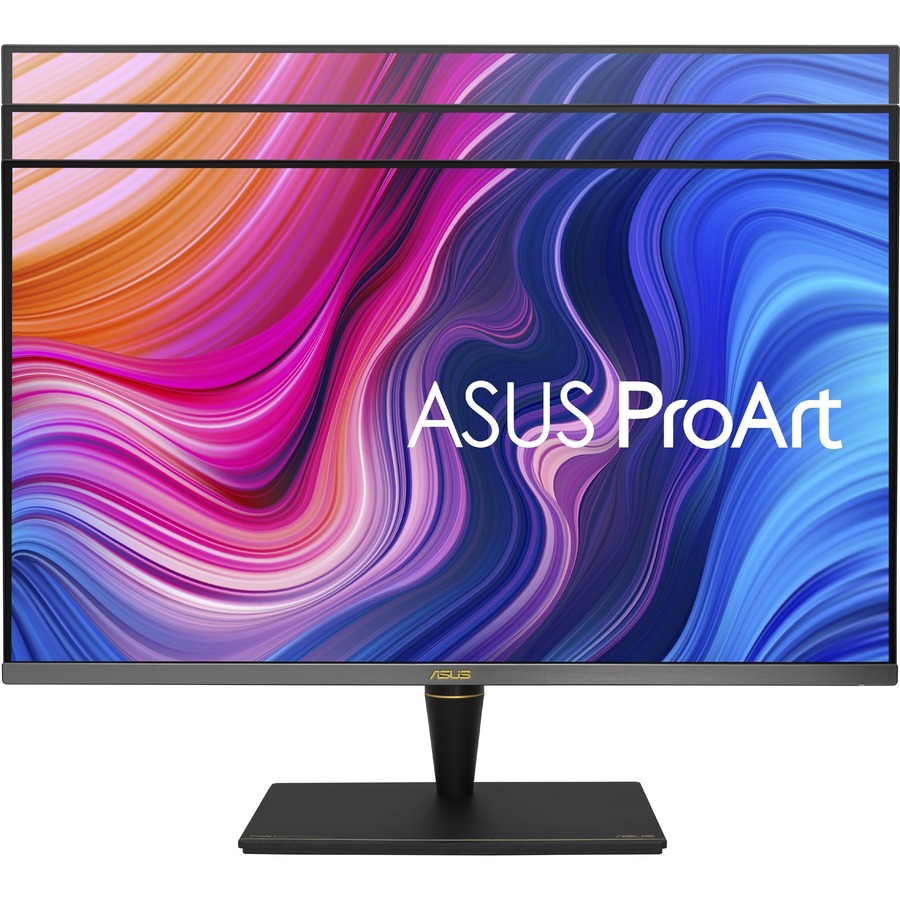

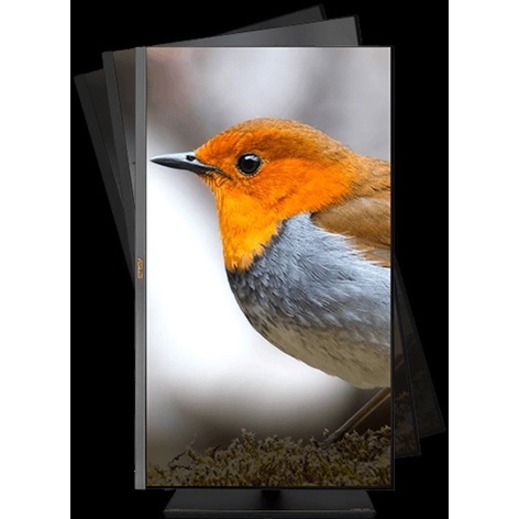

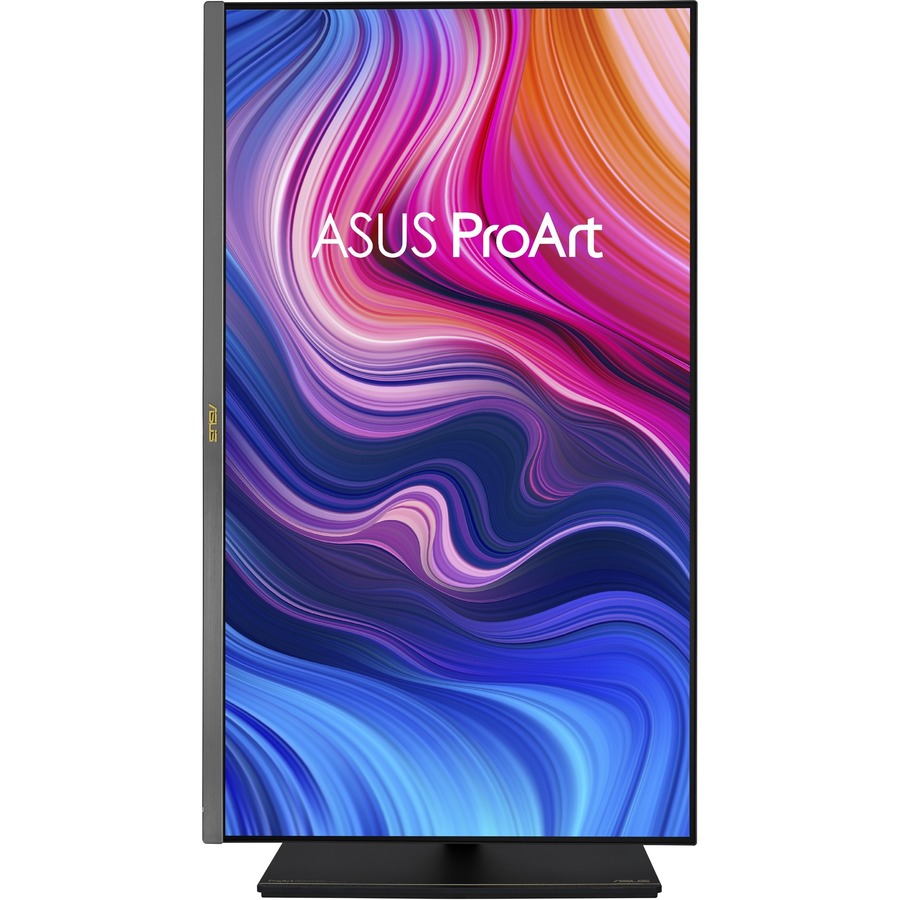

A comfortable viewing position is always easy to achieve with ProArt™ PA32UCX-PK, thanks to its slim profile and ergonomically designed stand that offers tilt, swivel, pivot, and height adjustments. Its onscreen menu even rotates automatically to display correctly when the monitor is used in portrait orientation.

Product TypeLCD Monitor
Technical Information
Number of Screens1
Screen Size Class32"
Viewable Screen Size32"
Screen Mode4K UHD
Panel TechnologyIn-plane Switching (IPS) Technology
Response Time5 ms
Response Time Details5ms GTG
Aspect Ratio16:9
Pixel Pitch0.18450 mm x 0.18450 mm
Horizontal Viewing Angle178°
Vertical Viewing Angle178°
Backlight TechnologyMini LED
Mount Type
  • Desk Mountable
  • Wall Mountable
HDCP SupportedYes
Features
  • Ergonomic Design
  • Picture by Picture
  • Picture in Picture
  • HDR10
  • Flicker-free
  • High Dynamic Range (HDR)
  • QuickFit
  • Low Blue Light
  • Security Lock
  • SmartContrast
  • Anti-glare
  • 6-axis Color Adjustment
  • Eye Care Technology
Horizontal Frequency
  • 109 kHz to 142 kHz - HDMI
  • 142 kHz to 142 kHz - DisplayPort
  • 142 kHz to 142 kHz - Thunderbolt 3
Vertical Frequency
  • 29 Hz to 65 Hz - HDMI
  • 40 Hz to 60 Hz - DisplayPort
  • 40 Hz to 60 Hz - Thunderbolt 3
Stand Adjustments
  • Height
  • Pivot
  • Swivel
  • Tilt
Video
Maximum Resolution3840 x 2160
Standard Refresh Rate60 Hz
Color Supported1.07 Billion Colors
Native Contrast Ratio1,000:1
Dynamic Contrast Ratio100,000,000:1
Brightness1200 cd/m²
Tearing Prevention TechnologyAdaptive Sync
Color Gamut
  • 99% DCI-P3
  • 99.5% Adobe RGB
  • 100% sRGB
  • 89% BT.2020
Audio
Number of Speakers2
SpeakersYes
Interfaces/Ports
HDMIYes
USBYes
DisplayPortYes
ThunderboltYes
USB Type-CYes
Number of HDMI Inputs3
Number of DisplayPorts1
Number of USB Ports5
Number of USB 3.0 Downstream Ports3
Built-in Devices
Built-in DevicesUSB Hub
Power Description
Off-Mode Power Consumption0 mW
Physical Characteristics
VESA Mount CompatibleYes
Color FamilyBlack
ColorBlack
Height16.77" (426 mm)
Width28.62" (727 mm)
Depth3.66" (93 mm)
Height with Stand23.62" (600 mm)
Width with Stand28.62" (727 mm)
Depth with Stand9.45" (240 mm)
Weight (Approximate)21.38 lb (9700 g)
Weight with Stand (Approximate)32.28 lb (14640 g)
Miscellaneous
Package Contents
  • ProArt PA32UCX-PK Widescreen LCD Monitor
  • Thunderbolt 3 Cable
  • Power Cord
  • DisplayPort Cable
  • USB-C Cable
  • USB-C to A Cable
  • Quick Start Guide
  • HDMI Cable
  • Warranty Card
  • Color Pre-Calibration Report

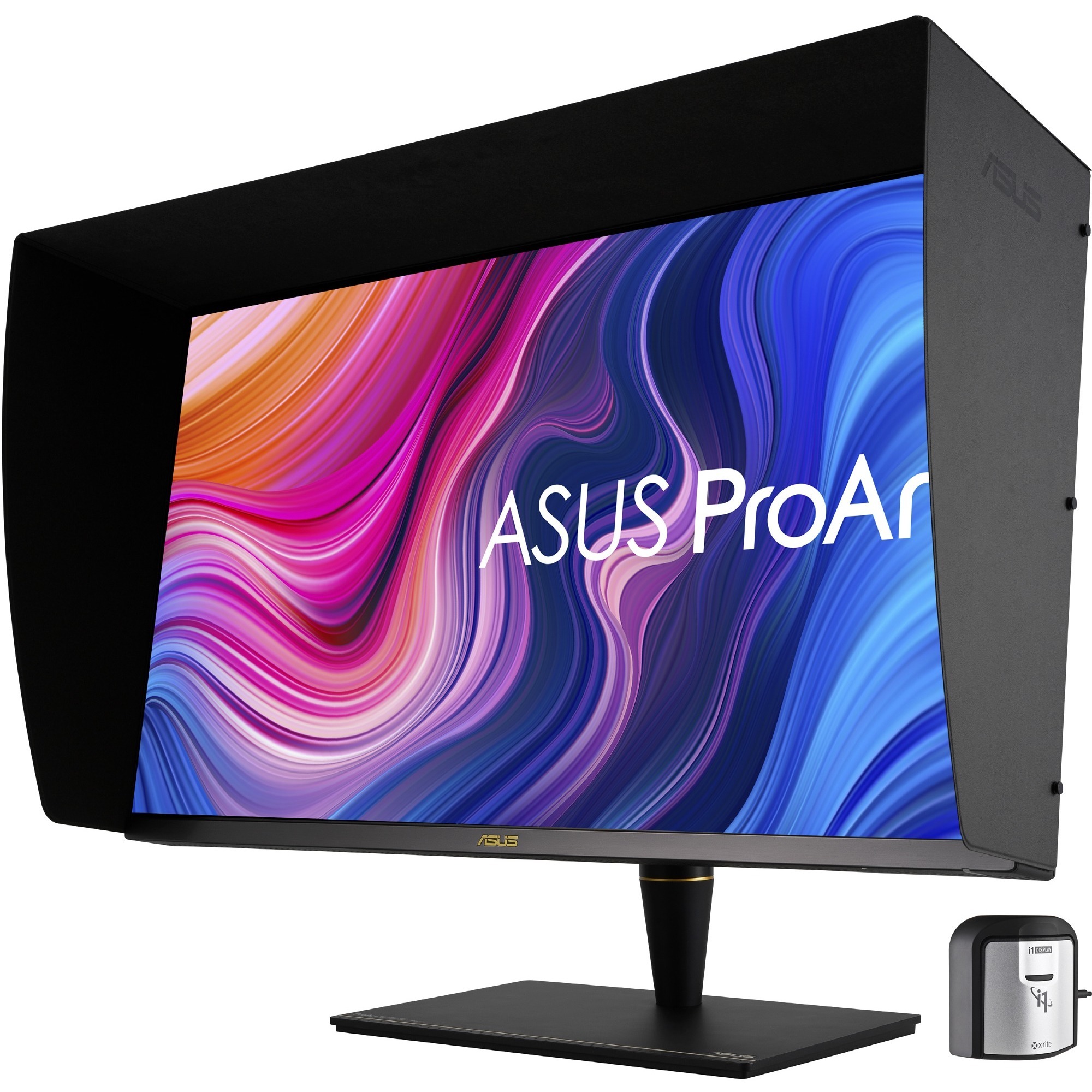

  • Monitor Hood
  • X-rite i1 Display Pro Calibrator
Country of OriginChina
Environmentally FriendlyYes
Energy Efficiency Compliance
  • Energy-related Products Directive (ErP)
  • E-standby
  • Minimum Energy Performance Standards (MEPS)
Environmental Compliance
  • Japanese Restriction of Hazardous Substances
  • Restriction of Hazardous Substances (RoHS)
  • Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
Limited Warranty3 Year
