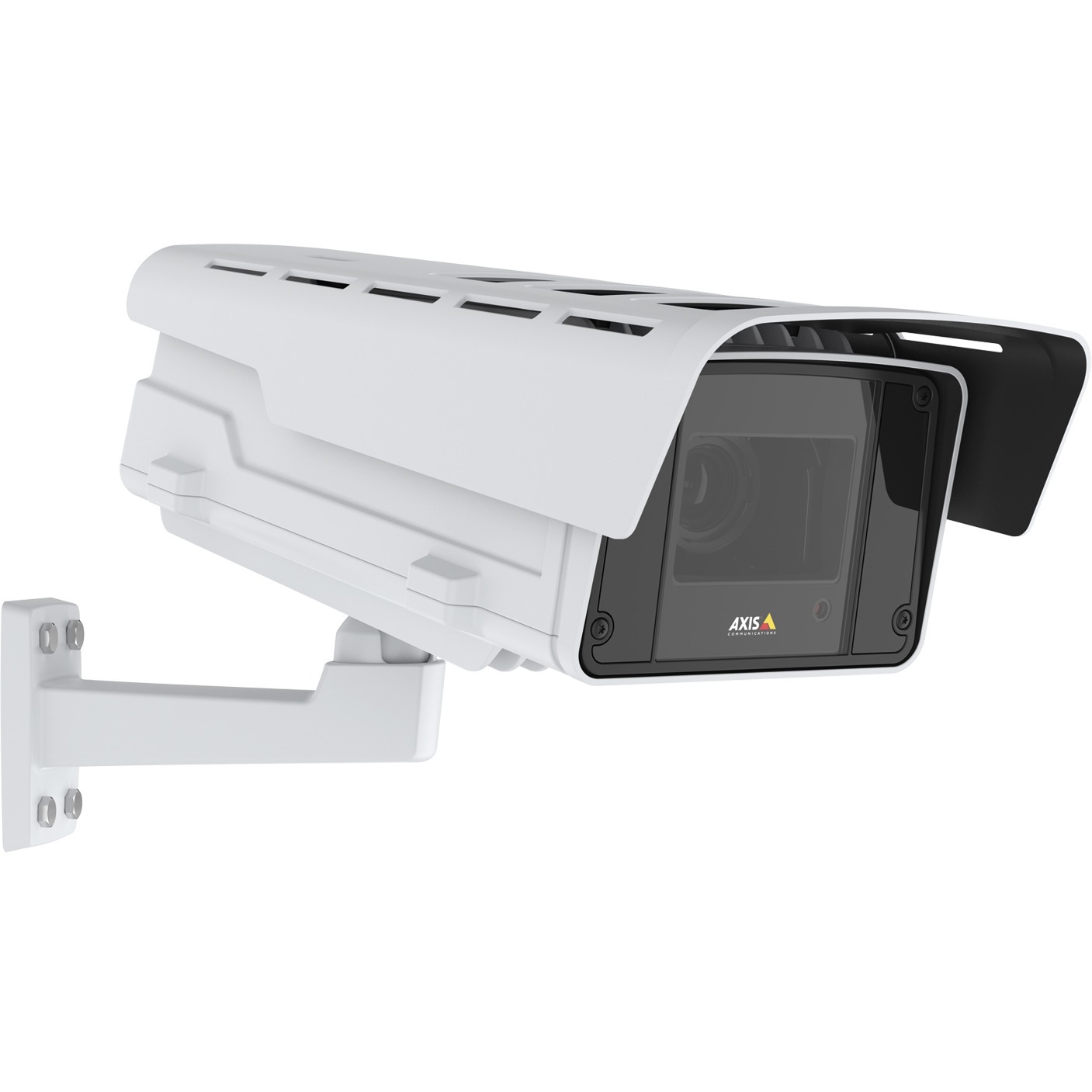

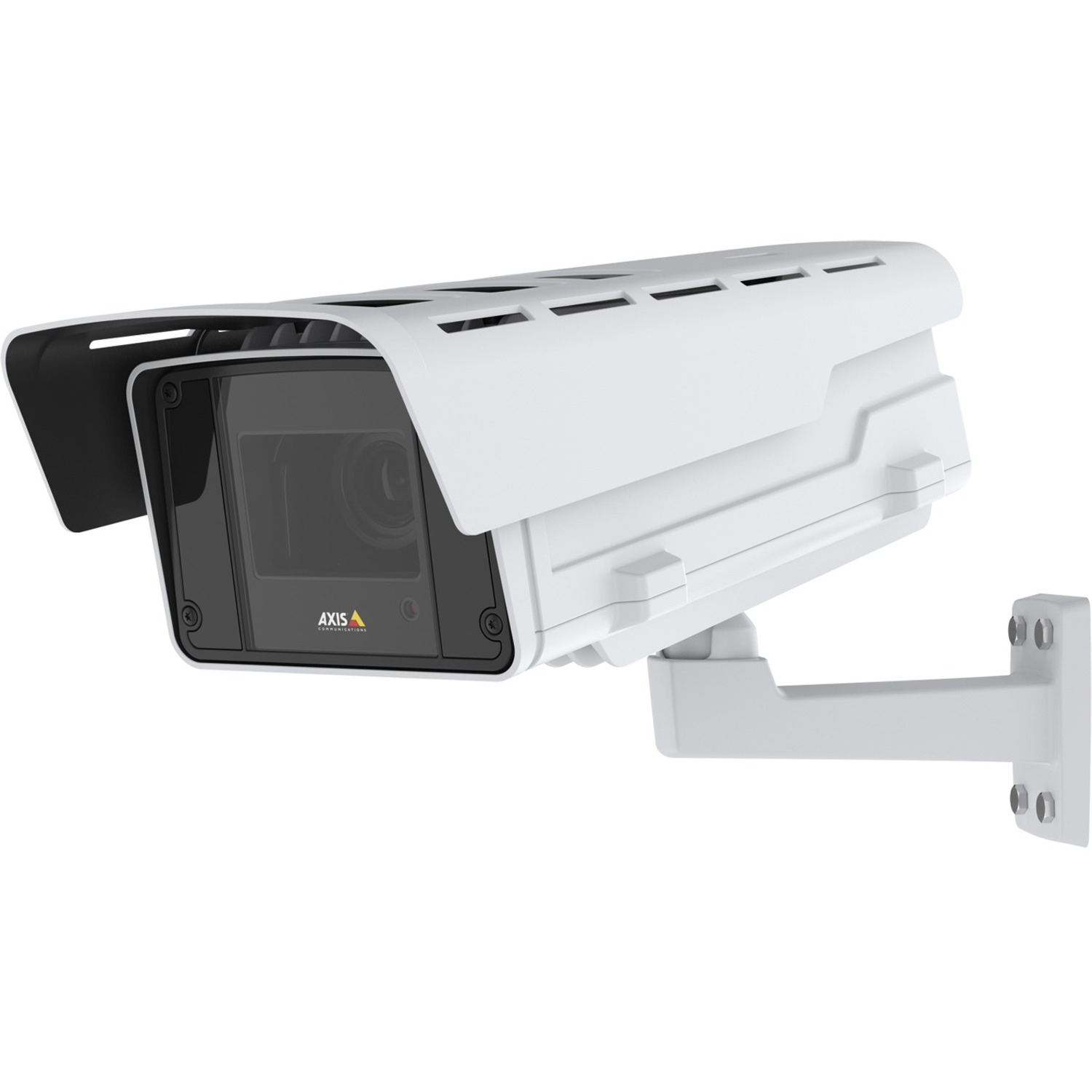

AXIS Q1615-LE Mk III 2 Megapixel Outdoor Full HD Network Camera - Color - Box - White

Part No. 02064-001

by Axis Communications

AXIS Q1615-LE Mk III 2 Megapixel Outdoor Full HD Network Camera - Color - Box - White

196.85 ft (60 m) Infrared Night Vision - H.264, H.265, MJPEG, H.264 (MPEG-4 Part 10/AVC), H.264 (MP), H.264 BP, H.264 HP, H.265 (MPEG-H Part 2/HEVC), H.265 (MP), Motion JPEG, Zipstream, ... - 1920 x 1080 - 2.8 mm (0.11")- 8.5 mm (0.33") Varifocal Lens - 3.4x Optical - 120 fps - RGB CMOS - Wall Mount, Pole Mount, Corner Mount, Bracket Mount, Conduit Mount, Backbox Mount - IK10 - IP66, IP67 - Impact Resistant, Vandal Resistant, Water Resistant, Dust Resistant, Corrosion Resistant

Part No. 02064-001

by Axis Communications

$2171.99
General Information
ManufacturerAxis Communications
Manufacturer Part Number02064001
Brand NameAXIS
Product SeriesQ16
Product ModelQ1615-LE Mk III
Product NameQ1615-LE Mk III Network Camera
Marketing Information

AXIS Q1615-LE Mk III combines exceptional imaging and video performance with outstanding hardware and processing capabilities to provide the perfect platform for analytics based on artificial intelligence (AI) with deep learning.

Highly nuanced object classification

This fixed box camera with Q-line functionality and exceptional video quality includes an innovative dual chipset that is the basis for remarkably granular object classification. AXIS Object Analytics is preinstalled and the camera's dual chipset facilitates powerful artificial intelligence with deep learning. This allows AXIS Object Analytics to distinguish between bikes, cars, buses, trucks, and so on. You can decide which vehicles you want to detect and when alarms are triggered, and notifications are sent to security personnel. Basing notifications on recognizing the difference between different kinds of vehicles results in fewer false alarms. So your operators will waste less time responding unnecessarily and they'll be able to handle more cameras.

Outdoor-ready camera with processing right on the camera

The dual chipset allows analytics to run on AXIS Q1615-LE Mk III (on the edge), so fewer servers are needed for processing. This results in a faster and more scalable system and facilitates complex and powerful analytics. Other benefits include real-time processing and lower costs and complexity. And storage and bandwidth needs, as well as privacy concerns, are reduced because only relevant video is transferred over the network.

This outdoor-ready camera is IP66-, IP67-, and NEMA 4X-rated for protection against ice, water, corrosion, and dust. It features OptimizedIR up to 60 M (196 ft), so you'll enjoy sharp and clear footage in complete darkness without the need for extra lighting.

Endless opportunities with AI

A dual chipset, which combines the proprietary Axis ARTPEC chip with a deep-learning processing unit (DLPU), is the secret behind the exceptional AI-based object-classification capabilities offered by AXIS Q1615-LE Mk III. This advanced hardware, in combination with the open Axis platform, gives you a unique opportunity to take advantage of tailor-made third-party applications based on AI and classification of humans and objects. Edge-based automatic incident detection, counting and anomaly detection are just a few of the many possibilities. And everything you need is in the camera - so no additional hardware is required.

Product TypeNetwork Camera
Technical Information
Recording FormatsFull HD
HD RecordingYes
Night VisionYes
Night Vision Distance196.85 ft (60 m)
Night Vision TypeInfrared
Display & Graphics
Image Sensor TypeRGB CMOS
Color SupportedColor
Field of ViewHorizontal field of view: 102°-40° Vertical field of view: 58°-22°
Effective Camera Resolution2 Megapixel
Video
Video Formats
  • H.264
  • H.265
  • MJPEG
  • H.264 (MPEG-4 Part 10/AVC)
  • H.264 (MP)
  • H.264 BP
  • H.264 HP
  • H.265 (MPEG-H Part 2/HEVC)
  • H.265 (MP)
  • Motion JPEG
  • Zipstream
  • H.264B
  • H.264H
  • H.264M
Maximum Video Resolution1920 x 1080
Maximum Frame Rate120 fps
Lens
Lens TypeVarifocal
Minimum Focal Length2.8 mm (0.11")
Maximum Focal Length8.5 mm (0.33")
Lens IncludedYes
Lens Mount TypeCS-Mount
Maximum Aperturef/1.2
Optical Zoom3.4x
Exposure
Shortest Shutter Speed1/125000 Second
Longest Shutter Speed2 Second
Network & Communication
Connectivity TechnologyWired
Remote ManagementYes
Storage
Storage TypeMemory Card
Interfaces/Ports
Network (RJ-45)Yes
Power Description
Power Source Type
  • DC
  • PoE
Physical Characteristics
Mount Type
  • Wall Mount
  • Pole Mount
  • Corner Mount
  • Bracket Mount
  • Conduit Mount
  • Backbox Mount
Form FactorBox
Durability
  • Impact Resistant
  • Vandal Resistant
  • Water Resistant
  • Dust Resistant
  • Corrosion Resistant
Color FamilyWhite
Product ColorWhite
Height7.05" (179 mm)
Width7.91" (201 mm)
Depth19.45" (494 mm)
Weight (Approximate)15.40 lb (6985.32 g)
Environmental Conditions
Minimum Operating Temperature-40°F (-40°C)
Maximum Operating Temperature140°F (60°C)
Maximum Operating Humidity100%
Miscellaneous
Features
  • Removable IR Cut-off Filter
  • White Balance
  • Electronic Image Stabilization
  • Privacy Masking
  • PTZ
  • Microphone In
  • Password Protection
  • HTTPS Encryption
  • Defog
  • Wide Dynamic Range
  • SD Card Local Storage
  • Cross Line Detection
  • Motion Detection
  • Active Tampering Alarm
  • Audio Detection
  • Day/Night
Indoor/OutdoorOutdoor
Package Contents
  • Q1615-LE Mk III Network Camera
  • AXIS T94Q01A Wall Mount
  • Sunshield Connector Kit
  • Resistorx T20 Tool
  • Installation Guide
  • Windows Decoder 1-user License
Impact Protection RatingIK10
Ingress Protection Rating
  • IP66
  • IP67
TAA CompliantYes
NDAA CompliantYes
ConditionNo
UPC7331021071797
Warranty
Limited Warranty5 Year
