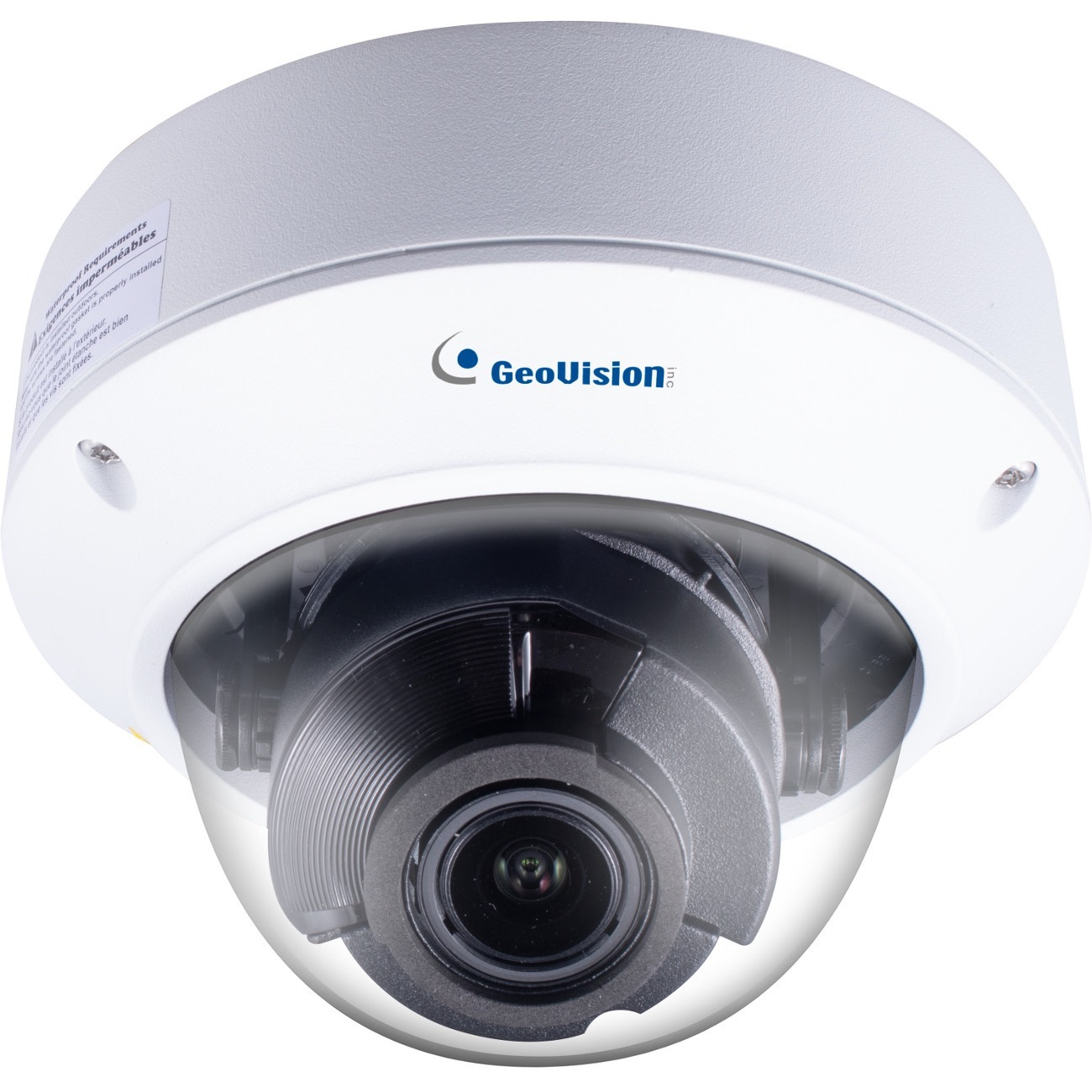

GeoVision GV-TVD4700 4 Megapixel HD Network Camera - Dome
98.43 ft (30 m) - H.264, H.265, MJPEG - 2592 x 1520 - 2.8 mm Zoom Lens - 4.3x Optical - 20 fps - CMOS - Wall Mount, Junction Box Mount, Corner Mount, Pole Mount, In-ceiling, Pendant Mount
$201.99
On back-order, will ship once in-stock
- All Locations: (0+)
General Information
| Manufacturer | GeoVision, Inc |
| Manufacturer Part Number | 125-TVD4700-000 |
| Brand Name | GeoVision |
| Product Model | GV-TVD4700 |
| Product Name | 4MP H.265 Low Lux WDR IR Vandal Proof IP Dome |
| Marketing Information | The Vandal Proof IP Dome is an outdoor camera designed with IK10 vandal resistance and IP67 ingress protection. GV-TVD4700 supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. The camera is equipped with an automatic IR-cut filter and IR LEDs for day and night surveillance. Adjustable in 3 axes (pan, tilt and rotate), it offers an entry-level surveillance solution with all the essential features and excellent image quality. |
| Product Type | Network Camera |
Technical Information
| Recording Formats | HD |
| HD Recording | Yes |
| Night Vision Distance | 98.43 ft (30 m) |
| Number of IR LEDs | 2 |
Display & Graphics
| Image Sensor Type | CMOS |
| Color Supported | Color |
| Effective Camera Resolution | 4 Megapixel |
Video
| Video Formats |
|
| Maximum Video Resolution | 2592 x 1520 |
| Maximum Frame Rate | 20 fps |
Lens
| Lens Type | Zoom |
| Minimum Focal Length | 2.8 mm |
| Maximum Focal Length | 12 mm |
| Maximum Aperture | f/1.6 |
| Optical Zoom | 4.3x |
Network & Communication
| Connectivity Technology | Wired |
| Remote Management | Yes |
Interfaces/Ports
| Network (RJ-45) | Yes |
Physical Characteristics
| Mount Type |
|
| Form Factor | Dome |
| Diameter | 5.83" (148 mm) |
| Weight (Approximate) | 920 g |
Environmental Conditions
| Minimum Operating Temperature | -40°F (-40°C) |
| Maximum Operating Temperature | 140°F (60°C) |
| Maximum Operating Humidity | 95% |
Miscellaneous
| Indoor/Outdoor | Outdoor |
| Package Contents |
|
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP67 |
| NDAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| COO | TW |
| Condition | No |
