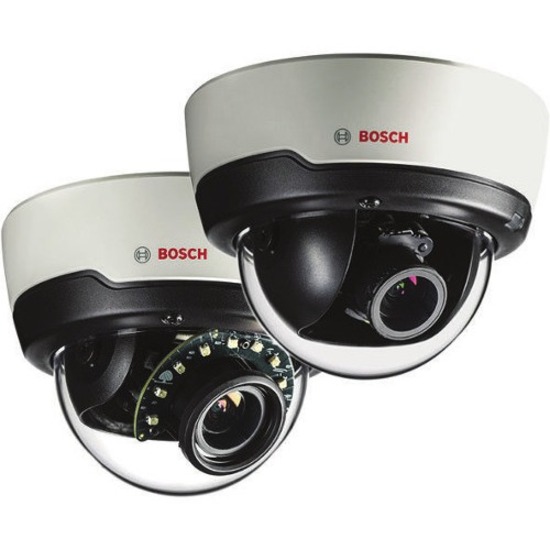

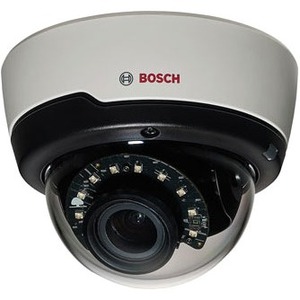

Bosch FLEXIDOME IP 2 Megapixel Indoor Full HD Network Camera - Color, Monochrome - 1 - Dome - White
This Product is currently not in offering
On back-order, will ship once in-stock
General Information
| Manufacturer | The Bosch Group |
| Manufacturer Part Number | NDI5502AL |
| Brand Name | Bosch |
| Product Line | FLEXIDOME IP |
| Product Series | 5000i |
| Product Name | Fixed Dome 2MP HDR 3-9mm IR |
| Marketing Information | The 1080p indoor dome cameras from Bosch are professional surveillance cameras that provide high quality HD images for demanding security and surveillance network requirements. These domes are true day/night cameras offering excellent performance day or night. TThere is a version with a built-in active infrared illuminator that provides high performance in extreme low-light environments. Full Remote Commissioning Installing a professional IP video surveillance camera has never been so easy. In fact, as an installer, you'll never want to go back to the old methods of installing cameras again. We've simplified the installation and commissioning stages to such a degree that they can be done in very little time. With the FLEXIDOME IP starlight 8000i camera's remote commissioning functionality there's no need to go up and down ladders. Using a PC or a mobile device with the Bosch Project Assistant app, you can pan, tilt, roll and zoom (PTRZ) and point the camera to the required field of view with a single click - without ever having to touch the camera or lens. Wireless or remote configuration and commissioning can also be done at a later stage once all cameras have been installed. Simply connect the Bosch Project Assistant app, available for iOS, Windows or Android, wirelessly to the camera. Or connect to the camera remotely via the network using the camera's web interface or the Bosch Configuration Manager. Fast performance The 60 frames per second mode provides for optimum performance in fast action scenes that makes sure no critical data is lost and video is captured with excellent detail. Starlight performance The latest sensor technology combined with the sophisticated image processing and noise suppression results in an exceptional sensitivity in color. The lowlight performance is so good that the camera continues to provide excellent color performance even with a minimum of ambient light. High Dynamic Range The high dynamic range mode is based on a multipleexposure process that captures more details in the highlights and in the shadows even in the same scene. The result is that you can easily distinguish objects and features, for example, faces with bright backlight. The actual dynamic range of the camera is measured using Opto-Electronic Conversion Function (OECF) analysis according to IEC 62676 Part 5. Scene modes Nine configurable modes are provided with the best settings for a variety of applications. In one click fully optimized image settings can be selected to suit the conditions. Different scene modes can be selected for different situations such as traffic or retail environments. |
| Packaged Quantity | 1 |
| Product Type | Network Camera |
Technical Information
| HD Recording | Yes |
| Recording Formats | Full HD |
| Night Vision | Yes |
| Night Vision Distance | 147.64 ft (45 m) |
| Night Vision Type | Infrared |
| Number of IR LEDs | 10 |
Display & Graphics
| Image Sensor Type | CMOS |
| Image Sensor Size | 1/2.8" |
| Color Supported |
|
| Field of View | Horizontal field of view 37° - 106° Vertical field of view 21° - 55° |
| Effective Camera Resolution | 2 Megapixel |
Video
| Video Formats |
|
| Maximum Video Resolution | 1920 x 1080 |
| Maximum Frame Rate | 60 fps |
Lens
| Lens Type | Varifocal |
| Minimum Focal Length | 3 mm |
| Maximum Focal Length | 9 mm |
| Lens Included | Yes |
| Lens Mount Type | Board Mount |
| Minimum Aperture | f/2 |
| Maximum Aperture | f/1.3 |
| Optical Zoom | 3x |
Exposure
| Shortest Shutter Speed | 1/15000 Second |
| Longest Shutter Speed | 1/30 Second |
Network & Communication
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Ethernet Technology | Ethernet |
| Protocols |
|
Storage
| Storage Type | Memory Card |
Interfaces/Ports
| Network (RJ-45) | Yes |
Power Description
| Input Voltage |
|
| Power Source Type |
|
Physical Characteristics
| Color Family | White |
| Product Color | White |
| Mount Type |
|
| Form Factor | Dome |
| Height | 4.02" (102 mm) |
| Diameter | 5.31" (135 mm) |
| Weight (Approximate) | 450 g |
Environmental Conditions
| Minimum Operating Temperature | -4°F (-20°C) |
| Maximum Operating Temperature | 122°F (50°C) |
| Maximum Operating Humidity | 93% |
Miscellaneous
| Features |
|
| Indoor/Outdoor | Indoor |
| TAA Compliant | Yes |
