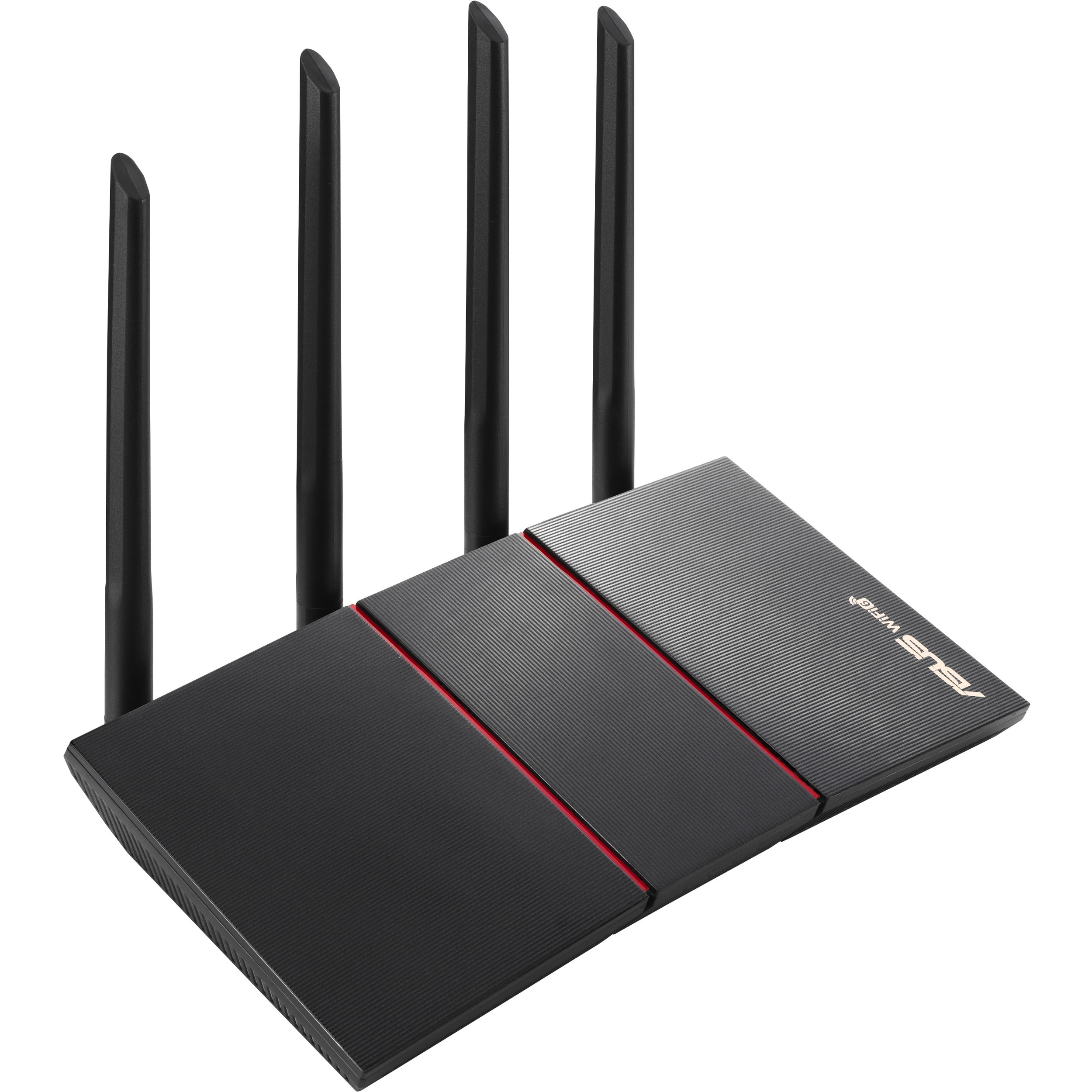

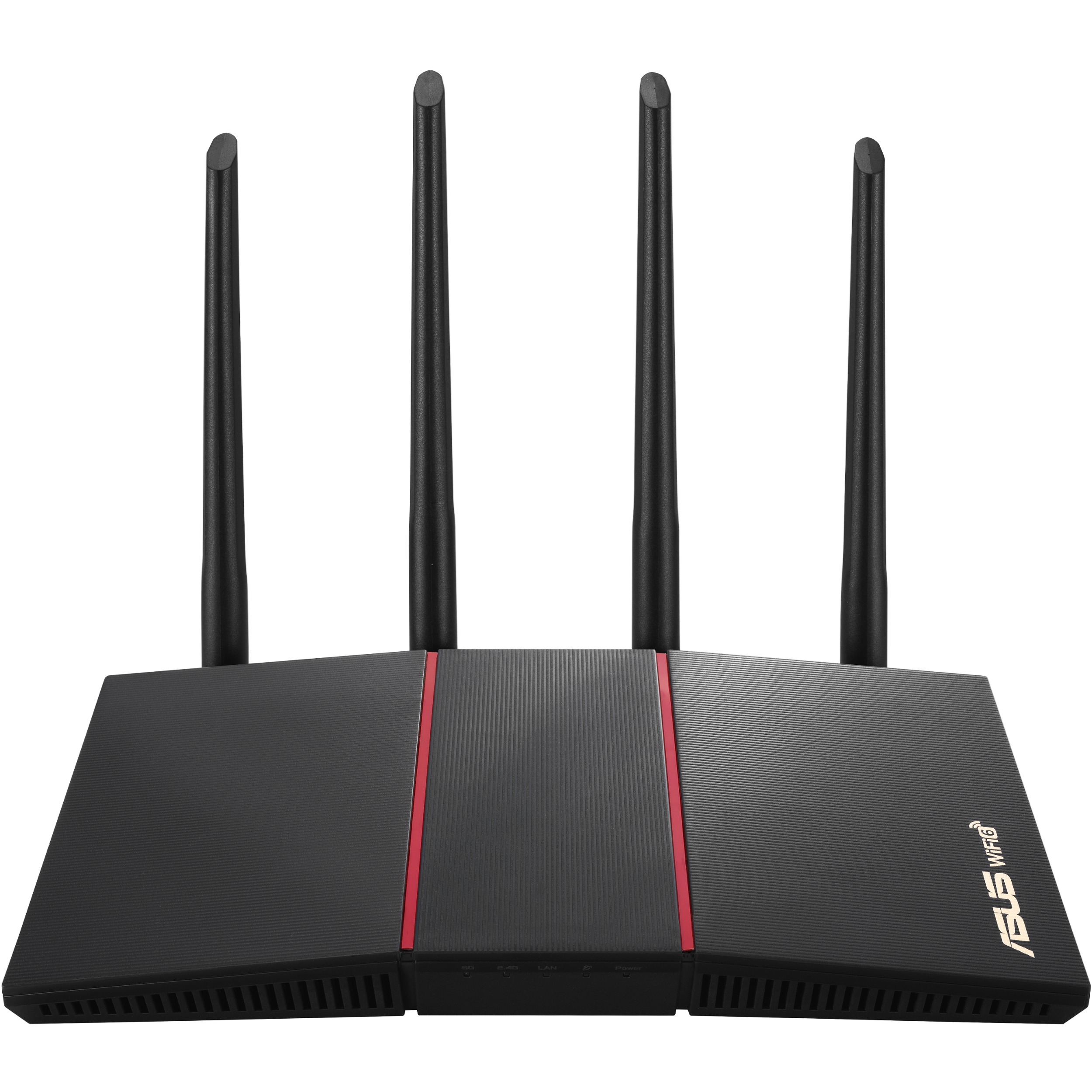

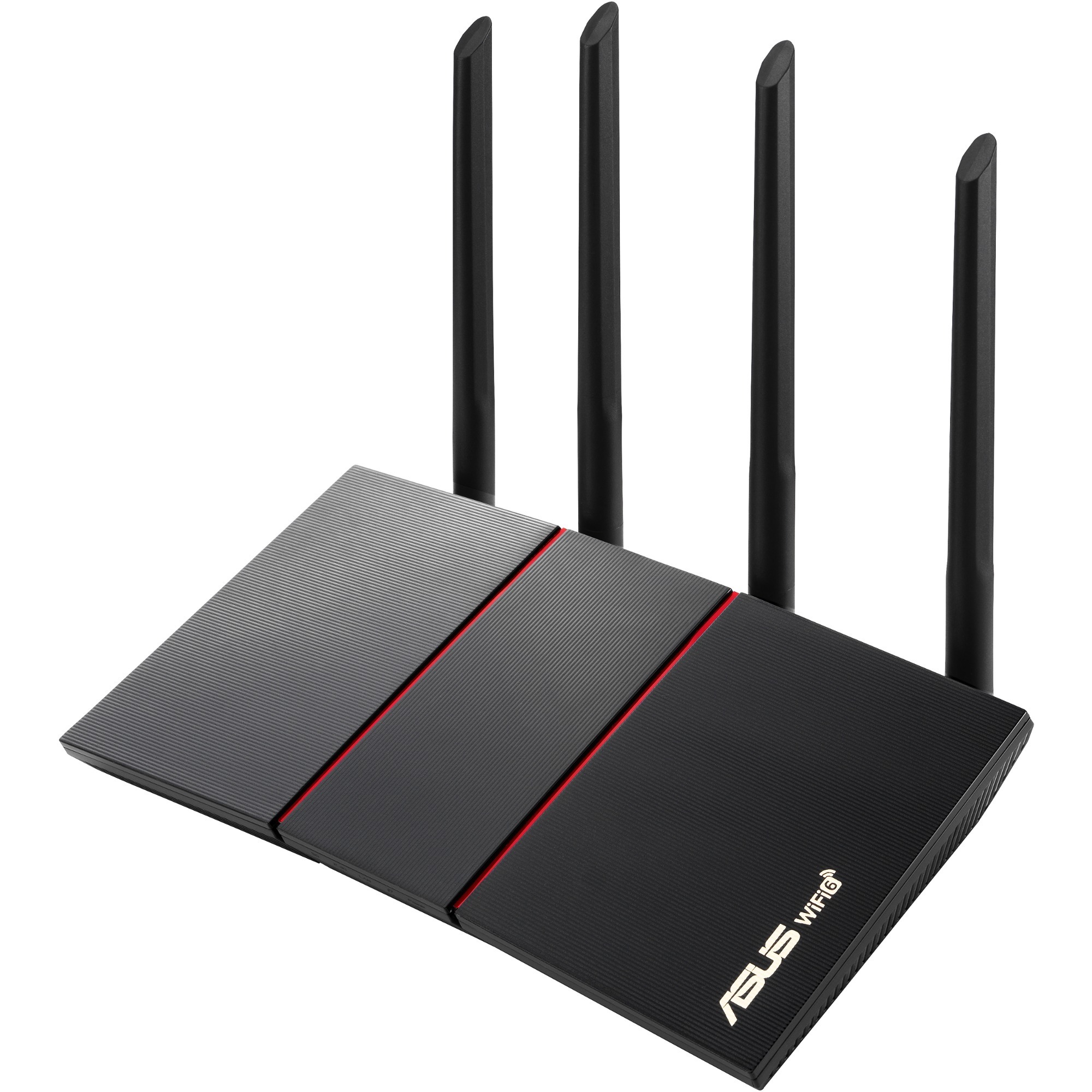

Asus RT-AX55 Wi-Fi 6 IEEE 802.11 a/b/g/n/ac/ax Ethernet Wireless Router

Part No. 90IG06C0-BX1100

by ASUS Computer International

Asus RT-AX55 Wi-Fi 6 IEEE 802.11 a/b/g/n/ac/ax Ethernet Wireless Router

Dual Band - 2.40 GHz ISM Band - 5 GHz UNII Band - 4 x Antenna(4 x External) - 225 MB/s Wireless Speed - 4 x Network Port - 1 x Broadband Port - Gigabit Ethernet - VPN Supported

Part No. 90IG06C0-BX1100

by ASUS Computer International

$101.99
General Information
ManufacturerASUS Computer International
Manufacturer Part Number90IG06C0-BX1100
Brand NameAsus
Product ModelRT-AX55
Product NameRT-AX55 Wireless Router
Marketing Information

Get Your Home Ready for WiFi 6 (802.11ax)

The growing number of connected personal and IoT devices has led to an overall increase in network density that is pushing the limits of the current WiFi standard. The latest 802.11ax standard provides future-proof technologies, higher network efficiency, faster WiFi speeds, greater coverage and improved battery life for connected devices, providing a significantly better networking experience for users.

Next-Gen WiFi Speed

RT-AX55 is a 2x2 dual-band WiFi router that provides 1024-QAM for dramatically faster wireless connections. With a total networking speed of about 1800Mbps - 574Mbps on the 2.4GHz band and 1201Mbps on the 5GHz band - RT-AX55 is 1.5X faster than 802.11ac 2x2 dual-band routers.

Network Efficiency | Built for Multi-device Households

With a revolutionary combination of OFDMA and MU-MIMO technology, 802.11ax technology provides up to 4X greater network capacity and efficiency in traffic-dense environments. Previous-generation 802.11ac WiFi can only handle one device at a time on each network channel, which is an inefficient use of available bandwidth. OFDMA support in the 802.11ax WiFi standard divides each channel into small sub-channels, allowing signals from multiple devices to be bundled together and transmitted simultaneously, reducing latency for a smoother, more responsive WiFi experience.

Power Saving | Better Battery Life for Your Devices

Target Wake Time (TWT) allows RT-AX55 to schedule designated intervals for devices to transmit data. This allows them to sleep when there is no need to wait for a router signal, reducing power consumption by up to 7X for significantly improved battery life

Better Coverage | WiFi that Goes Farther

With the latest 802.11ax WiFi standard featuring OFDMA technology, RT-AX55 provides increased WiFi signal range and better coverage by dividing each channel into smaller sub-channels. These sub-channels have a smaller bandwidth that enables them to travel up to 80% farther, resulting in a better WiFi connection throughout your home.

Protection for your Home Network

RT-AX55 has lifetime free AiProtection Classic, powered by Trend Micro™ with automatic, regularly updated security signatures to protect your devices and personal data from internet threats.

Powerful Whole-home WiFi System.

The Way You Want.

In most cases, your RT-AX55 can deliver smooth, reliable WiFi to every part of your home. But WiFi coverage can be affected by many factors - room layout, construction materials, and even furnishings. ASUS AiMesh is an innovative new router feature that fixes these problems: it creates a whole-home WiFi network using multiple ASUS routers. AiMesh is powerful, flexible and you can use a mix of ASUS router models - protecting your investment! AiMesh gives you time-saving central control, and seamless roaming capability. AiMesh is WiFi you can rely on - for all your devices, all the time!

  • Turn your ASUS routers into whole-home WiFi system with a simple firmware update
  • Mix and match preferred models from selected ASUS routers
  • Create a WiFi network with either a single SSID or multiple SSIDs
  • All router features works across the entire WiFi system
Product TypeWireless Router
Technical Information
Wi-Fi GenerationWi-Fi 6
Network BandDual Band
MU-MIMO TechnologyYes
AI-poweredYes
AI Features
  • Malicious Site Blocking
  • Infected Device Prevention and Blocking
Processor CoreQuad-core (4 Core)
Processor Speed1.50 GHz
Standard Memory256 MB
Wireless Specifications
Broadband Transmission TechnologyEthernet
Wireless LAN StandardIEEE 802.11 a/b/g/n/ac/ax
ISM BandYes
UNII BandYes
ISM Maximum Frequency2.40 GHz
UNII Maximum Frequency5 GHz
Total Number of Antennas4
Number of External Antennas4
Total Wireless Transmission Speed225 MB/s
Encryption Standard
  • WPA-Personal
  • WPA2-Personal
  • WPA3-Personal
  • WPA-ENT
  • WPA2-ENT
  • WPS
Wi-Fi Mesh SystemYes
Wireless PerformanceAX1800

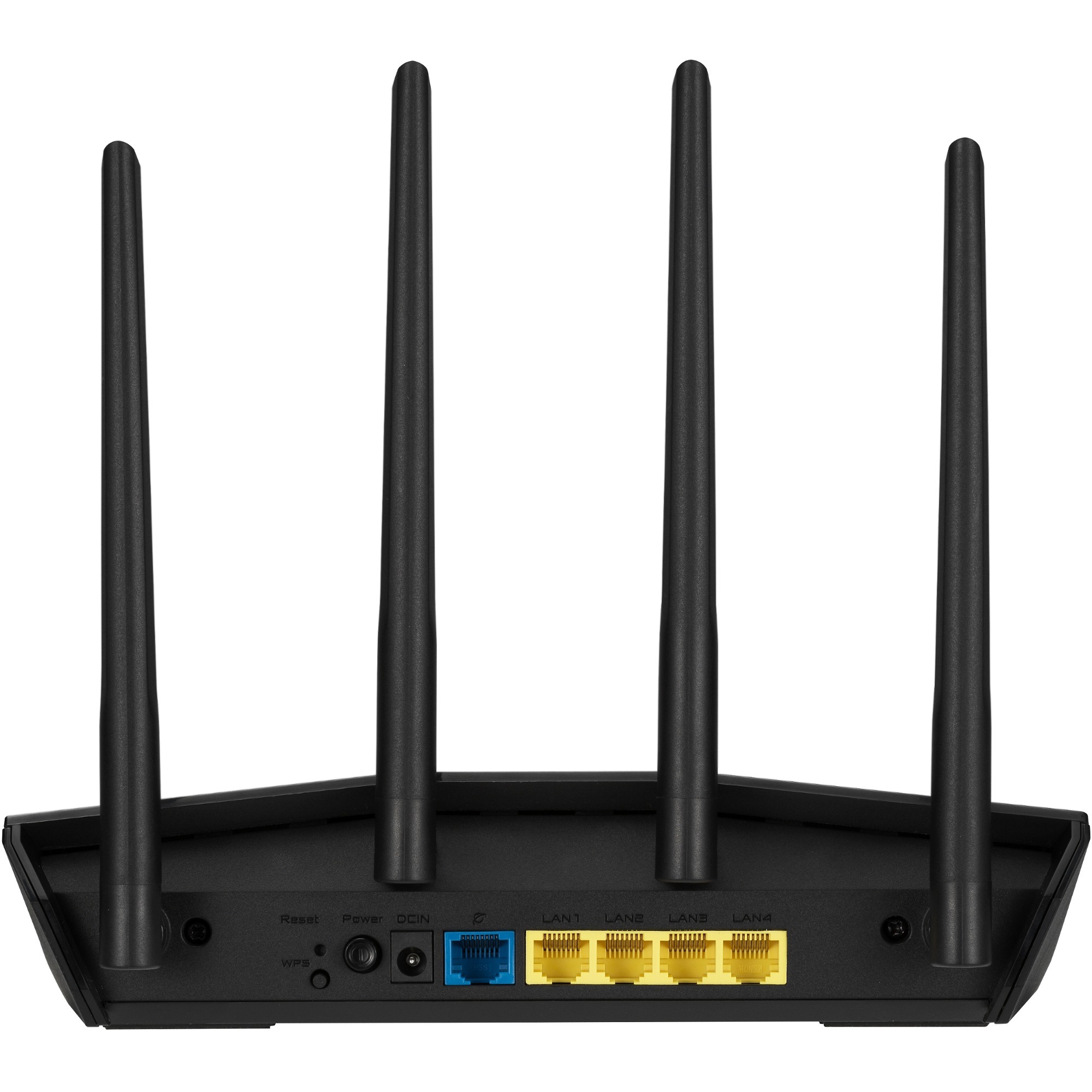

Interfaces/Ports
Total Number of Network Ports5
Number of Network (RJ-45) Ports4
Number of Broadband (RJ-45) Ports1
Network & Communication
Ethernet TechnologyGigabit Ethernet
VPN SupportedYes
Storage
Flash Memory Capacity128 MB
Physical Characteristics
Height2.20" (56 mm)
Width9.06" (230 mm)
Depth5.28" (134 mm)
Weight (Approximate)13.19 oz (374 g)
Miscellaneous
Package Contents
  • RT-AX55 Wireless Router
  • 1 x RJ45
  • 1 x Adapter
  • 1 x QSG
  • 1 x Warranty Card
ConditionNo
UPC192876741399
