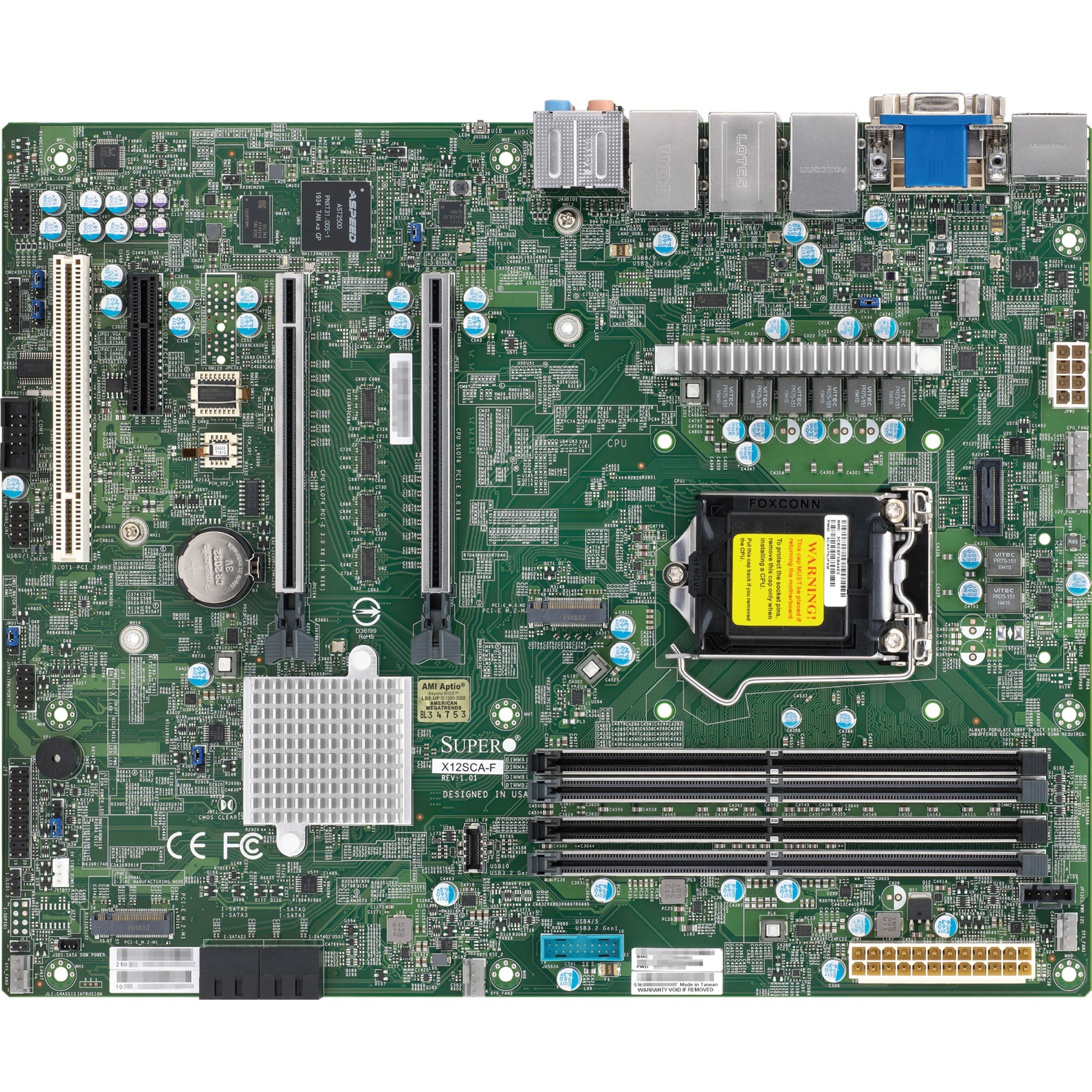

Supermicro X12SCA-F Workstation Motherboard - Intel W480 Chipset - Socket LGA-1200 - ATX
128 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - 2.5Gigabit Ethernet - HDMI - DisplayPort - 4 x SATA Interfaces
$647.99
On back-order, will ship once in-stock
- All Locations: (0+)
General Information
| Manufacturer | Supermicro Computer, Inc |
| Manufacturer Part Number | MBD-X12SCA-F-O |
| Brand Name | Supermicro |
| Product Model | X12SCA-F |
| Product Name | X12SCA-F Workstation Motherboard |
| Packaged Quantity | 1 |
| Package Type | Retail |
| Product Type | Workstation Motherboard |
Processor & Chipset
| Chipset Manufacturer | Intel |
| Chipset Model | W480 |
| Total Processor Supported | 1 |
| Processor Socket | Socket LGA-1200 |
| Processor Supported |
|
Memory
| Number of Memory Slots | 4 |
| Memory Form Factor |
|
| Maximum Memory Supported | 128 GB |
| Memory Technology | DDR4 SDRAM |
| Memory Speed Supported | 2933 MHz |
I/O Controller
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels |
|
Video
| Onboard Video | CPU Dependent Video |
Audio
| Audio Channels | 7.1 |
Network & Communication
| Gigabit Ethernet | Yes |
| 2.5Gigabit Ethernet | Yes |
I/O Expansions
| Total Number of Expansion Slots | 4 |
| Total Number of PCI Express Slots | 3 |
| Number of PCI Express x4 Slots | 1 |
| Number of PCI Express x16 Slots | 2 |
Interfaces/Ports
| Total Number of USB Ports | 4 |
| Number of USB 3.2 Ports | 4 |
| VGA | Yes |
| HDMI | Yes |
| DisplayPort | Yes |
| DVI | Yes |
| Number of Network (RJ-45) Ports | 3 |
Onboard Interfaces
| Number of SATA Interfaces | 4 |
| Number of M.2 Interfaces | 2 |
| Total Number of Onboard USB Ports | 6 |
| Number of Onboard USB 2.0 Ports | 2 |
| Number of Onboard USB 3.2 Ports | 4 |
Physical Characteristics
| Form Factor | ATX |
| Width | 12" (304.80 mm) |
| Depth | 9.60" (243.84 mm) |
Miscellaneous
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| COO | CN |
| Condition | No |
