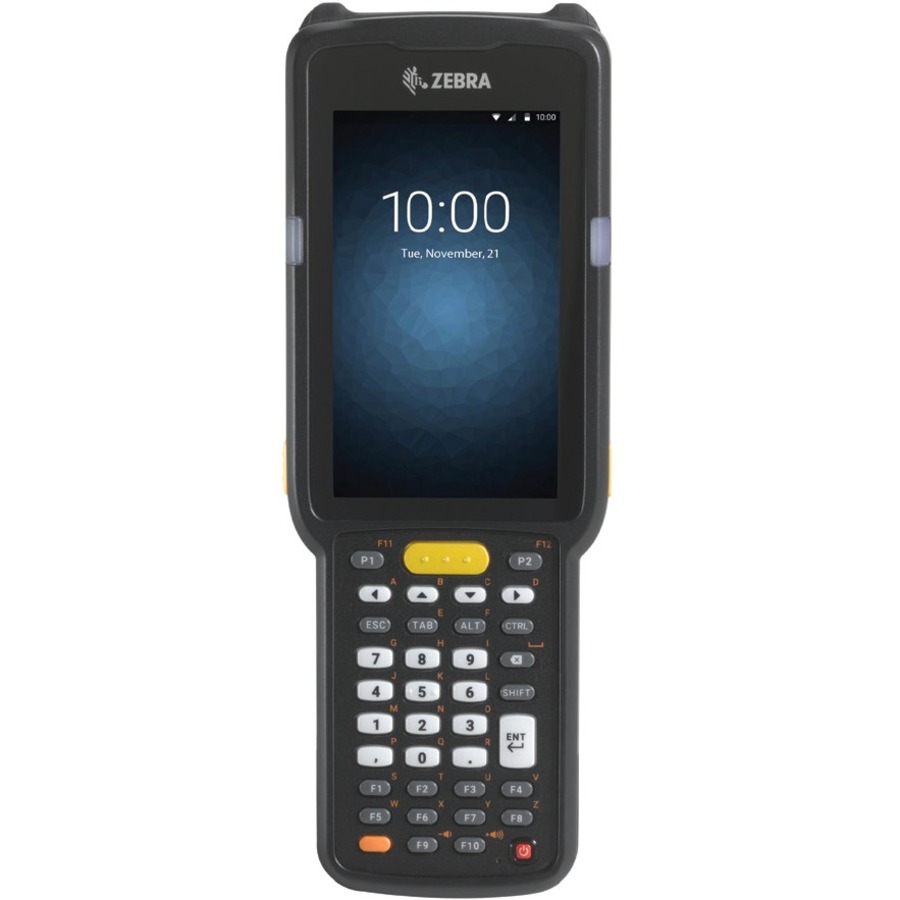

Zebra MC3300 Mobile Computer

Part No. MC330M-GJ3HG2RW

by Zebra Technologies Corporation

Zebra MC3300 Mobile Computer

1D, 2D - SE4770Scan EngineSnapdragon 1.80 GHz - 2 GB RAM - 16 GB Flash - 4" WVGA Touchscreen - LED - Function Numeric Keyboard - Android 8.0 Oreo - Wireless LAN - Bluetooth - Rugged - Battery Included - IP54

Part No. MC330M-GJ3HG2RW

by Zebra Technologies Corporation

$2047.99
General Information
ManufacturerZebra Technologies Corporation
Manufacturer Part NumberMC330M-GJ3HG2RW
Brand NameZebra
Product SeriesMC3000
Product ModelMC3300
Product NameMC3300 Mobile Computer
Marketing Information

THE ULTIMATE VERSATILE, LIGHTWEIGHT-YET-RUGGED KEY-BASED TOUCH MOBILE COMPUTER

Introducing the next evolution of our highly successful MC3000 family of keypad/touch mobile computers, packed with new features to tackle the ever increasing requirements of today's on-demand, e-commerce driven economy. You get the same proven fit-for-purpose ergonomic design, now with Zebra's latest, most powerful and secure Android architecture, including an extended range scanning option that captures barcodes on the top of your warehouse racks with ease, and a 35% larger capacity battery packs power for up to three shifts. All rugged specifications are higher for increased reliability - drop, tumble and sealing. And with the bright touch display, multiple keypad options and four form factor options, you can give your workers a device that will make on-the-job data capture easier than ever. Improve workforce productivity and efficiency from the manufacturing shop floor to the warehouse in your facility with the MC3300x - only from Zebra.

POWERFUL FEATURES TO BOOST PRODUCTIVITY

More rugged and ready for all-day business

You get reliable operation and peace of mind with an increased 6 ft./1.8 m drop specification across the operating temperature, triple the tumble specification (3,000 3.3 ft./1 m); and now IP64 dustproof sealing. With Corning® Gorilla® Glass on the touch panel and scan window, your investment will be protected from regular wear and tear.

Superior performance on all your voice and data apps

Power even the most demanding apps of today and tomorrow with the most powerful processor and most memory in this class - every model offers an ultra-powerful 2.2 GHz octa-core processor and 4 GB RAM/ 32 GB Flash.

Power three shifts with the class-leading 7000 mAh battery

The new 7000 mAh extended capacity battery is standard with every MC3300x. More power means fewer battery changes, easier battery management, and a smaller battery pool with fewer batteries to purchase and manage, saving time and money on your deployment.

Maximum WiFi range and speed - with less power

2x2 Multiple-User Multiple Input Multiple Output (MU-MIMO) technology allows access points to communicate with multiple devices simultaneously via pinpoint beamforming, boosting WiFi network capacity, speed and range. And the processing is shifted from the mobile device to the access point, extending battery life.

The perfect combination: touchscreen and keypad

Whether your application requires touch or physical keypad input, we've got you covered. Your application can utilize the entire display, while the physical keypad provides the same familiar user input experience your workers have today. In addition, the touchscreen paves the way to migrate to intuitive touch-based interfaces. And with three different options, you can choose the right keypad for your data entry needs -alphanumeric, numeric and functional numeric.

Bluetooth 5.0 - twice the speed, four times the range, less power

Speeds up to 2 Mbps improve the performance of Bluetooth peripherals, such as ring scanners, printers and headsets. The result? Faster application response times, faster printing and better voice quality. And battery runtime is also extended, since Bluetooth Low Energy reduces power consumption.

Integrated NFC for simple, split-second pairing

With a quick tap, workers can pair the MC3300x with Zebra's family of ring scanners, mobile printers, and Bluetooth headsets - your pairing possibilities are endless.

Product TypeHandheld Terminal
Technical Information
Connectivity TechnologyWireless
Scanning Capability
  • 1D
  • 2D
Scan Engine ModelSE4770
Image Sensor TypeImager
Scanner RangeStandard Range
Sensor Type
  • Accelerometer
  • Gyroscope
FeaturesGorilla Glass
Drop Specification (To Concrete)59.06" (1500 mm)
Air Electrostatic Discharge (+/-)15kV AC
Contact Electrostatic Discharge (+/-)8kV AC
Processor & Chipset
Processor TypeSnapdragon
Processor ModelAPQ8056
Processor CoreHexa-core (6 Core)
Processor Speed1.80 GHz
Memory
Standard Memory2 GB
Flash Memory16 GB
Memory Card SlotYes
Memory Card Supported
  • microSD
  • SDHC
  • SDXC
Maximum Memory Card Size Supported256 GB
Display & Graphics
Screen Size4"
Screen ModeWVGA
Display Screen TypeLED
Backlight TechnologyLED
Touchscreen Information
TouchscreenYes
Touchscreen TypeCapacitive
Keyboard/Keypad
Keyboard TypeFunction Numeric
Network & Communication
Wireless LANYes
Wireless LAN StandardIEEE 802.11a/b/g/n/ac
BluetoothYes
Bluetooth StandardBluetooth 4.1 + LE
Software
Operating SystemAndroid 8.0 Oreo
Battery Information
Battery Capacity5200 mAh
Battery ChemistryLithium Ion (Li-Ion)
Battery IncludedYes
Removable BatteryYes
Physical Characteristics
Form FactorGun
RuggedYes
Height7.98" (202.60 mm)
Width2.94" (74.70 mm)
Depth6.45" (163.90 mm)
Weight (Approximate)1.11 lb (505 g)
Miscellaneous
Application/Usage
  • Warehouse
  • Distribution
  • Manufacturing
  • Retail
  • Industrial
Ingress Protection (IP) RatingIP54
Country of OriginChina
COOCN
ConditionNo
batteries (1)
carrying cases (2)
chargers (2)

Part No. SAC-MC33-4SCHG-01

Zebra Multi-Bay Battery Charger - 12 V DC Input - 4 - Proprietary Battery Size

PWR SUPL/DC LINE/AC LINE CORD REQ

Part No. SAC-MC33-20SCHG-01

Zebra Multi-Bay Battery Charger - 20

connector cables (2)

Part No. 25-124330-01R

Zebra USB sync cable - Micro USB

CABLE FROM CRADLE TO HOST DEVICE

cradles (5)

Part No. CRD-MC33-4SC4BC-01

Zebra Cradle - Wired - Mobile Computer - 4 Slot - Charging Capability - USB - Black

WITH 4SLOT BATT CHARGER

headsets/earsets (2)
holders (1)

Part No. SG-MC3021212-01R

Zebra Handheld Computer Holster - Fabric

MC3200 MC3190 MC3000

mounting kits (1)

Part No. BRKT-SCRD-SMRK-01

Zebra BRKT-SCRD-SMRK-01 Mounting Bracket for Cradle

BRACKET

power adapters (2)

Part No. PWR-BGA12V108W0WW

Zebra AC Adapter - 12 V DC Output - 9 A

108W

Part No. PWR-BGA12V50W0WW

Zebra AC Adapter - 50 W - 12 V DC Output - 4.16 A

(NEED CBL-DC-388A1-01)

power cords (2)

Part No. 23844-00-00R

Zebra US 7.5' AC Line Cord - 7.5 ft (2.29 m) Cord Length - United States

PWRS1400148R/14000241R/NEW PWR SUPL

Part No. CBL-DC-388A1-01

Zebra Standard Power Cord

4.16A US#7V9094

screens & filters (1)
skins (2)
straps (5)

Part No. 11-08062-02R

Zebra Belt for Holster - Rugged - Adjustable - 2" (50.80 mm) Width - Leather - 1

MC9190-G MC3100 MC92N0 TC8000

Part No. 58-40000-007R

Zebra Shoulder Strap for Holster

Part No. SG-MC33-LNYDB-01

Zebra Lanyard

SHOOTER AND ROTATING HEAD

styli (1)
