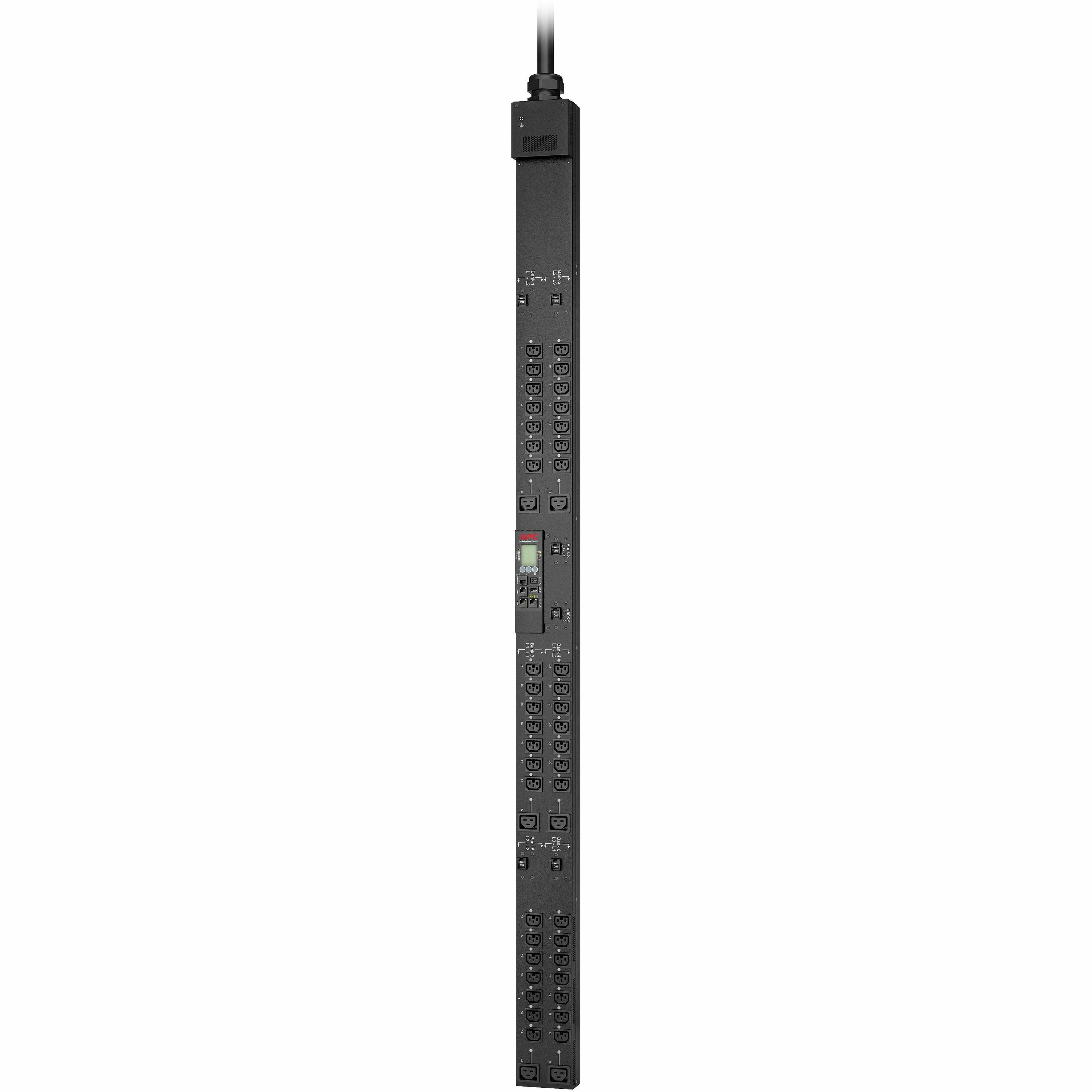

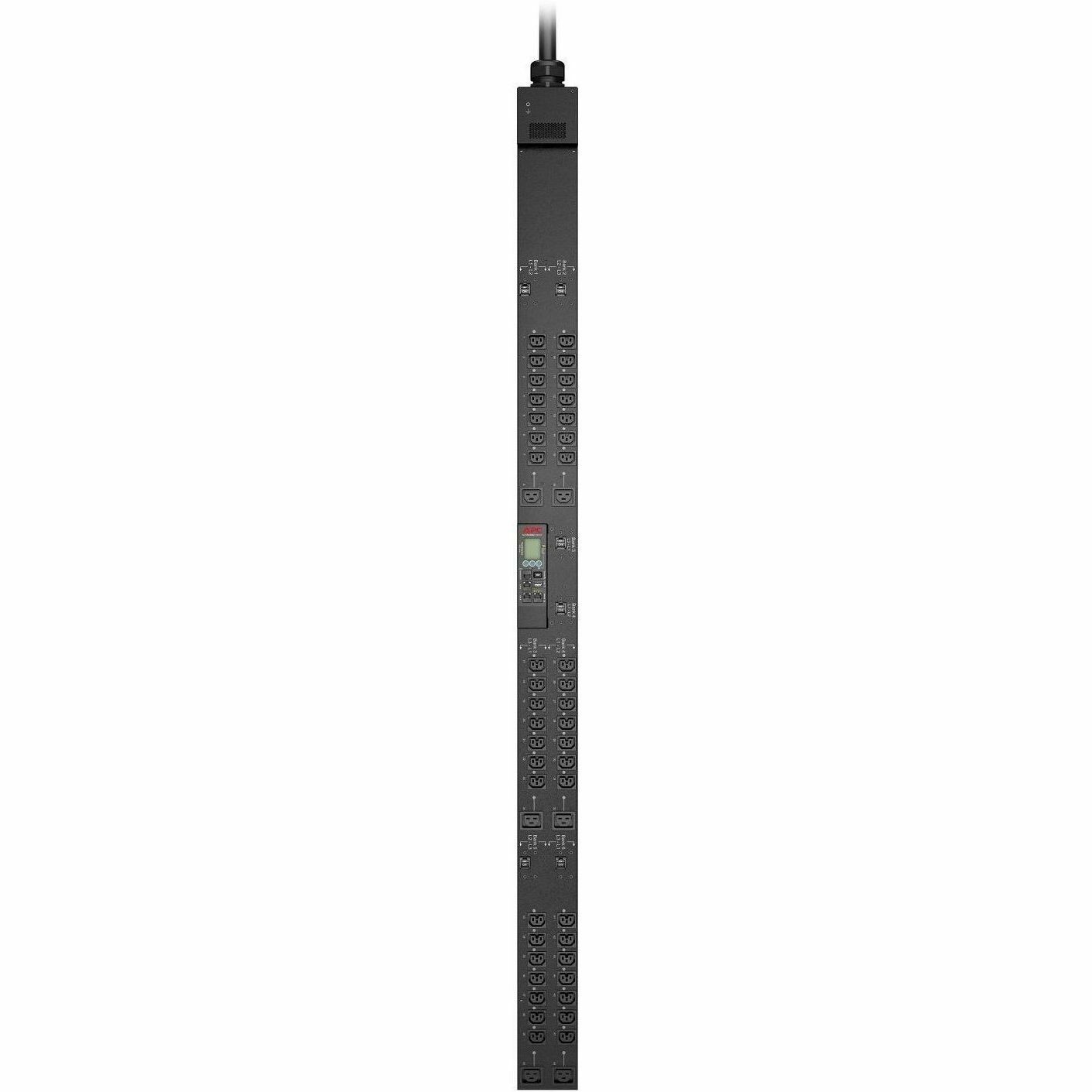

APC by Schneider Electric NetShelter 9000 48-Outlets PDU
Switched - IEC 60309 60A 3P+PE - 6 x IEC 60320 C19/C21, 42 x IEC 60320 C13/C15 - 208 V - Network (RJ-45) - 6 ft (1.83 m) Cord Length - 0U - Vertical - Rack-mountable - Tower
$5116.99
On back-order, will ship once in-stock
- All Locations: (0+)
General Information
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | APDU9967 |
| Brand Name | APC by Schneider Electric |
| Product Series | 9000 |
| Product Name | NetShelter 9000 48-Outlets PDU |
| Marketing Information | It is a switched rack PDU with a maximum current capacity of 60A and an input voltage of 208V. It features 42 C13 and C15 outlets and 6 C19 and C21 outlets, connected via an IEC 60309 60A 3P + PE plug. This PDU is designed for ZeroU mounting and supports a maximum line current of 48A. |
| Product Type | PDU |
Technical Information
| PDU Type | Switched |
| Phase | Three Phase |
| Plug/Connector Type | IEC 60309 60A 3P+PE |
| Receptacle Type |
|
| Receptacle Detail |
|
Power Description
| Input Voltage | 208 V |
| Output Voltage | 208 V AC |
| Power Rating (VA) | 17.30 kVA |
| Power Rating (Watt) | 17.30 kW |
| Input Current | 48 A |
Management
| Management |
|
Interfaces/Ports
| Network (RJ-45) | Yes |
Physical Characteristics
| Mounting Orientation | Vertical |
| Mounting Preference | No Preference |
| Mount Type | Rack-mountable |
| Placement | Side |
| Form Factor | Tower |
| Rack Height | 0U |
| Cord Length | 6 ft (1.83 m) |
| Height | 72.17" (1833 mm) |
| Width | 4.37" (111 mm) |
| Depth | 2.99" (76 mm) |
| Weight (Approximate) | 32.06 lb (14542.17 g) |
Miscellaneous
| For Country/Region | United States |
| Package Contents | |
| Certifications & Standards | cUL Listed|FCC part 15 class A|UL Listed|VCCI Class A |
| Product Take Back Program | No |
| REACH free of SVHC | No |
| Mercury Free | Yes |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=APDU9967_ROHS_DECLARATION&p_FileName=APDU9967KIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=557330948&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=557330948&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612033_EN |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612033_EN |
| Country of Origin | India |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Condition | No |
| UPC | 0731304356349 |
Warranty
| Limited Warranty | 3 Year |
| Additional Warranty Information | 3 years repair or replace |
