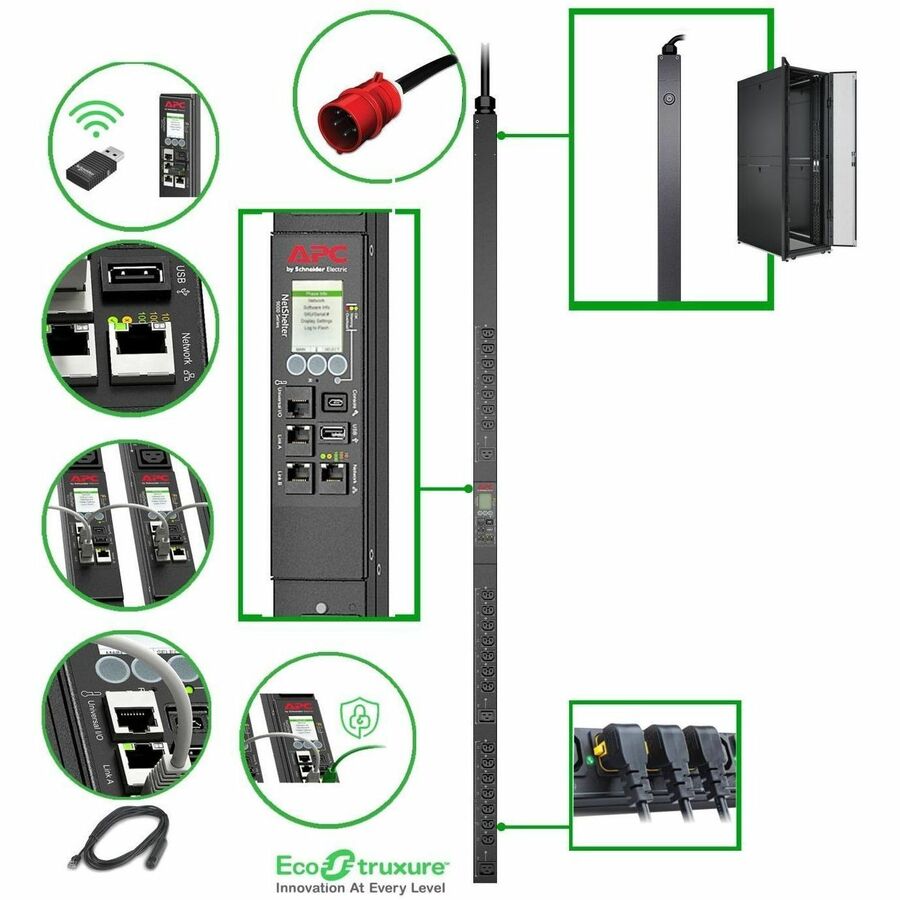

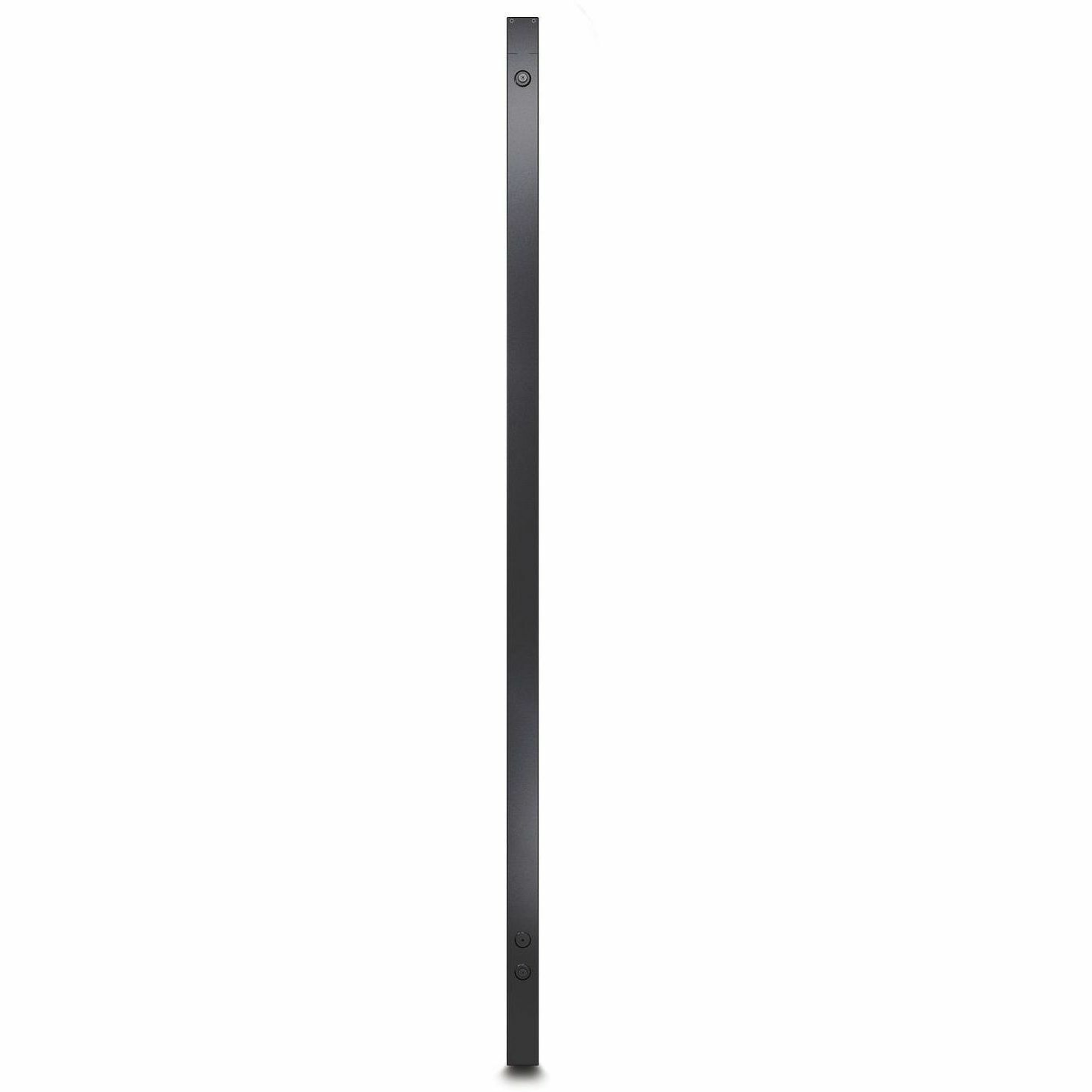

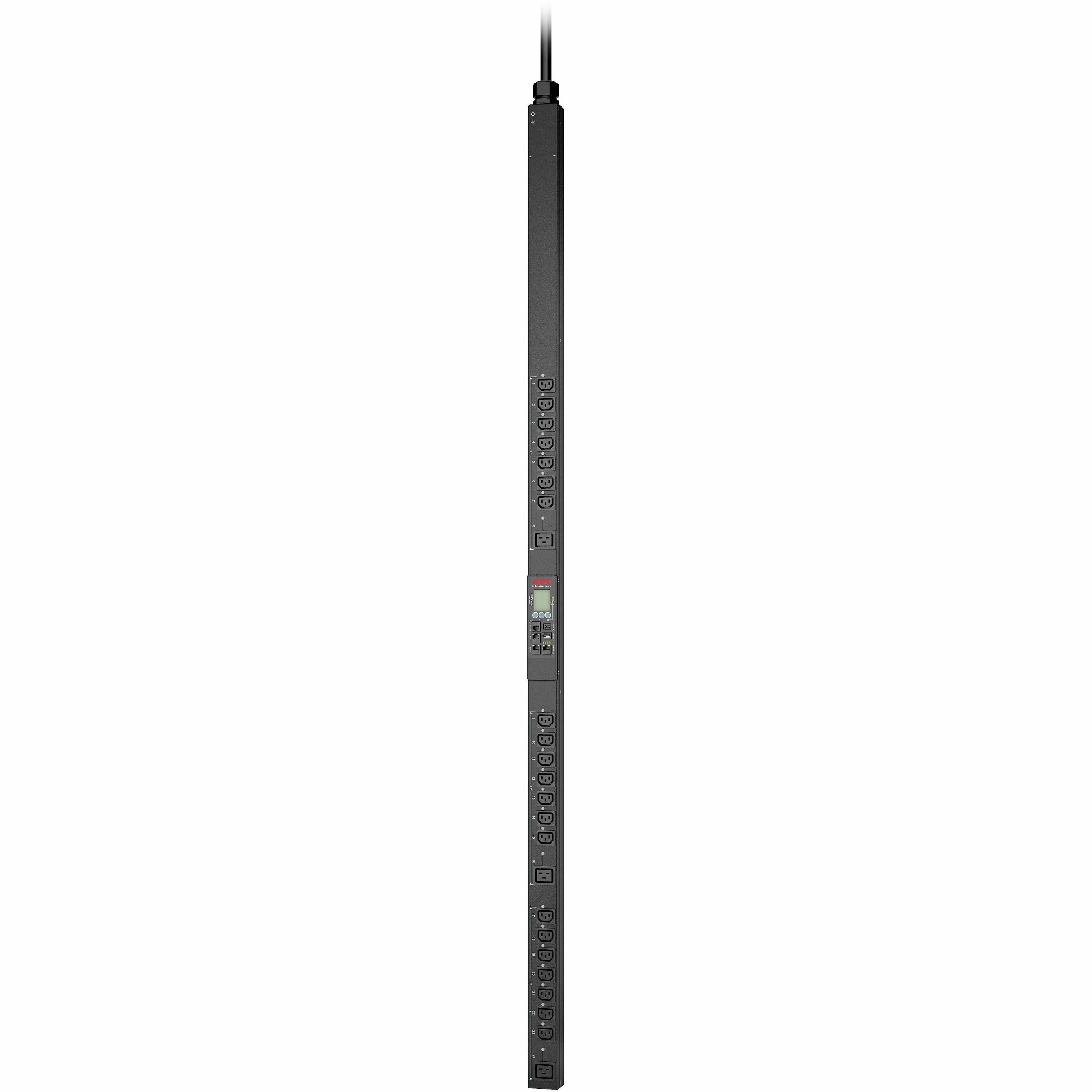

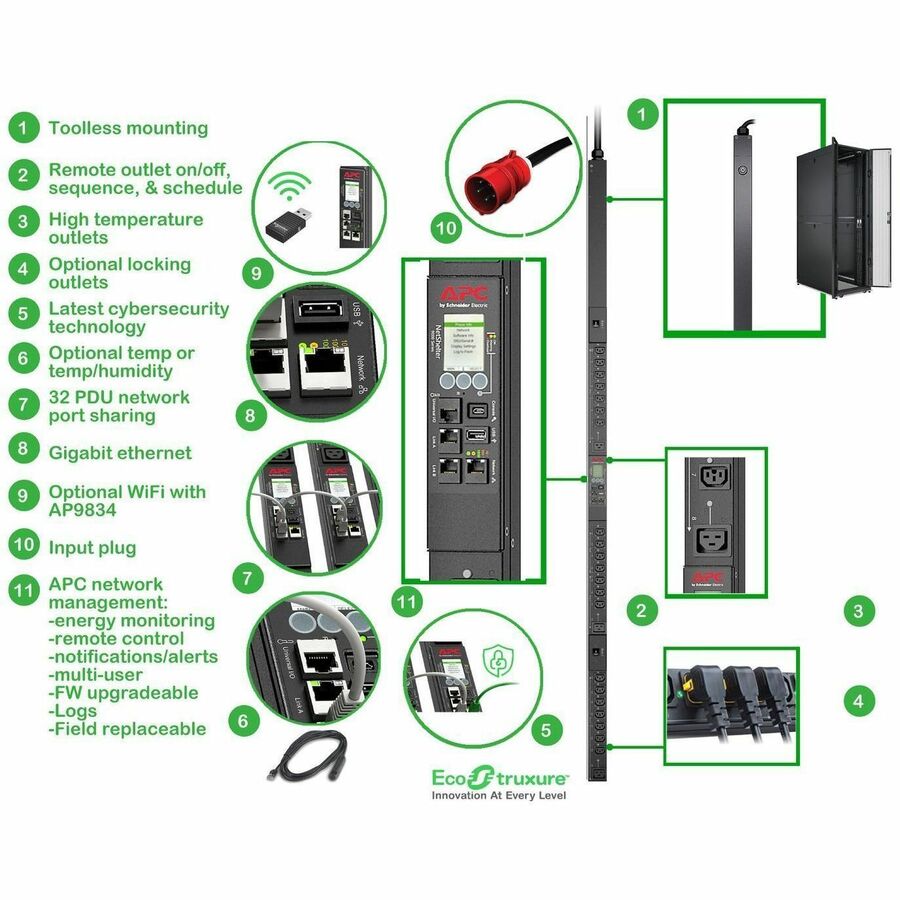

APC by Schneider Electric Rack PDU 9000 Switched, ZeroU, 11.0kW, 230V, (21) C13 & (3) C19

Switched - IEC 60309 16A 3P+N+PE - 21 x IEC 60320 C13, 3 x IEC 60320 C19 - 400 V - Circuit Protection, Accidental Power Shutdown - Network (RJ-45) - 6 ft (1.83 m) Cord Length - 0U - Vertical - Rack-mountable - Tower

Part No. APDU9981EU3

by Schneider Electric SA

$2846.99

User Manual

Specifications

General Information

Manufacturer	Schneider Electric SA
Manufacturer Part Number	APDU9981EU3
Brand Name	APC by Schneider Electric
Product Line	NetShelter
Product Series	Switched
Product Name	Rack PDU 9000 Switched, ZeroU, 11.0kW, 230V, (21) C13 & (3) C19
Marketing Information	It is a switched rack PDU with a maximum current capacity of 16A and an input voltage of 400V. It includes 21 IEC 60320 C13 outlets and 3 IEC 60320 C19 outlets, connected via an IEC 60309 16A 3P+N+PE plug. The PDU is designed for ZeroU mounting.
Product Type	PDU

Technical Information

PDU Type	Switched
Phase	Three Phase

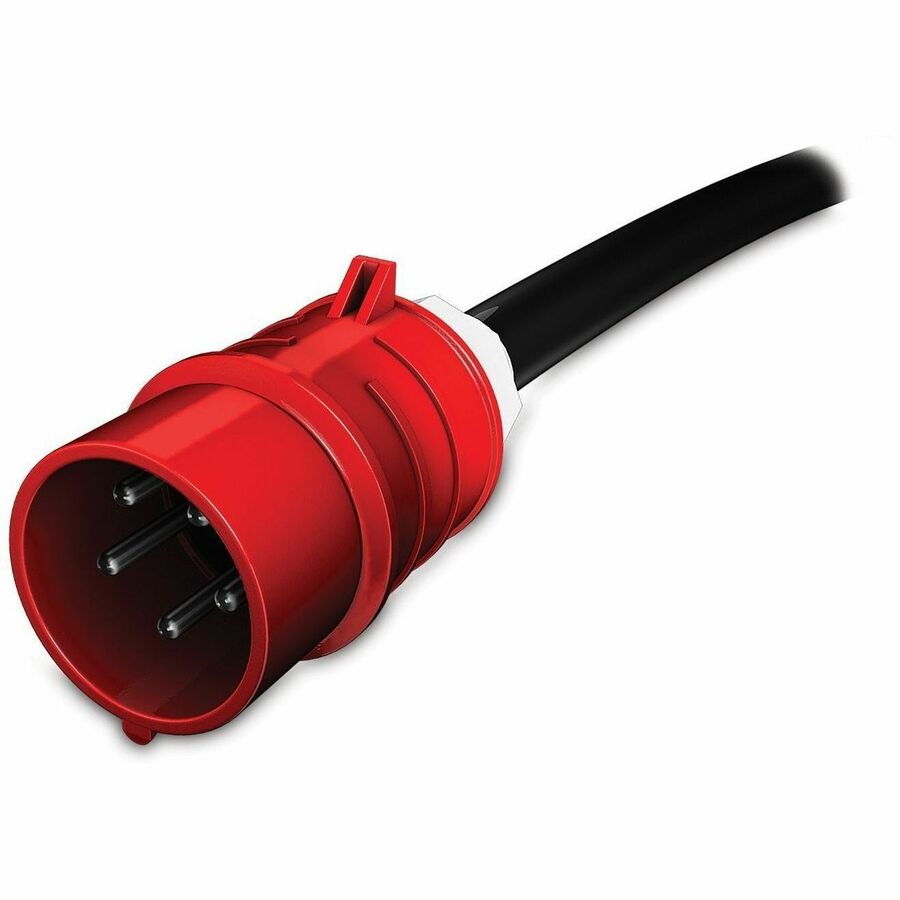

Plug/Connector Type	IEC 60309 16A 3P+N+PE
Plug/Connector Detail	1 x IEC 60309 16A 3P+N+PE
Receptacle Type	IEC 60320 C13 IEC 60320 C19
Receptacle Detail	21 x IEC 60320 C13 3 x IEC 60320 C19
Protection Type	Circuit Protection Accidental Power Shutdown

Power Description

Input Voltage	400 V
Output Voltage	230 V AC
Power Rating (VA)	11 kVA
Power Rating (Watt)	11 kW
Input Current	16 A

Management

Management	Web SNMP Telnet

Interfaces/Ports

Network (RJ-45)	Yes

Physical Characteristics

Mounting Orientation	Vertical
Mounting Preference	No Preference
Mount Type	Rack-mountable
Placement	Side
Form Factor	Tower
Rack Height	0U
Cord Length	6 ft (1.83 m)
Height	70.55" (1792 mm)
Width	2.17" (55 mm)
Depth	1.81" (46 mm)
Weight (Approximate)	15.43 lb (6998.93 g)

Miscellaneous

For Country/Region	United States
Package Contents	Rack PDU 9000 Switched, ZeroU, 11.0kW, 230V, (21) C13 & (3) C19 Installation guide Rack mounting brackets Safety guide Serial configuration cable
Certifications & Standards	cUL Listed\|FCC part 15 class A\|UL Listed\|VDE
Product Take Back Program	No
REACH free of SVHC	No
Mercury Free	Yes
RoHS Exemption Information	https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=APDU9981EU3_ROHS_DECLARATION&p_FileName=APDU9981EU3KIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL	https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=557330956&lang=en-us
EU RoHS Declaration URL	https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=557330956&lang=en-us
Environmental Profile Availability	https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612033_EN
End of Life Manual Availability	https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612033_EN
WEEE Statement	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Condition	No
UPC	0731304404262

Warranty

Limited Warranty	3 Year
Additional Warranty Information	3 years repair or replace
