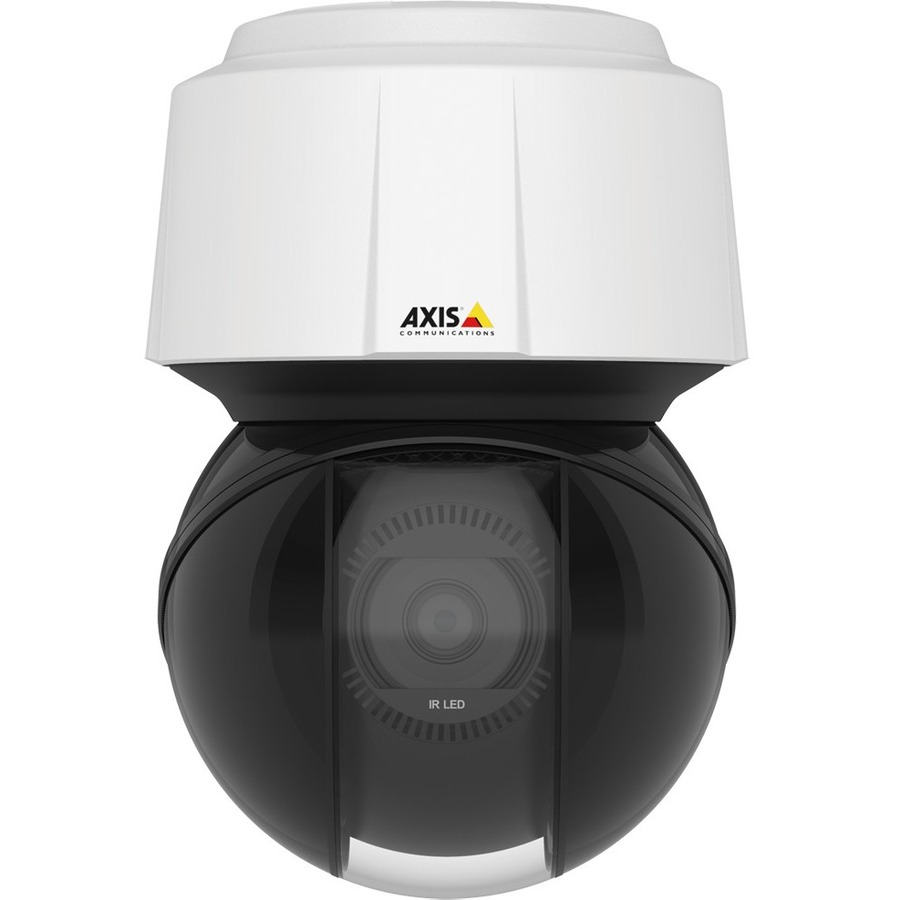

AXIS Q6135-LE 2 Megapixel Outdoor Full HD Network Camera - Color - Dome - White

Part No. 01959-004

by Axis Communications

AXIS Q6135-LE 2 Megapixel Outdoor Full HD Network Camera - Color - Dome - White

820.21 ft (250 m) Infrared Night Vision - H.264, H.265, MJPEG - 1920 x 1080 - 4.3 mm (0.17")- 137.6 mm (5.42") Varifocal Lens - 32x Optical - 60 fps - CMOS - Parapet Mount - IK08, IK10 - IP66 - Vandal Resistant, Impact Resistant

Part No. 01959-004

by Axis Communications

$4262.99
General Information
ManufacturerAxis Communications
Manufacturer Part Number01959-004
Brand NameAXIS
Product ModelQ6135-LE
Product NameQ6135-LE PTZ Network Camera
Marketing Information

AXIS Q6135-LE is a high-speed PTZ camera that offers OptimizedIR up to 250 m (820 ft) as well as Lightfinder 2.0 for clear, sharp overviews and excellent details in demanding light conditions. And, AXIS Object Analytics lets you detect and classify humans and vehicles. It's ideal for city surveillance in any unlit or low-light area - such as parks and alleys- eliminating the need for additional lighting.

See it all - anytime, anywhere

AXIS Q6135-LE is equipped with OptimizedIR with automatically adaptable IR LED illumination enabling surveillance in total darkness up to 250 m (820 ft) or more depending on the scene. Thanks to the sharpdome design it allows you to see 20° above the horizon with the same sharp image quality as below. It offers 32x optical zoom, superior video and excellent details in HDTV 1080p resolution. Featuring Lightfinder 2.0 this camera captures low-light images with more saturated colors and sharper images of moving objects. Furthermore, speed dry ensures clarity in rainy weather and supports efficient cleaning.

Whenever, wherever it's needed

This top-of-the-line camera contains all the functionality you need to track and identify suspect behavior. With AXIS Object Analytics, it allows you to detect and classify humans and vehicles, all tailored to your specific needs. It includes orientation aid with support for dynamic overlays for quick orientation. Autotracking 2 with click and track functionality allows for active object tracking. Furthermore, where privacy must be kept, privacy masking with mosaic lets you pixelate whole areas such as a neighboring property. Additionally, Zipstream with support for H.264 and H.265 significantly lowers bandwidth and storage requirements without compromising image quality.

Keeping you secure

Thanks to the newest generation of Axis chip, AXIS Q6135-LE is packed with advanced security features to prevent unauthorized access and safeguard your system. Signed firmware and secure boot guarantee that the firmware hasn't been compromised and ensure only authorized firmware is installed. And, if needed, secure boot guarantees the camera is completely free of malware after a factory default. For added peace of mind, it includes a Trusted Platform Module (TPM) that is FIPS 140-2 level 2 certified. This module ensures secure storage of all cryptographic keys and certificates even in the event of a security breach.

Product TypeNetwork Camera
Technical Information
Recording FormatsFull HD
HD RecordingYes
Night VisionYes
Night Vision Distance820.21 ft (250 m)
Night Vision TypeInfrared
Display & Graphics
Image Sensor TypeCMOS
Color SupportedColor
Field of ViewHorizontal field of view: 58.3°-2.4° Vertical field of view: 34.9°-1.3°
Effective Camera Resolution2 Megapixel
Video
Video Formats
  • H.264
  • H.265
  • MJPEG
Maximum Video Resolution1920 x 1080
Maximum Frame Rate60 fps
Lens
Lens TypeVarifocal
Minimum Focal Length4.3 mm (0.17")
Maximum Focal Length137.6 mm (5.42")
Lens IncludedYes
Minimum Aperturef/4
Maximum Aperturef/1.4
Optical Zoom32x
Exposure
Shortest Shutter Speed1/66500 Second
Longest Shutter Speed2 Second
Network & Communication
Connectivity TechnologyWired
Remote ManagementYes
Storage
Storage TypeMemory Card
Interfaces/Ports
Network (RJ-45)Yes
Power Description
Input Voltage240 V AC
Power Source Type
  • PoE
  • AC
Physical Characteristics
Mount TypeParapet Mount
Form FactorDome
Durability
  • Vandal Resistant
  • Impact Resistant
Color FamilyWhite
Product ColorWhite
Height9.49" (241 mm)
Diameter6.50" (165 mm)
Weight (Approximate)6.61 lb (3000 g)
Environmental Conditions
Minimum Operating Temperature-58°F (-50°C)
Maximum Operating Temperature122°F (50°C)
Maximum Operating Humidity100%
Miscellaneous
Features
  • SD Card Local Storage
  • Human Detection
  • Ingress Protection
  • Privacy Masking
  • Built-in IR LED
  • Electronic Image Stabilization
  • Auto Tracking
  • PTZ
  • Day/Night
  • Cross Line Detection
  • Alarm Detection
  • Password Protection
  • HTTPS Encryption
Indoor/OutdoorOutdoor
Package Contents
  • Q6135-LE PTZ Network Camera
  • IP66-rated RJ45 connector kit
  • AXIS High PoE 60 W SFP Midspan
  • Installation guide
  • Windows Decoder 1-User licence
Impact Protection Rating
  • IK08
  • IK10
Ingress Protection RatingIP66
Country of OriginPoland
TAA CompliantYes
NDAA CompliantYes
Environmentally FriendlyYes
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
ConditionNo
UPC7331021069794
Warranty
Limited Warranty5 Year
