AXIS 30 W Midspan
120 V AC, 230 V AC Input - 1 x 10/100/1000Base-T Input Port(s) - 1 x PoE Output Port(s) - 30 W - Black
$114.99
In Stock Availability
- All Locations: (2+)
- Calgary, AB (2+)
General Information
| Manufacturer | Axis Communications |
| Manufacturer Part Number | 02172-004 |
| Brand Name | AXIS |
| Product Name | 30 W Midspan |

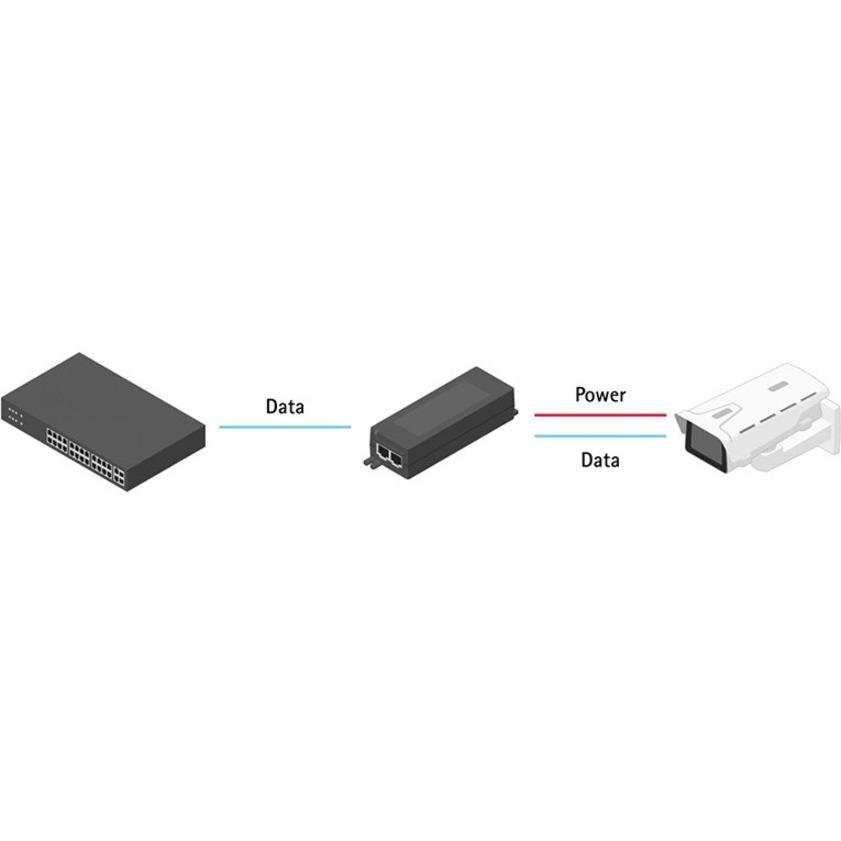

| Marketing Information | AXIS 30 W Midspan is a 1-port midspan that can deliver up to 30 W to one network device. It is IEEE 802.3af (15 W) and IEEE 802.3at (30 W) compliant, which ensures compatibility with most Axis network products with built-in PoE. Power over Ethernet (PoE) offers an easy, fast and cost-effective solution for powering network products. With a single network cable, a PoE midspan injects power to the network device with built-in PoE support and enables data communication between the device and the switch. No need to replace existing Ethernet switches and cabling infrastructure. |
| Product Type | PoE Injector |
Power Description
| Input Voltage |
|
| Minimum Frequency | 50 Hz |
| Maximum Frequency | 60 Hz |
| Maximum Output Power | 30 W |
Interfaces/Ports
| Input Ports | 1 x 10/100/1000Base-T |
| Output Ports | 1 x PoE |
Physical Characteristics
| Product Color | Black |
| Form Factor | Wall/Shelf/DIN Rail Mountable |
| Height | 1.18" (30 mm) |
| Width | 1.81" (46 mm) |
| Depth | 5.52" (140.10 mm) |
| Weight (Approximate) | 145 g |
Miscellaneous
| Package Contents |
|
| Compatibility | Axis Fixed Cameras:
|
| Certifications & Standards |
|
| Environmentally Friendly | Yes |
| Environmental Compliance |
|
| NDAA Compliant | Yes |
| Condition | No |
| UPC | 7331021074071 |
Warranty
| Limited Warranty | 3 Year |
