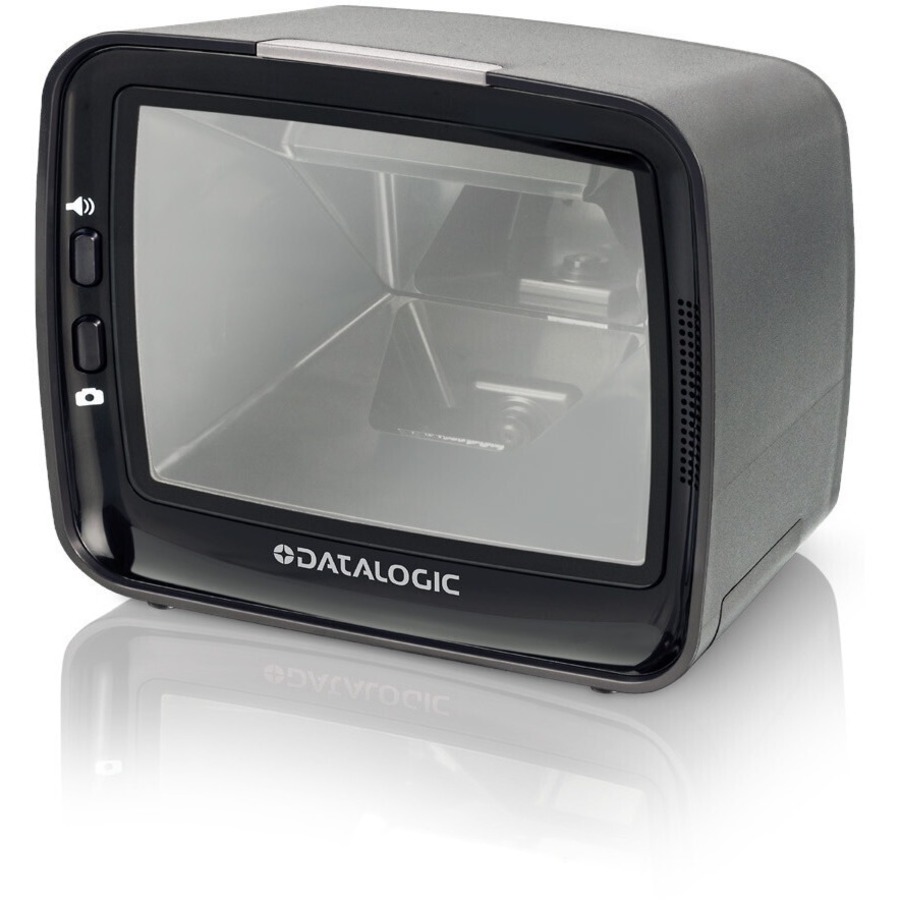

Datalogic Magellan 3410VSi Barcode Scanner
On back-order, will ship once in-stock
- All Locations: (0+)
| Manufacturer | Datalogic S.p.A |
| Manufacturer Part Number | M3410-010200-0E104 |
| Brand Name | Datalogic |
| Product Line | Magellan |
| Product Model | 3410VSi |
| Product Name | Magellan 3410VSi Barcode Scanner |
| Marketing Information | ON-COUNTER HIGH PERFORMANCE BAR CODE READER The Magellan 3410VSi series of scanners continue the Datalogic tradition of high performance imaging for the point of sale. With the same cables, mounts and exterior plastics as the Magellan 3450VSi, the 3410VSi scanner is easy to integrate into existing installations. The new electronics platform allows the M3410VSi to power from a single 5V USB connection, providing outstanding performance and easy connection to any POS system. With a large field of view and the capabilities of imaging, the 3410VSi scanners provide outstanding performance on hard-to-read bar codes and seamless reading of a wide variety of bar codes. This Magellan scanner enables both high speed sweep and presentation scanning techniques, ensuring maximum productivity and ergonomic ease, even with truncated (shortened), out-of-spec or poorly printed codes. ENHANCING THE CUSTOMER EXPERIENCE The optional Magellan Customer Service Scanner (CSS) enables retailers to easily engage their customers in mobile commerce programs, allowing them to scan bar codes from mobile phone screens or paper coupons while the cashier continues to scan regular items in parallel, resulting in a significant reduction in total transaction time. ENTERPRISE FEATURES Remote Management is supported for OPOS, JavaPOS, Toshiba Remote Management with IBM Systems Director and Wavelink Avalanche. Additional capabilities are available with the Value Added Features included in every Magellan scanner. |
| Product Type | Barcode Scanner |
| Connectivity Technology | Cable |
| Scanning Capability |
|
| Barcode Symbology Supported | 1D :
2D :
Stacked Codes:
Digital Watermarks:
|
| Light Source | LED |
| Image Sensor Type | Imager |
| Scan Pattern | Area |
| Scanning Distance | 8" (203.20 mm) |
| Features |
|
| Cable Type Included | Serial |
| Reading Angle (Skew) | 75° |
| Reading Angle (Pitch) | 65° |
| Reading Angle (Roll) | 360° |
| Image Formats |
|
| Maximum Ambient Light | 86100 lux |
| Minimum Print Contrast | 25% |
| Minimum Element Resolution (DataMatrix) | 10 mil (0.25 mm) |
| Maximum Element Resolution (DataMatrix) | 20 mil (0.51 mm) |
| Minimum Element Resolution (PDF417) | 6.60 mil (0.17 mm) |
| Maximum Element Resolution (PDF417) | 10 mil (0.25 mm) |
| Image Sensor Resolution | 1280 x 800 |
| Illumination Type | LED |
| Air Electrostatic Discharge (+/-) | 25kV |
| Host Interface |
|
| Maximum Operating Power Consumption | 3.30 W |
| Power Supply Included | Yes |
| Operating Temperature | 50°F (10°C) to 104°F (40°C) |
| Storage Temperature | -40°F (-40°C) to 158°F (70°C) |
| Humidity (Non-condensing) | 5% to 95% |
| Form Factor | Desktop |
| Color Family | Dual Color |
| Product Color |
|
| Durability |
|
| Weight (Approximate) | 1.32 lb (600 g) |
| Package Contents |
|
| Ingress Protection (IP) Rating | IP52 |
| Application/Usage |
|
| Environmentally Friendly | Yes |
| Environmental Compliance |
|
| COO | VI |
| Condition | No |
| Limited Warranty | 3 Year |
