Opticon OPC-3301i CCD Barcode Scanner

Part No. OPC3301I-00

by Opticon Sensors Europe

Opticon OPC-3301i CCD Barcode Scanner

Wireless Connectivity - 300 scan/s - 19.69" (500.13 mm) Scan Distance - 1D - LED - CCD, Linear - Bluetooth - Black - IP42 - Industrial, Retail, Healthcare, Warehouse, Distribution, Transportation, Logistics

Part No. OPC3301I-00

by Opticon Sensors Europe

$196.99
General Information
ManufacturerOpticon Sensors Europe
Manufacturer Part NumberOPC3301I-00
Brand NameOpticon
Product ModelOPC-3301i
Product NameOPC-3301i CCD Barcode Scanner
Marketing Information

CCD Bluetooth Barcode Scanner

The Opticon OPC-3301i features a high speed, CCD barcode scanner and a lightweight, ergonomic design that is perfect for all day, everyday use in a wide variety of industries including retail, healthcare, warehousing and distribution, and transportation and logistics. The cordless, cable-free freedom of Bluetooth® wireless communication offers the ability to roam away from the host device, which improves productivity and scanning convenience. The OPC-3301i is built to survive and thrive due to its IP42 sealing rating against dust and moisture and 5 foot drop specification. The scanner is also Apple MFI certified for the added ease of connecting and communicating with iOS host devices.

Product highlights include:

  • Wireless CCD barcode scanner with enhanced decoding algorithms for ultra-fast (300 scans/second) barcode scanning
  • Reads 1D barcodes from LCD screens and mobile phones and capable of scanning negative barcodes (white bars on black spaces)
  • Supports Apple MFi, SPP and HID Bluetooth profiles for added flexibility
  • Memory: 1MB SDRAM, 1MB Flash ROM
  • Small form factor: 2.20" x 5.20" x 4.45" (WxHxD) and 4.3 ounces including battery
  • Extremely durable: IP42 rating against dust and moisture and survives 5 foot drop to concrete

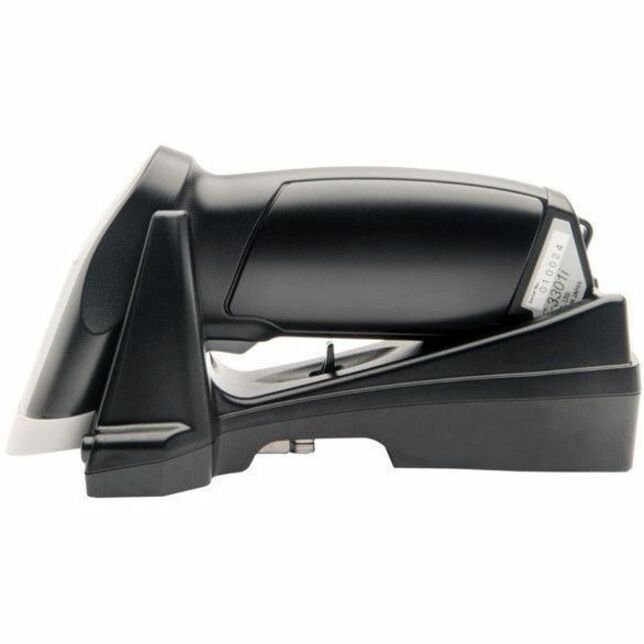

  • Charges via cradle (CHG-3201-sold separately), Bluetooth dongle available (OPA-3201)
  • Backed by a two year warranty


Product TypeBarcode Scanner
Technical Information
Connectivity TechnologyWireless
Scanning Capability1D
Barcode Symbology Supported

Barcode (1D):

  • JAN/UPC/EAN incl. add on
  • Codabar/NW-7
  • Code 11
  • Code 39
  • Code 93
  • Code 128
  • GS1-128 (EAN-128)
  • GS1 DataBar (RSS)
  • IATA
  • Industrial 2of5
  • Interleaved 2of5
  • ISBN-ISSN -ISMN
  • Matrix 2of5
  • MSI/Plessey
  • S-Code
  • Telepen
  • Tri-Optic
  • UK/Plessey

Postal Code:

  • Chinese Post
  • Korean Postal Authority code
Light SourceLED
Image Sensor Type
  • CCD
  • Linear
Scan Rate300 scan/s
Scan ModeTrigger
Scanning Distance19.69" (500.13 mm)
Features
  • Vibration
  • Ergonomic Design
Number of Keys1
Reading Angle (Skew)65°
Reading Angle (Pitch)50°
Reading Angle (Roll)25°
Maximum Ambient Light100000 lux
Drop Specification

5 ft (1.5 m) drop onto concrete surface

Minimum Element Resolution (Code 39)5 mil (0.13 mm)
Maximum Element Resolution (Code 39)40 mil (1.02 mm)
Memory
Standard Memory1 MB
Flash Memory1 MB
Network & Communication
BluetoothYes
Power Description
Standby Current15 mA
Battery Information
Battery ChemistryLithium Ion (Li-Ion)
Battery Capacity1100 mAh
Maximum Battery Recharge Time3 Hour
Environmental Conditions
Operating Temperature32°F (0°C) to 122°F (50°C)
Storage Temperature-4°F (-20°C) to 140°F (60°C)
Humidity (Non-condensing)20% to 85%
Physical Characteristics
Form FactorHandheld
Color FamilyBlack
Product ColorBlack
Product MaterialAcrylonitrile Butadiene Styrene (ABS)
DurabilityDust Resistant
Height5.20" (132 mm)
Width4.45" (113 mm)
Depth2.20" (56 mm)
Weight (Approximate)4.48 oz (127 g)
Miscellaneous
Compatibility

Apple iPhone, iPod, iPad

Ingress Protection (IP) RatingIP42
Application/Usage
  • Industrial
  • Retail
  • Healthcare
  • Warehouse
  • Distribution
  • Transportation
  • Logistics
Country of OriginJapan
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
COOTW
ConditionNo
Warranty
Limited Warranty2 Year
