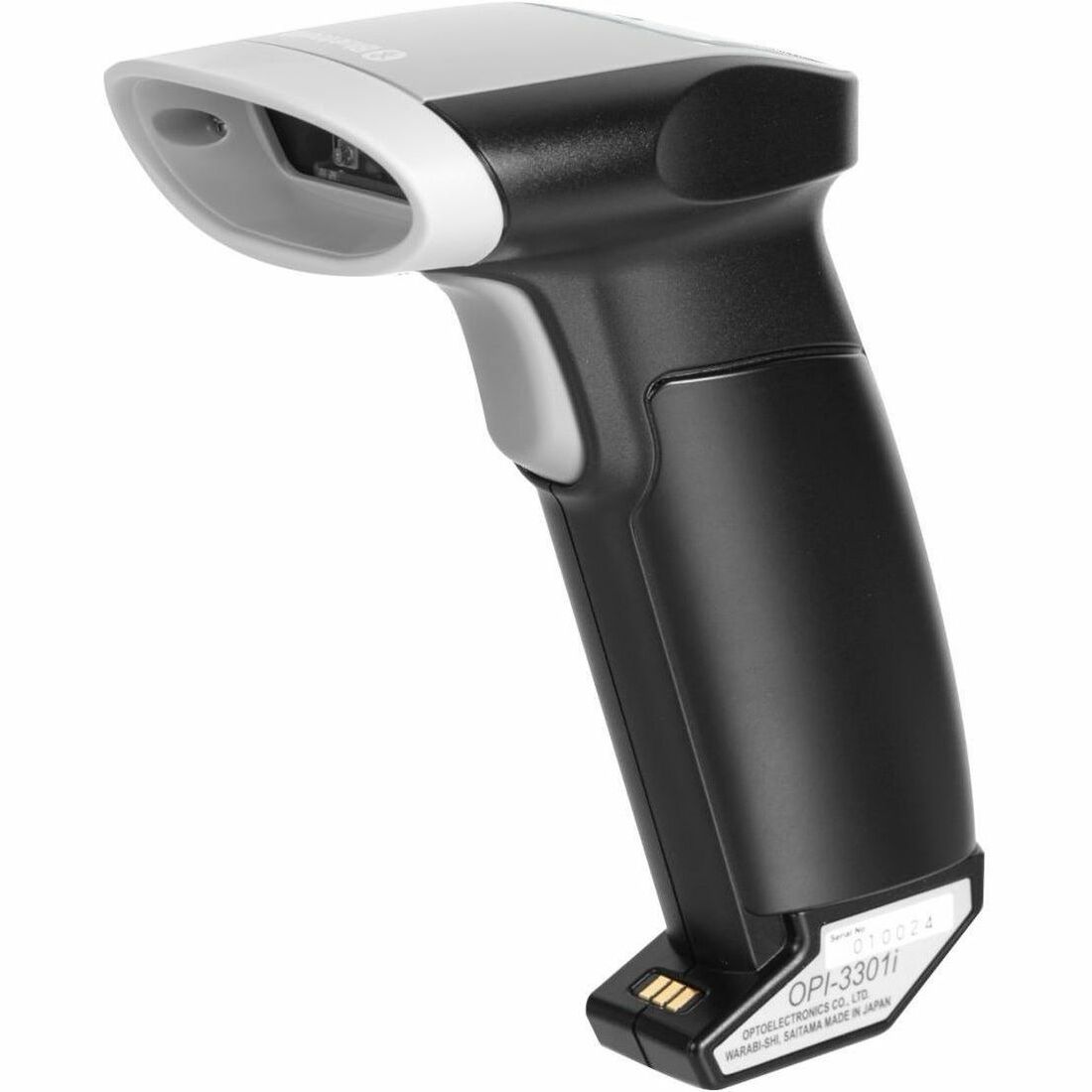

Opticon OPI-3301i 2D CMOS Imager Barcode Scanner
On back-order, will ship once in-stock
- All Locations: (0+)
| Manufacturer | Opticon Sensors Europe |
| Manufacturer Part Number | OPI3301I-00 |
| Brand Name | Opticon |
| Product Model | OPI-3301i |
| Product Name | OPI-3301i 2D CMOS Imager Barcode Scanner |
| Marketing Information | The Opticon OPI-3301i features a high speed, 2D Imager barcode scanner and a lightweight, ergonomic design that is perfect for all day, everyday use in a wide variety of industries including retail, healthcare, warehousing and distribution, and transportation and logistics. The cordless, cable-free freedom of Bluetooth® wireless communication offers the ability to roam away from the host device, which improves productivity and scanning convenience. The OPI-3301i is built to survive and thrive due to its IP42 sealing rating against dust and moisture and 5 foot drop specification. The scanner is also Apple MFI certified for the added ease of connecting and communicating with iOS host devices. OPI-3301i product highlights include:
|
| Product Type | Barcode Scanner |
| Connectivity Technology | Wireless |
| Scanning Capability |
|
| Barcode Symbology Supported | 1D:
2D:
POSTAL CODES:
|
| Light Source | Laser |
| Image Sensor Type | Imager |
| Scan Mode | Trigger |
| Scanning Distance | 9.84" (249.94 mm) |
| Features |
|
| Number of Keys | 1 |
| Field of View (Horizontal) | 40° |
| Field of View (Vertical) | 26° |
| Reading Angle (Skew) | 50° |
| Reading Angle (Pitch) | 50° |
| Reading Angle (Roll) | 180° |
| Image Formats |
|
| Maximum Ambient Light | 100000 lux |
| Drop Specification | 5 ft (1.5 m) drop onto concrete surface |
| Minimum Print Contrast | 20% |
| Minimum Element Resolution (Code 39) | 5 mil (0.13 mm) |
| Maximum Element Resolution (Code 39) | 0.21" (5.28 mm) |
| Image Sensor Resolution | 752 x 480 |
| Illumination Type | LED |
| Standard Memory | 1 MB |
| Flash Memory | 1 MB |
| Bluetooth | Yes |
| Input Current | 330 mA |
| Standby Current | 15 mA |
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Battery Capacity | 1100 mAh |
| Maximum Battery Run Time | 3 Hour |
| Operating Temperature | 32°F (0°C) to 122°F (50°C) |
| Storage Temperature | -14°F (-25.6°C) to 140°F (60°C) |
| Humidity (Non-condensing) | 20% to 85% |
| Form Factor | Handheld |
| Color Family | Black |
| Product Color | Black |
| Product Material | Acrylonitrile Butadiene Styrene (ABS) |
| Durability | Dust Resistant |
| Height | 5.32" (135.13 mm) |
| Width | 2.20" (55.88 mm) |
| Depth | 4.45" (113.03 mm) |
| Weight (Approximate) | 4.66 oz (132 g) |
| Package Contents |
|
| Compatibility | Apple iPad, iPhone, iPod |
| Ingress Protection (IP) Rating | IP42 |
| Application/Usage |
|
| Country of Origin | Japan |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| COO | TW |
| Condition | No |
| Limited Warranty | 2 Year |
