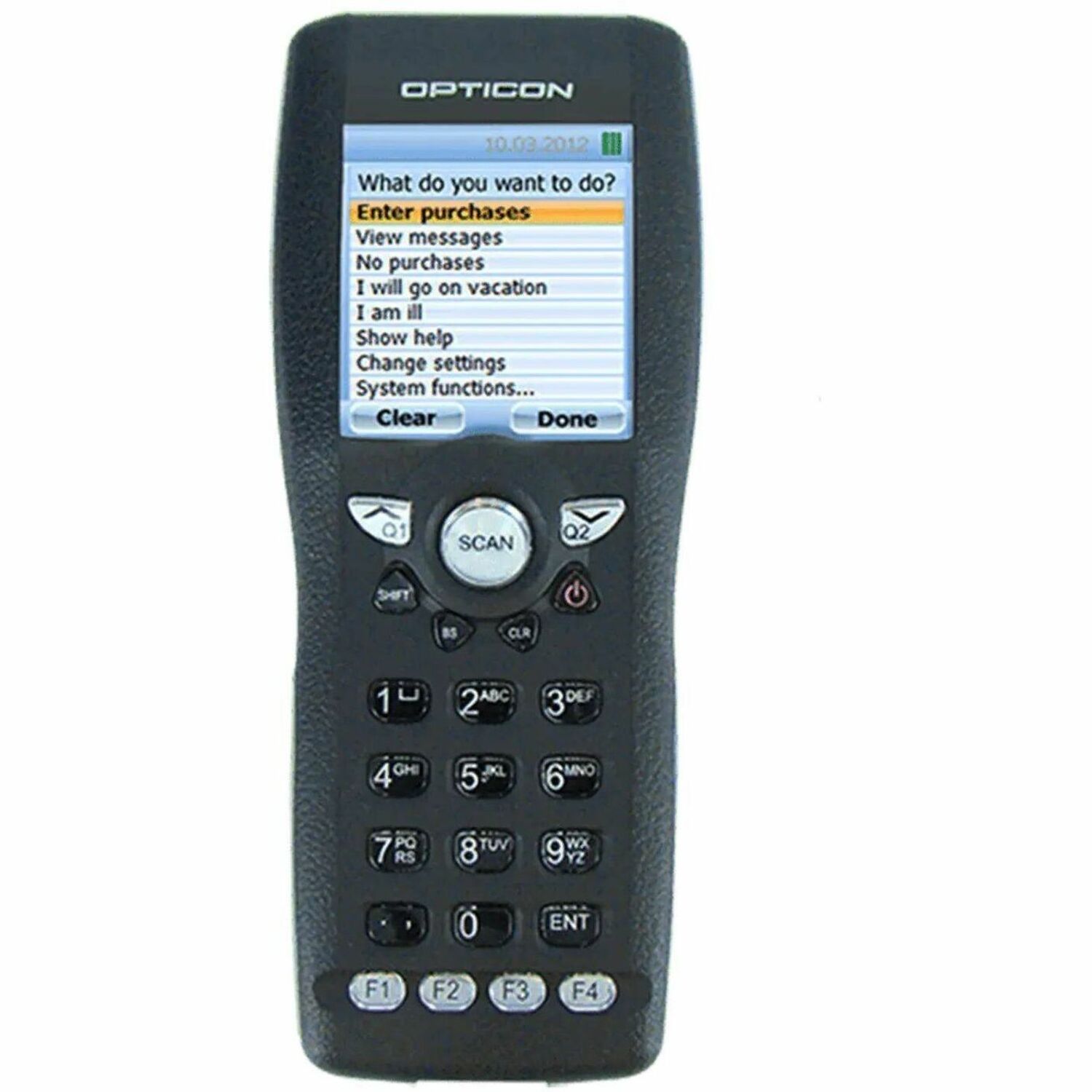

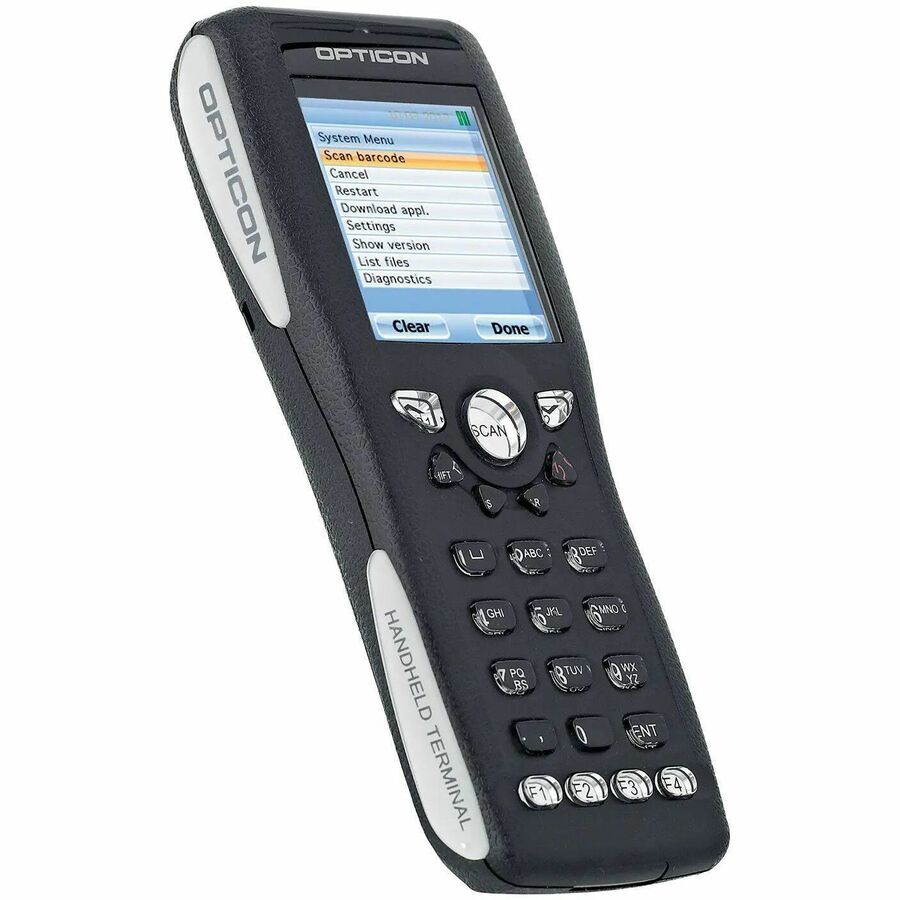

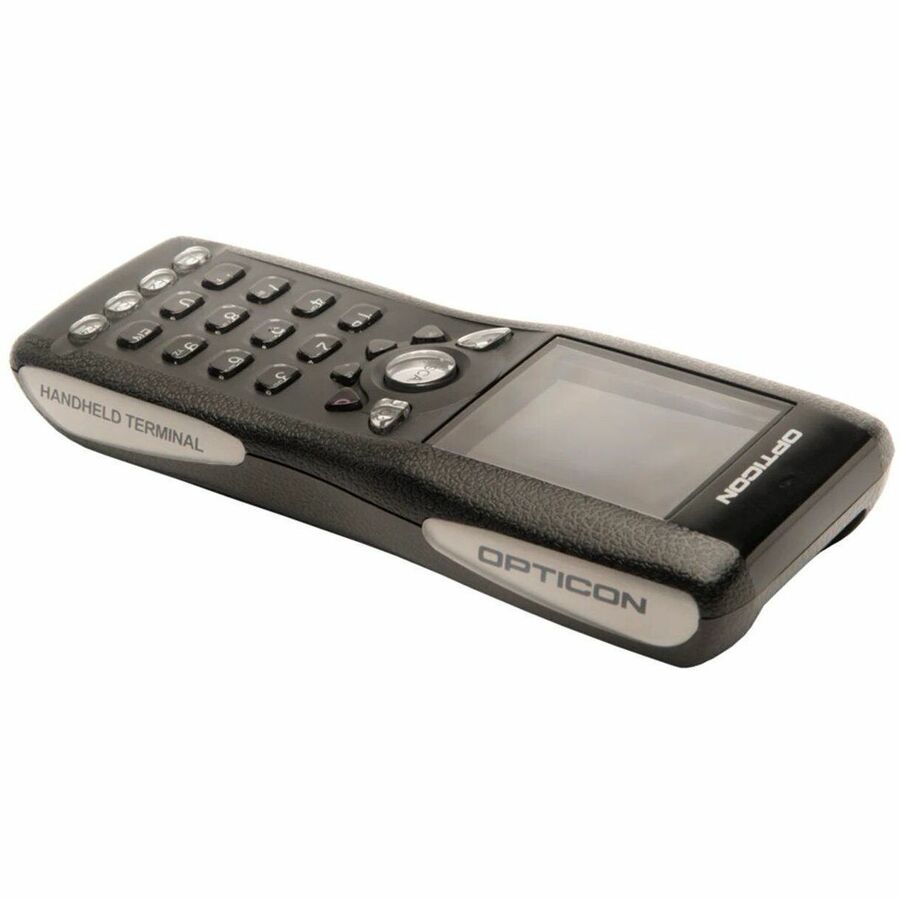

Opticon OPH-1005 Laser Scanner

1D96 MHz - 4 MB RAM - 64 MB Flash - 2" (50.80 mm) QVGA - TFT LCD - 23 Keys - Alphanumeric Keyboard - Proprietary OS - Rugged - Battery Included - Power Supply Included - IP54

Part No. OPH-1005-SK1

by Opticon Sensors Europe

$675.99

Specifications

General Information

Manufacturer	Opticon Sensors Europe
Manufacturer Part Number	OPH-1005-SK1
Brand Name	Opticon
Product Model	OPH-1005
Product Name	OPH-1005 Laser Scanner
Marketing Information	The OPH-1005 is a reliable, durable and affordable proprietary mobile computer with a vibrant color display. It features an elegant design and a high speed, integrated laser scanner that quickly and accurately scans barcodes.
Product Type	Handheld Terminal

Technical Information

Connectivity Technology	Batch
Scanning Capability	1D
Light Source	Laser
Power Supply Included	Yes
Features	Vibration Alert Moisture Resistant Lightweight
Drop Specification	1.5 m / 5 ft drop onto concrete surface
Depth of Field	Depth of field at code 39: 55 - 120 mm (0.15 mm) / 2.17 - 4.72 in (6 mil) 50 - 200 mm (0.25 mm) / 1.97 - 7.87 in (10 mil) 50 - 320 mm (0.5 mm) / 1.97 - 12.60 in (20 mil) 70 - 450 mm (1.00 mm) / 2.76 - 17.72 in (39 mil)

Processor & Chipset

Processor Speed	96 MHz

Memory

Standard Memory	4 MB
Flash Memory	64 MB
Memory Card Supported	microSD

Display & Graphics

Screen Size	2" (50.80 mm)
Screen Mode	QVGA
Screen Resolution	320 x 240
Display Screen Type	TFT LCD

Keyboard/Keypad

Number of Keys	23
Keyboard Type	Alphanumeric

Interfaces/Ports

USB	Yes

Software

Operating System	Proprietary OS

Power Description

Power Source	Battery

Battery Information

Battery Capacity	1100 mAh
Battery Chemistry	Lithium Ion (Li-Ion)
Battery Included	Yes
Maximum Battery Run Time	40 Hour
Battery Voltage	3.70 V

Environmental Conditions

Operating Temperature	14°F (-10°C) to 122°F (50°C)
Storage Temperature	-4°F (-20°C) to 140°F (60°C)
Humidity (Non-condensing)	20% to 85%

Physical Characteristics

Product Color	Black
Form Factor	Phone-size
Rugged	Yes
Height	5.35" (136 mm)
Width	2.17" (55 mm)
Depth	0.91" (23 mm)
Weight (With Battery)	4.94 oz (140 g)

Miscellaneous

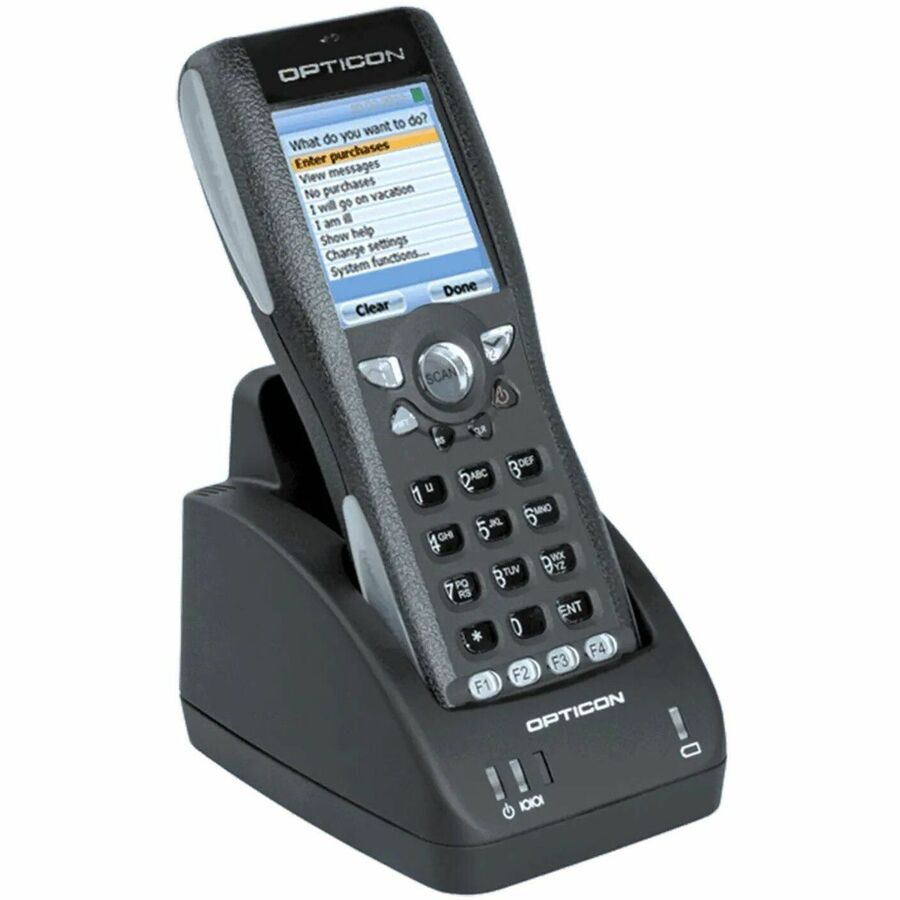

Package Contents	OPH-1005 Laser Scanner Standard Battery Ethernet/USB Charging Cradle Power Supply Wrist Strap
Application/Usage	Inventory Management Asset Tracking Industrial Retail Healthcare Warehouse Distribution
Ingress Protection (IP) Rating	IP54
Environmental Compliance	Restriction of Hazardous Substances (RoHS) Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) Waste Electrical and Electronic Equipment Directive (WEEE)
COO	TH
Condition	No

Warranty

Limited Warranty	2 Year
