Opticon OPL-9815 Mobile Data Collector

Part No. OPL-9815-SK1

by Opticon Sensors Europe

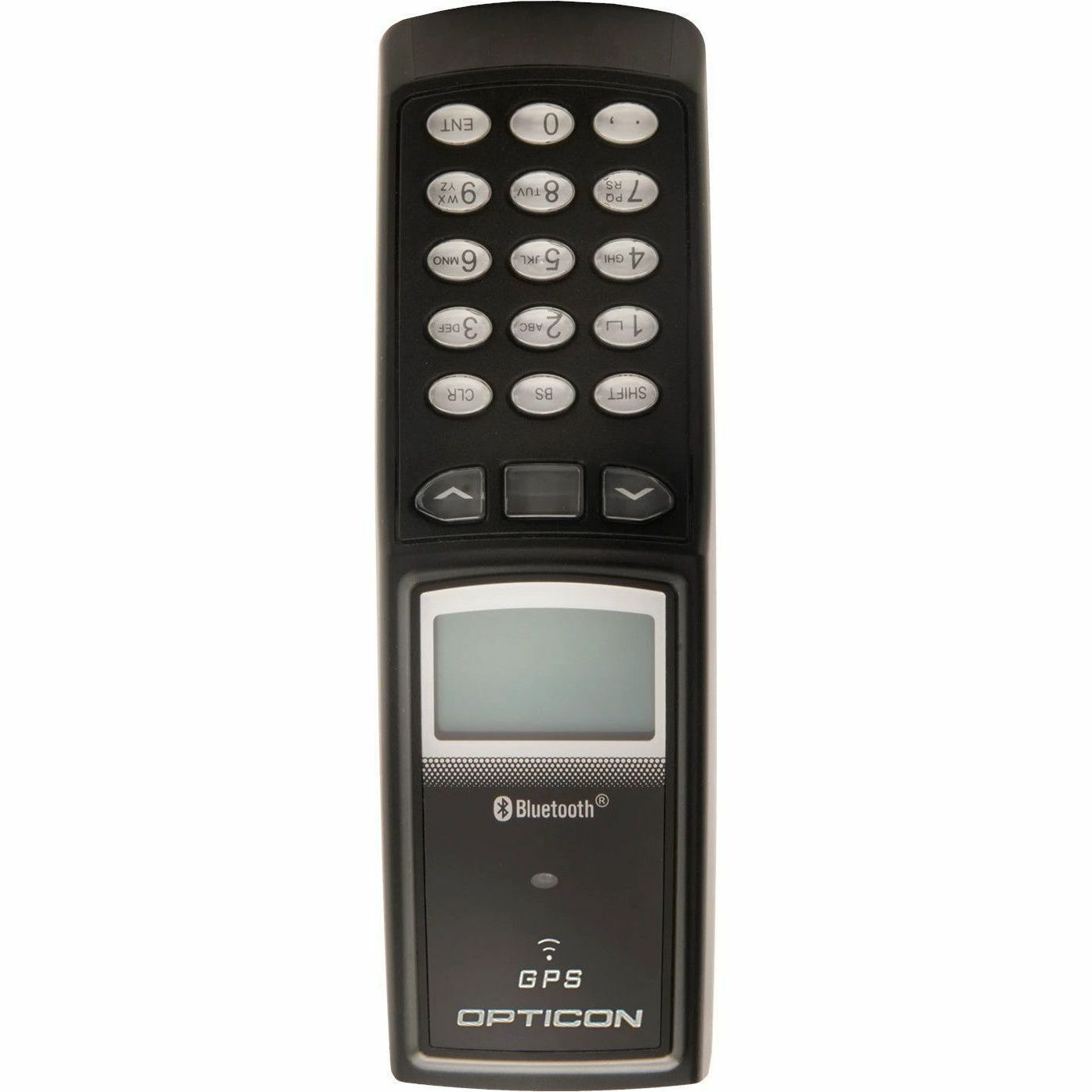

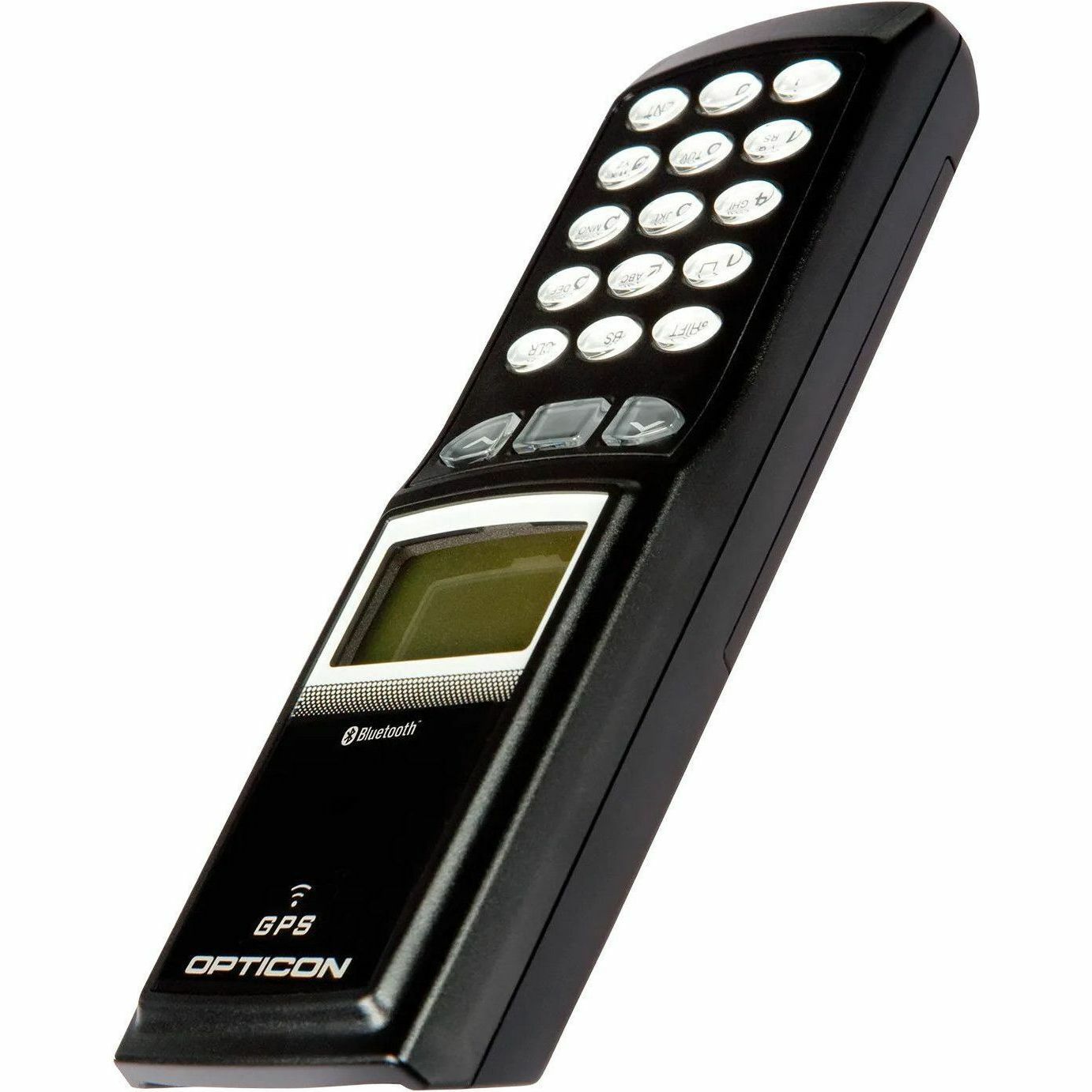

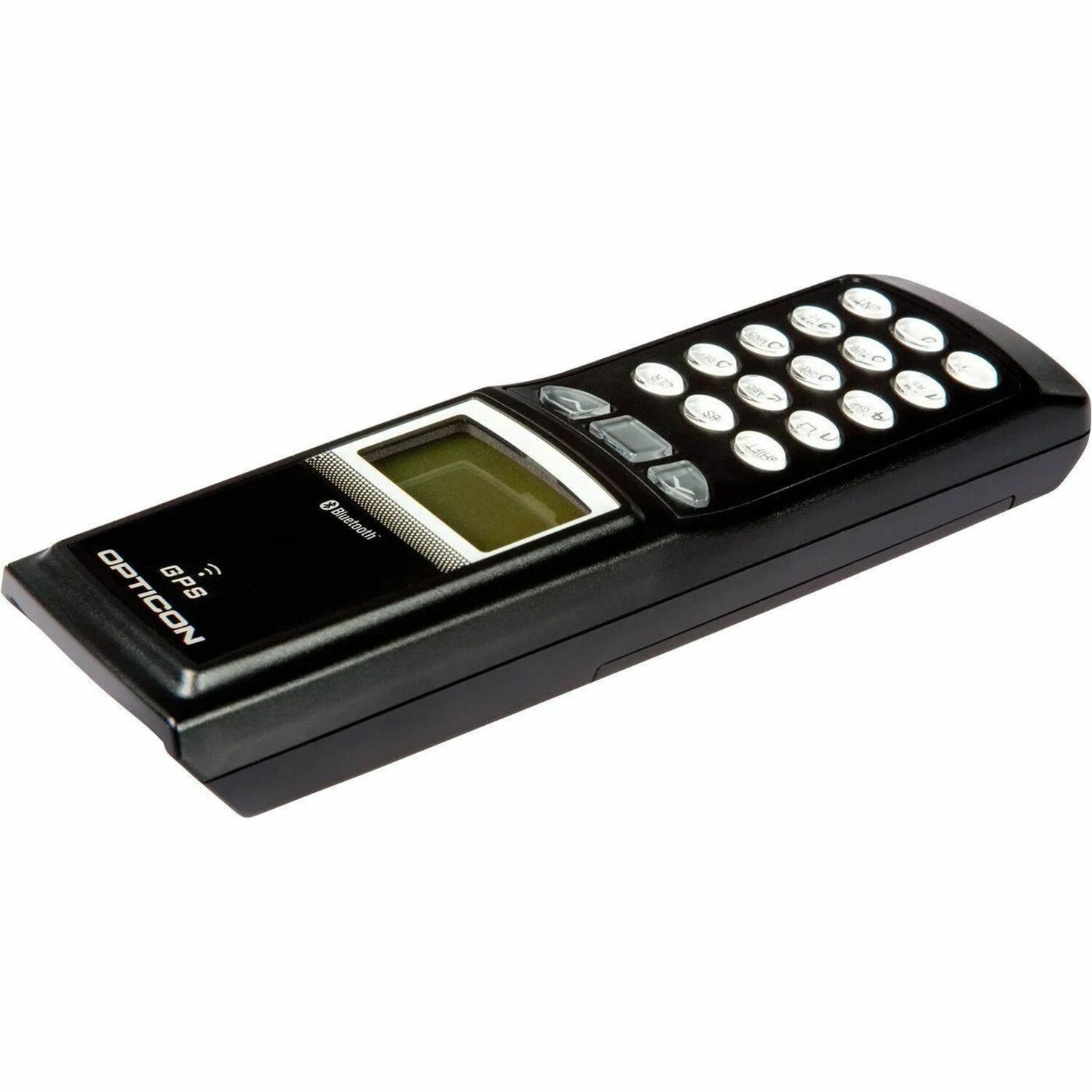

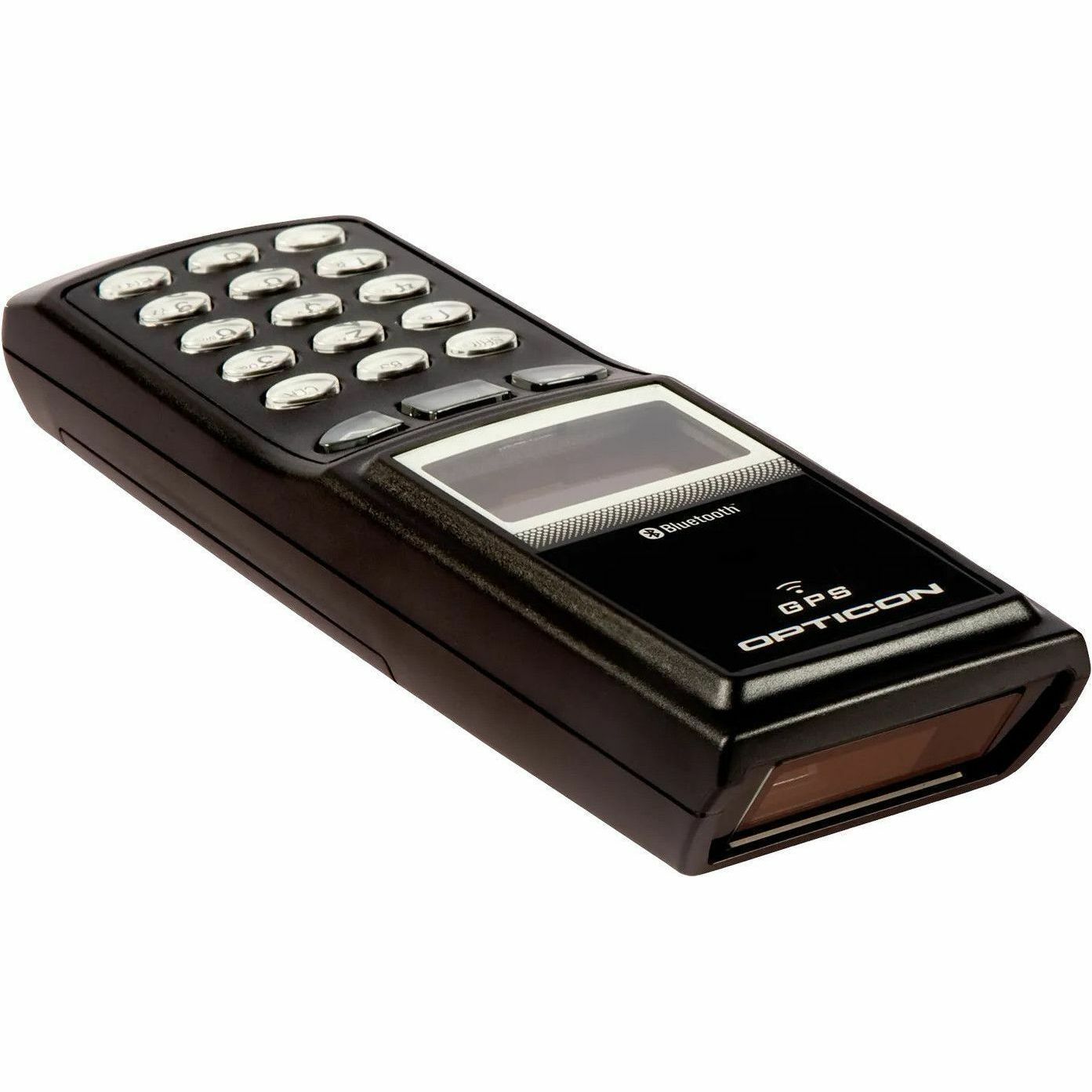

Opticon OPL-9815 Mobile Data Collector

Wireless Connectivity - 100 scan/s - 11.81" (299.97 mm) Scan Distance - 1D - Laser - Bluetooth - Black - IP54 - Logistics, Warehouse, Retail, Inventory

Part No. OPL-9815-SK1

by Opticon Sensors Europe

$531.99
General Information
ManufacturerOpticon Sensors Europe
Manufacturer Part NumberOPL-9815-SK1
Brand NameOpticon
Product ModelOPL-9815
Product NameOPL-9815 Mobile Data Collector
Marketing Information

Bluetooth Laser Barcode Scanner with GPS, Screen, and 18-key Operation

The OPL-9815, a Bluetooth™ laser scanner from Opticon, features GPS, a real-time clock and 18-key operation for data-capture applications that require location and time stamps, as well as data entry. The OPL-9815 is perfect for inventory, logistics, warehouse and retail applications. Since the OPL-9815 is programmable, channel partners can create custom solutions around the OPL-9815 using the free SDK from Opticon.

The OPL-9815 can transmit data via Bluetooth™ connection, or store data onboard for later transfer via IrDA through a charging cradle (sold separately). The charging cradle is available with a serial, modem or GSM interface. OPL-9815 product highlights include:

  • Wireless laser barcode scanner with GPS - featuring 100 scans per second speed
  • HID or SPP Bluetooth™ transmission of data to a host
  • 512KB of flash ROM and 512KB of RAM
  • 18-key operation
  • Monochrome 112x64 pixel screen with back light
  • Programmable - free Opticon SDK enables solution providers to create customized scanning solutions
  • Compact size and weight - 1.7"W x 5.5"L x 0.9"D; 3.8 oz
  • Rechargeable Lithium-Ion battery
  • Minimum standby time is 48 hours
  • IP54 enclosure rating; withstands 5-foot drop to concrete
  • Data can also be transmitted to host via IrDA when OPL-9815 is placed in charging cradle
  • Two-year warranty
Product TypeBarcode Scanner
Technical Information
Connectivity TechnologyWireless
Scanning Capability1D
Barcode Symbology Supported

1D:

  • JAN/UPC/EAN incl. add on, Codabar/ NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128 (EAN -128), GS1 DataBar (RSS), IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISSN, Matrix 2of5, MSI/Plessey, S-Code, Telepen, Tri-Optic, UK/Plessey

Postal Codes:

  • Chinese Post, Korean Postal Authority code
Light SourceLaser
Scan Rate100 scan/s
Depth of Field
  • 39 mil (1.0 mm) 2.36 - 11.81 in (60 - 300 mm)
  • 20 mil (0.5 mm) 1.38 - 8.27 in (35 - 210 mm)
  • 10 mil (0.25 mm) 1.38 - 4.72 in (35 - 120 mm)
  • 6 mil (0.15 mm) 1.38 - 2.76 in (35 - 70 mm)
Scanning Distance11.81" (299.97 mm)
FeaturesGPS
Display ScreenYes
Number of Keys18
Keypad TypeAlphanumeric
Reading Angle (Skew)50°
Reading Angle (Pitch)25°
Maximum Ambient Light50000 lux
Drop Specification

5 ft (1.5 m) drop onto concrete surface

Minimum Element Resolution (Code 39)6 mil (0.15 mm)
Maximum Element Resolution (Code 39)39 mil (0.99 mm)
Memory
Standard Memory512 MB
Flash Memory1 MB
Processor & Chipset
Processor Speed96 MHz
Network & Communication
BluetoothYes
Battery Information
Battery ChemistryLithium Ion (Li-Ion)
Battery Capacity1100 mAh
Maximum Battery Run Time72 Hour
Environmental Conditions
Operating Temperature32°F (0°C) to 104°F (40°C)
Storage Temperature-4°F (-20°C) to 140°F (60°C)
Humidity (Non-condensing)20% to 85%
Physical Characteristics
RuggedYes
Color FamilyBlack
Product ColorBlack
Product MaterialAcrylonitrile Butadiene Styrene (ABS)
DurabilityDust Resistant
Height5.51" (139.95 mm)
Width1.73" (43.94 mm)
Depth0.87" (22.10 mm)
Weight (Approximate)4.10 oz (116.233045 g)
Miscellaneous
Ingress Protection (IP) RatingIP54
Application/Usage
  • Logistics
  • Warehouse
  • Retail
  • Inventory
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
COOTH
ConditionNo
Warranty
Limited Warranty2 Year
