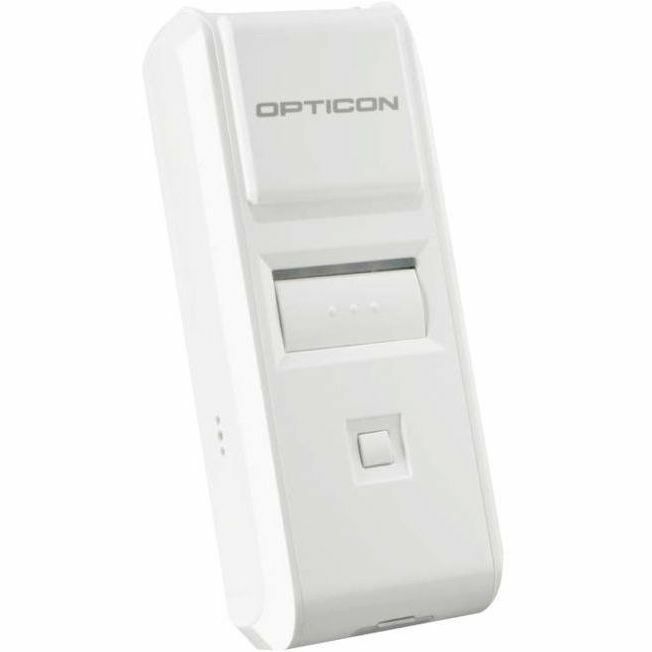

Opticon OPN-4000n CCD Bluetooth Companion Scanner

Cable/Wireless Connectivity - 20.47" (519.94 mm) Scan Distance - 1D - LED - CCD, Linear - Single Pass - Bluetooth - USB - White - IP42 - USB - Retail, Inventory, Asset Tracking

Part No. OPN4000N-00

by Opticon Sensors Europe

$138.99

Specifications

General Information

Manufacturer	Opticon Sensors Europe
Manufacturer Part Number	OPN4000N-00
Brand Name	Opticon
Product Model	OPN-4000n
Product Name	OPN-4000n CCD Bluetooth Companion Scanner
Marketing Information	Bluetooth Companion Scanner (CCD) The OPN-4000i Bluetooth Companion Scanner (CCD Linear Sensor) enables real-time barcode scanning into any Bluetooth ready device including Apple, Android and Windows. The OPN-4000i scanner is extremely small, easily sliding into a pocket or on a keychain making it an ideal solution for field sales and service, retail point-of-sale (POS), inventory management, asset tracking and many more. Even though it features one of the industry's most technically advanced CCD Linear Sensor scan engines, the OPN-4000i comes at a very affordable price point that enables any business to integrate barcode scanning into their mobile applications. OPN-4000i product highlights include: CCD linear sensor rapidly scans and decodes 1D barcodes Ready-to-go out of the box, just pair it with your Bluetooth device Supports Apple MFi, SPP and HID Bluetooth profiles for added flexibility Memory: 1 MB Flash ROM, 96 kB SRAM Small form factor: weighs only 1.87 oz, 3.27 x 1.42 x 0.85 in (LxWxD) Audible and visible feedback after a successful scan USB rechargeable, high capacity Lithium-Ion battery Extremely durable and reliable with a comprehensive two-year warranty that protects your investment
Product Type	Barcode Scanner

Technical Information

Connectivity Technology	Cable/Wireless
Scanning Capability	1D
Barcode Symbology Supported	1D: JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128 (EAN-128), GS1 DataBar (RSS) (exl.stacked), IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISSM-ISSN, Matrix 2of5, MSI/Plessey, S-Code, Telepen, Tri-Optic, UK/Plessey POSTAL CODES: Chinese Post, Korean Postal Authority Code
Light Source	LED
Image Sensor Type	CCD Linear
Scan Pattern	Single Pass
Scanning Distance	20.47" (519.94 mm)
Features	Beep Notification LED Vibration
Number of Keys	2
Cable Type Included	USB
Reading Angle (Skew)	65°
Reading Angle (Pitch)	50°
Reading Angle (Roll)	25°
Maximum Ambient Light	100000 lux
Drop Specification	5 ft (1.5 m) onto concrete
Minimum Element Resolution (Code 39)	5 mil (0.13 mm)
Maximum Element Resolution (Code 39)	39 mil (0.99 mm)

Memory

Standard Memory	96 KB
Flash Memory	1 MB

Processor & Chipset

Processor Speed	96 MHz

Network & Communication

Bluetooth	Yes

Interfaces/Ports

Host Interface	USB

Battery Information

Battery Chemistry	Lithium Polymer (Li-Polymer)
Battery Capacity	600 mAh
Maximum Battery Run Time	25 Hour

Environmental Conditions

Operating Temperature	32°F (0°C) to 122°F (50°C)
Storage Temperature	-4°F (-20°C) to -140°F (-95.6°C)
Humidity (Non-condensing)	20% to 85%

Physical Characteristics

Color Family	White
Product Color	White
Product Material	Acrylonitrile Butadiene Styrene (ABS)
Durability	Dust Resistant
Height	3.27" (83.06 mm)
Width	1.42" (36.07 mm)
Depth	0.85" (21.59 mm)
Weight (Approximate)	1.87 oz (53.013608 g)

Miscellaneous

Package Contents	OPN-4000n CCD Bluetooth Companion Scanner USB Cable Neck Strap
Ingress Protection (IP) Rating	IP42
Application/Usage	Retail Inventory Asset Tracking
Platform Supported	Android PC iOS
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
COO	US
Condition	No

Warranty

Limited Warranty	2 Year
