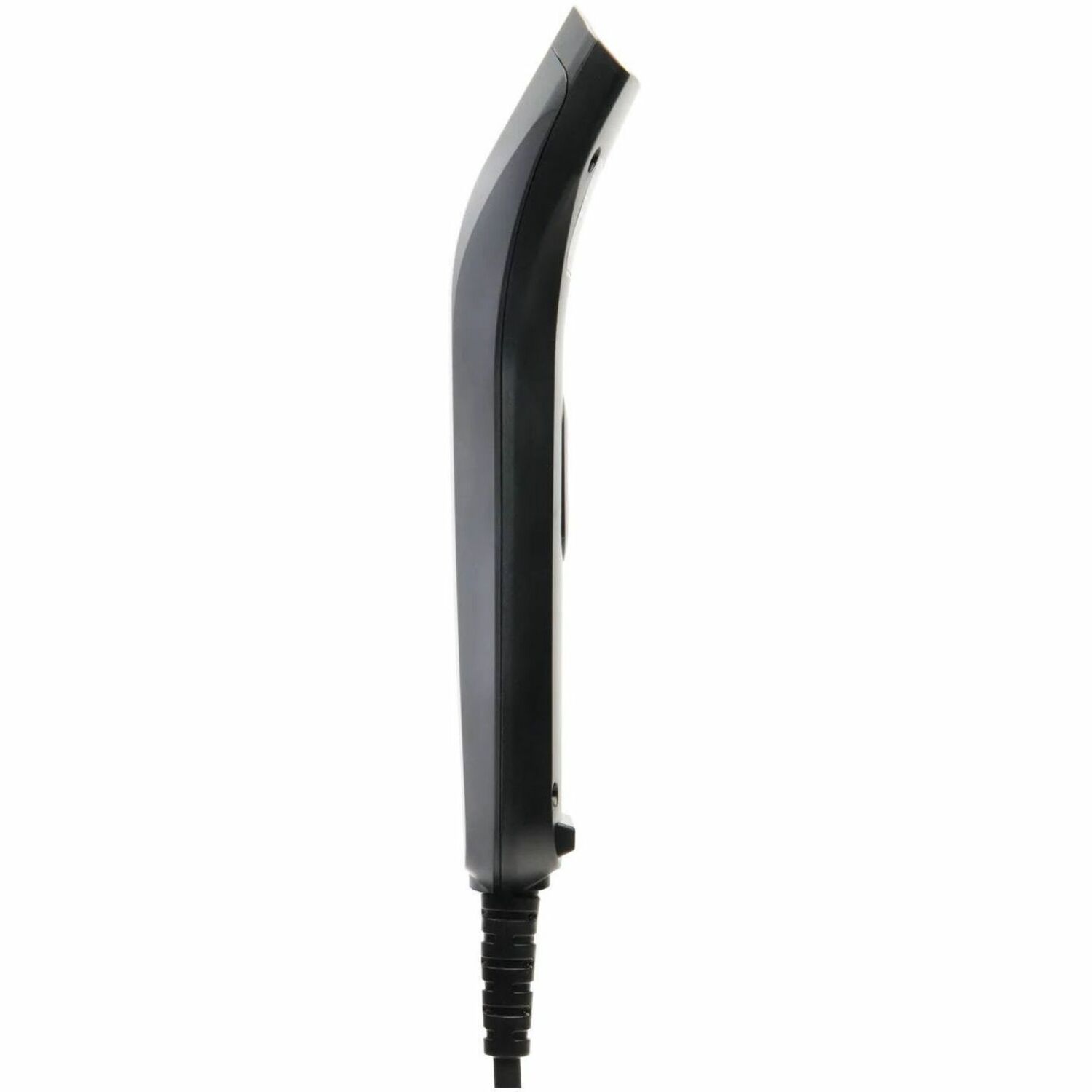

Opticon C-41S CCD Linear Imager
In Stock Availability
- All Locations: (25+)
- Mississuaga, ON (25+)
| Manufacturer | Opticon Sensors Europe |
| Manufacturer Part Number | C41SBU1-00 |
| Brand Name | Opticon |
| Product Model | C-41S |
| Product Name | C-41S CCD Linear Imager |
| Marketing Information | The C-41S is a fast and durable CCD handheld scanner with 300 scans per second. The scanner balances perfectly in your hand while scanning, due to the ergonomic design. If you are looking for a gorgeous handheld scanner for on your counter then you are at the right place; keep on reading. The C-41S is a durable CCD handheld scanner that scans at a speed of 300 scans per second. Due to the wide optical window, it is easier to scan all 1D barcodes. The ergonomic design ensures a perfect balance when the scanner rests comfortably in your hand. The barcode scanner looks good on the counter of any store of service desk, blending in with the design of the environment. The scanner is available with a USB interface and is easily programmable to suite your application. This scanner is really easy to use; the plug and scan experience make this scanner very suitable for first-time users as well as long time users. The white version is anti-microbial, making it perfect for the healthcare market. |
| Product Type | Barcode Scanner |
| Connectivity Technology | Cable |
| Scanning Capability | 1D |
| Barcode Symbology Supported | 1D:
Postal Code:
|
| Light Source | LED |
| Image Sensor Type | CCD |
| Scan Rate | 300 scan/s |
| Scan Mode | Trigger |
| Depth of Field | Depth of field at code 39:
|
| Scan Pattern | Linear |
| Scanning Distance | 23.62" (599.95 mm) |
| Features |
|
| Number of Keys | 1 |
| Cable Type Included | USB |
| Reading Angle (Skew) | 65° |
| Reading Angle (Pitch) | 50° |
| Maximum Ambient Light | 10000 lux |
| Drop Specification |
|
| Minimum Element Resolution (Code 39) | 5 mil (0.13 mm) |
| Maximum Element Resolution (Code 39) | 39 mil (0.99 mm) |
| Host Interface | USB |
| Power Supply Included | Yes |
| Operating Temperature | 32°F (0°C) to 122°F (50°C) |
| Storage Temperature | -4°F (-20°C) to 140°F (60°C) |
| Humidity (Non-condensing) | 5% to 95% |
| Form Factor | Handheld |
| Color Family | Black |
| Product Color | Black |
| Product Material | Acrylonitrile Butadiene Styrene (ABS) |
| Durability |
|
| Height | 1.33" (33.80 mm) |
| Width | 2.20" (55.90 mm) |
| Depth | 6.06" (154 mm) |
| Weight (Approximate) | 1.94 oz (55 g) |
| Package Contents |
|
| Ingress Protection (IP) Rating | IP42 |
| Application/Usage |
|
| Environmental Compliance |
|
| COO | TW |
| Condition | No |
| Limited Warranty | 2 Year |
