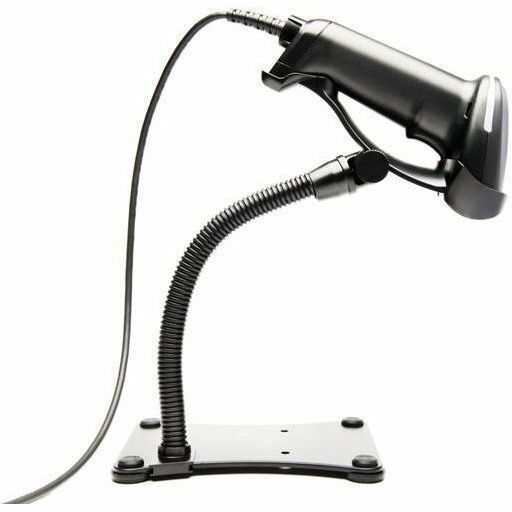

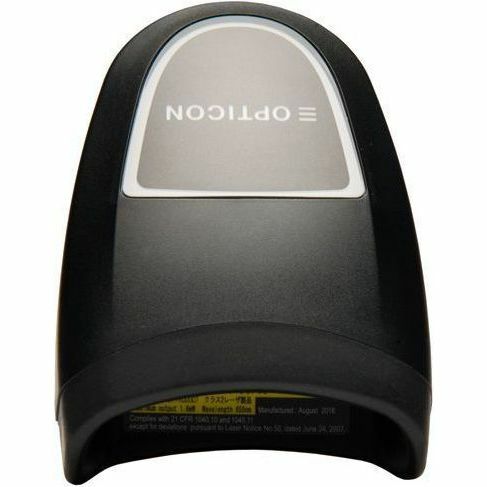

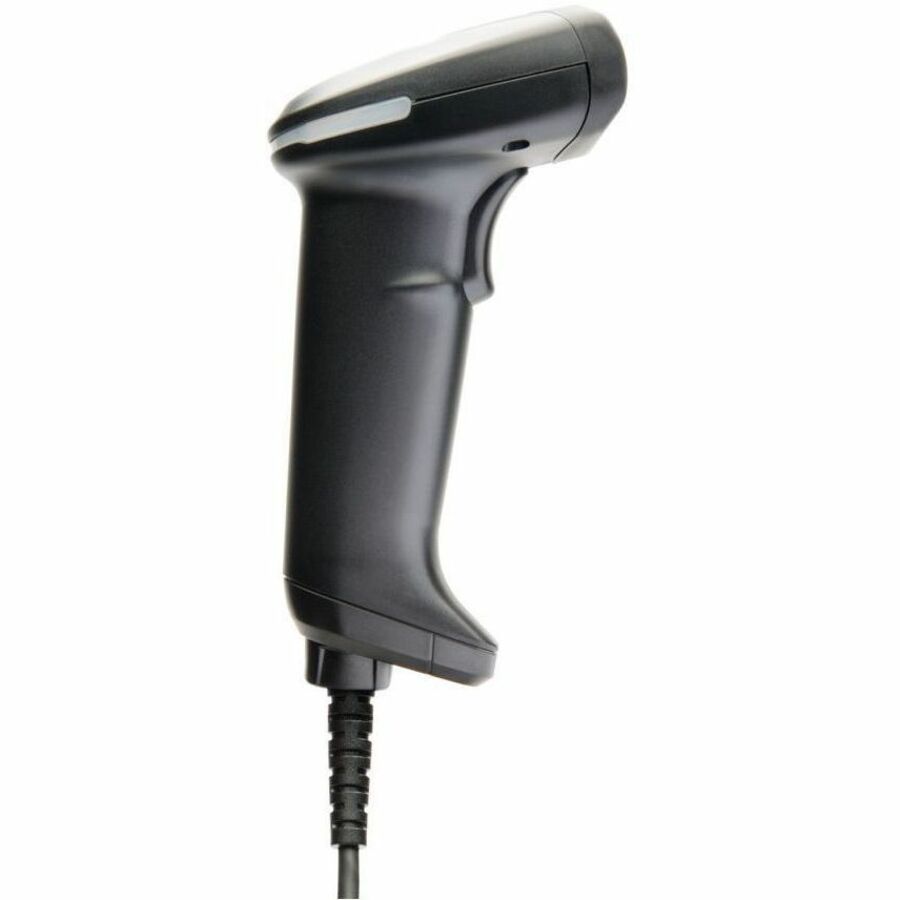

Opticon L-46R Laser Scanner

Cable Connectivity - 100 scan/s - 35.24" (895.10 mm) Scan Distance - 1D - Laser - Single Line - USB, Serial - White - Stand Included - IP42 - Retail, Warehouse, Distribution, Healthcare, Transportation, Logistics, Pharmacy

Part No. L46RWU1-01

by Opticon Sensors Europe

$105.99

Manufacturer Brochure

Specifications

General Information

Manufacturer	Opticon Sensors Europe
Manufacturer Part Number	L46RWU1-01
Brand Name	Opticon
Product Model	L-46R
Product Name	L-46R Laser Scanner
Marketing Information	The L-46R features next generation scanning technology along with the perfect combination of performance, durability and reliability. It automates a variety of processes and is designed and built for all day, everyday use.
Product Type	Barcode Scanner

Technical Information

Connectivity Technology	Cable
Scanning Capability	1D
Barcode Symbology Supported	1D: UPC-A UPC-E UPC-E1 UPC-A Add-on UPC-E Add-on EAN-13 EAN-8 EAN-13 Add-on/EAN8 Add-on JAN-8 JAN-13 Code 39 NW-7(Codabar) Industrial 2 of 5 Interleaved 2 of 5 Code 93 Code 128 GS1-128, MSI/Plessey Code 11 OCR-B GS1 DataBar GS1 DataBar Limited GS1 DataBar Expanded Composite GS1 DataBar Composite GS1-128 Composite EAN Composite UPC TELEPEN
Light Source	Laser
Scan Rate	100 scan/s
Scan Mode	Trigger
Depth of Field	Depth of field at code 39: 10 - 60 mm (0.127 mm) / 0.39 - 2.36 in (5 mil) 5 - 90 mm (0.15 mm) / 0.2 - 3.54 in (6 mil) 5 - 200 mm (0.25 mm) / 0.2 - 7.87 in (9.84 mil) 0 - 495 mm (0.5 mm) / 0 - 19.49 in (20 mil) 20 - 895 mm (1.0 mm) / 0.79 - 35.24 in (39 mil)
Scan Pattern	Single Line
Scanner Range	Standard Range
Scanning Distance	35.24" (895.10 mm)
Features	Notification LED Vibration Ergonomic Design Scan Button
Number of Keys	1
Stand Included	Yes
Reading Angle (Skew)	50°
Reading Angle (Pitch)	35°
Maximum Ambient Light	80000 lux
Drop Specification	1.8 m / 6 ft drop onto concrete surface
Minimum Element Resolution (Code 39)	5 mil (0.13 mm)
Maximum Element Resolution (Code 39)	39 mil (0.99 mm)
Image Sensor Resolution	640 x 480

Interfaces/Ports

Host Interface	USB Serial

Environmental Conditions

Operating Temperature	23°F (-5°C) to 122°F (50°C)
Storage Temperature	-22°F (-30°C) to 140°F (60°C)
Humidity (Non-condensing)	5% to 90%

Physical Characteristics

Form Factor	Handheld
Color Family	White
Product Color	White
Durability	Dust Resistant Water Resistant
Height	6.04" (153.42 mm)
Width	4.15" (105.41 mm)
Depth	2.36" (59.94 mm)
Weight (Approximate)	3.92 oz (111 g)

Miscellaneous

Package Contents	L-46R Laser Scanner Stand
Ingress Protection (IP) Rating	IP42
Application/Usage	Retail Warehouse Distribution Healthcare Transportation Logistics Pharmacy
Environmental Compliance	Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) Restriction of Hazardous Substances (RoHS) Waste Electrical and Electronic Equipment Directive (WEEE)
COO	TW
Condition	No

Warranty

Limited Warranty	2 Year
