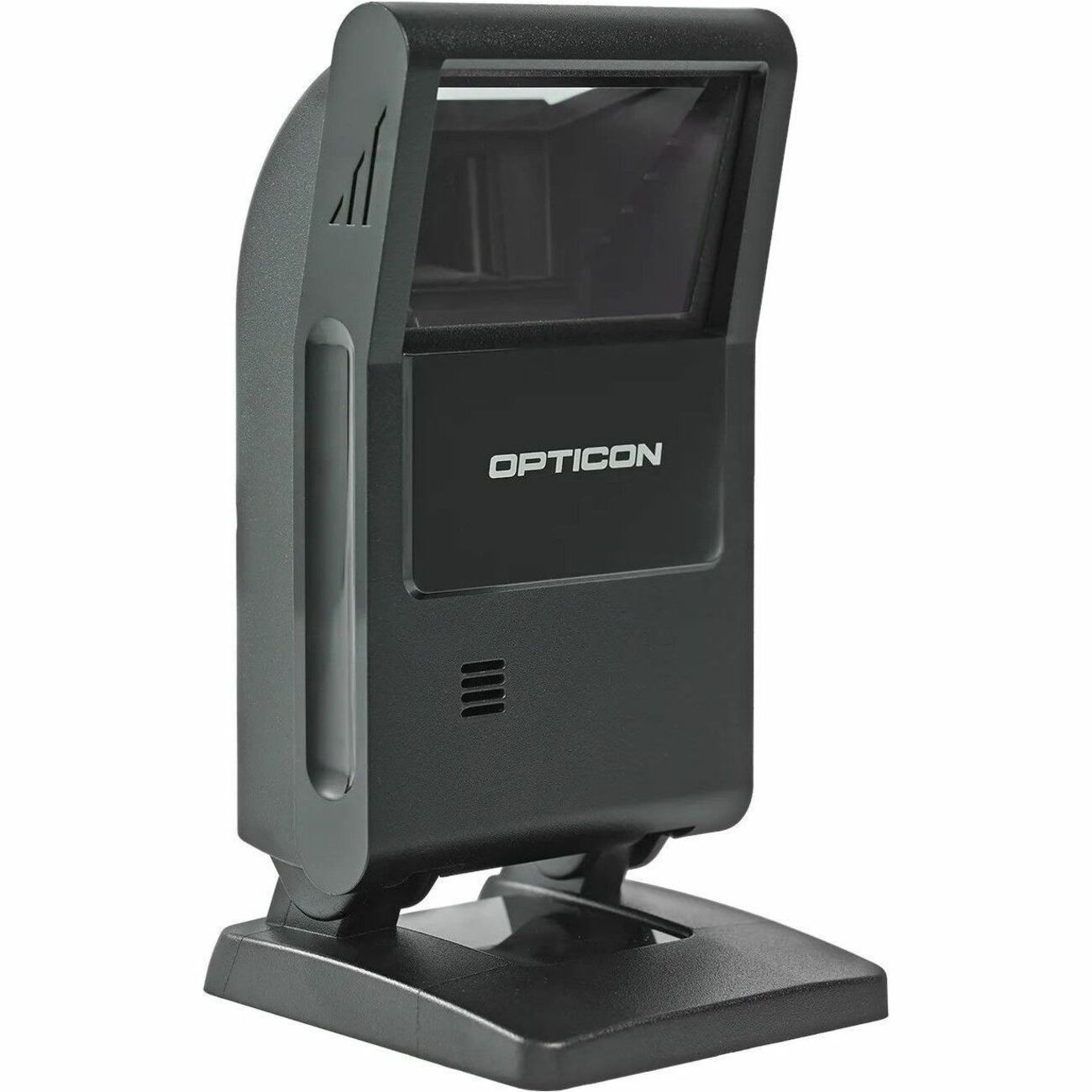

Opticon M-10 2D CMOS Imager
Cable Connectivity - 5.51" (139.95 mm) Scan Distance - 1D, 2D - LED - Imager - USB - Black - IP52 - USB
$282.99
On back-order, will ship once in-stock
- All Locations: (0+)
General Information
| Manufacturer | Opticon Sensors Europe |
| Manufacturer Part Number | M10BU1S-00 |
| Brand Name | Opticon |
| Product Model | M-10 |
| Product Name | M-10 2D CMOS Imager |
| Marketing Information | This omnidirectionial scanner features multiple scanning capabilities including the ability to scan any barcodes off a mobile phone LCD screen. The M-10's swivel stand makes it easy to tilt the scanner for best scanning orientation and the scanner can also operate as a handheld scanner |
| Product Type | Barcode Scanner |
Technical Information
| Connectivity Technology | Cable |
| Scanning Capability |
|
| Barcode Symbology Supported | Barcode (1D):
2D Code:
Postal code:
|
| Light Source | LED |
| Image Sensor Type | Imager |
| Scan Mode | Trigger |
| Scanning Distance | 5.51" (139.95 mm) |
| Features |
|
| Cable Type Included | USB |
| Field of View (Horizontal) | 41° |
| Field of View (Vertical) | 26° |
| Reading Angle (Skew) | 50° |
| Reading Angle (Pitch) | 50° |
| Reading Angle (Roll) | 360° |
| Image Formats |
|
| Maximum Ambient Light | 100000 lux |
| Drop Specification | 1.5 m / 5 ft drop onto concrete surface |
| Minimum Element Resolution (Code 39) | 5 mil (0.13 mm) |
| Maximum Element Resolution (Code 39) | 10 mil (0.25 mm) |
| Minimum Element Resolution (PDF417) | 6.70 mil (0.17 mm) |
| Maximum Element Resolution (PDF417) | 10 mil (0.25 mm) |
| Image Sensor Resolution | 752 x 480 |
Interfaces/Ports
| Host Interface | USB |
Environmental Conditions
| Operating Temperature | 32°F (0°C) to 104°F (40°C) |
| Storage Temperature | -40°F (-40°C) to 158°F (70°C) |
| Humidity (Non-condensing) | 25% to 90% |
Physical Characteristics
| Form Factor | Desktop |
| Color Family | Black |
| Product Color | Black |
| Durability | Dust Resistant |
| Height | 2.76" (70 mm) |
| Width | 2.83" (72 mm) |
| Depth | 5.47" (139 mm) |
| Weight (Approximate) | 8.82 oz (250 g) |
Miscellaneous
| Ingress Protection (IP) Rating | IP52 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| COO | US |
| Condition | No |
Warranty
| Limited Warranty | 2 Year |
