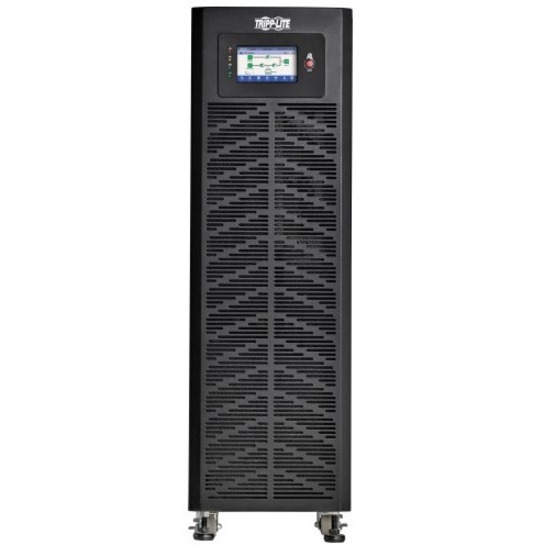

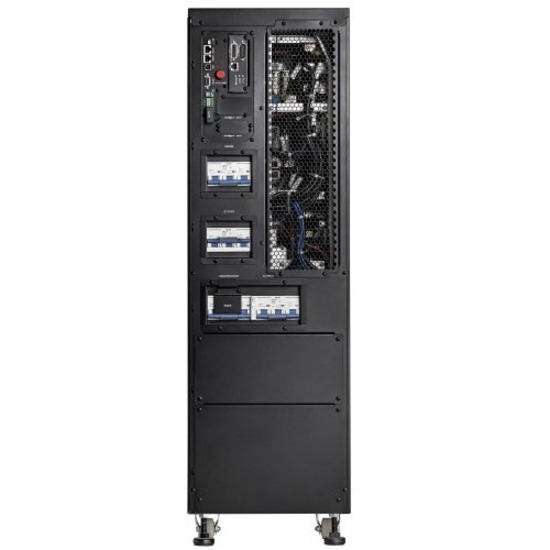

Tripp Lite series SmartOnline S3M30K 30kVA Tower UPS
On back-order, will ship once in-stock
- All Locations: (0+)
Manufacturer | Eaton Corporation |
Manufacturer Part Number | S3M30K |
Brand Name | Tripp Lite series |
Product Line | SmartOnline |
Product Series | S3M |
Product Model | S3M30K |
Product Name | SmartOnline S3M30K 30kVA Tower UPS |
Marketing Information | Battery Backup and VFI Operation Protect Critical Loads Best-in-Class Footprint for Easy Integration into Your Network Application Efficient Operation and Design Reduces Cost of Ownership External Batteries Supply Reliable Backup with Expandable Runtime Options Intuitive LCD Interface Delivers Important Performance Information at a Glance Remote Network Monitoring and Control Available 24 Hours a Day |
Product Type | Double Conversion Online UPS |
Plug/Connector Type | Hardwired |
Receptacle Type | Hard Wire (3-PH) |
Transfer Time | 0 ns |
Overload Protection | Yes |
EMI/RFI Noise Filter | Yes |
Phase | Three Phase |
Energy Saving | High efficiency economy mode operation; Schedulable daily hours of economy mode operation |
Application/Usage |
|
Load Capacity (VA) | 30 kVA |
Input Voltage |
|
Output Voltage |
|
Output Frequency | 60 Hz |
Waveform Type | Pure Sine Wave |
Network Management |
|
Alarm |
|
Status Indicators | Front Panel LCD Display:
LED Indicators:
|
Serial Port | Yes |
USB (HID Compliant) Port | Yes |
EPO Port | Yes |
DC System Voltage | 120 V DC |
Maximum Operating Temperature | 104°F (40°C) |
Maximum Operating Elevation | 3280 ft (999744 mm) |
Thermal Dissipation | 3737 BTU/h |
Form Factor | Tower |
Height | 39.37" (1000 mm) |
Width | 11.81" (299.97 mm) |
Depth | 31.50" (800.10 mm) |
Weight (Approximate) | 211.82 lb (96079.94 g) |
Package Contents |
|
Energy Star | Yes |
Country of Origin | China |
Environmentally Friendly | Yes |
Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
Condition | No |
UPC | 0037332247865 |
Limited Warranty | 2 Year |
