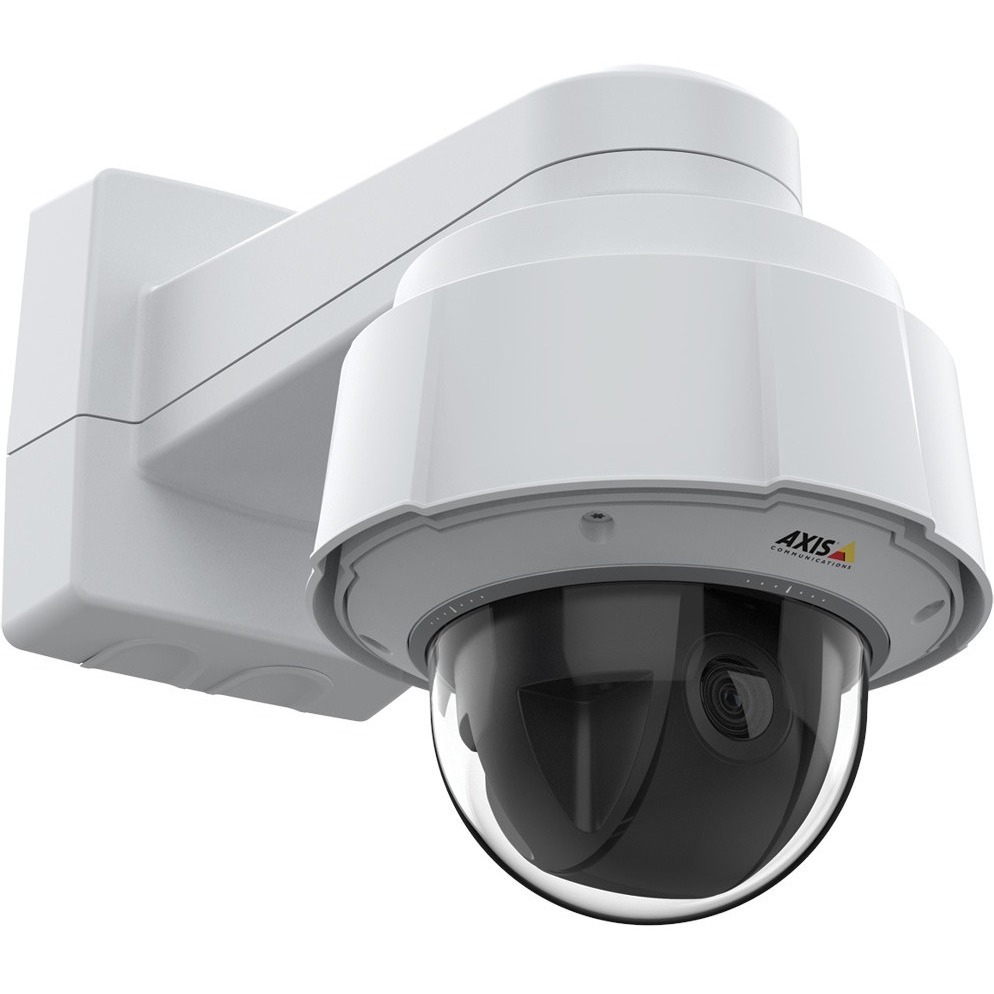

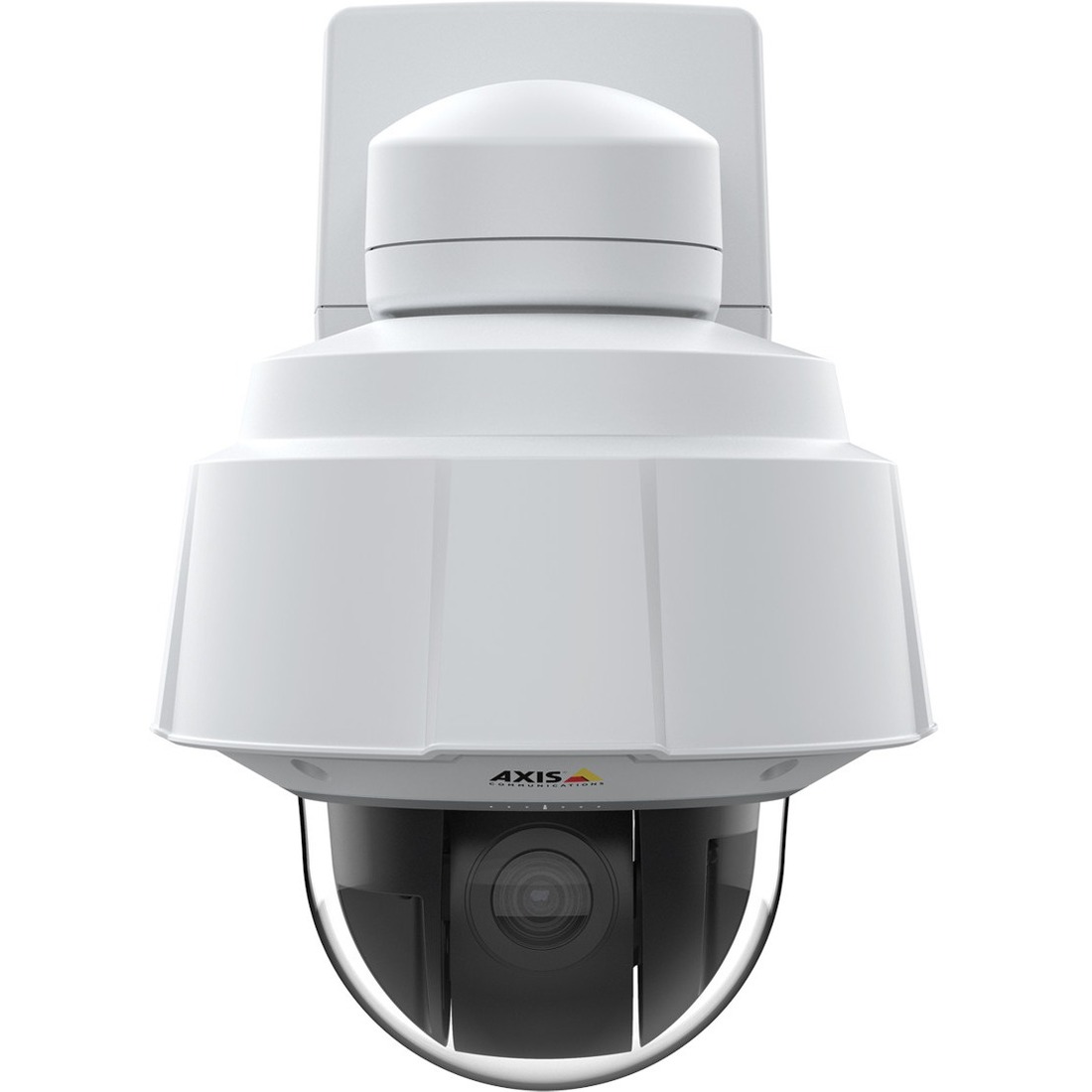

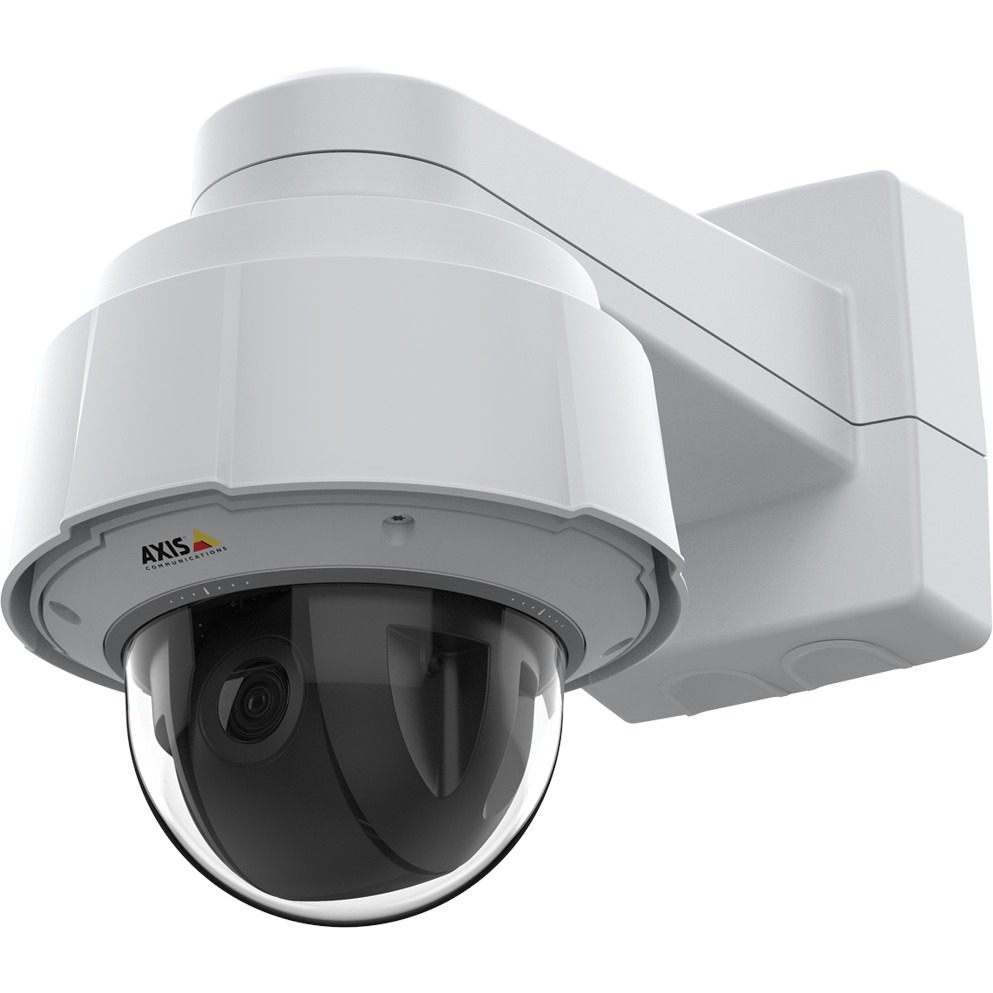

AXIS Q6078-E 8 Megapixel Outdoor 4K Network Camera - Color - Dome

Part No. 02148-004

by Axis Communications

AXIS Q6078-E 8 Megapixel Outdoor 4K Network Camera - Color - Dome

H.264 (MPEG-4 Part 10/AVC), H.265 (MPEG-H Part 2/HEVC), Motion JPEG, H.264, H.265, H.264 BP, H.264 (MP), H.264 HP, H.265 (MP), Zipstream, H.264B, ... - 3840 x 2160 - 4.4 mm (0.17")- 88.4 mm (3.48") Varifocal Lens - 20x Optical - 60 fps - RGB CMOS - Corner Mount, Bracket Mount, Ceiling Mount, Pole Mount, Parapet Mount, Wall Mount, Pendant Mount, Parapet Mount, Recessed Mount - IK10 - IP66, IP67 - Vandal Resistant, Dust Resistant, Rain Resistant, Snow Resistant, Impact Resistant

Part No. 02148-004

by Axis Communications

$5116.99
General Information
ManufacturerAxis Communications
Manufacturer Part Number02148-004
Brand NameAXIS
Product SeriesQ60
Product ModelQ6078-E
Product NameQ6078-E PTZ Camera
Marketing Information

This robust, high-performance PTZ camera offers UHD 4K with 20x optical zoom for outstanding video quality. It's ideal for demanding situations in wide, outdoor areas such as cities, airports, and critical infrastructure applications.

Great overviews and superior detail

Based on a powerful Axis chipset, AXIS Q6078-E offers UHD 4K resolution and 20x optical zoom for outstanding video quality. Ideal for wide-area coverage, it delivers great overviews, and you can zoom in for detailed views with the clearest, sharpest colors. Featuring Axis Zipstream technology with support for H.264 and H.265 it preserves all the important forensic details while significantly reducing bandwidth and storage requirements.

Whenever, wherever it's needed

This outdoor, vandal-resistant camera is IP66, NEMA 4X, and IK10-rated to protect against dust, rain, snow, and impacts. Arctic temperature control ensures startup from a deeply frozen state and operation in temperatures ranging from -40 °C to 50 °C (-40 °F to 122 °F). Autotracking 2 with click and track functionality and an orientation aid allows for active object tracking and quick orientation. Additionally, where privacy must be kept, privacy masking with mosaic lets you pixelate whole areas such as a neighboring property. Furthermore, AXIS Q6078-E features AXIS Object Analytics allowing you to detect and classify humans and vehicles, all tailored to your specific needs.

Designed with cybersecurity in mind

AXIS Q6078-E is packed with built-in cybersecurity features to prevent unauthorized access and safeguard your system. Signed firmware and secure boot guarantee that the firmware hasn't been compromised and ensures only authorized firmware is installed. And if needed, secure boot guarantees the camera is completely free of malware after a factory default. For added peace of mind, it includes a Trusted Platform Module (TPM) that is FIPS 140-2 level 2 certified. This module ensures secure storage of all cryptographic keys and certificates even in the event of a security breach.

Product TypeNetwork Camera
Technical Information
Recording Formats4K
HD RecordingYes
Display & Graphics
Image Sensor TypeRGB CMOS
Color SupportedColor
Field of View68.3°-4.2° - 42.1°-2.34°
Effective Camera Resolution8 Megapixel
Video
Video Formats
  • H.264 (MPEG-4 Part 10/AVC)
  • H.265 (MPEG-H Part 2/HEVC)
  • Motion JPEG
  • H.264
  • H.265
  • H.264 BP
  • H.264 (MP)
  • H.264 HP
  • H.265 (MP)
  • Zipstream
  • H.264B
  • H.264H
  • H.264M
Maximum Video Resolution3840 x 2160
Maximum Frame Rate60 fps
Lens
Lens TypeVarifocal
Minimum Focal Length4.4 mm (0.17")
Maximum Focal Length88.4 mm (3.48")
Lens IncludedYes
Minimum Aperturef/3.8
Maximum Aperturef/2
Optical Zoom20x
Exposure
Shortest Shutter Speed1/10000 Second
Longest Shutter Speed1 Second
Network & Communication
Connectivity TechnologyWired
Remote ManagementYes
Storage
Storage TypeMemory Card
Interfaces/Ports
Network (RJ-45)Yes
Power Description
Input Voltage240 V AC
Power Source TypePoE
Physical Characteristics
Mount Type
  • Corner Mount
  • Bracket Mount
  • Ceiling Mount
  • Pole Mount
  • Parapet Mount
  • Wall Mount
  • Pendant Mount
  • Recessed Mount
Form FactorDome
Durability
  • Vandal Resistant
  • Dust Resistant
  • Rain Resistant
  • Snow Resistant
  • Impact Resistant
Color FamilyWhite
Product ColorWhite
Height10.60" (269.24 mm)
Width9.13" (232 mm)
Diameter9.13" (232 mm)
Weight (Approximate)8.27 lb (3750 g)
Environmental Conditions
Minimum Operating Temperature-58°F (-50°C)
Maximum Operating Temperature122°F (50°C)
Maximum Operating Humidity100%
Miscellaneous
Features
  • PTZ
  • Day/Night
  • Wide Dynamic Range
  • White Balance
  • Privacy Masking
  • Electronic Image Stabilization
  • Defog
  • Back Light Compensation (BLC)
  • Password Protection
  • HTTPS Encryption
  • Cross Line Detection
  • Motion Detection
Indoor/OutdoorOutdoor
Package Contents
  • Q6078-E PTZ Camera
  • Axis High PoE 60 W SFP Midspan 1-Port
  • RJ45 Push - Pull Connector (IP66)
  • Sunshield
  • Installation Guide
  • Windows Decoder 1-User License
Impact Protection RatingIK10
Ingress Protection Rating
  • IP66
  • IP67
Country of OriginMexico
TAA CompliantYes
NDAA CompliantYes
ConditionNo
UPC7331021073722
Warranty
Limited Warranty5 Year
