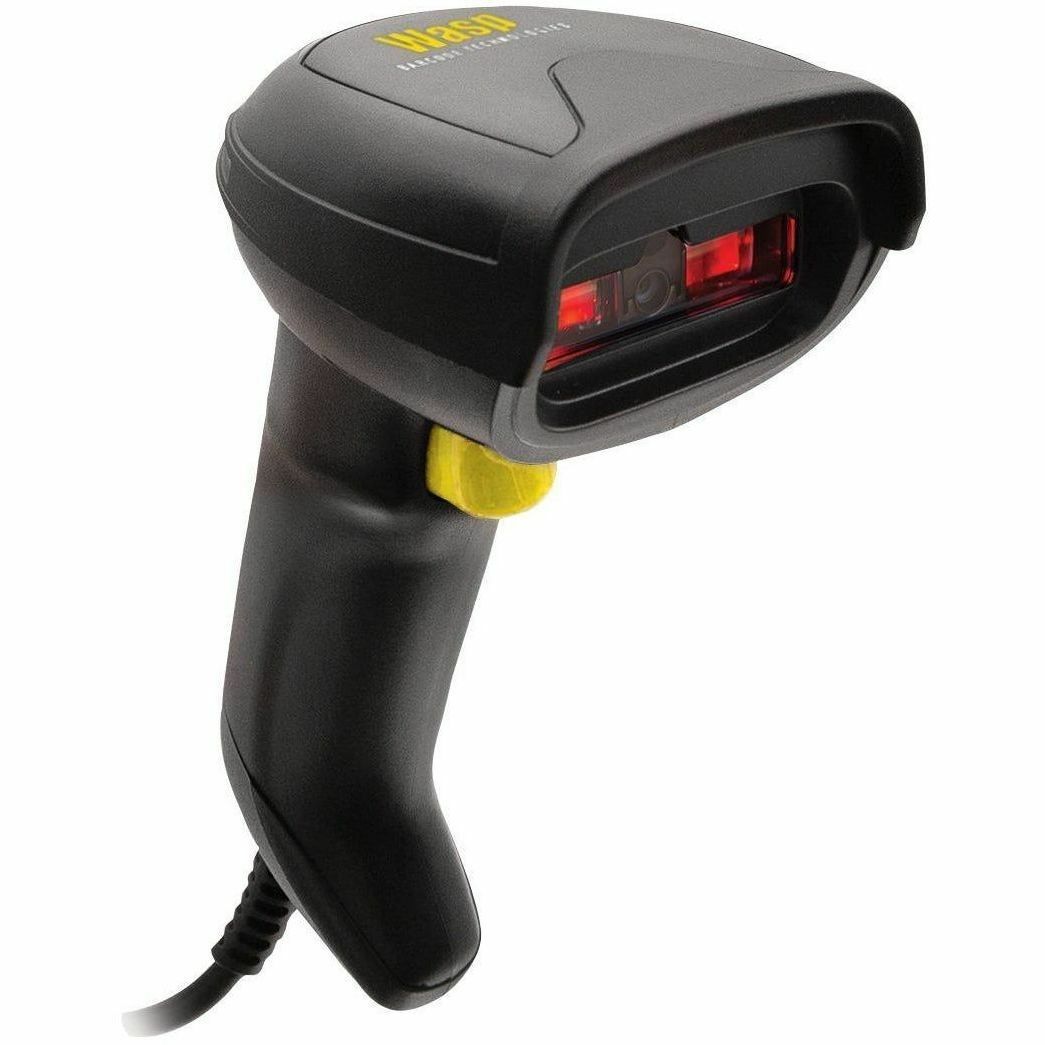

Wasp WDI9600 USB Laser Barcode Scanner
Cable Connectivity - 400 scan/s - 57.87" (1470 mm) Scan Distance - 1D - Laser - CCD - Linear - USB - Black, Yellow - IP52 - USB - Retail, Light/Clean Manufacturing, Healthcare, Laboratory, Pharmacy, Ticketing, Entertainment, Commercial Service
$230.99
In Stock Availability
- All Locations: (130+)
- Mississuaga, ON (125+)
- Montreal, QC (5+)
General Information
| Manufacturer | Wasp Barcode Technologies |
| Manufacturer Part Number | 633809009013 |
| Brand Name | Wasp |
| Product Model | WDI9600 |
| Product Name | WDI9600 USB Laser Barcode Scanner |
| Marketing Information | Wasp WDI9600 USB Laser Barcode Scanner The new Wasp WDI9600 USB Laser barcode scanner is a multipurpose linear imager designed to provide best-in-class reading performance with an exceptional depth of field. The WDI9600s soft line viewfinder technology enables the operator to effortlessly read both high density and low-resolution barcodes, as well as hard-to-read, poor quality, and damaged barcodes without human intervention. The viewfinder technology enables operators to maximize productivity while reducing accidental reads in a multiple barcode environment. Adding to the WDI9600s versatility, barcodes can be scanned directly from mobile device screens or through plexiglass panels. Ease of use is a hallmark of the WDI9600 which includes unique motionix technology that provides operators the flexibility to easily transition between handheld and stand-mounted operations. The scanner easily reads fast moving barcodes, including barcodes at awkward angles or in poorly lit or very bright lighting. The reader features a disinfectant-ready enclosure which can withstand harsh chemical cleaning. For added convenience, the WDI9600 can directly interface with USB-based solutions. |
| Product Type | Barcode Scanner Kit |
Technical Information
| Connectivity Technology | Cable |
| Scanning Capability | 1D |
| Barcode Symbology Supported | 1D/Linear Codes: Auto discriminates all standard 1D codes including GS1 DataBar™ linear codes |
| Light Source | Laser |
| Image Sensor Type | CCD |
| Scan Rate | 400 scan/s |
| Scan Mode | Trigger |
| Scan Pattern | Linear |
| Scanning Distance | 57.87" (1470 mm) |
| Features |
|
| Cable Type Included | USB |
| Reading Angle (Skew) | 65° |
| Reading Angle (Pitch) | 65° |
| Reading Angle (Roll) | 45° |
| Maximum Ambient Light | 130000 lux |
| Drop Specification | Withstands repeated drops from 6.0 ft (1.8 m) onto a concrete surface. |
| Minimum Print Contrast | 15% |
| Minimum Element Resolution (Code 39) | 5 mil (0.13 mm) |
| Maximum Element Resolution (Code 39) | 20 mil (0.51 mm) |
| Illumination Type | LED |
Interfaces/Ports
| Host Interface | USB |
Power Description
| Input Current | 350 mA |
| Standby Current | 60 mA |
Environmental Conditions
| Operating Temperature | 32°F (0°C) to 122°F (50°C) |
| Storage Temperature | -40°F (-40°C) to 158°F (70°C) |
| Humidity (Non-condensing) | 0% to 95% |
Physical Characteristics
| Form Factor | Handheld |
| Color Family | Dual Color |
| Product Color |
|
| Durability | Chemical Resistant |
| Width | 6.50" (165.10 mm) |
| Depth | 2.70" (68.58 mm) |
| Length | 4.30" (109.22 mm) |
| Weight (Approximate) | 5.75 oz (163.01 g) |
Miscellaneous
| Package Contents |
|
| Ingress Protection (IP) Rating | IP52 |
| Application/Usage |
|
| Platform Supported | Smartphone |
| Environmental Compliance |
|
| COO | US |
| Condition | No |
Warranty
| Limited Warranty | 2 Year |
