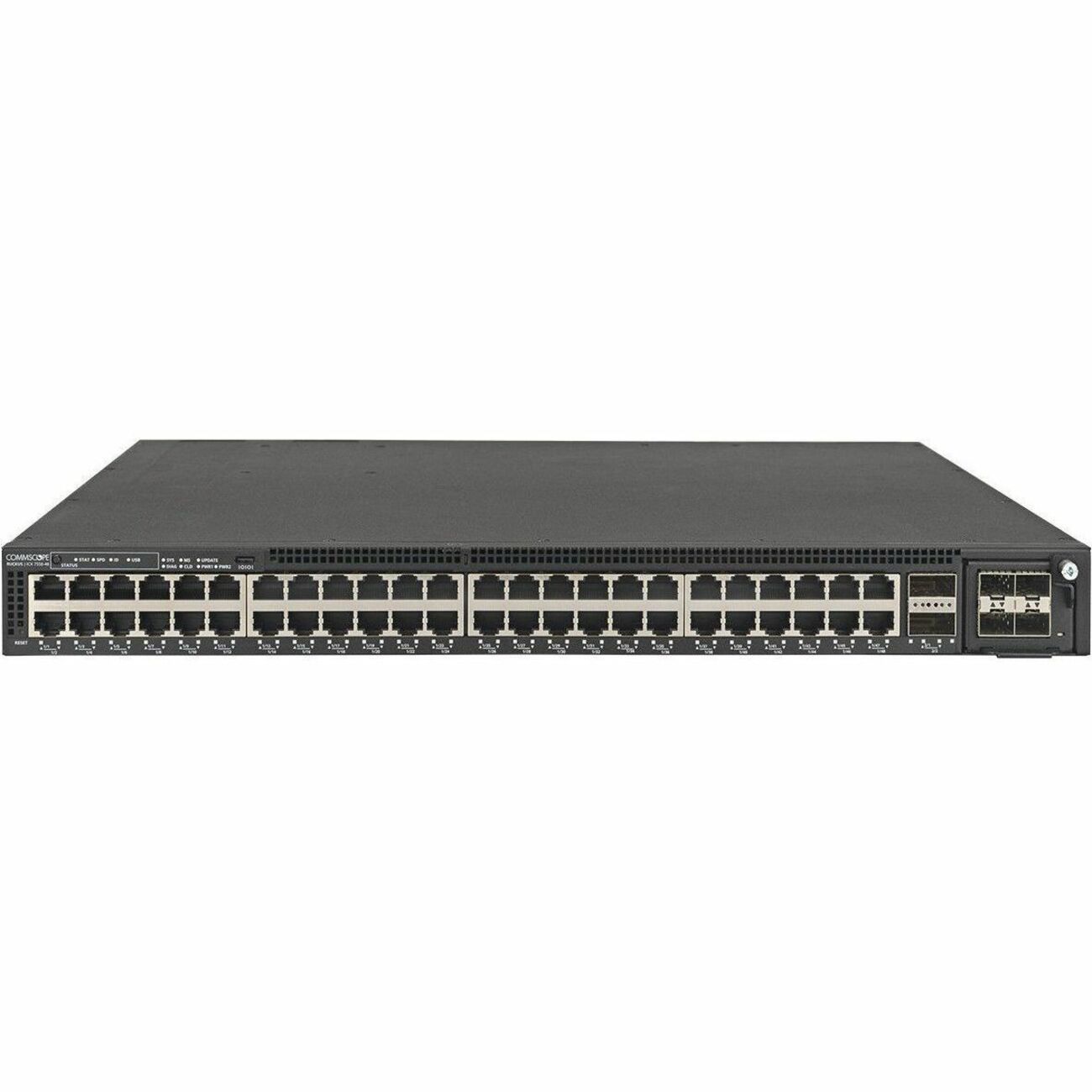

RUCKUS ICX 7550 Mid-range Enterprise-class Stackable Access/aggregation Switch
This Product is currently not in offering
On back-order, will ship once in-stock
| Manufacturer | CommScope, Inc |
| Manufacturer Part Number | ICX7550-48F-E2-R3 |
| Brand Name | RUCKUS |
| Product Series | ICX 7550 |
| Product Model | ICX7550-48F |
| Product Name | ICX 7550 Mid-range Enterprise-class Stackable Access/aggregation Switch |
| Marketing Information | Enterprise stackable switch delivers gigabit, multigigabit and fiber connectivity, to support next generation wireless access The CommScope RUCKUS® ICX 7550 switch delivers the premium performance and scalability required for Wi-Fi 6 deployments and beyond with up to 48 ports of multigigabit connectivity and full 90 watts of 802.3bt PoE power per port with perpetual and fast-boot PoE support. It offers market-leading stacking density with up to 12 switches (up to 576 gigabit, multigigabit or fiber ports) per stack and combines chassis-level performance with "pay as you grow" scalability of a stackable solution. The mid-market stackable switch is one of the first in its class to offer 100 GbE uplinks, enabling enterprises to dramatically increase their network capacity while using their existing optical wire infrastructure. Benefits Maximum flexibility with gigabit/multigabit access and 1G/10G aggregation covers a broad range of deployment scenarios Optimized for Wi-Fi 6 deployments and beyond
Power next generation PoE devices
40 GbE and 100 GbE uplinks/stacking for maximum performance and future-proofing
Advanced L3 routing delivers design flexibility
Security and data privacy
Broad range of unified management options for maximum flexibility
Redundant, load-sharing power supplies enhance availability The RUCKUS® ICX® 7550 series of mid-range stackable switches are purpose-built to provide wired connectivity at the edge of the network for the latest generation Wi-Fi 6 Access-Points. With high density multigigabit Ethernet ports and the latest 802.11bt 90W PoE power, the ICX 7550 delivers the performance, flexibility, and scalability required for the most demanding campus deployment scenarios. |
| Product Type | Ethernet Switch |
| Data Link Protocols |
|
| Features |
|
| Uplink Port | Yes |
| Modular | Yes |
| Stack Port | Yes |
| Port/Expansion Slot Details |
|
| Media Type Supported | Optical Fiber |
| Ethernet Technology |
|
| Network Technology |
|
| Total Number of Expansion Slots | 50 |
| Expansion Slot Type |
|
| Number of SFP Slots | 36 |
| Number of SFP+ Slots | 12 |
| Layer Supported | 4 |
| Networking Standards |
|
| Manageable | Yes |
| Input Voltage |
|
| Power Source | Power Supply |
| Redundant Power Supply Supported | Yes |
| Number of Power Supplies Supported | 2 |
| Power Consumption | 81.30 W |
| Plug/Connector Type | C14 |
| Form Factor | Rack-mountable |
| Height | 1.73" (44 mm) |
| Width | 17.32" (440 mm) |
| Depth | 16" (406.40 mm) |
| Weight (Approximate) | 14.15 lb (6420 g) |
| Package Contents |
|
| Environmental Compliance |
|
| Limited Warranty | Lifetime |
